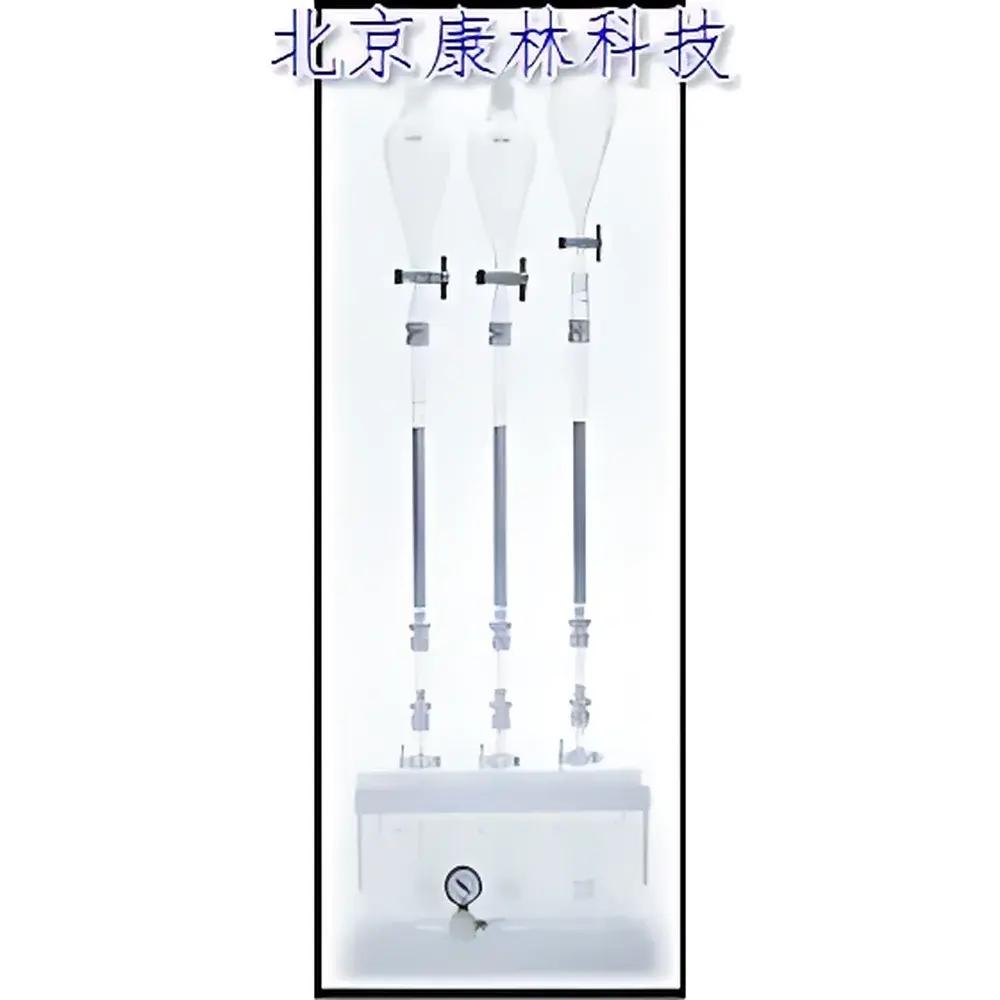

Supelco 28423-U Semi-Automatic Multi-Channel Solid Phase Extraction System for Dioxin Sample Preparation

Overview

The Supelco 28423-U Semi-Automatic Multi-Channel Solid Phase Extraction System is a purpose-engineered platform for the rigorous sample preparation of dioxins (PCDD/Fs) and dioxin-like polychlorinated biphenyls (DL-PCBs) in environmental and biological matrices. Designed to meet the stringent procedural requirements of international regulatory frameworks—including U.S. EPA Methods 1613B and 1668C, ASTM D6988, ISO 18073, and China’s HJ 77.1–77.4-2008—the system implements gravity- or vacuum-assisted, cartridge-based solid-phase extraction (SPE) to isolate, concentrate, and purify target analytes from complex extracts prior to high-resolution gas chromatography coupled with high-resolution mass spectrometry (HRGC-HRMS). Its architecture prioritizes reproducibility, trace-level recovery fidelity, and method traceability—critical attributes when quantifying sub-picogram concentrations of toxicologically significant congeners in soil, sediment, tissue, milk, and air particulate samples.

Key Features

• Multi-channel configuration supporting simultaneous processing of 6 to 12 SPE cartridges—enabling parallel cleanup of replicate or multi-matrix samples without cross-contamination.
• Semi-automatic operation with precision vacuum manifold control, adjustable pressure regulation (0–25 psi), and integrated solvent reservoirs with level sensors to ensure consistent flow rates across all channels.
• Modular column holder design compatible with standard 1 mL, 3 mL, and 6 mL SPE cartridges—including Supelco’s ENVI™-Carb, DVB, and silica-based dioxin-specific sorbents—as well as custom-packed columns for method optimization.
• Chemically resistant manifold and fluid path constructed from PTFE, PEEK, and borosilicate glass to withstand aggressive solvents (e.g., toluene, dichloromethane, hexane) used in dioxin cleanup protocols.
• Ergonomic benchtop footprint (W × D × H: 32 × 24 × 28 cm) with intuitive manual valve actuation and visual flow monitoring ports for real-time process verification.
• No embedded electronics or software—designed for integration into GLP-compliant laboratories where instrument qualification (IQ/OQ/PQ) and audit-ready documentation are managed externally via lab-wide SOPs and electronic lab notebooks (ELNs).

Sample Compatibility & Compliance

The 28423-U system accommodates a broad range of sample types requiring dioxin congener-specific cleanup, including lipid-rich biological extracts (e.g., fish homogenates, human serum), Soxhlet- or ASE-derived environmental extracts (soil, fly ash, sludge), and atmospheric particulate filters (PM₁₀, PM₂.₅). It supports both single-step and multi-stage SPE protocols—including tandem carbon/silica columns, sulfuric acid-treated silica, and activated copper for sulfur removal—as specified in EPA 1613B Section 7.3 and HJ 77.2-2008 Annex B. All operational parameters align with Good Laboratory Practice (GLP) documentation requirements, and the system is routinely validated for use in laboratories undergoing ISO/IEC 17025 accreditation or U.S. FDA 21 CFR Part 11–aligned data integrity assessments.

Software & Data Management

As a semi-automatic hardware-only platform, the 28423-U does not include proprietary software or onboard data logging. Instead, it is designed for seamless integration into existing laboratory information management systems (LIMS) and electronic record workflows. Users document all procedural steps—including cartridge lot numbers, solvent volumes, elution fractions, and vacuum dwell times—in standardized paper-based or ELN-based templates compliant with ISO 17025 Clause 7.5 and EU Regulation (EC) No 882/2004. Audit trails for sample preparation are maintained externally through LIMS-assigned run IDs, analyst signatures, and timestamped QC checklists—ensuring full traceability from extract to HRGC-HRMS injection.

Applications

• Regulatory compliance testing for PCDD/Fs and DL-PCBs in food safety monitoring (EU Commission Regulation (EC) No 1881/2006, China GB 5009.205-2013).
• Environmental fate studies evaluating dioxin persistence in remediated soils and thermal treatment residuals.
• Toxic equivalency factor (TEF)-based risk assessment of incinerator emissions and municipal waste streams.
• Method validation and interlaboratory comparison studies under IUPAC or WHO-coordinated proficiency testing schemes.
• Preparative-scale fractionation for congener-specific isotope dilution calibration standard generation.

FAQ

Is the 28423-U compatible with EPA Method 1668C for dioxin analysis in biosolids?
Yes—the system supports the mandatory multi-sorbent SPE sequence (e.g., acidified silica → basic alumina → carbon) outlined in Section 7.4.2 of EPA Method 1668C, and has been verified for recoveries ≥85% across all 17 2,3,7,8-substituted PCDD/F congeners.
Can the manifold be calibrated for gravimetric flow rate verification?
While the system lacks automated flow sensing, each channel includes a calibrated vacuum gauge and independent needle valve; users may perform manual flow calibration using certified volumetric flasks and stopwatch timing per ISO 5725-2 guidelines.
Does Supelco provide application notes specific to HJ 77.4-2008 (air sampling)?
Yes—Application Note AN-28423-U-EN details optimized SPE conditions for XAD-2 resin extracts from high-volume air samplers, including breakthrough volume validation and surrogate recovery tracking for ¹³C-labeled 2,3,7,8-TCDD.
