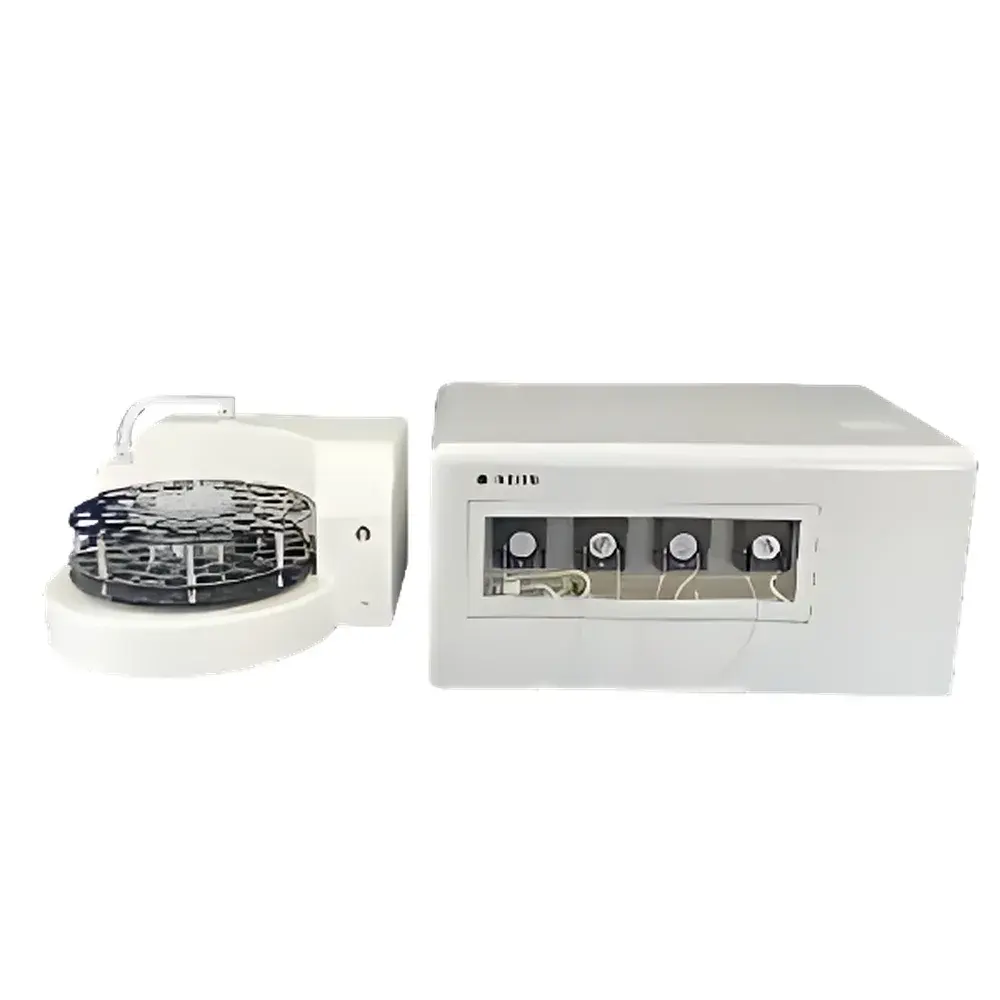

Synpec GMA3660 Gas Phase Molecular Absorption Spectrometer

Overview

The Synpec GMA3660 Gas Phase Molecular Absorption Spectrometer is an analytical instrument engineered for the quantitative determination of nitrogen- and sulfur-containing species—including ammonia nitrogen (NH₃-N), nitrate nitrogen (NO₃⁻-N), nitrite nitrogen (NO₂⁻-N), total nitrogen (TN), Kjeldahl nitrogen, and sulfide (S²⁻)—in aqueous environmental and industrial matrices. It operates on the principle of gas-phase molecular absorption spectroscopy: target analytes are chemically converted into volatile molecular species (e.g., NO, NO₂, NH₃, or H₂S) under controlled reaction conditions, swept into a dedicated optical cell, and quantified via their characteristic ultraviolet–visible absorption bands. This methodology eliminates spectral interferences common in direct liquid-phase spectrometry and delivers high selectivity, low detection limits, and robust matrix tolerance—particularly critical for complex samples such as wastewater, drinking water, soil extracts, and biological digests. The GMA3660 is designed to meet stringent regulatory requirements across global environmental laboratories, including compliance with ISO/IEC 17025 quality management systems and alignment with U.S. EPA Method 353.2 and ASTM D5179 for nitrogen speciation.

Key Features

• Modular dual-light-source architecture: Standard deuterium lamp for broadband UV continuum emission (190–400 nm); optional mercury hollow-cathode lamp enables trace-level Hg determination per HJ 694-2014.
• Integrated flow injection analysis (FIA) platform with fully automated sample introduction, dilution, reagent addition, and gas–liquid separation—minimizing manual intervention and carryover risk.
• Dedicated total nitrogen module featuring on-line UV/persulfate digestion coupled with precision dilution control, eliminating offline digestion steps and improving reproducibility (RSD < 2.5% at 0.5 mg/L TN).
• Ammonia-nitrogen oxidation system using sodium hypochlorite–sodium salicylate–sodium nitroprusside chemistry, performed entirely within the instrument’s heated reaction manifold without external reagent handling.
• Cold trap + auto-dehydration unit maintains consistent vapor-phase composition by removing water condensate prior to optical detection—critical for signal stability during extended runs.
• Hermetically sealed reaction–separation cell with temperature-controlled separation (TCS) ensures stoichiometric conversion efficiency and prevents analyte loss or cross-contamination between injections.
• Real-time electronic pressure monitoring with audible/visual alarm thresholds safeguards system integrity during gas generation and transport phases.

Sample Compatibility & Compliance

The GMA3660 accepts liquid samples ranging from clarified surface water and potable water to undiluted municipal wastewater, digestates, and acid-extracted soil leachates. Its robust sample introduction system accommodates suspended solids up to 50 mg/L without clogging, supported by integrated sonication-assisted homogenization. All measurement protocols adhere to Chinese national standards GB/T 42027-2022 (General Requirements for Gas Phase Molecular Absorption Spectrometers), HJ 195-2023 (Determination of Ammonia Nitrogen), HJ 200-2023 (Determination of Sulfide), and HJ 199-2023 (Determination of Total Nitrogen), ensuring audit-ready data for provincial and national environmental monitoring centers. Instrument validation includes linearity verification (r² ≥ 0.999 over 0.01–10 mg/L), spike recovery testing (85–115%), and method detection limit (MDL) confirmation per EPA Guidance for Determining LOD/LOQ.

Software & Data Management

The GMA3660 is operated via Synpec’s proprietary SpectraLink v4.2 software suite, compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. The interface supports multi-user role-based access control (administrator, analyst, reviewer), full audit trail logging (including parameter changes, calibration events, and result modifications), and automatic metadata embedding (sample ID, operator, timestamp, instrument configuration). Raw absorbance spectra, kinetic reaction profiles, and calibration curves are stored in vendor-neutral .csv and .xml formats. Data export modules integrate with LIMS platforms via ODBC and HL7 protocols. Software validation documentation—including IQ/OQ/PQ test scripts and traceability matrices—is supplied with each system.

Applications

The GMA3660 serves as a primary nitrogen speciation tool in accredited environmental testing laboratories, municipal water treatment plants, and industrial effluent monitoring stations. It supports routine compliance reporting under China’s “Water Pollution Prevention and Control Action Plan” and EU Water Framework Directive Annex V analytical requirements. In research settings, it enables kinetic studies of nitrification/denitrification pathways, evaluation of advanced oxidation process (AOP) efficiency for nitrogen removal, and method development for emerging contaminants (e.g., nitrosamines precursors). Additional application domains include fertilizer quality control (ammoniacal nitrogen content), aquaculture pond management (NH₃ toxicity assessment), and pharmaceutical wastewater characterization (residual nitrate from synthesis).

FAQ

What regulatory standards does the GMA3660 support out-of-the-box?
The instrument is pre-configured for GB/T 42027-2022, HJ 195-2023, HJ 200-2023, HJ 199-2023, and HJ/T 197-2005. Custom method templates can be loaded for ASTM, ISO, or EPA-compliant workflows.
Is mercury analysis included in the base configuration?
No. Mercury determination requires optional installation of the Hg hollow-cathode lamp and associated wavelength calibration routines; this upgrade is validated per HJ 694-2014.
How is calibration verified during routine operation?
Calibration verification standards (CVS) are run every 12 hours or after every 20 samples; drift correction is applied automatically if response deviates >5% from initial calibration curve.
Can the GMA3660 interface with existing laboratory information management systems (LIMS)?
Yes—via standardized ODBC drivers and configurable HL7 message mapping; Synpec provides LIMS integration support documentation and on-site configuration assistance.
What maintenance intervals are recommended for optimal performance?
Daily: rinse lines and purge gas pathways; weekly: inspect cold trap condensate volume and replace desiccant; quarterly: verify lamp intensity stability and CCD pixel uniformity; annually: full optical alignment and pressure sensor recalibration.
