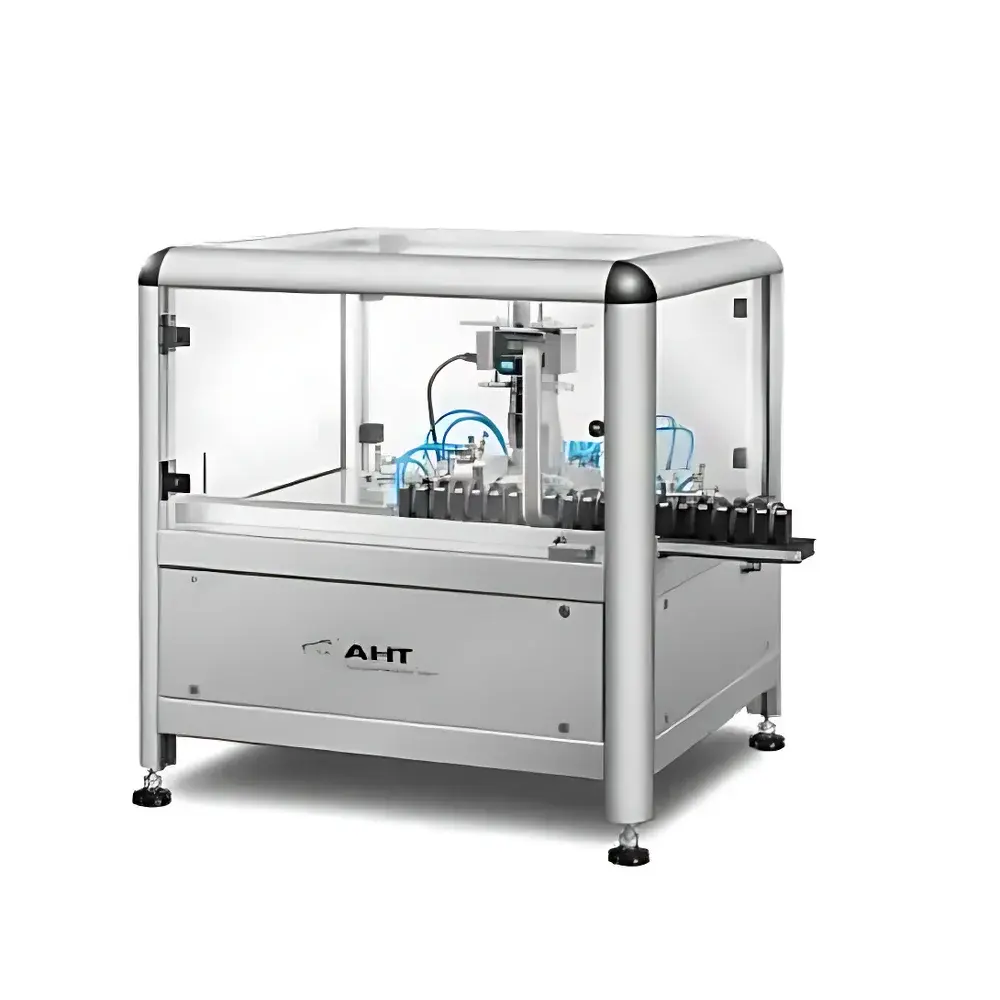

TA Instruments AHT Automated Hardness Tester
| Brand | TA Instruments |
|---|---|
| Origin | Germany |
| Model | AHT |
| Application | Continuous Shore A Hardness Testing of Vulcanized Rubber |
| Sample Capacity | 20-position (upgradable to 30) automated sample carousel |
| Control | Fully software-driven test setup, data acquisition, and pass/fail evaluation |
| Compliance | ASTM D2240, ISO 7619-1, DIN 53505 |
Overview
The TA Instruments AHT Automated Hardness Tester is an engineered solution for high-throughput, standardized Shore A hardness measurement of vulcanized rubber and elastomeric materials. Based on the principle of indentation depth measurement under a defined spring-loaded indenter force, the system conforms rigorously to the mechanical metrology framework specified in ASTM D2240, ISO 7619-1, and DIN 53505. Unlike manual durometers subject to operator variability, the AHT eliminates human intervention through precise electromechanical actuation, repeatable dwell time control (typically 1–3 s), and calibrated force application (0.822 N ± 0.02 N for Shore A). The instrument delivers traceable, reproducible readings by maintaining constant environmental interaction parameters—including indenter geometry (0.79 mm diameter spherical tip), loading rate, and surface contact verification—ensuring inter-laboratory comparability and long-term measurement stability.
Key Features
- Fully automated indentation cycle: motorized Z-axis positioning, programmable dwell time, and synchronized force application with real-time load feedback
- 20-position rotating sample carousel with optional upgrade path to 30 positions—designed for ISO-compliant sample spacing and thermal equilibration between tests
- Integrated optical surface detection system verifies specimen flatness and height prior to each indentation, rejecting invalid placements automatically
- Software-controlled test sequencing: customizable test protocols per sample batch, including multiple indentations per specimen, variable hold times, and sequential multi-point mapping
- Self-calibrating force sensor with annual traceability to national standards (e.g., PTB or UKAS-accredited calibration certificates available)
- Robust industrial-grade chassis with vibration-dampened base and ESD-safe enclosure for QC lab environments
Sample Compatibility & Compliance
The AHT is validated for use with vulcanized rubber sheets, molded elastomer parts, and cured polymer specimens meeting minimum thickness requirements (≥6 mm) and surface flatness tolerances (≤0.02 mm deviation over 6 mm²). Specimens must be conditioned per ASTM D618 prior to testing. The system supports compliance workflows required in regulated industries: audit trails log all user actions, method changes, and calibration events; raw data files are immutable and timestamped; electronic signatures and role-based access control align with FDA 21 CFR Part 11 readiness when deployed with compliant LIMS integration. Test reports include full metadata—operator ID, ambient temperature/humidity, instrument serial number, calibration due date, and individual indentation coordinates—enabling full GLP/GMP traceability.
Software & Data Management
Operated via TA Instruments’ proprietary TruTest™ Software Suite, the AHT provides a validated Windows-based interface supporting method creation, real-time monitoring, statistical process control (SPC) charting, and automated report generation in PDF/CSV formats. All raw force–displacement curves are archived with 1 kHz sampling resolution, permitting retrospective analysis of viscoelastic relaxation behavior during dwell. Data export complies with ASTM E1447 and ISO/IEC 17025 documentation requirements. The software includes built-in statistical modules for calculating mean, median, standard deviation, coefficient of variation (CV%), and confidence intervals (95% CI) across user-defined groups. Audit logs record every parameter change, result override, or calibration event with IP address, timestamp, and authenticated user ID—supporting internal quality audits and external regulatory inspections.
Applications
- Quality control of tire treads, conveyor belts, seals, and gaskets during production line release
- Rubber compound development: correlation of cure state (via rheometry) with final Shore A hardness
- Aging studies: tracking hardness drift after heat aging (ASTM D573), ozone exposure (ASTM D1149), or fluid immersion (ASTM D471)
- Supplier qualification: objective, operator-independent hardness verification against specification limits
- Failure analysis labs: comparative hardness profiling across cross-sections of failed components
FAQ
Does the AHT support Shore D or other hardness scales?
No—the AHT is specifically engineered and factory-validated for Shore A measurements only. Its indenter geometry, spring modulus, and force range comply exclusively with ASTM D2240 Type A specifications. Shore D or IRHD configurations require dedicated instrumentation.
Can the system integrate with our existing MES or SAP QM module?
Yes—TruTest™ supports OPC UA and ASTM E1447-compliant API interfaces for bidirectional data exchange with enterprise manufacturing systems, including SAP QM, Siemens Opcenter, and Rockwell FactoryTalk.
What maintenance is required to ensure long-term accuracy?
Annual force sensor recalibration and biannual verification of indenter sphericity (via SEM or profilometry) are recommended. TA Instruments offers certified service contracts with documented calibration history and ISO/IEC 17025 traceability.
Is training provided for method development and audit preparation?
Yes—TA Instruments provides on-site or virtual validation support packages, including IQ/OQ documentation templates, 21 CFR Part 11 configuration guidance, and GxP-aligned SOP drafting assistance.
