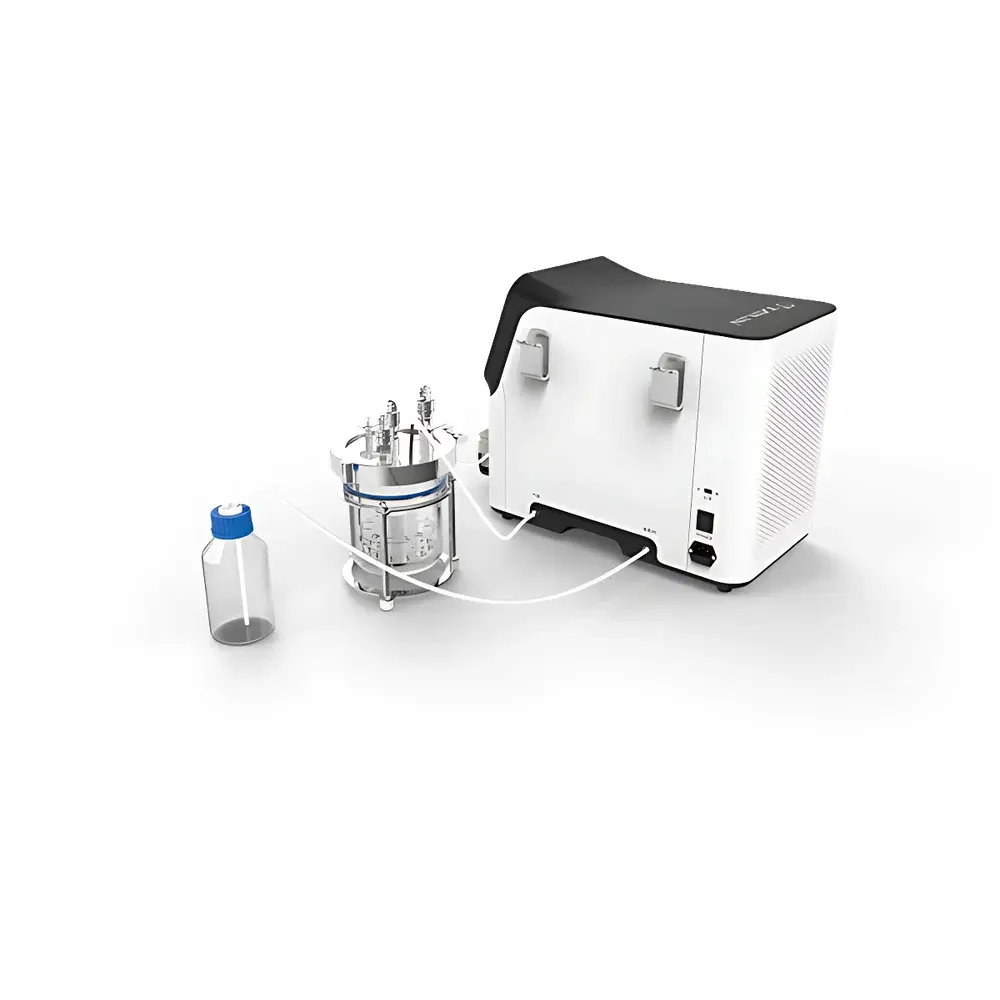

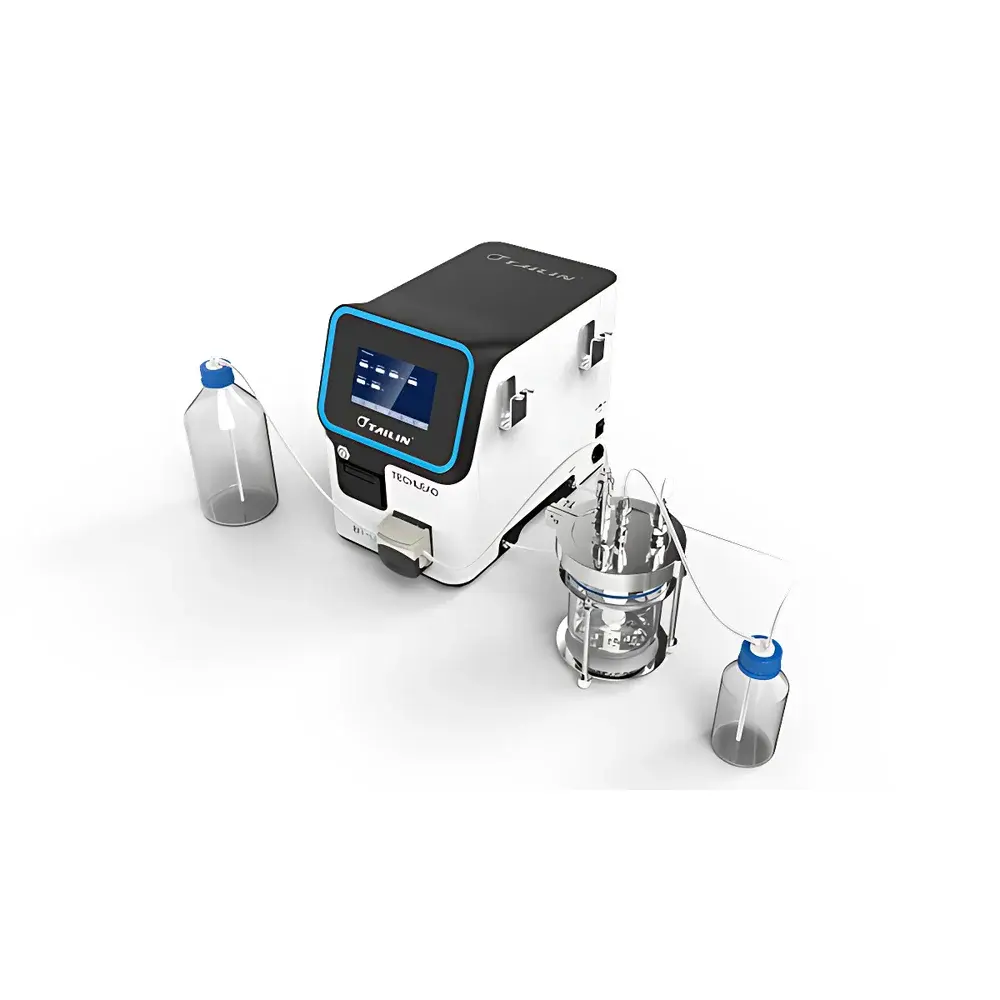

Taylor BioTECH TECHLEAD® BIT-L01 Bacterial Intrusion Tester

Overview

The Taylor BioTECH TECHLEAD® BIT-L01 Bacterial Intrusion Tester is a purpose-built, regulatory-grade instrument engineered for deterministic Container Closure Integrity Testing (CCIT) of sterile pharmaceutical packaging systems. It implements the bacterial intrusion method — a scientifically validated, microbiological challenge technique defined in USP and referenced in the NMPA CDE Guidance for Injectable Packaging Integrity Assessment. Unlike probabilistic physical methods (e.g., helium leak or dye ingress), bacterial intrusion provides direct biological evidence of barrier failure by quantifying the passage of viable microorganisms (typically *Brevundimonas diminuta*, ATCC 19146, 0.3 µm nominal retention) across package seals under controlled pressure differentials. The BIT-L01 subjects primary containers — including glass vials, ampoules, pre-filled syringes, ophthalmic dropper bottles, and flexible IV bags — to precisely sequenced vacuum and positive-pressure challenges while immersed in a standardized microbial suspension. Its core function is to assess the correlation between physical defect size and microbial penetration threshold, supporting root-cause analysis of seal integrity failures during process validation, stability studies, and transport simulation.

Key Features

• Modular architecture with physically isolated control unit and autoclavable borosilicate glass test chamber — eliminates cross-contamination risk and enables rapid reconfiguration between batches.
• Programmable dual-phase pressure challenge protocol: vacuum priming (−0.8 bar) followed by adjustable positive pressure hold (up to +0.6 bar), both with user-defined ramp rates and dwell durations — replicates worst-case transport and storage stress conditions.
• Integrated fluid handling system: fully closed-loop delivery, retention, and evacuation of microbial suspension; no manual transfer or open handling required.
• Automated in-chamber cleaning cycle using purified water or validated cleaning agents — ensures residue-free operation between runs and supports cleaning validation protocols.
• Three-tier role-based access control (Administrator, Supervisor, Operator) compliant with GAMP 5 and FDA 21 CFR Part 11 requirements, including electronic signatures and immutable audit trails for all critical actions.
• Real-time graphical interface with step-by-step procedural guidance, audible alerts, and visual status indicators — reduces operator dependency and minimizes procedural deviation.
• Embedded thermal printer generating time-stamped, tamper-evident hardcopy reports containing test ID, parameters, timestamps, operator ID, and pass/fail determination per sample unit.
• USB 2.0 interface for secure export of raw log files (CSV), summary reports (PDF), and audit trail archives — compatible with LIMS and QMS integration.

Sample Compatibility & Compliance

The BIT-L01 accommodates standard pharmaceutical primary packaging formats without adapter modification: 2–50 mL glass vials (with rubber stoppers and aluminum crimps), 1–10 mL ampoules, 0.5–3 mL pre-filled syringes (with needle shields or caps), 5–15 mL ophthalmic bottles, and 50–1000 mL flexible PVC or multilayer polymer IV bags. All test configurations maintain full immersion of closure interfaces in microbial suspension throughout the entire pressure cycle. The system is validated for use with *B. diminuta* suspensions prepared per ASTM E2901 and USP Annex A protocols. Regulatory alignment includes full traceability to USP Section 5.3 (Microbial Challenge Methods), NMPA CDE Technical Guidelines for CCIT of Injectable Packaging Systems (2020), ISO 11607-2:2019 (Packaging for terminally sterilized medical devices), and GAMP 5 Category 4 system qualification standards. Biological safety compliance meets WHO BSL-2 containment requirements for handling low-risk bacterial cultures.

Software & Data Management

The embedded firmware operates on a deterministic real-time OS with non-volatile memory for persistent storage of ≥10,000 test records. Each record captures timestamped event logs (valve actuation, pressure transducer readings, fluid level sensors, temperature), user authentication events, and parameter sets. All data are cryptographically hashed at write-time to prevent post-hoc alteration. Audit trails include operator ID, action type, timestamp, and pre-/post-value deltas for every configurable parameter change. Report generation supports customizable templates aligned with ICH M4Q(R2) submission requirements. Exported files include digital signatures and SHA-256 checksums. Software lifecycle follows IEC 62304 Class B principles, with documented verification protocols covering boundary conditions, error recovery, and fail-safe shutdown sequences.

Applications

• Regulatory submission support for injectable product consistency evaluations — specifically CCIT data packages required under FDA ANDA/BLA and EMA CMC modules.
• Validation of crimping, sealing, and assembly processes — including lyophilization stopper seating force optimization and laser welding parameter mapping.
• Correlation studies linking deterministic physical leak detection (e.g., HVLD, FMD) to microbiological breach thresholds — essential for justification of alternative CCIT methods.
• Accelerated stability testing under mechanical stress — simulating vibration, compression, and altitude changes during global distribution.
• Transport container qualification — assessing integrity retention after simulated drop, stack, and thermal cycling per ISTA 3A and ASTM D4169 protocols.
• Root cause investigation of sterility failures — differentiating seal defects from material permeation or environmental ingress pathways.

FAQ

What microbial strain is recommended for use with the BIT-L01?
*Brevundimonas diminuta* (ATCC 19146) is the standard challenge organism specified in USP and ISO 11607-2 for its well-characterized 0.3 µm retention profile and non-pathogenic biosafety classification.
Can the BIT-L01 be qualified under GMP environments?
Yes — the system supports full IQ/OQ/PQ execution per GAMP 5, including installation documentation, operational boundary testing, and performance verification using certified reference leaks and biological indicators.
Is the test chamber suitable for steam sterilization?
The borosilicate glass chamber and PTFE-sealed fittings are rated for repeated autoclaving at 121°C for 30 minutes; validation of chamber sterility post-cycle is supported via biological indicator placement.
How does the BIT-L01 ensure data integrity during power interruption?
Critical state variables are mirrored to redundant flash memory banks; upon restart, the system resumes from last confirmed stable state with full audit trail continuity.
Does the system support multi-language UI?
The current firmware supports English and Simplified Chinese interface languages; additional locales may be enabled via configuration file update under controlled change management.
