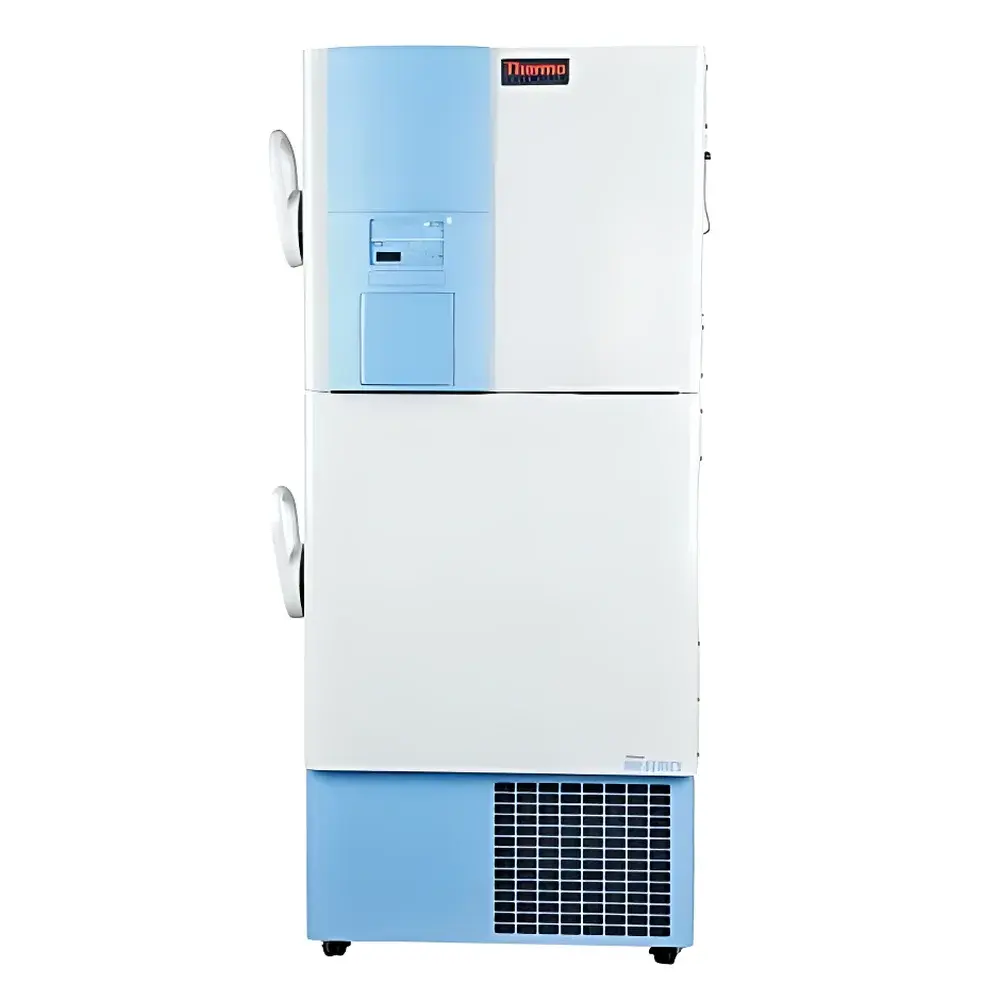

Thermo Fisher Forma™ 994 -86°C Vertical Ultra Low Temperature Freezer
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer | Yes |
| Import Status | Imported |
| Model | 994 |
| Effective Storage Capacity | 288 standard cryoboxes |
| Internal Dimensions (W×D×H) | 643 × 584 × 1308 mm |
| External Dimensions (W×D×H) | 989 × 846 × 1979 mm |
| Power Supply | 230 V, 50 Hz |
| Rated Power Consumption | 400 W |
Overview
The Thermo Fisher Forma™ 994 is a vertically oriented, microprocessor-controlled ultra low temperature (ULT) freezer engineered for long-term, stable cryopreservation of biologics, primary cell lines, genomic samples, and other temperature-sensitive research materials at –86°C. Utilizing a cascade refrigeration system with dual-stage compressors and environmentally optimized refrigerants (R-404A/R-508B), the unit delivers precise thermal stability across its entire storage volume. Its design prioritizes sample integrity under continuous operation—critical for GLP-compliant laboratories, biobanks, and clinical trial sample repositories where temperature excursions must remain within ±3°C of setpoint during normal operation and recovery.
Key Features
- Human-centered control interface positioned at eye level, integrating real-time temperature monitoring, alarm status, and system diagnostics via an intuitive LCD display
- Dual-door architecture: upper compartment optimized for frequent access to high-turnover samples; lower compartment configured for deep archival storage with minimized thermal disturbance
- Triple-point door gasket system providing extended thermal retention during door openings—validated to maintain internal temperature above –70°C for ≥12 minutes after a 30-second door opening event
- 5-inch (127 mm) thick, in-situ foamed polyurethane insulation layer reducing heat ingress and lowering annual energy consumption by up to 25% versus legacy ULT designs
- Heavy-gauge cold-rolled steel exterior with corrosion-resistant coating and stainless steel interior chamber for durability and cleanability
- Four independently hinged inner doors minimizing cold air loss and accelerating post-access temperature recovery—measured average recovery time to –80°C is ≤18 minutes after full door opening
- Ergonomic, lock-compatible door handles enabling one-handed operation and integration into lab-wide security protocols
- Standard 1-inch (25 mm) external access ports for integration with external temperature probes, data loggers, or environmental monitoring systems
Sample Compatibility & Compliance
The Forma 994 accommodates standard ISO/ANSI-compliant cryoboxes (e.g., 10 × 10 format), rack-based vial storage systems, and custom trays up to 600 mm depth. Its uniform temperature distribution—verified per IEC 61000-4-2 and ASTM F2607—ensures consistent thermal exposure across all zones. The unit complies with FDA 21 CFR Part 11 requirements when paired with optional audit-trail-enabled software modules. It supports ISO 13485–aligned quality systems and meets essential safety standards including UL 61010-1 and EN 61000-6-3 for electromagnetic compatibility.
Software & Data Management
While the base model features embedded microprocessor logic with non-volatile memory for alarm history (last 100 events), optional connectivity kits enable RS-485 or Ethernet interfaces for integration into centralized laboratory information management systems (LIMS). An optional chart recorder—mountable at eye-level on the front panel—provides analog, tamper-evident temperature traceability compliant with USP and EU Annex 15 cold chain validation requirements. Remote monitoring via Thermo Fisher’s SampleManager™ platform supports configurable email/SMS alerts, trend analysis, and automated report generation aligned with CAP and CLIA documentation standards.
Applications
This ULT freezer serves core functions in academic research labs, pharmaceutical R&D facilities, contract development and manufacturing organizations (CDMOs), and national biorepositories. Typical use cases include preservation of induced pluripotent stem cells (iPSCs), viral vectors for gene therapy, plasma-derived therapeutics, archived tissue sections, and reference standards for analytical method validation. Its thermal consistency and mechanical reliability make it suitable for long-duration storage required by longitudinal cohort studies and regulatory submission dossiers (e.g., FDA BLA, EMA MAA).
FAQ
What backup cooling options are available for power failure scenarios?
CO₂ or liquid nitrogen (LN₂) emergency backup systems can be factory-installed to maintain temperatures below –70°C for up to 72 hours during complete power loss or compressor failure.
Is the Forma 994 compatible with automated sample retrieval systems?
Yes—the unit’s standardized footprint, reinforced floor plate, and programmable door interlock signals support integration with robotic arm platforms and track-and-trace inventory systems.
How often does the unit require preventive maintenance?
Thermo Fisher recommends semi-annual service intervals including condenser coil cleaning, refrigerant pressure verification, and gasket integrity testing—documented in accordance with ISO/IEC 17025 calibration records.
Can external temperature sensors be connected without voiding warranty?
Yes—use of the standard 25 mm access port with NIST-traceable calibrated probes does not affect warranty coverage, provided installation follows Thermo Fisher Technical Bulletin TB-ULF-004.
What is the expected service life under continuous operation?
With scheduled maintenance, the Forma 994 demonstrates >15 years of operational reliability in peer-reviewed biorepository deployments, as reported in the Journal of Biomolecular Techniques (Vol. 32, No. 4, 2021).
