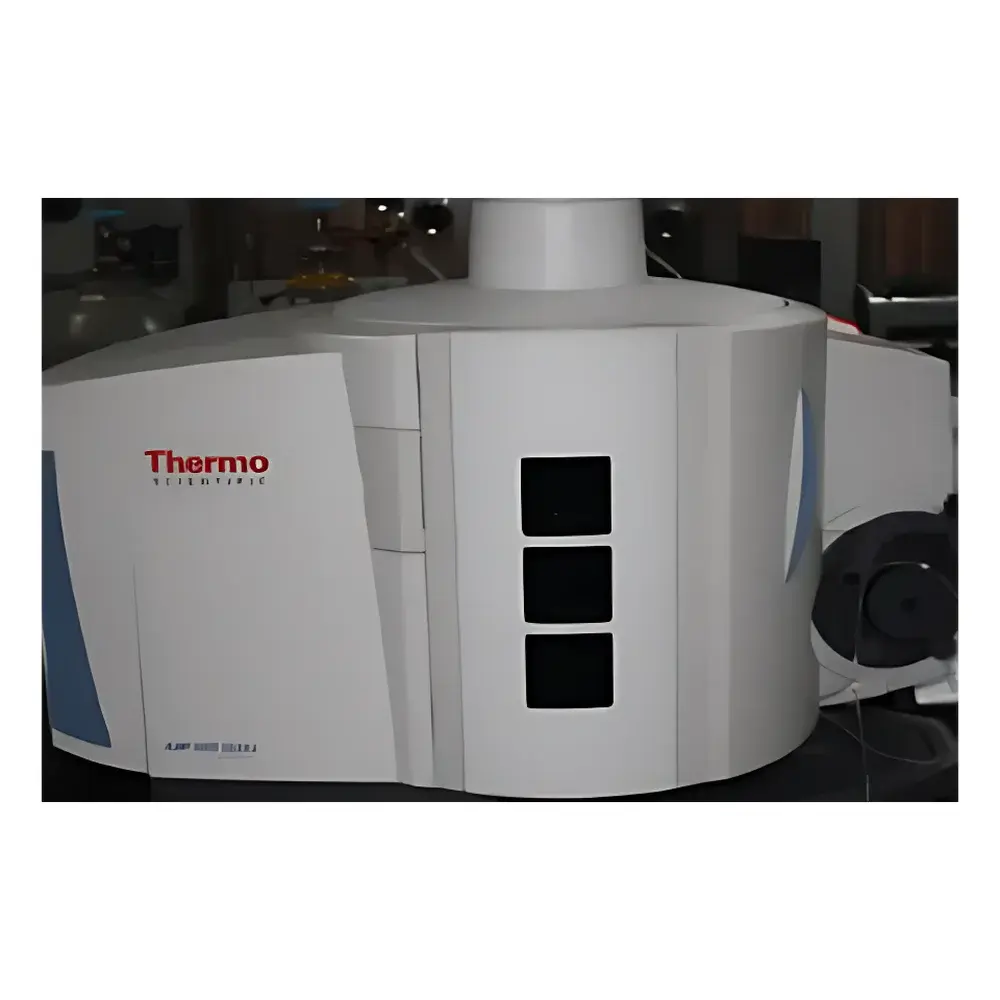

Thermo Fisher iCAP 7400 DUO Inductively Coupled Plasma Optical Emission Spectrometer (ICP-OES)

Overview

The Thermo Fisher iCAP 7400 DUO is a dual-view inductively coupled plasma optical emission spectrometer engineered for high-throughput, multi-element trace metal analysis in environmental, clinical, geological, and industrial laboratories. Operating on the principle of inductively coupled plasma optical emission spectrometry (ICP-OES), the instrument atomizes and excites sample aerosols within a high-temperature argon plasma (~6,000–10,000 K), enabling quantitative detection of over 70 elements across wavelengths from 130 to 800 nm. Its DUO configuration allows seamless switching between radial and axial plasma viewing modes—radial for high-concentration samples with superior matrix tolerance, and axial for enhanced sensitivity (typically 5–10× lower detection limits) in ultra-trace applications. The system integrates a solid-state 27.12 MHz RF generator delivering stable 1.5 kW power, ensuring consistent plasma ignition and long-term signal stability—even with challenging matrices such as seawater, digested soils, or high-TDS wastewaters.

Key Features

• Dual-view optical path architecture enabling method-optimized selection between radial and axial observation without hardware reconfiguration
• Advanced solid-state charge-coupled device (CCD) detector with thermoelectric cooling (−40 °C), delivering high quantum efficiency and low dark current for reproducible spectral acquisition
• Intelligent plasma control with real-time RF impedance matching and automatic torch alignment compensation
• Modular peristaltic pump with programmable speed and pulse-free flow for precise sample introduction and internal standard addition
• Integrated argon gas management system with pressure monitoring and leak detection, compliant with laboratory gas safety standards
• Robust mechanical design optimized for long-term operational reliability—validated through >10,000 hours of field deployment in regulated environments

Sample Compatibility & Compliance

The iCAP 7400 DUO accommodates liquid samples introduced via pneumatic nebulization (standard glass concentric or SeaSpray™ high-salt nebulizer), as well as optional accessories for laser ablation (LA-ICP-OES) and hydride generation (HG-ICP-OES). It supports direct analysis of aqueous standards, acid-digested solids (EPA SW-846 Method 3050B/3052), organic solvents (with oxygen ashing), and high-salinity matrices (up to 25% TDS with appropriate dilution and matrix-matching). The platform meets analytical requirements outlined in ASTM D5185 (metals in used lubricating oils), ISO 11885 (water quality — determination of selected elements), and EPA Methods 200.7 (metals by ICP), 200.8 (metals by ICP-MS), and 6010D (inorganic chemicals in wastewater). When operated with Qtegra ISDS under configured audit trail and electronic signature protocols, it supports GLP/GMP-aligned workflows and satisfies FDA 21 CFR Part 11 data integrity criteria.

Software & Data Management

Controlled exclusively via Thermo Scientific Qtegra Intelligent Scientific Data Solution (ISDS), the iCAP 7400 DUO provides comprehensive method development, instrument calibration, QC tracking, and report generation. Qtegra ISDS features embedded spectral deconvolution algorithms, inter-element correction (IEC) modeling, and automated background correction to mitigate spectral interferences. All analytical sessions are timestamped and logged with full metadata—including lamp status, plasma parameters, integration times, and user credentials—enabling full traceability. Raw spectral data (.qdb files) and processed results (.csv, .pdf) are stored in a secure, configurable database with role-based access controls. Backups and archive exports comply with ISO/IEC 17025 documentation retention guidelines.

Applications

• Environmental monitoring: quantification of regulated metals (As, Cd, Cr, Pb, Hg, Ni, Zn) in drinking water, groundwater, and effluent per EPA regulatory thresholds
• Geochemical analysis: major and trace element profiling in rock digests, soil extracts, and sediment cores for provenance and contamination studies
• Pharmaceutical quality control: elemental impurity testing per ICH Q3D and USP / for catalyst residues (Pd, Pt, Rh) and leachables (Al, Fe, Ni)
• Metallurgical process control: rapid alloy verification and inclusion analysis in primary and secondary metal production
• Food safety: screening for toxic elements (Cd, Pb, As) in agricultural commodities and infant formula raw materials

FAQ

Is this unit fully refurbished and performance-verified prior to shipment?
Yes. Each iCAP 7400 DUO undergoes a complete OEM-equivalent refurbishment protocol including plasma torch cleaning/replacement, nebulizer recalibration, optical alignment verification, and full spectrum validation using NIST-traceable multi-element standards.
What documentation accompanies the instrument?
A comprehensive package includes original factory calibration certificates, refurbishment logbook, Qtegra ISDS software license transfer documentation, and a signed Statement of Conformance to ASTM E1655 and ISO/IEC 17025 measurement uncertainty reporting practices.
Can the system be integrated into an existing LIMS environment?
Yes. Qtegra ISDS supports ASTM E1482-compliant data export via ODBC and HL7 interfaces, enabling bidirectional communication with major LIMS platforms including LabWare, STARLIMS, and Thermo Fisher SampleManager.
Does the one-year warranty cover both parts and labor?
Yes—the warranty includes all components, consumables (excluding torches and nebulizers), on-site service labor, and remote diagnostics support by certified Thermo Fisher-trained engineers.
