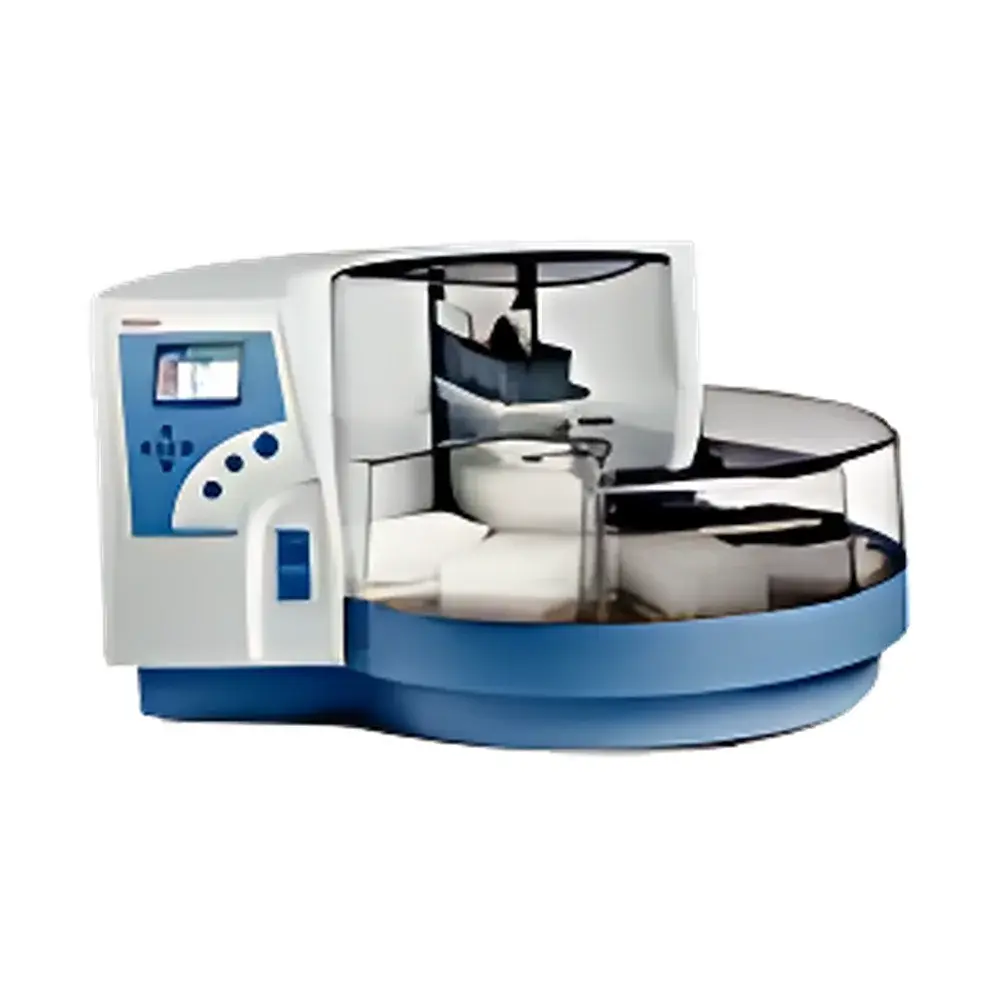

Thermo Fisher KingFisher Flex High-Throughput Automated Nucleic Acid Extraction System

Overview

The Thermo Fisher KingFisher Flex High-Throughput Automated Nucleic Acid Extraction System is a benchtop magnetic bead-based purification platform engineered for precision, reproducibility, and walk-away automation in molecular diagnostics and translational research laboratories. It operates on the principle of magnetic particle separation—where functionalized paramagnetic beads bind target nucleic acids under controlled buffer conditions, followed by rapid immobilization via integrated electromagnetic rods and sequential washing/elution steps. This physics-driven separation mechanism eliminates centrifugation, vacuum manifolds, or column-based handling, minimizing shear stress on fragile analytes such as cfDNA, FFPE-derived RNA, and viral genomes. Designed for robust integration into high-volume clinical testing and core facility workflows, the system supports up to 96 samples per run with programmable protocol flexibility across diverse sample matrices—including nasopharyngeal swabs, plasma, whole blood, formalin-fixed paraffin-embedded (FFPE) tissue sections, cell cultures, and exosome isolates.

Key Features

• Modular 96-well processing capacity with dual 24-well and 96-well plate adaptability for scalable throughput
• Integrated magnetic rod array with precise vertical/horizontal motion control ensuring uniform bead capture and minimal carryover
• On-board reagent cooling (4–10 °C) and heating modules (up to 70 °C) for temperature-sensitive lysis and elution steps
• Pre-validated, instrument-specific protocols compatible with Thermo Fisher’s MagMAX™, KingFisher™, and ChargeSwitch® kits—covering DNA, RNA, miRNA, cfDNA, and total nucleic acid isolation
• Intuitive touchscreen interface with password-protected user roles and audit-trail-enabled method editing
• Compact footprint (53 × 58 × 51 cm) suitable for biosafety cabinets and ISO-classified cleanrooms

Sample Compatibility & Compliance

The KingFisher Flex accommodates a broad spectrum of input materials without requiring hardware modification: viscous clinical specimens (e.g., sputum, BAL fluid), low-input samples (<100 µL plasma), degraded FFPE lysates, and challenging biologics including T-cell suspensions and extracellular vesicles. All standard protocols are developed in alignment with ISO 20387:2018 (Biobanking), CLSI EP12-A2 (method validation for qualitative molecular assays), and support compliance with FDA 21 CFR Part 11 when deployed with validated LIMS integration. The system meets IEC 61000-4 electromagnetic compatibility standards and carries CE marking under the IVDR (In Vitro Diagnostic Regulation 2017/746) for use with CE-IVD labeled extraction kits.

Software & Data Management

Controlled via KingFisher™ Software v4.x, the system provides version-controlled protocol libraries, real-time run monitoring with event logging (including door open/close, temperature deviations, and magnetic cycle counts), and exportable CSV/Excel reports compliant with GLP/GMP documentation requirements. Audit trail functionality records all user actions—including login/logout timestamps, parameter changes, and run start/stop events—with immutable storage. Optional integration with Thermo Fisher Connect™ enables remote status alerts, centralized fleet management, and secure cloud-based backup of method files and QC logs. Raw data files retain embedded metadata (operator ID, kit lot number, calibration date) to satisfy traceability mandates in CAP-accredited and CLIA-certified laboratories.

Applications

• SARS-CoV-2 and emerging pathogen detection workflows requiring rapid turnaround and high sensitivity
• NGS library preparation from low-yield cfDNA and fragmented FFPE RNA
• Companion diagnostic assay development where batch-to-batch consistency directly impacts variant calling accuracy
• Single-cell and spatial transcriptomics sample prep with minimized RNA degradation risk
• Regulatory submissions requiring documented extraction repeatability (e.g., FDA IND applications, EMA scientific advice procedures)
• Reference material production under ISO Guide 34:2019 for certified reference materials (CRMs)

FAQ

Is the KingFisher Flex compatible with third-party magnetic bead kits?
Yes—provided the kit’s binding/wash/elution chemistry is validated for magnetic separation and adheres to volume constraints (max 1 mL per well); however, Thermo Fisher does not guarantee performance or regulatory support for non-authorized reagents.
Does the system support 24-well deep-well plate processing?
Yes—the instrument includes interchangeable head modules for both 24-well and 96-well formats, allowing optimization of input volume and bead-to-sample ratio for low-abundance targets.
What maintenance intervals are recommended for routine operation?
Daily decontamination of the magnetic rod assembly and deck surface; quarterly calibration verification using Thermo Fisher’s Traceable™ Performance Verification Kit (Cat. No. A42195); annual preventive maintenance by certified field service engineers.
Can extraction protocols be exported for cross-laboratory method transfer?
Yes—protocol files (.kfp) include embedded parameters, timing sequences, and thermal profiles, enabling direct import into other KingFisher Flex units running identical software versions.
How is data integrity ensured during long-duration runs (e.g., overnight cfDNA extractions)?
The system features uninterruptible power supply (UPS)-ready architecture with automatic resume-on-recovery functionality and persistent memory retention for all critical process variables, even during brief power loss.
