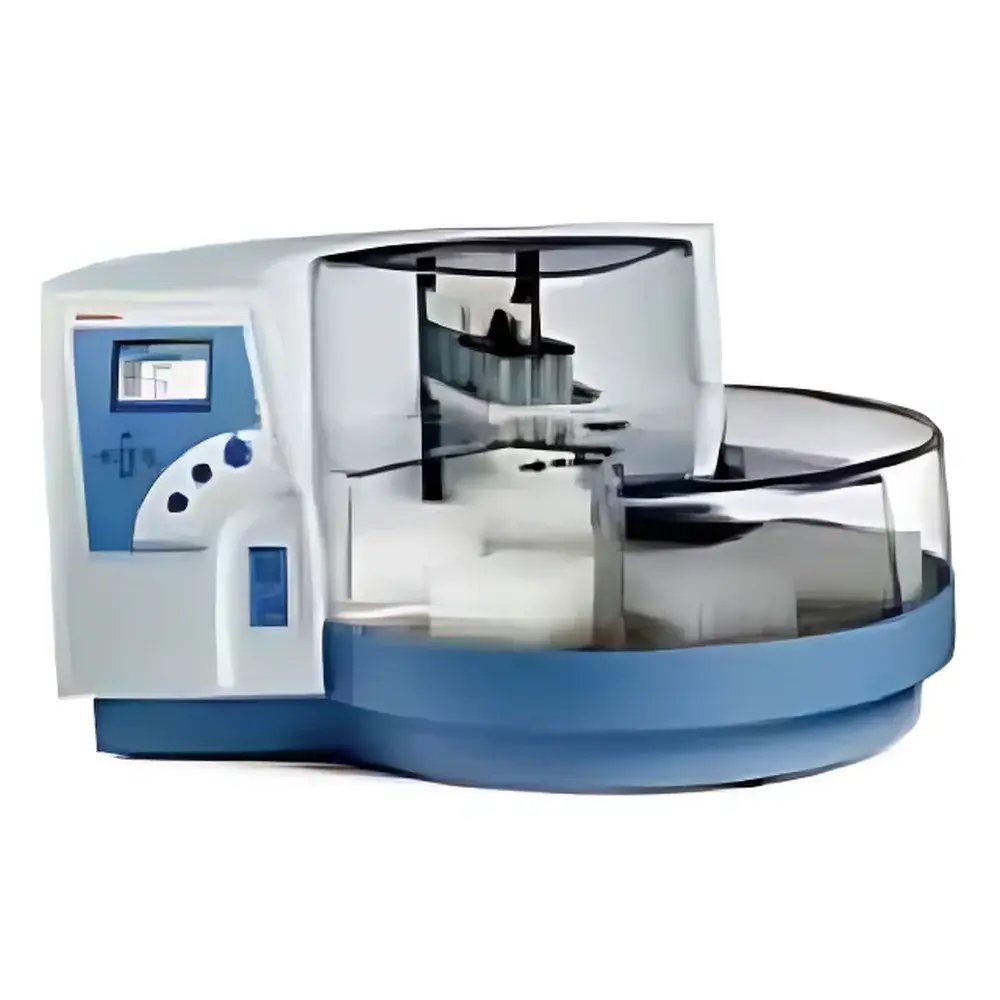

Thermo Fisher KingFisher Flex Magnetic Particle Processor

Overview

The Thermo Fisher KingFisher Flex is a dedicated, fully automated magnetic particle processor engineered for high-reproducibility nucleic acid isolation from diverse biological matrices. It operates on the principle of magnetic bead-based solid-phase extraction: paramagnetic beads functionalized with silica or carboxyl groups bind target nucleic acids under controlled chaotropic and pH conditions; an integrated electromagnetic array then immobilizes beads during wash steps, enabling precise removal of contaminants without centrifugation or vacuum manifolds. This platform delivers consistent binding efficiency, elution recovery, and scalability—critical for laboratories requiring regulatory-compliant workflows in clinical diagnostics, translational research, and quality control environments.

Key Features

• Dual-throughput configuration: Supports both 96-well and 24-well plate formats via interchangeable magnetic heads—including KF96DW (deep-well), KF96PCR (PCR-plate optimized), KF96 (standard), and KF24DW (24-position deep-well)—enabling method flexibility across sample input volume and downstream application requirements.
• Graphical user interface (GUI): Large backlit LCD touchscreen with intuitive navigation, supporting up to 100 stored protocols categorized by application type (e.g., viral RNA, genomic DNA, cfDNA) for rapid recall and execution.
• Integrated maintenance routines: Self-diagnostic system performs automatic calibration checks, magnetic field strength verification, and liquid handling validation; service logs are timestamped and exportable for GLP/GMP audit trails.
• Enhanced kinetic mixing: Programmable orbital shaking and vertical agitation profiles ensure uniform bead suspension and efficient binding kinetics—particularly critical for low-abundance targets or viscous lysates.
• Robust architecture: All fluid paths are sealed and disposable; pipetting arms use positive-displacement tips to eliminate carryover risk; no external vacuum or compressed air required.

Sample Compatibility & Compliance

The KingFisher Flex processes samples from whole blood, plasma, serum, saliva, buccal swabs, tissue homogenates, cultured cells, FFPE extracts, environmental water, food homogenates, and plant tissues. It is validated for use with Thermo Fisher’s MagMAX™, PureLink™, and KingFisher™ consumables, as well as third-party magnetic bead kits meeting ISO 13485-manufactured specifications. The system supports compliance with FDA 21 CFR Part 11 through optional electronic signature modules, audit trail logging, and role-based user access controls—making it suitable for CLIA-certified labs, ISO 15189-accredited medical testing facilities, and pharmaceutical QC environments operating under ICH-GCP or GMP guidelines.

Software & Data Management

BindIT™ software (v3.0+) provides full protocol development, optimization, and deployment capabilities. Users define step-by-step reagent volumes, incubation durations, mixing parameters, and magnetic separation durations; advanced features include kinetic curve simulation, multi-step conditional branching (e.g., “if A260/A280 < 1.7, repeat wash”), and real-time progress monitoring. All runs generate timestamped reports containing instrument ID, operator ID, protocol version, start/stop times, error codes (if any), and final eluate volume—exportable in CSV or PDF for LIMS integration. Audit trails retain all modifications to protocols or system settings for ≥10 years per ALCOA+ principles.

Applications

• Clinical molecular diagnostics: Extraction of viral RNA (e.g., SARS-CoV-2, influenza, HIV) and human DNA for qPCR, digital PCR, and NGS library preparation.
• Pharmacogenomics: Isolation of germline and somatic DNA from peripheral blood mononuclear cells (PBMCs) and tumor biopsies for variant calling and copy number analysis.
• Forensic analysis: Recovery of degraded DNA from touch samples, bone fragments, and aged evidence materials using specialized lysis buffers compatible with KingFisher Flex.
• Biomarker discovery: High-throughput processing of plasma/serum for circulating tumor DNA (ctDNA), microRNA, and exosomal RNA profiling.
• Veterinary and agricultural testing: Detection of pathogens in livestock samples, GMO screening in seeds and feedstuffs, and mycotoxin gene expression analysis in grain.
• Food and environmental safety: Pathogen nucleic acid extraction from complex matrices including milk, meat, produce wash water, and wastewater influent.

FAQ

What types of magnetic beads are compatible with the KingFisher Flex?
The system is optimized for Thermo Fisher MagMAX™ and KingFisher™ magnetic beads but supports third-party carboxyl- or streptavidin-coated paramagnetic particles with particle diameters between 0.5–2.8 µm and iron oxide content ≥65% w/w.
Can the KingFisher Flex be integrated into robotic liquid handling workflows?
Yes—it features standard RS-232 and Ethernet interfaces for bidirectional communication with LIMS and robotic deck controllers (e.g., Hamilton STAR, Tecan Freedom EVO); API documentation is available under NDA.
Is method transfer supported between KingFisher Flex and other KingFisher platforms?
Protocols developed on KingFisher Flex are not directly portable to KingFisher Duo or KingFisher Apex due to differences in magnetic head geometry and motion control firmware; however, BindIT software enables side-by-side parameter mapping and cross-platform validation templates.
How often does the system require preventive maintenance?
Thermo Fisher recommends quarterly calibration verification and annual full-service inspection; the onboard maintenance scheduler alerts users 7 days prior to due dates and logs all performed tasks with technician ID and calibration certificate numbers.
Does the KingFisher Flex support dual elution or split eluate collection?
No—the system performs single-elution per well; however, post-extraction splitting can be achieved via integration with automated liquid handlers or manual redistribution using calibrated multichannel pipettes.
