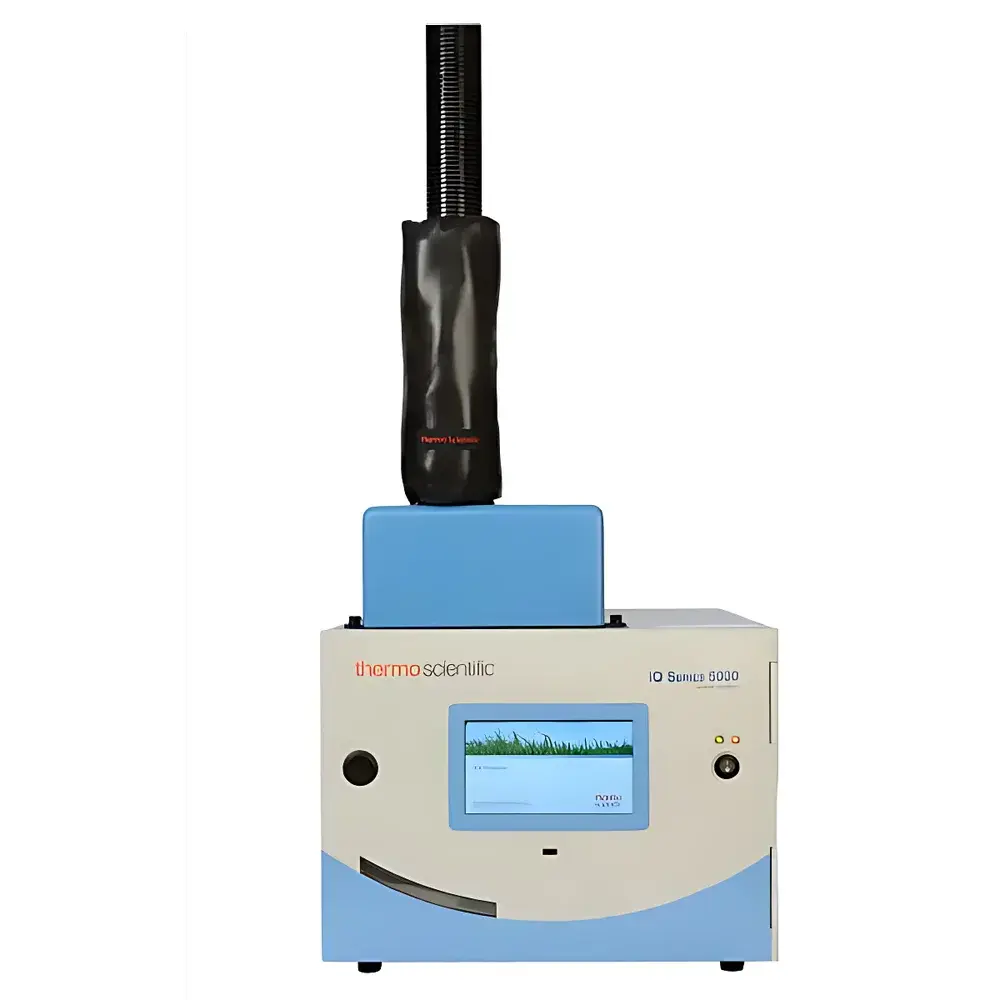

Thermo Fisher Scientific 5030iQ and 5014iQ Next-Generation Ambient Air Particulate Matter Continuous Monitors
| Brand | Thermo Fisher Scientific |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | 5030iQ and 5014iQ Next-Generation Ambient Air PM Continuous Monitors |
| Pricing | Available Upon Request |
Overview
The Thermo Fisher Scientific 5030iQ and 5014iQ are next-generation continuous ambient air particulate matter (PM) monitoring systems engineered for high-fidelity, real-time measurement of PM2.5 and PM10 mass concentrations. These instruments employ Synchronized Hybrid Aerosol Real-time Profiling (SHARP) technology—a proprietary integration of beta attenuation (β-ATN) and optical light scattering (nephelometry)—to deliver second-by-second mass concentration data with traceable accuracy and exceptional temporal resolution. Unlike traditional step-sampling or filter-based gravimetric analyzers, the SHARP architecture enables continuous, non-stop sampling with dynamic mass calibration applied in real time. This eliminates data lag and improves representativeness during rapidly evolving atmospheric events such as dust storms, wildfire plumes, or industrial emission episodes. The system is designed to meet long-term unattended operation requirements in diverse climatic zones—from high-humidity southern China to arid northwestern regions—while maintaining compliance with international regulatory frameworks.
Key Features
- Real-time SHARP measurement engine: Simultaneous β-attenuation and nephelometric signal acquisition with adaptive digital filtering for continuous mass calibration.
- Sub-60-second thermal stabilization: Photomultiplier tube (PMT)-based optical detection module achieves operational stability within minutes, significantly increasing data capture efficiency.
- Extended filter tape capacity: Large-diameter filter tape carousel supports up to 1,500 sampling points—enabling over 12 months of continuous operation without manual intervention under typical urban monitoring conditions.
- Industrial-grade human-machine interface: 7-inch capacitive color touchscreen with intuitive Chinese-language navigation, local time synchronization, and on-device diagnostic logging.
- Predictive maintenance architecture: Embedded health-monitoring algorithms track component aging (e.g., pump performance, lamp intensity decay, tape tension drift) and generate scheduled service alerts aligned with OEM-recommended intervals.
- Robust environmental enclosure: IP54-rated housing with integrated temperature/humidity compensation and anti-condensation heating for stable operation across -30 °C to +50 °C ambient ranges.
Sample Compatibility & Compliance
The 5030iQ and 5014iQ are validated for ambient air matrices compliant with national and international reference methods. Both models satisfy HJ 653–2021 (China’s Technical Specification for Calibration and Performance Testing of PM2.5/PM10 Monitors), U.S. EPA EQPM-0809-195 (for PM2.5) and EQPM-0809-196 (for PM10), and EU TÜV-certified EN 12341:2014 requirements. They have successfully completed performance verification at the China National Environmental Monitoring Centre (CNEMC) and received China Certification for Environmental Protection (CCEP) approval. Instrument output meets data integrity standards required for regulatory reporting under China’s “Three-Year Action Plan for Blue Skies” and provincial air quality management platforms. All firmware and calibration protocols support audit-ready documentation per GLP principles.
Software & Data Management
Instrument control, data acquisition, and remote diagnostics are managed via ePort™—a secure, web-enabled software platform compatible with Windows and Linux environments. ePort supports TLS 1.2 encrypted communication, role-based user access control (RBAC), and full electronic audit trail functionality compliant with FDA 21 CFR Part 11 requirements. Raw sensor outputs, calibrated mass concentrations, diagnostic logs, and maintenance history are stored in structured SQLite databases with configurable export options (CSV, NetCDF, XML). Integration with national air quality networks (e.g., CNEMC’s AQMS) is achieved through standardized HTTP/HTTPS API endpoints supporting JSON payloads and ISO 8601 timestamp formatting. Firmware updates are delivered via signed OTA packages with SHA-256 verification.
Applications
- National and municipal ambient air quality monitoring networks (AAQMN)
- Source apportionment studies requiring high-temporal-resolution PM profiles
- Regulatory compliance verification at industrial fence-line and background sites
- Research-grade field campaigns investigating aerosol dynamics, hygroscopic growth, and secondary formation
- Mobile monitoring deployments using vehicle-mounted or trailer-based configurations
- Long-term trend analysis supporting climate policy development and public health epidemiology
FAQ
What regulatory standards does the 5030iQ/5014iQ comply with?
It complies with HJ 653–2021 (China), U.S. EPA EQPM specifications, and EN 12341:2014 (EU), and holds CCEP certification.
How frequently does the system require filter tape replacement?
Under standard urban monitoring conditions (24/7 sampling at 16.7 L/min), the large-capacity tape supports ≥12 months of operation (1,500 points).
Is remote troubleshooting supported?
Yes—ePort software enables secure remote login, live parameter adjustment, log retrieval, and guided diagnostics with technician-assisted mode.
Does the instrument support GLP/GMP-compliant data handling?
Yes—ePort provides full electronic audit trails, user authentication, and immutable data storage meeting GLP and 21 CFR Part 11 requirements.
Can the system operate reliably in extreme cold or high humidity?
Yes—the enclosure includes active dew-point control, internal heating, and wide-temperature-range electronics validated from –30 °C to +50 °C.
