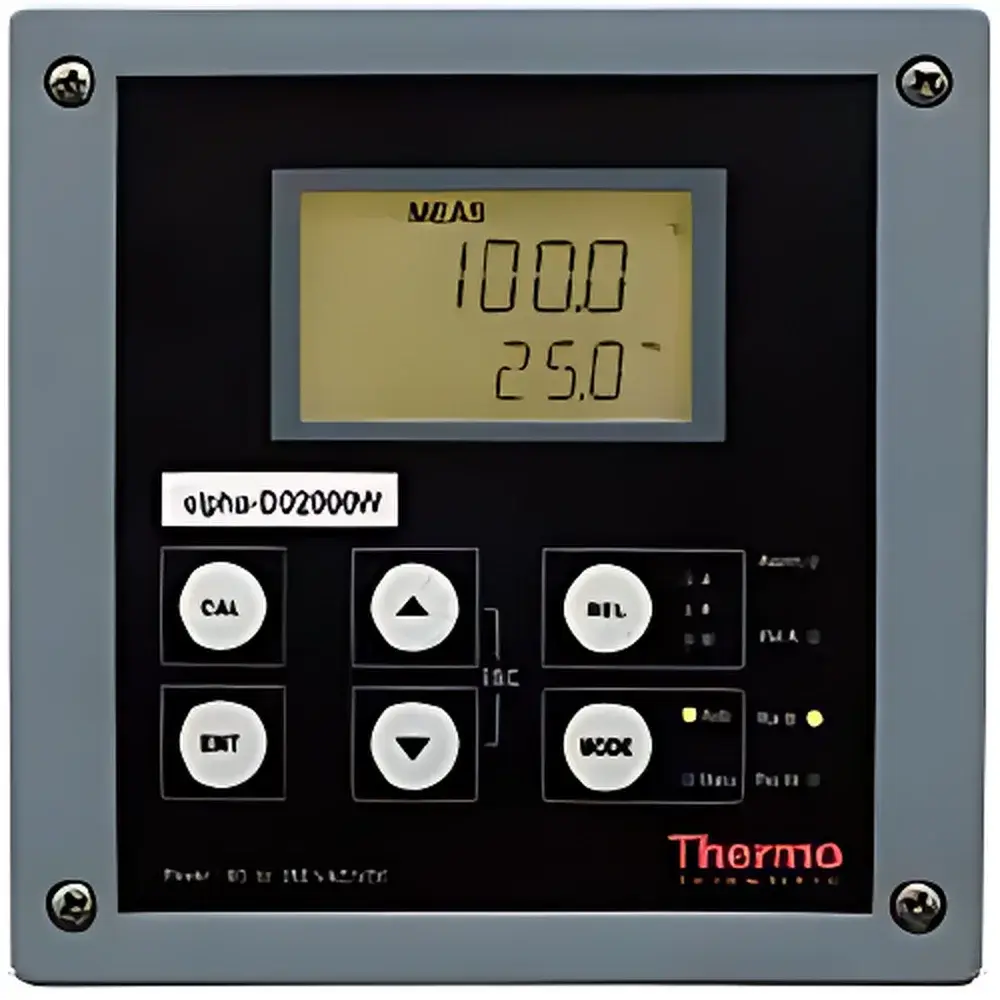

Thermo Fisher Scientific alpha-DO2000 Series Dissolved Oxygen Controller

Overview

The Thermo Fisher Scientific alpha-DO2000 Series Dissolved Oxygen Controller is a precision-engineered industrial process analyzer designed for continuous, real-time monitoring and control of dissolved oxygen (DO) concentration in aqueous systems. Built upon galvanic or polarographic sensor interface architecture—compatible with industry-standard Clark-type or optical (luminescence-based) DO sensors—the controller delivers stable, drift-compensated measurements across dynamic process conditions. Its primary application domain includes biopharmaceutical fermentation, wastewater treatment, aquaculture, boiler feedwater monitoring, and food & beverage processing—where tight DO regulation directly impacts product quality, microbial growth kinetics, energy efficiency, and regulatory compliance. The device operates as a standalone loop controller or integrates seamlessly into distributed control systems (DCS) and programmable logic controllers (PLC) via analog I/O and relay outputs, supporting deterministic response times and repeatable setpoint execution under varying load and environmental stress.

Key Features

• Programmable control algorithms: configurable switch-mode, proportional (P), and proportional-integral (PI) control modes for adaptive process regulation
• Multi-unit display and output: selectable readout in mg/L, ppm, or % saturation—internally consistent with temperature-compensated calibration curves
• Advanced configuration menu: hierarchical parameter access with tiered navigation for setpoint tuning, alarm thresholds, hysteresis width, and relay timing
• Backlit dual-line LCD display: 128 × 64 pixel resolution; simultaneously shows real-time DO value, temperature reading, status icons (e.g., sensor health, calibration mode, alarm active), and user-defined setpoints
• Universal power input: 85–250 VAC/DC, 50/60 Hz, with integrated surge suppression and wide-input-range switching power supply for operation in electrically noisy or unstable utility environments
• NEMA 4X-rated enclosure: IP66-equivalent front panel sealing and corrosion-resistant polycarbonate housing suitable for washdown, high-humidity, and chemically aggressive industrial settings
• Three-level password protection: administrator, engineer, and operator access tiers—enforcing role-based parameter modification rights per ISO/IEC 27001-aligned operational security practices
• Configurable time delay (0–2000 s): applied independently to control and alarm relays to suppress transient spikes and prevent nuisance tripping
• Relay HOLD function: latching behavior synchronized with external float switches, flow interlocks, or safety PLCs to enforce fail-safe shutdown protocols
• Dual isolated 0/4–20 mA outputs: individually assignable to DO concentration and temperature channels; scalable and linearized per NIST-traceable calibration records
• Programmable cleaning cycle relay: supports automated sensor maintenance routines (e.g., air purge, mechanical wiper activation, or chemical flush) with adjustable frequency and duration
• Adjustable hysteresis (dead band): prevents relay oscillation near setpoints—configurable per control loop to match process inertia and sensor response time
• Non-volatile memory (EEPROM): retains all configuration parameters, calibration coefficients, date/time stamps, and event logs during power loss or unexpected shutdown
• Modular terminal block design: tool-less, spring-clamp wiring interface with removable connectors for rapid field installation and maintenance

Sample Compatibility & Compliance

The alpha-DO2000 is compatible with standard 12 mm or 1/2″ NPT-threaded DO sensors from Thermo Fisher and third-party manufacturers adhering to ISA S50.1 (now IEC 61131-2) analog signal conventions. It supports both galvanic and polarographic electrochemical sensors, as well as fluorescence-based optical probes—provided they deliver linear mV or mA output signals within specified impedance and loading limits. The controller complies with electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 (industrial environment), safety standards per UL 61010-1:2012 and IEC 61010-1:2010, and carries CE, UKCA, and cULus markings. For regulated industries, its audit trail-capable configuration log and non-volatile parameter storage align with data integrity expectations under FDA 21 CFR Part 11 (when paired with validated software interfaces) and support GLP/GMP documentation workflows.

Software & Data Management

While the alpha-DO2000 operates autonomously without PC dependency, it supports optional USB-to-serial or RS-485 Modbus RTU communication (via accessory module) for integration with SCADA, Historian, or MES platforms. Configuration backup and restore functions are accessible through ASCII command protocol or Thermo Fisher’s proprietary commissioning utility (available for Windows OS). All parameter changes—including calibration dates, sensor serial numbers, and relay state transitions—are timestamped and stored in internal memory with overwrite protection for the last 100 events. No cloud connectivity or remote firmware updates are implemented—ensuring air-gapped operation where cybersecurity policies prohibit network exposure.

Applications

• Bioreactor and fermenter DO control in monoclonal antibody and vaccine manufacturing (aligned with USP analytical instrument qualification)
• Activated sludge process optimization in municipal and industrial wastewater treatment plants (per EPA Method 360.1 and ISO 5814)
• Oxygen dosing control in recirculating aquaculture systems (RAS) to maintain species-specific hypoxia thresholds
• Deaerator and condensate polishing loop monitoring in power generation facilities (ASTM D869, D1293)
• Batch pasteurization and sterile filtration validation support in dairy and beverage production

FAQ

What sensor types are supported by the alpha-DO2000?

The controller accepts analog-output DO sensors utilizing galvanic, polarographic, or optical luminescence principles—provided they conform to standard 0/4–20 mA or mV output ranges and electrical isolation specifications.
Does the unit support automatic temperature compensation?

Yes—integrated Pt100 or thermistor inputs enable real-time, algorithmic compensation using the Winkler-derived or BOD-based solubility model, configurable per water matrix (freshwater, seawater, or custom salinity).
Can the two 4–20 mA outputs be assigned to different variables?

Yes—each output is independently assignable to either dissolved oxygen concentration or measured temperature, with full zero/span and linearity adjustment.
Is NIST-traceable calibration documentation available?

Calibration certificates traceable to NIST standards are provided upon request for sensor-transmitter pairs; field calibration verification procedures follow ASTM D888 and ISO 5814 guidelines.
How is data integrity ensured during power interruption?

All operational parameters, calibration constants, and event logs are written to EEPROM prior to power-down; no volatile RAM is used for critical configuration storage.
