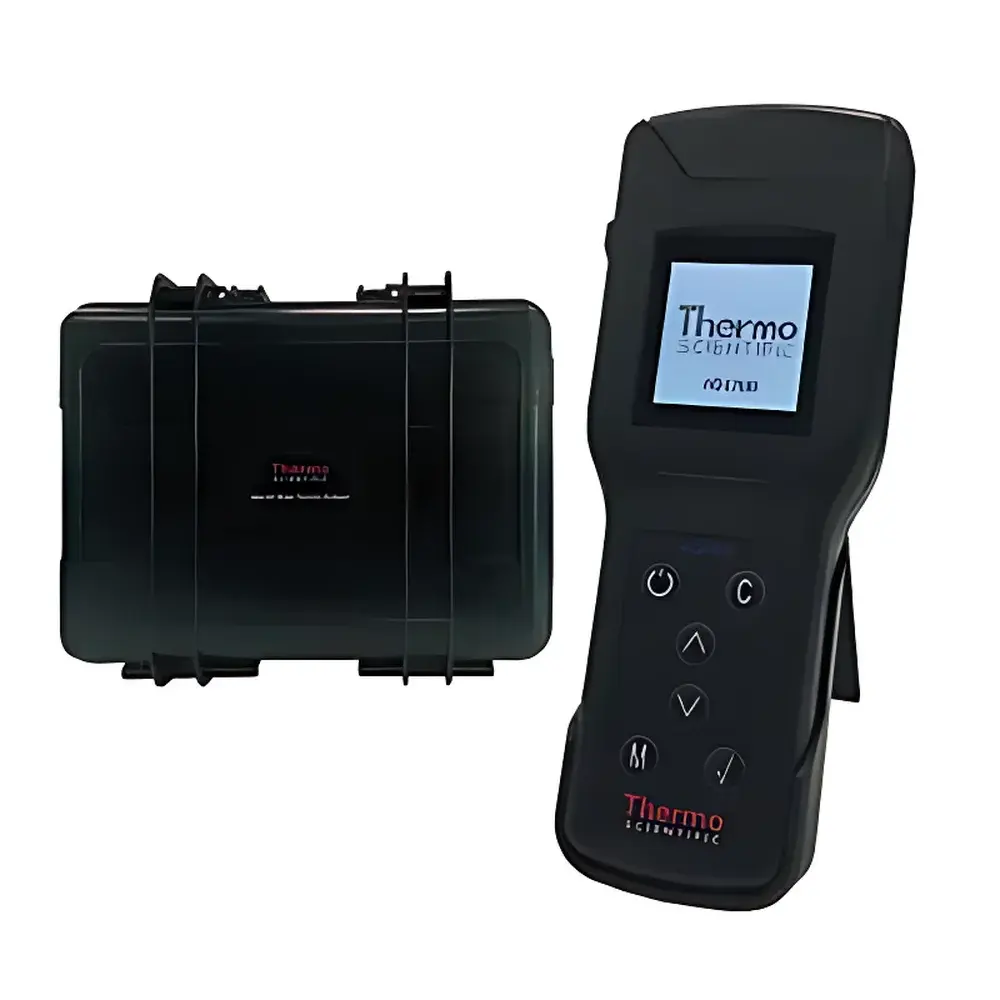

Thermo Fisher Scientific AQ4001 Mobile Laboratory Water Quality Analyzer

Overview

The Thermo Fisher Scientific AQ4001 Mobile Laboratory Water Quality Analyzer is an integrated, field-deployable analytical platform engineered for regulatory compliance, routine monitoring, and rapid response in drinking water, wastewater, and environmental surface water applications. Unlike conventional benchtop analyzers, the AQ4001 system consolidates four core measurement modalities—colorimetric multi-parameter analysis, potentiometric pH determination, conductometric conductivity assessment, and nephelometric turbidity quantification—into a single, ruggedized mobile workflow. Its architecture follows ASTM D1293 (pH), ASTM D5391 (conductivity), ISO 7027 (turbidity), and EPA-approved colorimetric methods (e.g., EPA 365.3 for phosphate, EPA 334.0 for nitrate), ensuring traceability to internationally recognized protocols. The system’s modular design enables seamless transition between laboratory calibration environments and unconditioned field sites, with temperature-compensated sensors, auto-ranging electronics, and IP67-rated enclosures for dust and moisture resistance.

Key Features

• Integrated AQ4000 multi-parameter colorimeter with downloadable method library—supports over 50 EPA- and ISO-compliant assays via firmware-upgradable embedded software
• Dual-range, auto-ranging conductivity meter with selectable cell constants (0.1, 1.0, 10.0 cm⁻¹) and linear/non-linear temperature compensation (0–50 °C)
• High-precision pH meter with NIST-traceable calibration (pH 4.01, 6.86, 9.18 or USA-standard pH 4.01, 7.00, 10.01), slope verification (80–120%), and mV mode for redox potential screening
• Dedicated turbidity module compliant with ISO 7027 (860 nm LED source), optimized for low-turbidity drinking water (<1 NTU) and high-turbidity effluent (up to 1000 NTU)
• Reagent-based colorimetry using stable, pre-formulated solid-phase reagents—minimizes operator error, eliminates liquid standard dilution, and ensures shelf-stable assay performance (24-month unopened stability)
• Portable carry case with shock-absorbing foam inserts, battery-powered operation (4×AAA alkaline), and >100 hours of continuous conductivity/pH runtime

Sample Compatibility & Compliance

The AQ4001 accommodates raw, filtered, and clarified aqueous samples across municipal intake, distribution, wastewater treatment, and watershed monitoring contexts. It supports direct analysis of unfiltered surface water (with optional 0.45 µm filtration for turbidity-critical assays) and meets U.S. EPA Safe Drinking Water Act (SDWA) Tier 1 method equivalency for key parameters including free chlorine, total chlorine, nitrate, phosphate, ammonia, iron, and sulfate. All reagent kits are manufactured under ISO 13485-certified quality systems and include lot-specific certificate of analysis (CoA). Instrument firmware complies with FDA 21 CFR Part 11 requirements for electronic records and signatures when used with optional PC connectivity and audit-trail-enabled software.

Software & Data Management

The AQ4000 colorimeter component features an embedded microprocessor with USB-C interface and proprietary Thermo Fisher AQ Manager™ desktop application (Windows/macOS). Raw absorbance values, calibration curves, and QC check results are timestamped and stored with user ID, location metadata (via optional GPS pairing), and instrument serial number. Data export supports CSV, PDF report generation, and LIMS-compatible XML schema. Firmware updates preserve historical calibration data and support method validation per GLP/GMP Annex 11 guidelines. No cloud dependency—the system operates fully offline to ensure data sovereignty in sensitive infrastructure or remote field deployments.

Applications

• Routine compliance monitoring for drinking water utilities (e.g., chlorine residual, pH, turbidity per 40 CFR Part 141)
• Wastewater treatment plant influent/effluent QA/QC—ammonia, nitrate, phosphate, BOD surrogate estimation
• Emergency response during contamination events (e.g., chemical spills, algal blooms, post-flood assessments)
• Academic and NGO-led watershed health surveys requiring portable, method-validated instrumentation
• Third-party environmental laboratories performing on-site client verification prior to formal lab submission

FAQ

Is the AQ4001 certified for regulatory reporting under U.S. EPA or EU WFD frameworks?
Yes—individual modules meet EPA Method Compendium equivalency for designated parameters; full-system validation reports are available upon request for accredited labs.
Can the AQ4000 colorimeter be updated with new test methods after purchase?
Yes—method libraries are updated quarterly via free firmware downloads; no hardware modification required.
What is the recommended calibration frequency for field use?
Daily calibration is advised for critical compliance work; weekly calibration suffices for trend monitoring when supported by documented QC checks.
Are reagents supplied with expiration tracking and lot traceability?
Each reagent kit includes printed lot number, manufacture date, and expiration date; CoAs are digitally archived with instrument firmware.
Does the system support GLP-compliant audit trails?
When paired with AQ Manager™ and enabled audit-log settings, all calibrations, measurements, and user actions are time-stamped, user-authenticated, and non-erasable.
