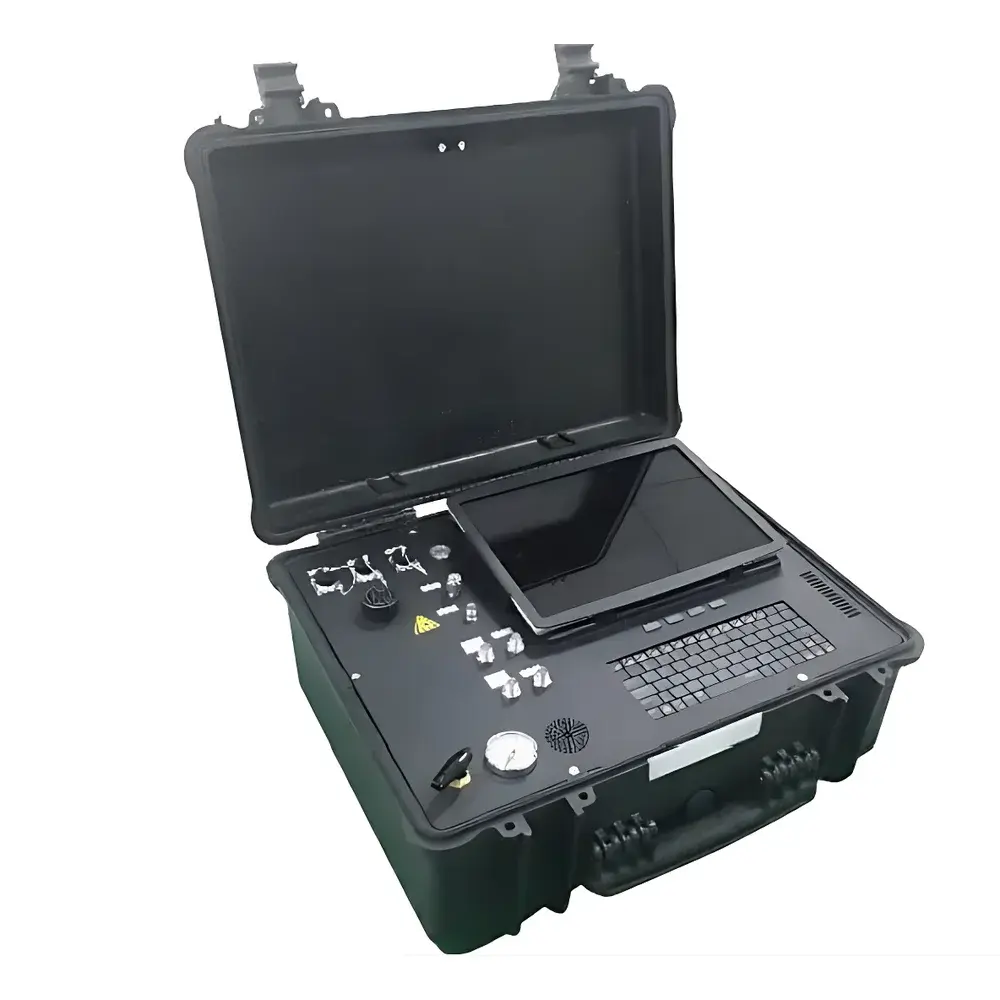

Thermo Scientific 5800-GO Portable VOCs Online Analyzer
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | 5800-GO |
| Price Range | USD $42,000–$70,000 (FOB) |
| Detection Principle | Gas Chromatography with Flame Ionization Detection (GC-FID) |
| Instrument Type | Portable |
| Configuration | Multi-component VOC Analyzer |
| Measurement Ranges | 0–50, 500, 5,000, 50,000 ppm |
| Resolution (as propane) | 30 ppb |
| Response Time | ≤2 min (methane/non-methane hydrocarbons) |
Overview
The Thermo Scientific 5800-GO Portable VOCs Online Analyzer is a field-deployable, GC-FID-based analytical system engineered for real-time, quantitative measurement of volatile organic compounds (VOCs) in ambient air and industrial emission streams. It implements a robust gas chromatographic separation coupled with flame ionization detection—providing laboratory-grade accuracy, linearity over seven orders of magnitude (>10⁷), and trace-level sensitivity down to 30 ppb (as propane). Designed for compliance with Chinese national standards—including HJ/T 38, HJ 732, and HJ 734—the instrument supports both regulatory monitoring and method validation workflows. Its fully insulated, temperature-controlled flow path (from sampling inlet to detector) prevents condensation and adsorption losses, particularly critical for high-boiling-point aromatics and oxygenated VOCs. The system operates autonomously via an embedded industrial PC running deterministic control firmware, enabling unattended 7×24 operation with scheduled calibration, column conditioning, and system diagnostics.
Key Features
- Integrated portable gas supply system (5800-GO Gas Companion) delivering ultra-high-purity H₂ (99.999%), zero air, and N₂—eliminating on-site gas generation variability and ensuring metrological traceability.
- Full-path electronic pressure control (EPC) with ±0.01 psi precision across carrier, fuel, and oxidant gas lines—guaranteeing retention time stability and quantitative reproducibility (≤1.5% RSD at 1 ppm methane).
- UniHeat rapid thermal management: column oven heats from ambient to 220 °C in <10 minutes; valve zones maintain 30–180 °C with 0.1 °C stability—enabling immediate deployment without extended warm-up delays.
- Modular, hot-swap sampling architecture: heated sampling probe (up to 180 °C), inertized stainless-steel tubing, and replaceable particulate/moisture filters ensure representative sample integrity under positive, atmospheric, or negative-pressure conditions.
- Detachable 12-inch touchscreen control unit with industrial-grade Intel CPU, 4 GB RAM, and SSD storage (supports >2 years of continuous data logging)—enabling remote operation via secure Wi-Fi or Modbus TCP/IP.
- User-programmable soft keys and automated sequence control for bag/SUMMA canister sampling (0–10 L volume programmable), including real-time pressure monitoring, leak-check routines, and auto-calibration triggers.
Sample Compatibility & Compliance
The 5800-GO accommodates gaseous matrices across diverse operational contexts: ambient air (1 atm), stack emissions (−20 to +5 kPa gauge), and grab samples collected in Tedlar® bags or electropolished stainless-steel SUMMA canisters. All wetted surfaces are SilcoNert®-treated to minimize surface reactivity and memory effects for polar and reactive VOCs. The analyzer meets functional requirements outlined in ISO 16000-6 (indoor air), EPA Method TO-17 (adsorbent tube desorption), and ASTM D6420 (GC-FID for hydrocarbons). Its software architecture supports audit trails, electronic signatures, and data integrity protocols aligned with GLP and FDA 21 CFR Part 11 when configured with optional secure authentication modules.
Software & Data Management
Embedded Thermo Scientific UniQuant™ firmware provides closed-loop system control—from automated zero/span checks and multi-point calibration to peak integration using retention time locking (RTL) and area normalization. Raw chromatograms, processed results (ppm/ppbv), diagnostic logs, and environmental metadata (temperature, pressure, flow rate) are stored in timestamped, tamper-evident binary archives. Export formats include CSV, TXT, and Excel-compatible XLSX; all files retain full traceability to instrument configuration and calibration history. Remote access enables parameter editing, report generation, and firmware updates via encrypted HTTPS or cellular (3G/4G optional). System health monitoring includes real-time EPC status, FID flame stability indicators, and predictive maintenance alerts based on component duty cycles.
Applications
- Regulatory compliance monitoring at municipal landfills, wastewater treatment plants, and chemical manufacturing facilities per local VOC emission limits.
- Leak detection and repair (LDAR) surveys using Method 21-equivalent response times and calibrated BTEX quantification.
- Indoor air quality (IAQ) assessments in offices, schools, and healthcare facilities—measuring TVOC, benzene, toluene, ethylbenzene, and xylenes (BTEX).
- Method verification and cross-validation against fixed-lab GC-MS systems—demonstrating inter-laboratory comparability for accreditation purposes (e.g., CNAS, CMA).
- Emergency response and fugitive emission source identification—leveraging portability, battery operation (optional Battery Companion), and rapid turnaround (<2 min for NMHC screening).
FAQ
Does the 5800-GO require external power sources during field deployment?
No—it operates on 24 VDC ±10% (8 A), compatible with vehicle power outlets, portable lithium battery packs (sold separately), or the integrated Battery Companion module for up to 4 hours of cordless operation.
Can the system analyze samples directly from a process duct without extraction hardware?
Yes—when equipped with the Enhanced Sampling Probe (Option 7), it performs in-situ analysis via heated, inertized probe insertion into ducts or stacks, maintaining sample integrity through full-path thermal control.
How is calibration traceability maintained in remote locations?
The included Gas Companion integrates a certified permeation tube or cylinder-based standard gas source (e.g., 1 ppm methane in air), enabling on-site span verification and drift correction without lab return.
Is method customization supported for non-standard VOCs beyond BTEX and NMHC?
Yes—users may define custom calibration curves, retention time windows, and integration algorithms via the UniQuant software interface, subject to chromatographic resolution and detector response factor validation.
What cybersecurity measures are implemented for remote data transmission?
All network interfaces support TLS 1.2+ encryption, role-based user authentication, and configurable firewall rules; Modbus TCP/IP communications comply with IEC 62443-3-3 security levels SL2 and SL3.
