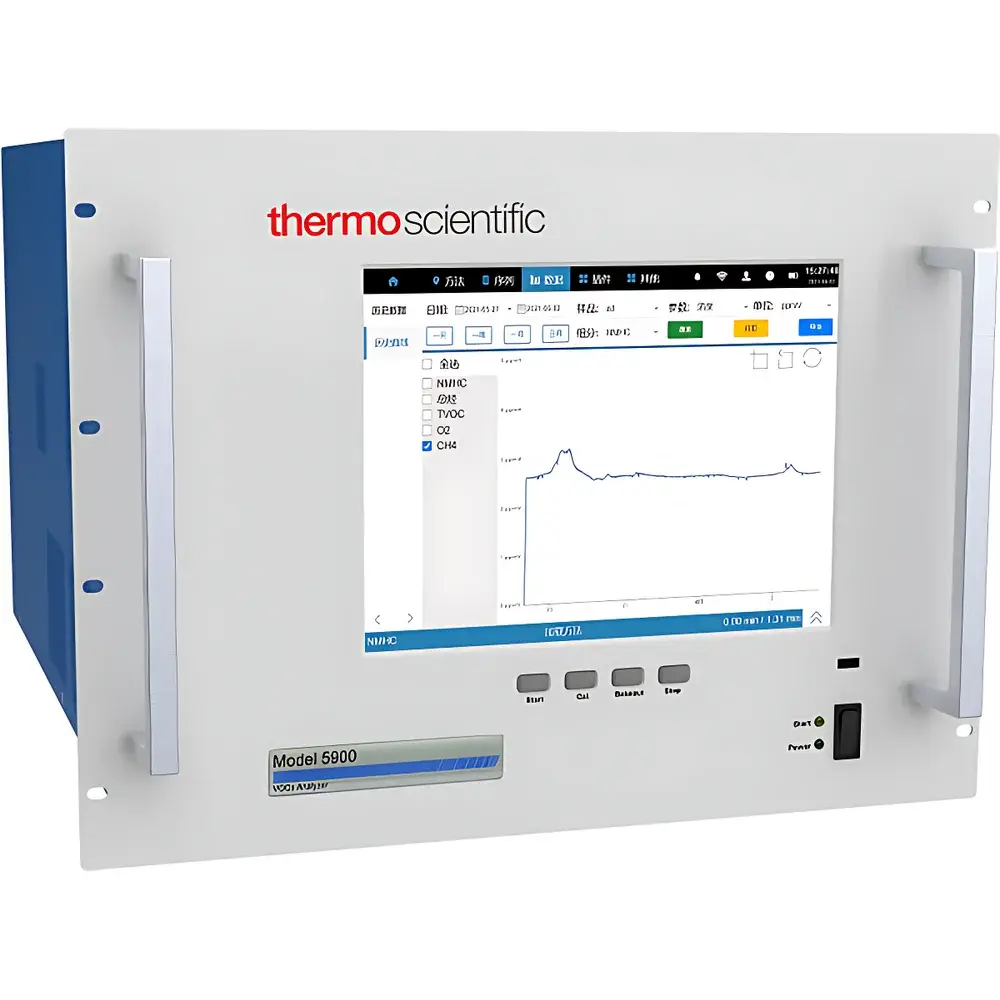

Thermo Scientific 5900 Methane and Total Non-Methane Hydrocarbons (NMHC) Online Analyzer
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Regional Classification | Domestic |
| Model | Thermo Scientific 5900 VOCs |
| Detection Principle | Gas Chromatography with Flame Ionization Detection (GC-FID) |
| Instrument Type | Online Continuous Analyzer |
| Detection Range | NMHC 0–5 ppm |
| Accuracy | ≤ ±10% |
| Response Time | ≤ 15 min |
Overview
The Thermo Scientific 5900 Methane and Total Non-Methane Hydrocarbons (NMHC) Online Analyzer is a fully integrated, continuous-emission monitoring system engineered for regulatory-grade quantification of methane (CH₄) and total non-methane hydrocarbons in ambient air or stack gas streams. It employs dual-column gas chromatography coupled with flame ionization detection (GC-FID), a reference method recognized under EPA Method 25A and ISO 13864 for hydrocarbon speciation and summation. Unlike extractive NDIR or PID-based instruments, the 5900 performs true compound-class separation—retaining methane on a dedicated pre-column while routing C₂–C₁₂+ NMHCs through a high-resolution capillary column—enabling selective, interference-resistant measurement. The system incorporates an online thermal desorption pre-concentrator capable of sub-ppb-level enrichment, delivering detection limits below 0.1 ppb for key NMHC species. Its architecture supports unattended 7×24 operation with automated calibration scheduling, drift correction, and real-time baseline stabilization.
Key Features
- Integrated GC-FID platform with dual-column switching and programmable temperature-controlled oven (range: 35–200 °C, ramp rate up to 30 °C/min)
- Onboard cryogenic pre-concentrator with multi-stage trap (Tenax TA + Carbopack B) and precise thermal desorption control
- Full-stream electronic pressure control (EPC) across sampling, injection, separation, and detection modules for <±0.01 psi pressure stability
- High-integrity sample conditioning: particulate filter (0.3 µm), moisture removal via Nafion dryer, and zero-air purge manifold

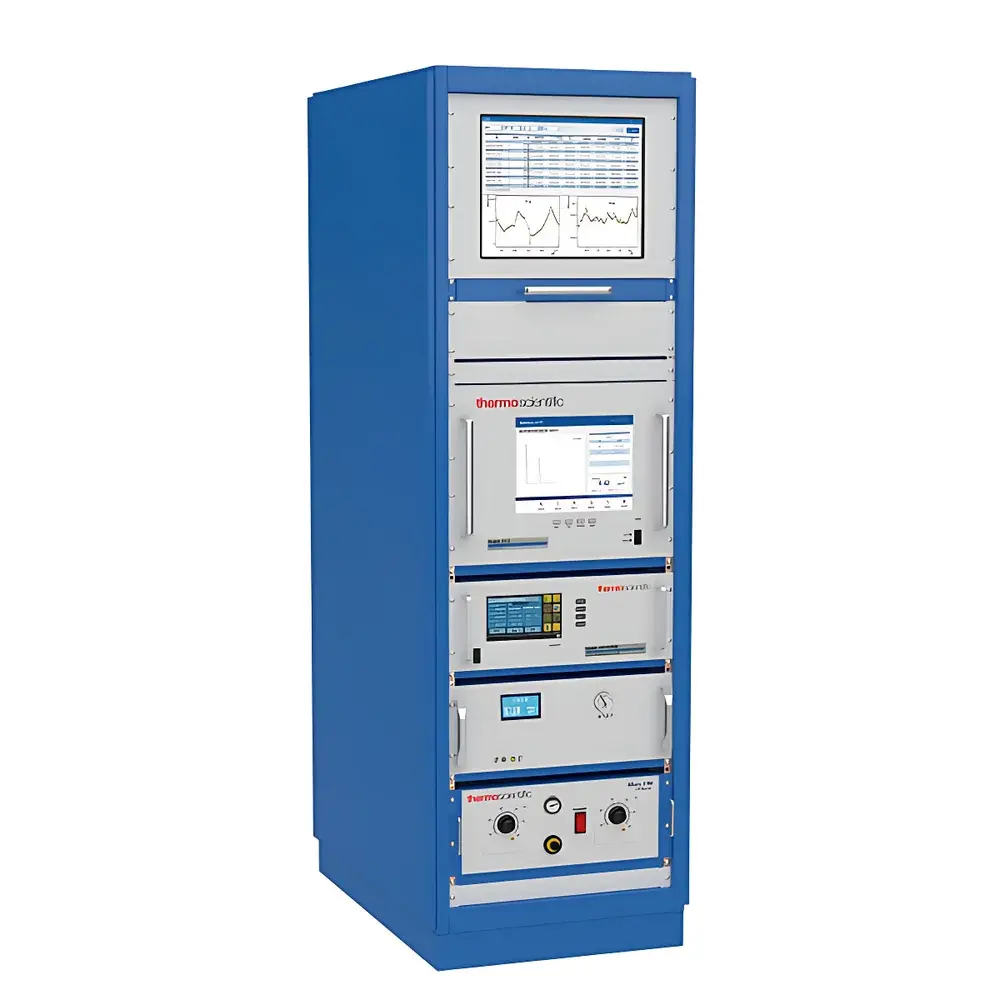

- Modular 19-inch rack-mount chassis with IP54-rated enclosure; operating ambient range: 5–40 °C, RH ≤ 85% non-condensing
- Self-diagnostic firmware with hardware status logging, valve cycle counters, detector gain monitoring, and FID flame supervision
Sample Compatibility & Compliance
The 5900 analyzer is validated for use with ambient air, urban background air, landfill off-gas, biogas, and industrial stack emissions containing volatile organic compounds (VOCs) in the C₁–C₁₂ range. It meets performance criteria outlined in U.S. EPA Performance Specification 8 (PS-8) for NMHC analyzers and aligns with European EN 14662-3 for continuous VOC monitoring. All data acquisition and reporting functions comply with 21 CFR Part 11 requirements—including electronic signatures, audit trails, and role-based user access—when configured with Thermo’s optional compliance software module. The system supports GLP/GMP-compliant operation through configurable data retention policies, instrument qualification templates (IQ/OQ/PQ), and traceable calibration records linked to NIST-traceable standards.
Software & Data Management
Control and analysis are managed via Thermo Scientific TraceFinder™ Environmental Edition v5.2 or higher—a validated, Windows-based application supporting method development, sequence scheduling, spectral review, and automated report generation (PDF/CSV/XML). Raw chromatograms, peak tables, calibration curves, and QC metrics are stored in an embedded SQL database with automatic backup to network drives. Remote access is enabled via TLS-secured HTTP(S) interface, allowing real-time dashboard viewing, alarm notification (email/SMS), and secure firmware updates. Audit trail functionality logs all user actions—including method edits, calibration events, and data exports—with immutable timestamps and operator IDs. Data export formats conform to ASTM D6348 and EU Directive 2015/2193 reporting templates.
Applications
- Ambient air quality monitoring networks (e.g., national AQMS programs requiring NMHC trend analysis)
- Landfill and wastewater treatment plant fugitive emission tracking per EPA 40 CFR Part 60 Subpart WWW
- Chemical manufacturing facilities subject to LDAR (Leak Detection and Repair) and MACT compliance
- Refinery flare gas composition verification and combustion efficiency assessment
- Research applications involving atmospheric chemistry modeling and VOC reactivity studies
- Calibration laboratory reference systems supporting transfer standards and inter-laboratory comparisons
FAQ
What regulatory methods does the 5900 support?
It complies with EPA Method 25A, ASTM D6348, ISO 13864, and EN 14662-3 for total NMHC determination.
Can the system operate without external calibration gases?
No—it requires certified CH₄ and NMHC span gases (e.g., propane-in-air) for daily zero/span checks and multi-point calibration; dynamic dilution is supported via optional integrated calibrator.
Is remote diagnostics available?
Yes—the embedded web server enables live status monitoring, error log retrieval, and limited parameter adjustment via authenticated HTTPS session.
What maintenance intervals are recommended?
FID nozzle cleaning every 90 days; column replacement every 12–18 months depending on matrix complexity; annual full EPC and detector sensitivity verification.
Does the analyzer meet explosion-proof requirements for hazardous areas?
The base unit is rated for Class I, Division 2 (CID2); ATEX/IECEx-certified versions are available upon request with modified enclosure and purge configuration.
