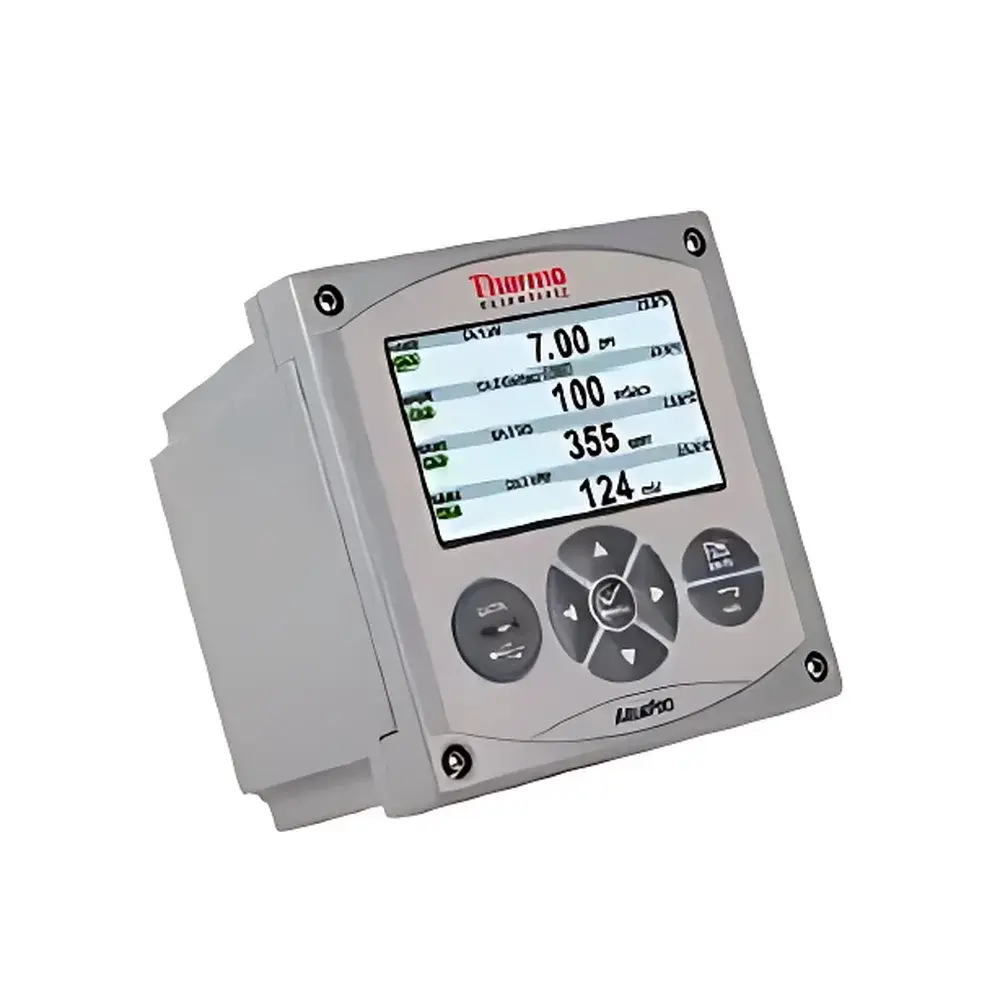

Thermo Scientific AquaPro Universal Controller

Overview

The Thermo Scientific AquaPro Universal Controller is an industrial-grade, multi-parameter water quality monitoring platform engineered for continuous, reliable operation in demanding environmental and process water applications. Built upon a modular architecture, it functions as a centralized signal acquisition, processing, and control unit that interfaces with a wide spectrum of analog and digital sensors using standardized electrochemical and optical measurement principles—including potentiometric (pH/ORP), conductometric (conductivity/salinity), amperometric (free chlorine, ozone), optical (RDO, turbidity, suspended solids), and photometric (acid/base concentration) methodologies. Designed for deployment in municipal wastewater treatment plants, drinking water distribution systems, industrial effluent monitoring stations, and aquaculture facilities, the AquaPro delivers deterministic data integrity, long-term sensor stability management, and seamless integration into existing SCADA and DCS infrastructures.

Key Features

• Simultaneous support for up to four independent sensor inputs—each configurable for any compatible parameter including pH, ORP, conductivity, dissolved oxygen (RDO), ozone, free chlorine, turbidity, suspended solids, and acid/base concentration.
• Universal sensor compatibility: accepts both 4–20 mA analog outputs and digital sensors compliant with Modbus RTU/ASCII over RS-485, enabling interoperability with legacy and next-generation probes.
• On-site sensor calibration, configuration, diagnostics, and real-time trend visualization via intuitive color touchscreen interface—no external PC required.
• Integrated firmware update capability via USB port, ensuring operational continuity during regulatory or performance upgrades without hardware replacement.
• Data logging capacity of 1,000 timestamped measurement records, exportable via USB mass storage mode for offline QA/QC review and audit compliance.
• Configuration cloning functionality: duplicate full instrument settings—including calibration coefficients, alarm thresholds, and I/O mapping—between units in seconds, minimizing commissioning time across multi-point installations.
• Flexible I/O expansion: up to eight isolated 4–20 mA analog outputs for actuator control or data forwarding; six programmable relay outputs supporting fail-safe alarm, pump start/stop, or solenoid valve sequencing.
• Multi-language UI supporting English, Spanish, French, German, Chinese, and Portuguese—optimized for global deployment and multilingual operator environments.
• Rugged polycarbonate enclosure rated NEMA 4X and IP66, UV-stabilized for outdoor wall, panel, or pipe-mount installation under harsh ambient conditions.
• Wide-input power supply: 100–240 VAC ±10%, 50/60 Hz; optional 24 VDC version available for hazardous area or battery-backed deployments.

Sample Compatibility & Compliance

The AquaPro controller is designed for use with aqueous samples across a broad range of matrices—including raw surface water, clarified effluent, potable water, cooling tower recirculation loops, and industrial process streams. It complies with international electrical safety standards (IEC 61010-1), electromagnetic compatibility requirements (IEC 61326-1), and environmental protection directives (RoHS, REACH). Its architecture supports audit-ready operation in regulated environments: configuration change logs, calibration history timestamps, and user-access event tracking align with GLP and GMP documentation expectations. While not itself a certified device under EPA Method or ISO 5667 series, its sensor interface fidelity enables full traceability when paired with metrologically validated probes meeting ASTM D1129 (pH), ASTM D5391 (conductivity), ISO 5814 (electrochemical DO), and ISO 7027 (turbidity) specifications.

Software & Data Management

The AquaPro operates independently without proprietary software dependencies. All configuration, calibration, and diagnostics are performed locally via its embedded HMI. USB-based data export generates CSV-formatted files compatible with Excel, LIMS, and statistical process control (SPC) platforms. For enterprise integration, native Modbus TCP and RTU protocols allow bidirectional communication with PLCs, HMIs, and cloud-based IIoT gateways. Optional Thermo Fisher Connect™ ecosystem integration enables remote health monitoring, predictive maintenance alerts, and centralized fleet management—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with appropriate access controls and audit trail activation.

Applications

• Municipal water utilities: real-time monitoring of disinfection residual (free chlorine, ozone), pH stabilization, and turbidity compliance at filtration and distribution points.
• Wastewater treatment plants: DO control in activated sludge basins, ORP-guided denitrification, and conductivity-based salinity tracking in membrane bioreactors.
• Industrial process water: closed-loop cooling water chemistry management (pH, conductivity, corrosion inhibitors), boiler feedwater purity assurance, and rinse bath concentration control in semiconductor or pharmaceutical manufacturing.
• Environmental monitoring networks: autonomous station telemetry for river intake quality, reservoir stratification profiling, and stormwater runoff event detection.
• Aquaculture and hydroponics: precision control of dissolved oxygen, pH, and nutrient ion balance to maintain optimal growth parameters.

FAQ

Does the AquaPro support automatic temperature compensation for all connected sensors?
Yes—each channel applies configurable, probe-specific temperature compensation algorithms per relevant ASTM or ISO standards (e.g., NIST-traceable pH slope correction, linear/nonlinear conductivity compensation).

Can the AquaPro be integrated into a Modbus TCP-based SCADA system?
Yes—the controller includes dual Ethernet ports with native Modbus TCP server functionality, supporting up to 32 concurrent client connections with configurable polling intervals and register mapping.

Is calibration data stored internally with user attribution and timestamps?
Yes—every calibration event is logged with operator ID (if enabled), date/time stamp, pre- and post-calibration values, and sensor identification, accessible via USB export or on-screen history browser.

What is the maximum cable length supported for RS-485 digital sensor communication?
Up to 1,200 meters at 9.6 kbps; length decreases proportionally with higher baud rates, consistent with TIA/EIA-485-A physical layer specifications.

Are firmware updates backward-compatible with existing configurations?
Yes—Thermo Fisher validates all firmware releases for configuration retention and I/O mapping persistence; no reconfiguration is required after upgrade.
