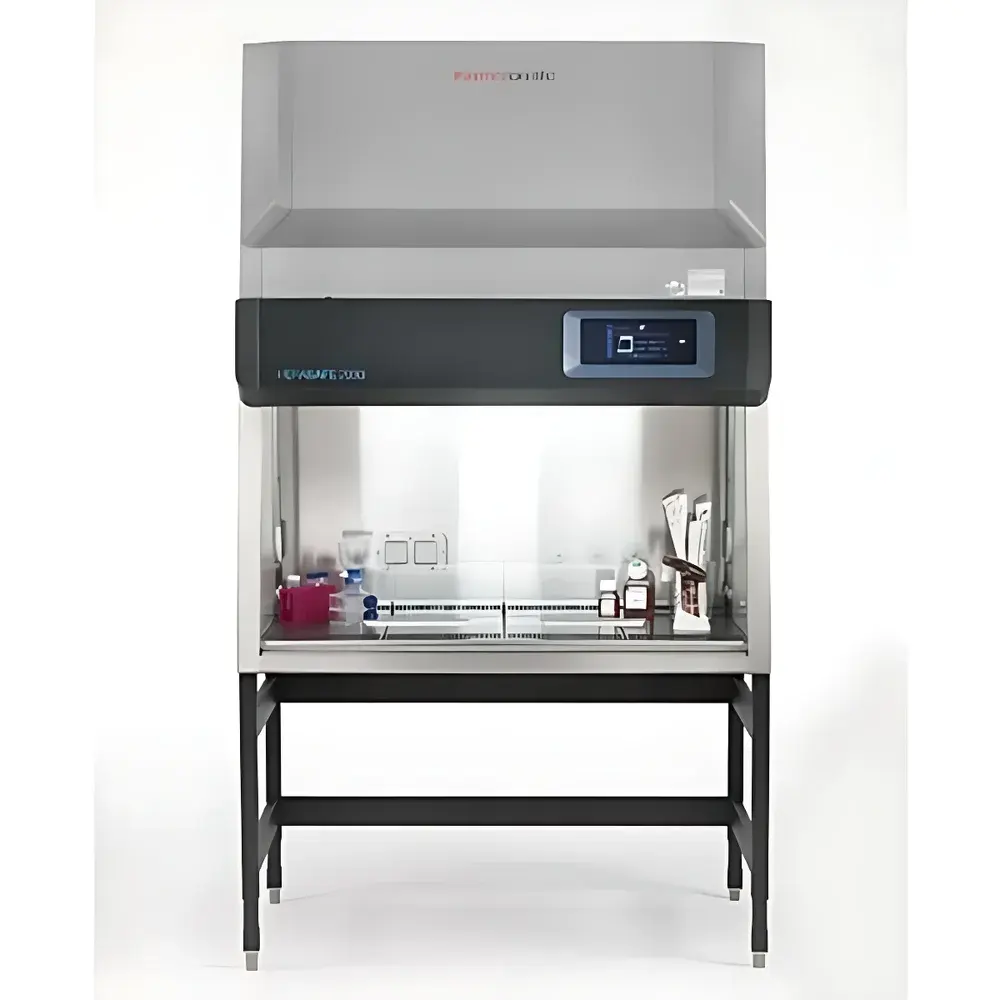

Thermo Scientific Herasafe 2030i Series Class II Biological Safety Cabinet

Overview

The Thermo Scientific Herasafe 2030i Series Class II Biological Safety Cabinet is an engineered solution for laboratories requiring simultaneous protection of personnel, products, and the environment during microbiological, cell culture, and biopharmaceutical handling procedures. Based on the proven principles of inward airflow containment, downward laminar recirculation (via dual HEPA filtration), and exhaust air treatment, the Herasafe 2030i employs a validated aerodynamic design compliant with NSF/ANSI 49–2022 and EN 12469:2000 standards. Its operational integrity relies on real-time volumetric airflow sensing, dynamic fan compensation, and adaptive sash-position feedback—collectively implemented through the proprietary Smart Flow+ and DAVe+ (Dynamic Air Velocity evaluation) control architecture. Unlike legacy cabinets relying on fixed setpoints, the 2030i continuously adjusts motor speed and damper position to maintain certified inflow and downflow velocities across variable ambient conditions and filter aging, ensuring consistent containment performance throughout its service life.

Key Features

• Intelligent Airflow Management: Smart Flow+ technology dynamically regulates supply and exhaust fan speeds using dual-anemometer feedback loops, preserving inflow velocity ≥0.50 m/s and downflow velocity ≥0.30 m/s—even as HEPA filters load over time.
• Adaptive Sash Interface: Motorized, hinge-mounted sash with programmable 200 mm and 250 mm operating heights; integrated motion sensors automatically deactivate UV lamps when hands enter the work area.
• Graphical Touch Interface: 7-inch full-color LCD display with intuitive icon-based navigation, multilingual support, and real-time visualization of airflow metrics, filter status, and alarm history.
• Ergonomic Work Environment: Seamless 316 stainless steel work surface, soft-grip armrests, LED lighting delivering ≥650 lux at work surface, and zero-torque sash actuation for fatigue-free daily use.
• Comprehensive Data Governance: Onboard event logging (including sash position changes, UV cycles, alarm triggers, and maintenance timestamps), USB export capability, and optional integration with Thermo Connect cloud platform for remote audit-ready reporting.
• Security & Compliance Infrastructure: Password-protected configuration access, GLP/GMP-aligned audit trail generation, and built-in validation support for IQ/OQ protocols per FDA 21 CFR Part 11 requirements.

Sample Compatibility & Compliance

The Herasafe 2030i supports a broad range of biosafety Level 1–2 applications, including mammalian and insect cell culture, transfection workflows, microbial isolation, and sterile preparation of therapeutic proteins and viral vectors. Its internal dimensions (465 × 1800 mm L×W) accommodate standard tissue culture hoods, centrifuges, pipette stands, and multi-channel dispensers without compromising airflow uniformity. All materials in contact with the airstream—including the work surface, side panels, and front grille—are fabricated from electropolished 316 stainless steel, ensuring resistance to corrosion from ethanol, isopropanol, hydrogen peroxide vapor, and sodium hypochlorite solutions used in routine decontamination. The cabinet meets or exceeds requirements of NSF/ANSI 49–2022 (Class II, Type A2), EN 12469:2000, ISO 14644-1 Class 5 cleanroom specifications, and EU Medical Device Regulation (MDR) Annex I essential requirements for safety-critical laboratory equipment.

Software & Data Management

Embedded firmware enables continuous acquisition and timestamped storage of critical operational parameters—including inflow/downflow velocity trends, total runtime, UV exposure duration, filter differential pressure, and sash positional history—for up to 12 months. Data exports via USB adhere to CSV and PDF formats compatible with LIMS and electronic lab notebook (ELN) systems. Optional Thermo Connect subscription provides secure TLS-encrypted remote access, customizable alert notifications (email/SMS), and automated report generation aligned with ISO/IEC 17025 and GxP documentation expectations. All user actions modifying system settings are logged with operator ID, timestamp, and pre-/post-change values—supporting traceability during regulatory inspections and internal quality audits.

Applications

• Primary and immortalized cell line maintenance under aseptic conditions
• CRISPR-Cas9 genome editing workflows requiring low-particulate environments
• Production of monoclonal antibodies and recombinant proteins in upstream bioprocessing labs
• Diagnostic assay development involving clinical specimens (e.g., blood, saliva, nasopharyngeal swabs)
• Teaching laboratories conducting BSL-2 microbiology experiments with Escherichia coli, Bacillus subtilis, or non-pathogenic Salmonella strains
• QC/QA testing of sterile pharmaceuticals per USP and guidelines

FAQ

What certifications does the Herasafe 2030i hold for international use?

It is certified to NSF/ANSI 49–2022 (USA), EN 12469:2000 (Europe), and complies with ISO 14644-1 Class 5 requirements for clean air delivery.
Can the cabinet be integrated into a centralized lab monitoring system?

Yes—via embedded Ethernet and Thermo Connect API, enabling real-time telemetry and centralized fleet management across multiple instruments.
Is validation support provided for installation qualification (IQ) and operational qualification (OQ)?

Thermo Fisher supplies factory-verified IQ/OQ test protocols, calibration certificates, and on-site technician-assisted commissioning services upon request.
How often must the HEPA filters be replaced?

Filter replacement intervals depend on usage intensity and environmental particulate load; typical service life ranges from 3–5 years, with real-time delta-P monitoring guiding preventive maintenance scheduling.
Does the unit meet FDA 21 CFR Part 11 requirements for electronic records?

Yes—the audit trail functionality, user authentication, and electronic signature readiness fulfill core Part 11 criteria for regulated biopharma and clinical research environments.
