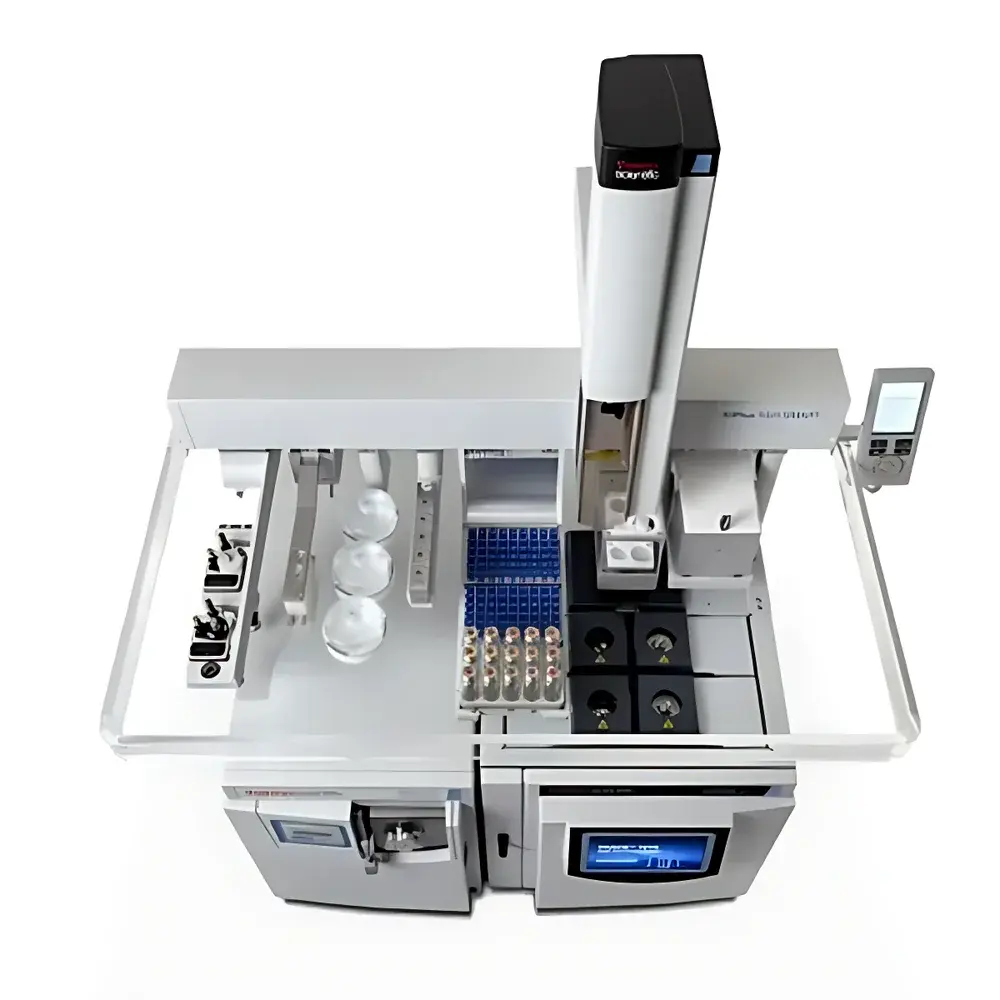

Thermo Scientific ISQ 7610 Single Quadrupole Gas Chromatograph-Mass Spectrometer
| Brand | Thermo Fisher |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China-manufactured) |
| Model | ISQ 7610 Single Quadrupole GC-MS |
| Pricing | Available Upon Request |
Overview
The Thermo Scientific ISQ 7610 is a single quadrupole gas chromatograph-mass spectrometer (GC-MS) system engineered for robust routine analysis in regulated and high-throughput laboratory environments. It integrates a high-performance gas chromatograph with a compact, thermally stable quadrupole mass analyzer operating on electron ionization (EI) and optional chemical ionization (CI) modes. The system employs a continuous electron multiplier detector and features a heated transfer line to preserve compound integrity from column effluent to the ion source. Designed for method transferability and operational continuity, the ISQ 7610 supports uninterrupted workflow during routine maintenance tasks—including GC column replacement and ion source cleaning—without requiring vacuum venting or extended re-pumping cycles. Its architecture adheres to core principles of analytical reproducibility, thermal stability, and signal fidelity across extended duty cycles.
Key Features
- Dual-mode ion source (EI/CI) with rapid interchange capability and temperature-controlled operation up to 350 °C for enhanced sensitivity and reduced carryover.
- Robust quadrupole mass filter with mass range of 10–1050 m/z and unit mass resolution, optimized for consistent peak shape and isotopic fidelity.
- SmartStatus™ real-time instrument health monitoring integrated into Chromeleon Chromatography Data System (CDS), providing visual indicators for vacuum status, filament life, detector gain, and consumables usage.
- Heated electronic pressure control (EPC) for precise, programmable carrier gas flow and inlet pressure management across split/splitless, PTV, and direct injection configurations.
- Auto-tune and calibration routines compliant with ASTM D5845 and EPA Method 8270D requirements, supporting automated daily performance verification.
- Modular GC oven design with rapid heating/cooling rates (up to 120 °C/min) and stable temperature uniformity (< ±0.1 °C) across the full operating range (–10 to 450 °C).
Sample Compatibility & Compliance
The ISQ 7610 accommodates volatile and semi-volatile organic compounds (VOCs/SVOCs) across environmental, food safety, forensic, and pharmaceutical applications—including pesticides, PAHs, phthalates, residual solvents, and flavor/aroma volatiles. Sample introduction supports liquid injection (via autosampler), headspace analysis, and thermal desorption interfaces. The system complies with ISO/IEC 17025:2017 requirements for testing laboratories and supports audit-ready data handling under FDA 21 CFR Part 11 and EU Annex 11 when configured with appropriate Chromeleon CDS security settings. Instrument qualification documentation—including IQ/OQ/PQ protocols—is available to support GLP and GMP-regulated workflows.
Software & Data Management
Chromeleon CDS v7.3 or later serves as the unified platform for instrument control, acquisition, processing, and reporting. The software includes embedded spectral library search (NIST MS Search), quantitative method wizards, batch processing templates, and customizable report generation. Audit trail functionality records all user actions, parameter changes, and data modifications with time-stamped, non-erasable entries. Data files conform to open-standard formats (e.g., .CDF, .RAW) for long-term archival and third-party reprocessing. Optional integration with LIMS systems via ODBC or REST API enables traceable sample lifecycle management across enterprise networks.
Applications
- Environmental analysis: Detection and quantification of chlorinated hydrocarbons, PCBs, dioxins, and emerging contaminants per EPA Methods 502.2, 524.4, 8270D, and 8260D.
- Food and beverage testing: Residue screening of veterinary drugs, mycotoxins, and packaging migrants in compliance with EU Regulation (EC) No 396/2005 and FDA Food Safety Modernization Act (FSMA) guidelines.
- Pharmaceutical QC: Residual solvent analysis per ICH Q3C(R8) and extractables/leachables profiling using validated GC-MS methods.
- Forensic toxicology: Rapid identification of drugs of abuse, metabolites, and synthetic cannabinoids in biological matrices following SWGTOX best practices.
- Polymer and materials science: Volatile organic emissions (VOC) profiling from adhesives, coatings, and recycled plastics per ISO 16000-6 and ASTM D6886.
FAQ
Is the ISQ 7610 manufactured in the USA or China?
The ISQ 7610 GC-MS system is manufactured at Thermo Fisher’s facility in Shanghai, China, under the same quality management system (ISO 9001-certified) applied to global production sites.
Does the system support regulatory-compliant data integrity?
Yes—when deployed with Chromeleon CDS configured for 21 CFR Part 11 and Annex 11 compliance, the ISQ 7610 provides electronic signatures, role-based access control, and immutable audit trails.
Can the ion source be cleaned without breaking vacuum?
No—ion source cleaning requires venting the mass spectrometer; however, the design minimizes downtime through quick-release hardware and pre-aligned components, enabling typical re-pump times under 45 minutes.
What GC columns are compatible with the ISQ 7610?
All standard fused-silica capillary columns (0.1–0.53 mm ID, 10–60 m length) with 5% phenyl methyl siloxane, polyethylene glycol, or specialized stationary phases are fully supported via standard GC inlet modules.
Is method transfer possible from other Thermo GC-MS platforms?
Yes—method parameters (oven ramps, carrier flow, ion source settings) are broadly transferable from ISQ 7000, DSQ II, and Trace 1300 series instruments, with minor optimization typically required for retention time alignment and sensitivity tuning.
