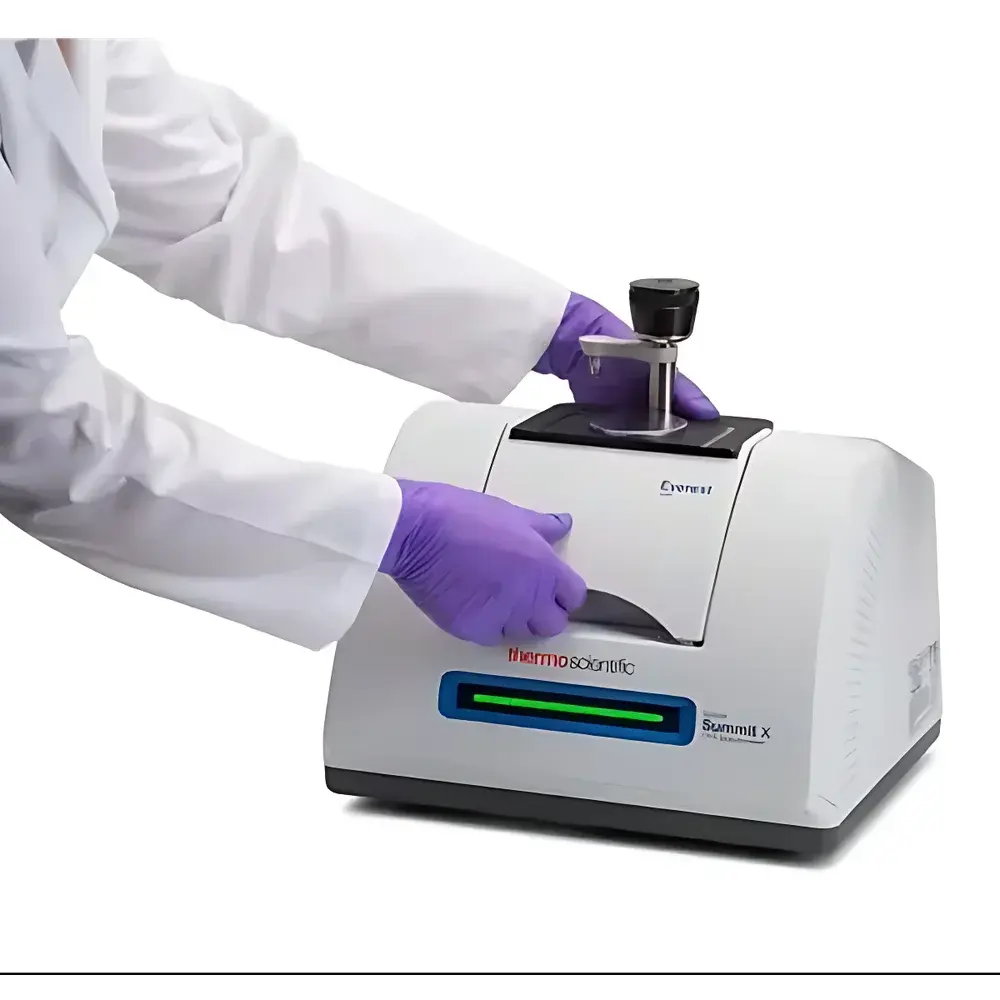

Thermo Scientific Nicolet Summit X FTIR Spectrometer (Domestically Manufactured in Shanghai)

Overview

The Thermo Scientific Nicolet Summit X FTIR Spectrometer (Domestically Manufactured in Shanghai) is a high-performance Fourier Transform Infrared (FTIR) spectrometer engineered for precision, reliability, and operational efficiency in regulated and research-intensive laboratory environments. Based on Michelson interferometry, the instrument measures molecular vibrational absorption across the mid-infrared range (typically 4000–400 cm⁻¹), enabling identification and quantification of functional groups, chemical bonds, and structural motifs in organic and inorganic materials. Its core optical architecture incorporates the proprietary LightDrive™ optical engine — a solid-state, alignment-free interferometer design that eliminates mechanical drift, minimizes thermal sensitivity, and ensures long-term spectral fidelity. Unlike traditional moving-mirror systems, LightDrive employs a monolithic, flexure-based interferometer with integrated solid-state laser reference, delivering exceptional wavenumber accuracy (< 0.01 cm⁻¹) and intensity stability over extended acquisition periods. The Summit X model is certified to deliver ≤ 0.6 cm⁻¹ nominal spectral resolution (unapodized), supporting routine QA/QC verification, raw material identification, and batch release testing under cGMP and GLP frameworks.

Key Features

• LightDrive™ optical engine: Alignment-free, vibration-resistant interferometer with solid-state laser reference for <0.01 cm⁻¹ wavenumber reproducibility
• Enhanced infrared source: Low-drift, high-stability globar with uniform emission profile; eliminates hot-spot migration—critical for ATR-based quantitative analysis
• Extended warranty coverage: 10-year limited warranty on IR source, interferometer, and HeNe laser (X and PRO models)
• Factory-validated specifications: All performance claims (e.g., resolution, signal-to-noise ratio, wavenumber accuracy) are verified per ASTM E1421 and ISO 17025-compliant procedures—not “typical” or “achievable” values
• Compact benchtop footprint: Optimized for space-constrained QC labs while maintaining full optical path integrity and purge compatibility
• Integrated environmental monitoring: Real-time humidity and temperature sensors feed into spectral correction algorithms to maintain baseline stability during ambient fluctuations

Sample Compatibility & Compliance

The Summit X supports universal sampling via standardized interfaces for transmission, attenuated total reflectance (ATR), diffuse reflectance (DRIFTS), and gas cell modules. It accommodates solids (pellets, films, powders), liquids (neat, solutions, microvolume cells), and gases (sealed or flow-through cells). All accessories comply with ISO 8573-1 (compressed air purity) and ASTM D7594 (FTIR gas-phase quantitation) where applicable. Instrument qualification follows IQ/OQ/PQ protocols aligned with USP , Ph.Eur. 2.2.42, and JP 2.07. Full 21 CFR Part 11 compliance is enabled through OMNIC Paradigm’s audit-trail-enabled database architecture, electronic signature workflows, role-based access control, and immutable data archiving—validated for use in pharmaceutical manufacturing, contract research organizations (CROs), and academic core facilities subject to FDA, EMA, and NMPA inspections.

Software & Data Management

OMNIC Paradigm software provides a unified, secure, and scalable platform for method development, acquisition, processing, and reporting. Its drag-and-drop workflow builder enables creation of validated SOPs without scripting—ideal for multi-user labs enforcing consistent analytical practices. The software integrates natively with Thermo Fisher Connect cloud infrastructure, supporting encrypted Wi-Fi upload of spectra, metadata, and reports to centralized repositories. All data objects are stored in a relational SQL Server database with automatic versioning, time-stamped audit trails, and user-action logging compliant with ALCOA+ principles. Optional Data Security Package includes FIPS 140-2–certified encryption, password complexity enforcement, and session timeout policies. Desktop and touch-enabled UI modes are available; the latter supports glove-compatible operation in controlled environments.

Applications

The Summit X serves as a primary analytical tool across regulated and exploratory domains: raw material identity testing per USP and Ph.Eur. 2.2.24; polymer degradation profiling via carbonyl index tracking; forensic fiber and paint chip comparison using spectral library matching (ASTM E2926); environmental microplastic identification in water matrices; excipient compatibility screening in formulation development; and real-time reaction monitoring in teaching laboratories. Its robustness and factory-calibrated performance make it suitable for routine release testing in API manufacturing, biologics formulation QC, and environmental compliance labs operating under ISO/IEC 17025 accreditation.

FAQ

Is the Shanghai-manufactured Summit X spectrometer identical in optical performance to its U.S.-assembled counterpart?
Yes—the optical train, detector assembly, and LightDrive interferometer are manufactured to identical Thermo Fisher engineering specifications and undergo the same factory validation protocol per ISO 9001 and ISO/IEC 17025 requirements.
Does the 10-year warranty cover calibration verification services?
The warranty covers component replacement and labor for defects in materials/workmanship; annual calibration verification and performance qualification (PQ) are available through Thermo Fisher Unity Lab Services or authorized service partners under separate service agreements.
Can OMNIC Paradigm be deployed in a virtual desktop infrastructure (VDI) environment?
Yes—OMNIC Paradigm supports Citrix Virtual Apps and Microsoft Remote Desktop Services when configured per Thermo Fisher’s published VDI deployment guide (Document #OMNIC-VDA-2023-EN).
Is spectral library search capability included out-of-the-box?
Yes—the instrument ships with the Thermo Scientific™ SpectraBase™ library (500,000+ spectra) and supports custom library creation, hierarchical classification, and similarity scoring using Pearson correlation and Euclidean distance metrics.
How is instrument connectivity secured for remote data access?
All cloud communications use TLS 1.2+ encryption; device authentication employs certificate-based mutual TLS (mTLS), and no local credentials are transmitted during Thermo Fisher Connect synchronization.
