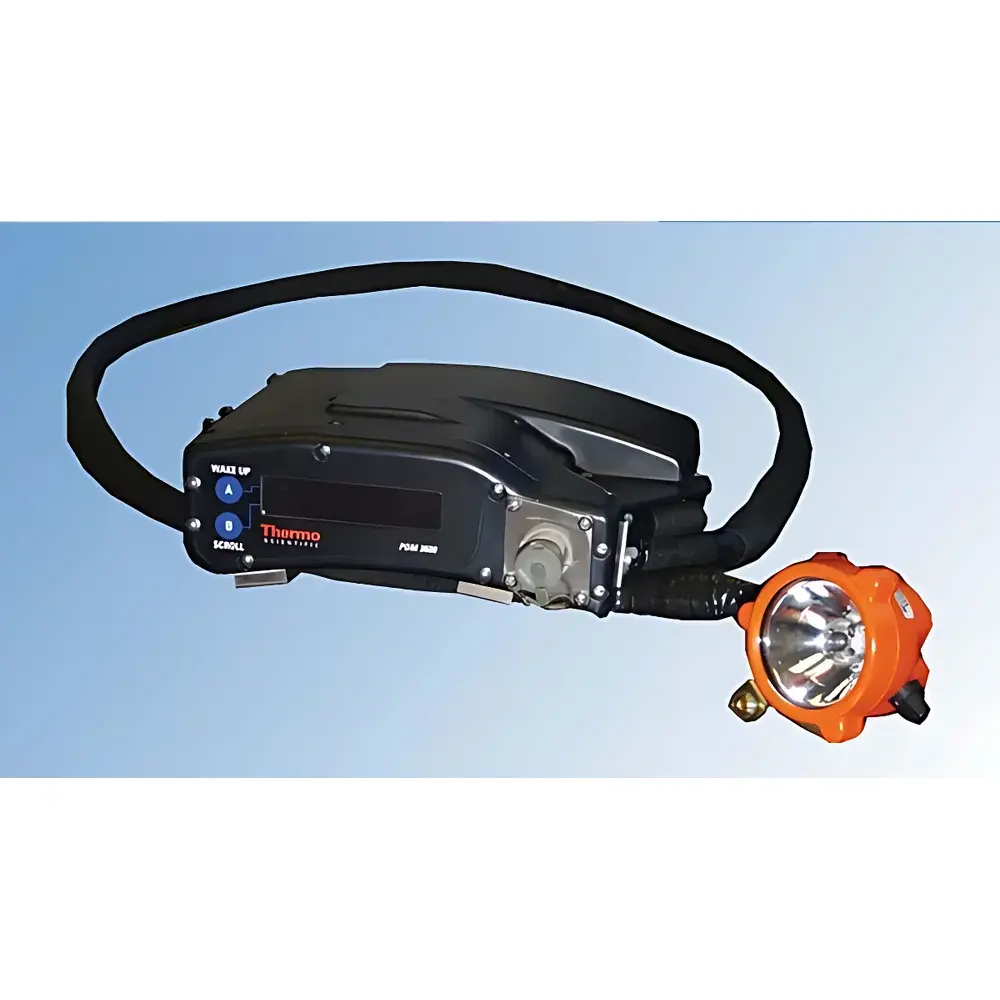

Thermo Scientific PDM3600 Personal Dust Monitor

Overview

The Thermo Scientific PDM3600 Personal Dust Monitor is an occupational health instrumentation system engineered for real-time, quantitative assessment of respirable dust exposure in underground coal mining environments. It employs the Tapered Element Oscillating Microbalance (TEOM™) measurement principle—a gravimetric technique that continuously monitors mass accumulation on a replaceable filter membrane via high-frequency oscillation frequency shift of a tapered quartz element. Air is drawn isokinetically from the worker’s breathing zone at a controlled flow rate of 2.2 L/min; larger non-respirable particles are removed upstream by an IOM (Institute of Occupational Medicine) or cyclone pre-separator (not included), ensuring only thoracic and respirable fractions are collected and quantified. Unlike traditional filter-based gravimetric sampling requiring post-collection laboratory weighing and handling, the PDM3600 performs in-situ mass determination with automated compensation for temperature, pressure, and humidity—eliminating manual filter transfer, reducing analytical bias, and enabling immediate exposure feedback. Its dual-function design integrates continuous dust monitoring with a certified cap-lamp lighting system, supporting both safety illumination and regulatory compliance under MSHA-mandated personal exposure monitoring protocols.

Key Features

• Real-time respirable dust concentration output: 30-minute rolling average, cumulative mass loading, and % of Permissible Exposure Limit (PEL) — all displayed locally and logged internally.
• Dual independent secondary measurement channels allow concurrent auxiliary data capture (e.g., ambient temperature, relative humidity, or supplemental particulate metrics) without interrupting primary sampling integrity.
• Robust, static-dissipative polymer housing rated for high-humidity, high-dust underground coal mine environments; IP65-rated ingress protection for water and dust resistance.
• Integrated LED lighting system: high-intensity main work lamp plus two low-power auxiliary lamps — fully compliant with MSHA 30 CFR Part 18 illumination requirements.
• Modular architecture with hot-swappable TEOM sensor module, field-replaceable filter cassette, and standardized PTO (Power Take-Off) interface for seamless integration with charging and data download modules.
• Onboard data storage supports ≥30 days of minute-resolution exposure records; encrypted binary logging ensures audit-trail integrity for GLP/GMP-aligned workflows.

Sample Compatibility & Compliance

The PDM3600 is validated for use with standard 25-mm PVC or polyvinyl chloride filter media (e.g., SKC PVC filters, cat. #225-1001), compatible with NIOSH Method 0600 and MSHA-approved respirable dust sampling protocols. It meets U.S. federal regulatory requirements for occupational exposure assessment, including full MSHA certification (Approval No. 19-A040002-0). Electrical safety conforms to EN 61326-1:2005 (EMC for industrial equipment), FCC Part 15 Subpart B (radiated emissions), and UN Manual of Tests and Criteria Section 38.3 (transport of lithium-ion batteries). The integrated charger complies with ANSI/UL 1012 and UL Class 2 safety standards. While not intrinsically safe or explosion-proof, its non-sparking construction and static-dissipative enclosure meet typical Class I, Division 2 environmental expectations in ventilated underground mining zones.

Software & Data Management

Data acquisition, calibration management, and exposure reporting are supported by Thermo Scientific PDM Manager software (v3.x or later), a Windows-based application compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. The software enables secure user authentication, role-based access control, and full audit trail logging—including timestamped calibration events, filter change logs, and firmware updates. Raw TEOM sensor outputs, flow diagnostics, battery status, and environmental metadata (temperature, RH) are exportable in CSV and XML formats for integration into enterprise EHS platforms (e.g., Intelex, Sphera, or SAP EHS). Calibration verification follows ISO 8502-10 traceable procedures using NIST-traceable aerosol generators and reference gravimetric samplers.

Applications

Primary deployment targets include continuous personal exposure monitoring (PEM) for coal miners subject to MSHA 30 CFR §70.100 and §70.1100 regulations. Secondary applications extend to silica-exposed workers in stone, sand, and gravel operations; tunneling crews exposed to diesel particulate matter (DPM); and industrial hygienists conducting task-based exposure assessments in foundries, cement plants, and abrasive blasting environments. The instrument supports retrospective exposure reconstruction, engineering control validation, and exposure-response epidemiological studies where high-temporal-resolution gravimetric data is required. Its portability and battery autonomy (>10 hours continuous operation) make it suitable for multi-shift longitudinal monitoring campaigns.

FAQ

What sampling methodology does the PDM3600 use?
It utilizes the Tapered Element Oscillating Microbalance (TEOM™) gravimetric principle, with isokinetic sampling at 2.2 L/min and optional cyclone pre-separation for respirable fraction definition.
Is the PDM3600 certified for use in explosive atmospheres?
No — it is classified as non-explosion-proof and intended for use in ventilated, non-hazardous locations per MSHA approval conditions.
Can the device be calibrated in the field?
Yes — field calibration is performed using a certified flow calibrator and zero-air source; full system verification requires laboratory-based gravimetric comparison per ISO 8502-10.
Does the PDM3600 support wireless data transmission?
No — data transfer occurs exclusively via USB-connected charging/data module; no Bluetooth, Wi-Fi, or cellular interfaces are embedded.
What filter types are compatible with the PDM3600?
Standard 25-mm PVC filters meeting NIOSH 0600 specifications (e.g., SKC #225-1001 or equivalent) are recommended; cellulose ester and mixed-cellulose ester filters may be used with prior validation.
How is battery life managed during extended shifts?
Dual lithium-ion battery packs provide >10 hours of continuous operation; hot-swap capability allows battery replacement without interrupting sampling or data continuity.
