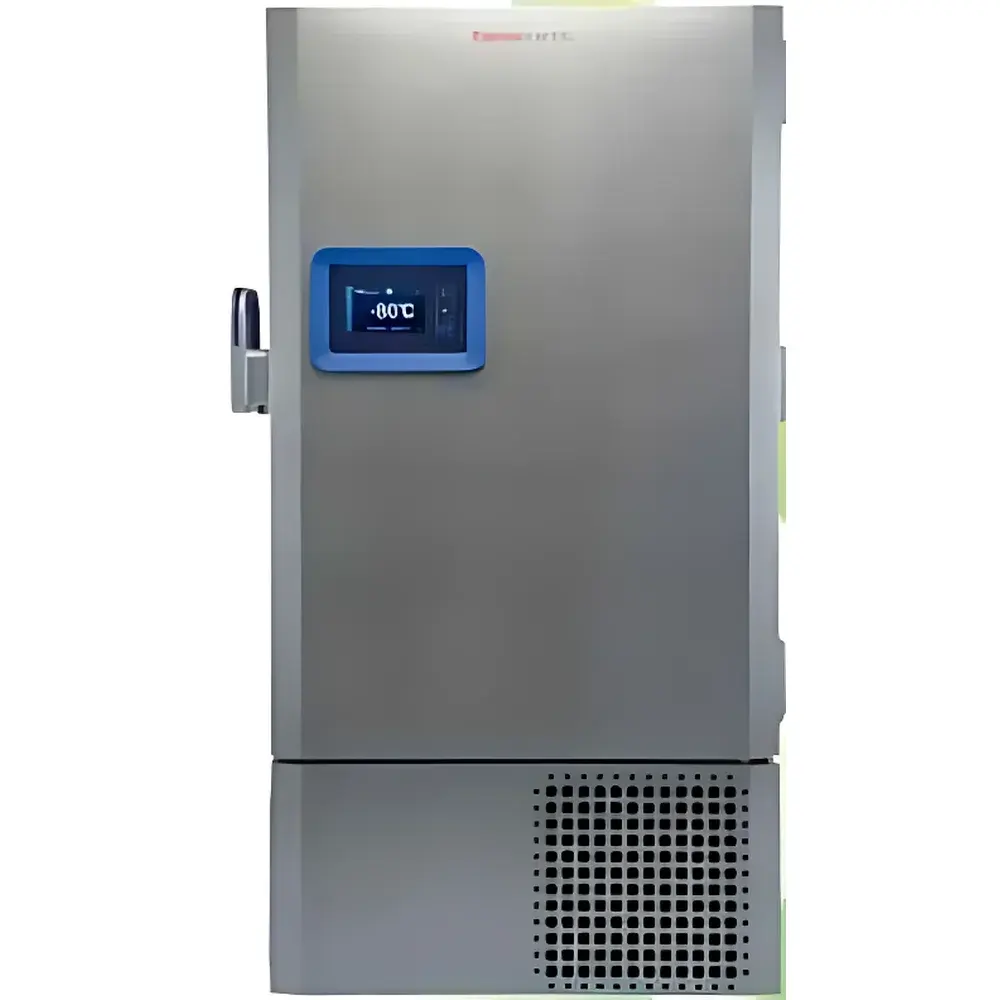

Thermo Scientific TSX70086V Ultra-Low Temperature Freezer

Overview

The Thermo Scientific™ TSX70086V Ultra-Low Temperature (ULT) Freezer is an engineered solution for long-term biobanking, clinical sample archiving, and high-value biomaterial preservation at –80 °C. Built upon Thermo Fisher Scientific’s proprietary V-Drive™ variable-speed compressor architecture, this unit delivers precise thermal control through dynamic power modulation—responding in real time to ambient fluctuations, door openings, and load changes. Unlike fixed-speed ULT freezers that cycle on/off and induce temperature excursions, the TSX70086V maintains continuous refrigeration with adaptive compression speed, minimizing thermal stress on sensitive biological specimens including primary cells, stem cell lines, mRNA formulations, and tissue lysates. Its thermally optimized cabinet design—featuring vacuum-insulated panels (VIPs), multi-layer door gaskets, and recirculating air distribution—ensures ±1.5 °C temperature uniformity across the full storage volume (validated per ISO/IEC 17025-compliant protocols), critical for regulatory-compliant biorepository operations.

Key Features

• V-Drive™ Variable-Speed Compressor System: Dynamically adjusts motor speed between 20–100% capacity to match thermal load, reducing energy consumption by up to 35% versus conventional ULT freezers while maintaining stable setpoint performance.
• Ultra-Compact Footprint, High-Density Storage: With external dimensions of 1981 × 1148 × 955 mm, the TSX70086V occupies only 1.10 m² floor space yet accommodates up to 700 standardized 2-inch cryoboxes—equivalent to ~42,000 individual 1.0–2.0 mL cryovials—maximizing lab space efficiency without compromising cold chain integrity.
• Low-Noise Operation: Acoustic output <48 dB(A) at 1 m distance enables installation in shared laboratory or office environments without requiring dedicated mechanical rooms or acoustic enclosures.
• Intelligent Recovery Logic: Upon door opening, the V-Drive system automatically increases compressor speed and airflow rate to restore –80 °C within ≤12 minutes (tested with 50% load, ambient 25 °C), significantly outperforming industry benchmarks for recovery time.
• Robust Cabinet Construction: Stainless steel interior chamber (1301 × 1016 × 719 mm) with seamless welded corners and electropolished finish resists corrosion and facilitates decontamination; exterior reinforced steel housing with powder-coated finish ensures structural durability under daily institutional use.

Sample Compatibility & Compliance

The TSX70086V supports storage of diverse biospecimens—including frozen plasma, PBMCs, genomic DNA, CRISPR reagents, viral vectors, and lyophilized proteins—across multiple international biobanking standards. Its validated temperature stability meets requirements for ISO 20387:2018 (Biobanking), ASTM F2647-22 (Performance Criteria for ULT Freezers), and CLSI GP44-A4 (Temperature Monitoring in Biomedical Freezers). When integrated with Thermo Fisher’s SampleManager™ LIMS or third-party GLP/GMP-compliant monitoring platforms, the freezer supports audit-ready data logging, alarm history with timestamped events, and electronic signatures compliant with FDA 21 CFR Part 11 Annex 11 requirements.

Software & Data Management

The TSX70086V features embedded Ethernet connectivity and a web-accessible interface supporting remote monitoring via Thermo Fisher’s Connect™ Cloud platform. Real-time parameters—including internal temperature (3-point sensor array), compressor status, door-open duration, and power consumption—are logged at user-defined intervals (1–60 min) with local SD-card backup and encrypted cloud synchronization. Alarm notifications (SMS/email) trigger on deviation >±2.0 °C from setpoint, sustained door open >30 sec, or power failure >5 sec. All data exports comply with CSV/Excel formats for integration into enterprise QMS systems and support full traceability for ISO 13485 or CAP-accredited laboratories.

Applications

• Long-term archival of human biospecimens in academic biorepositories and NIH-funded cohorts
• Cold chain maintenance for clinical trial materials (e.g., autologous CAR-T products, tumor tissue blocks)
• Stabilization of thermolabile reagents used in next-generation sequencing library preparation
• Storage of reference standards and calibration materials in pharmaceutical QC labs
• Backup freezing for cryopreserved iPSC lines and organoid cultures in regenerative medicine workflows

FAQ

What is the minimum ambient temperature required for stable operation?
The TSX70086V is rated for continuous operation in ambient temperatures of 10–32 °C with relative humidity ≤80% non-condensing. For optimal energy efficiency and compressor longevity, installation in rooms maintained at 18–25 °C is recommended.

Does the unit include a temperature mapping qualification report?
Yes—each TSX70086V ships with a factory-installed IQ/OQ protocol package, including pre-calibrated NIST-traceable temperature sensors and a completed 24-hour stability map (per ISO 14644-1 Class 5 air handling validation).

Can the freezer be integrated into a centralized building management system (BMS)?
Yes—via Modbus TCP/IP or BACnet MS/TP protocols, enabling real-time telemetry and alarm forwarding to institutional infrastructure monitoring platforms.

Is the interior compatible with ethanol-based decontamination agents?
Yes—the electropolished stainless steel chamber and silicone door gaskets are resistant to 70% ethanol, isopropanol, and hydrogen peroxide vapor (HPV) decontamination cycles per manufacturer-recommended protocols.
