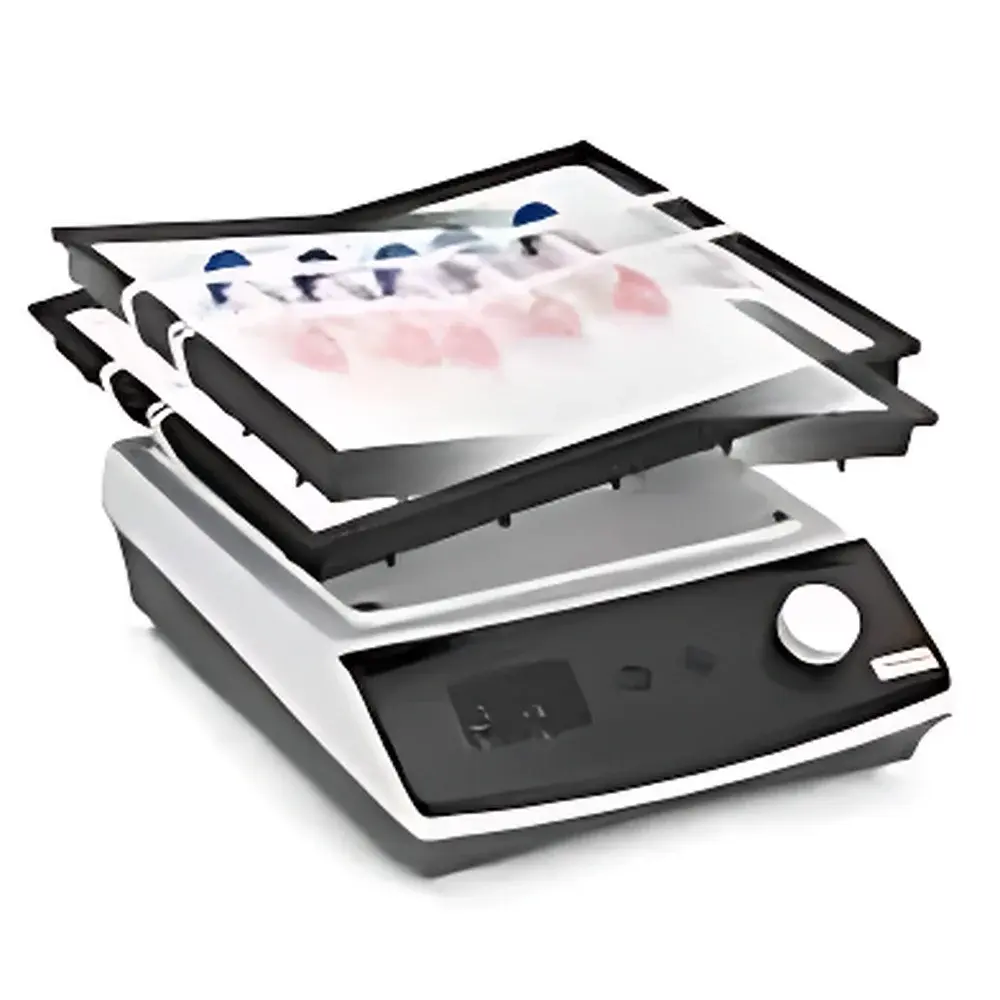

Thermo Scientific Vari Mix Tilt Shaker

Overview

The Thermo Scientific Vari Mix Tilt Shaker is an engineered benchtop orbital shaker designed specifically for controlled, low-shear mixing in life science applications requiring precise angular displacement and reproducible motion profiles. Unlike standard horizontal or orbital shakers, the Vari Mix employs a patented tilt-axis oscillation mechanism—where the platform rotates about a fixed pivot point relative to the horizontal plane—enabling consistent, gravity-assisted fluid agitation across a wide range of vessel geometries and viscosities. This principle ensures uniform sample exposure during hybridization, antibody incubation, staining, destaining, and washing steps in molecular biology, immunology, and proteomics workflows. Its compact footprint, chemical-resistant housing, and modular platform system support integration into ISO Class 5–7 clean benches, biosafety cabinets, and temperature-controlled rooms without compromising operational stability or regulatory compliance.

Key Features

• Adjustable tilt angle from 1° to 48° from horizontal—optimized for laminar flow generation and reduced foaming in sensitive biological samples such as nucleic acid gels, Western blots, and cell lysates.
• Variable speed control (5–30 rpm) with digital feedback regulation ensuring ±1 rpm repeatability across load conditions up to 6.8 kg.
• Removable, autoclavable white silicone rubber platform with high-friction surface texture—validated for steam sterilization at 121 °C for 20 minutes per ISO 17665-1.
• Programmable timer supporting dual-frequency operation: 2-hour duration on 60 Hz mains, 3-hour duration on 50 Hz mains—designed to align with regional electrical infrastructure standards.
• Chemically inert exterior finish compliant with ASTM D2671 for resistance to common laboratory reagents including ethanol, sodium dodecyl sulfate (SDS), acetic acid, and Tris-HCl buffers.
• Optional dual-tier platform configuration increases throughput for parallel processing of microtiter plates, conical tubes (15–50 mL), and custom rack-mounted vessels.
• Continuous operation mode enables unattended overnight protocols under GLP-compliant environmental monitoring (4–40 °C ambient, 20–65 % RH).

Sample Compatibility & Compliance

The Vari Mix Tilt Shaker accommodates a broad spectrum of labware without adapter kits: standard microscope slides, polyacrylamide or agarose gel trays (up to 20 × 20 cm), multi-well strips, Eppendorf tubes (0.5–2.0 mL), Falcon tubes (15–50 mL), and glass staining dishes. Its mechanical architecture meets IEC 61010-1:2010 safety requirements for laboratory equipment and carries CE marking under the EU Machinery Directive 2006/42/EC. The device supports audit-ready documentation for FDA-regulated environments through optional electronic log export (CSV format) when paired with Thermo Fisher’s Connect™ Lab Management Software Suite. All materials contacting the platform conform to USP Class VI biocompatibility testing criteria.

Software & Data Management

While the base unit operates via intuitive front-panel controls, optional connectivity modules enable integration into centralized lab informatics systems. Firmware version 2.1+ supports timestamped parameter logging—including angle, speed, runtime, and power cycle events—with encrypted local storage (non-volatile EEPROM). When interfaced with Thermo Fisher’s LabConnect™ middleware, users can schedule batch runs, enforce user-level access controls (per 21 CFR Part 11 Annex 11 guidelines), and generate PDF reports traceable to instrument serial number and calibration certificate ID. Audit trails are retained for ≥36 months and exportable in CSV or XML formats compatible with LIMS platforms such as LabWare LIMS and STARLIMS.

Applications

• Nucleic acid hybridization (Southern/Northern blotting, FISH probe incubation)
• Protein electrophoresis gel staining and destaining (Coomassie, silver, SYPRO Ruby)
• Antibody-based assays (Western blot blocking, primary/secondary incubation, wash cycles)
• Cell culture plate washing (ELISA, immunofluorescence, high-content screening)
• Enzyme-linked immunoassay (ELISA) plate agitation during substrate development
• Small-volume buffer exchange and dialysis membrane equilibration
• Preparative chromatography fraction collection tube agitation prior to analysis

FAQ

Is the Vari Mix Tilt Shaker suitable for use inside a CO₂ incubator?

No—the unit is rated for ambient operation only (4–40 °C, non-condensing humidity); internal incubator environments exceed specified humidity limits and may compromise electrical insulation integrity.
Can the tilt angle be locked at intermediate positions between 1° and 48°?

Yes—micro-adjustment is achieved via calibrated stainless-steel detent mechanism with tactile feedback; each 1° increment is mechanically indexed and stable under continuous operation.
Does the shaker support validation documentation (IQ/OQ/PQ)?

Yes—Thermo Fisher provides standardized qualification templates aligned with ISO/IEC 17025 and ASTM E2500-22, including test protocols for angle accuracy, speed deviation, load distribution, and thermal drift verification.
What maintenance is required beyond routine cleaning?

Annual calibration verification by authorized service technician is recommended; no lubrication or consumable replacement is required under normal usage conditions.
Is the product compatible with third-party lab automation systems?

Yes—RS-232 and optional Ethernet/IP interfaces support Modbus RTU and TCP protocols for integration with robotic arms, environmental monitors, and building management systems.
