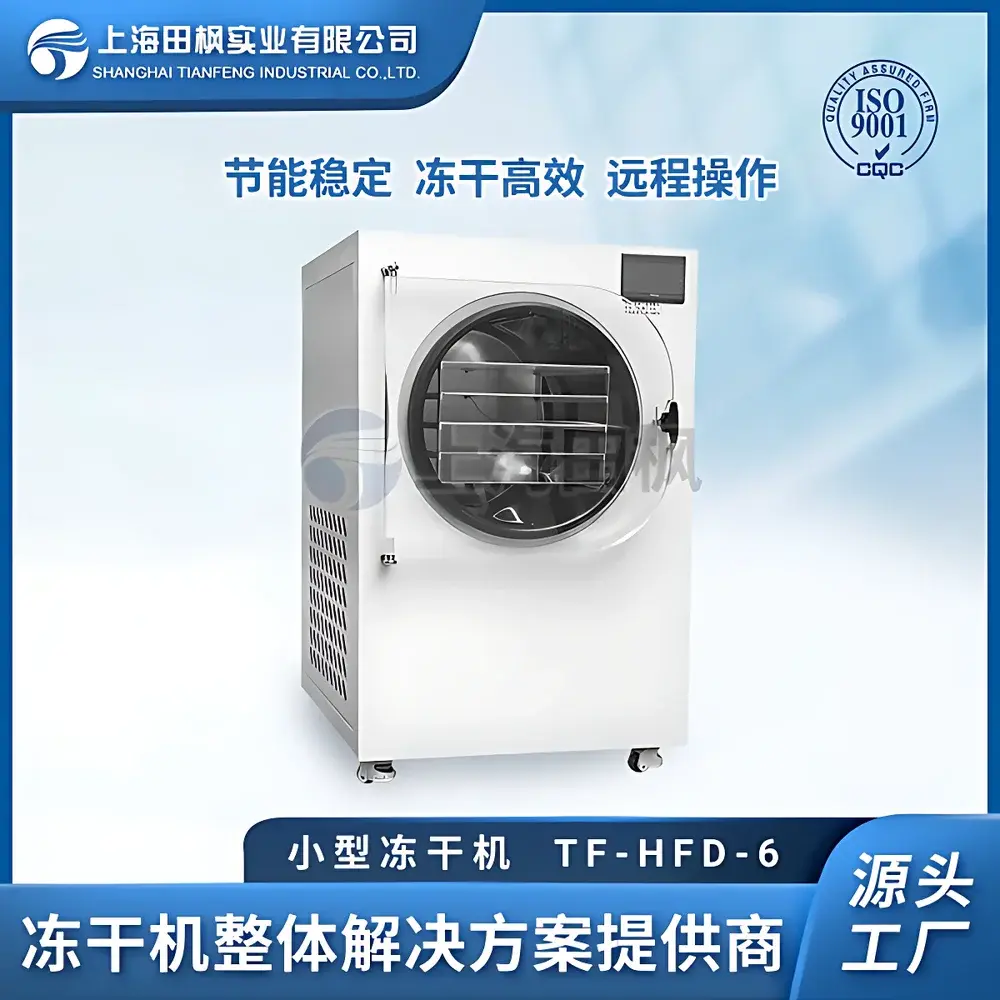

Tianfeng TF-HFD-6 Laboratory-Scale Freeze Dryer with In-Situ Freezing and Hydraulic Stoppering

Overview

The Tianfeng TF-HFD-6 is a laboratory-scale freeze dryer engineered for pilot production, process development, and high-fidelity lyophilization of heat-sensitive biologicals, botanical extracts, and functional food matrices—including delicate floral materials such as Camellia nitidissima (Golden Camellia). It operates on the fundamental principle of sublimation: frozen water in the sample is removed directly from solid to vapor phase under controlled low-pressure (<10 Pa) and cryogenic conditions (condenser ≤−40 °C), bypassing the liquid state entirely. This preserves labile phytochemicals—including trace elements (Ge, Se, Zn, Mn), polyphenols, amino acids, and thermolabile volatiles—while maintaining structural integrity, color fidelity, rehydration kinetics, and sensory attributes. Designed for compliance-driven environments, the system supports Good Manufacturing Practice (GMP)-aligned workflows and integrates seamlessly into GLP-compliant R&D laboratories engaged in nutraceutical formulation, herbal standardization, and stability testing per ICH Q5C and USP .

Key Features

• In-situ freezing capability with programmable shelf temperature control (−40 °C to +60 °C), enabling precise eutectic point determination and primary drying optimization.
• Hydraulic stoppering mechanism for sterile, repeatable vial sealing under vacuum—critical for pharmaceutical-grade intermediates and clinical trial material preparation.
• Stainless steel 304 chamber and trays ensure corrosion resistance, cleanability, and compliance with FDA 21 CFR Part 11 data integrity requirements when paired with audit-trail-enabled software.
• Transparent acrylic observation door allows real-time visual monitoring of ice morphology, collapse onset, and drying front progression without compromising vacuum integrity.
• Embedded touchscreen HMI with multi-segment cycle programming, real-time graphing of shelf temperature, chamber pressure, and condenser load, plus automatic event logging (start/stop, alarm, defrost).
• Energy-efficient refrigeration architecture with low-noise scroll compressors and optimized heat exchange design—rated power consumption: 2300 W at full load.
• One-touch auto-defrost function minimizes downtime between batches; thermal overload protection prevents condenser icing failure during extended operation.

Sample Compatibility & Compliance

The TF-HFD-6 accommodates diverse sample formats: bulk trays (4 × 330 mm × 440 mm), serum vials (10–30 mL), and open-dish botanicals—including whole flowers, leaf segments, and extruded rice noodles (mifen). Its 0.6 m² lyophilization area and 10 kg/24 h water vapor capacity support batch sizes up to 5–8 L of aqueous solution or equivalent solid mass. The system meets ISO 22000 prerequisites for food-grade equipment hygiene and aligns with ASTM F2476–22 for freeze-drying performance verification. All electrical components conform to CE and GB/T 19001–2016 (ISO 9001) manufacturing standards. Validation documentation—including IQ/OQ templates, calibration certificates for PT100 shelf sensors and Pirani vacuum gauges—is provided upon request for regulatory submissions.

Software & Data Management

Equipped with embedded firmware supporting CSV export of time-stamped process data (shelf temp, chamber pressure, condenser temp, valve status), the TF-HFD-6 enables traceable batch records compliant with 21 CFR Part 11 when used with optional PC-based supervision software. Cycle parameters are password-protected and version-controlled; all manual interventions (e.g., ramp rate changes, hold duration extension) are timestamped and logged. Data files include metadata (operator ID, batch ID, ambient conditions) and are structured for direct import into LIMS or ELN platforms. Audit trail functionality records user login/logout, parameter edits, and alarm acknowledgments—ensuring full accountability during FDA or EMA inspections.

Applications

• Stabilization of Camellia nitidissima extracts for nutraceutical capsules, preserving selenium, germanium, and catechins at >92% retention vs. hot-air drying (per comparative HPLC-ICP-MS studies).
• Lyophilization of fresh rice noodles (mifen) for shelf-stable instant food products—retaining gelatinization texture, starch crystallinity, and cooking rehydration ratio within ±3% of fresh baseline.
• Pilot-scale drying of probiotic suspensions (Lactobacillus spp., Bifidobacterium longum) using trehalose-based cryoprotectants—achieving >85% post-lyo viability recovery validated by plate count and flow cytometry.
• Preparation of reference standards for herbal pharmacopeial monographs (e.g., Chinese Pharmacopoeia ChP 2020, Appendix XI C) requiring certified moisture content <2.0% w/w.
• R&D of porous scaffolds for edible film development—controlling pore size distribution (via annealing protocols) to modulate oxygen permeability and mechanical strength.

FAQ

What is the maximum allowable loading volume per batch?
The unit supports up to 5–6 L of 10–15% w/v solution across four trays—or approximately 3–4 kg of pre-frozen solid biomass—without exceeding condenser saturation limits.
Does the system support validation protocols for GMP manufacturing?
Yes. With optional IQ/OQ documentation packages, calibrated sensors, and 21 CFR Part 11–compliant software modules, it fulfills qualification requirements for Category 3 (non-sterile) and Category 4 (sterile intermediate) processing lines.
Can the freeze-drying cycle be modified during operation?
Yes. All parameters—including shelf ramp rates, hold durations, and vacuum setpoints—are adjustable in real time via the HMI interface, with change history automatically archived.
Is remote monitoring supported?
Ethernet connectivity is available as an upgrade option, enabling SNMP-based status polling and secure web-based access to live graphs and alarm logs.
What maintenance intervals are recommended?
Compressor oil and refrigerant should be inspected annually; vacuum pump oil requires replacement every 500 operating hours; condenser coils must be cleaned quarterly using non-abrasive stainless steel cleaners.
