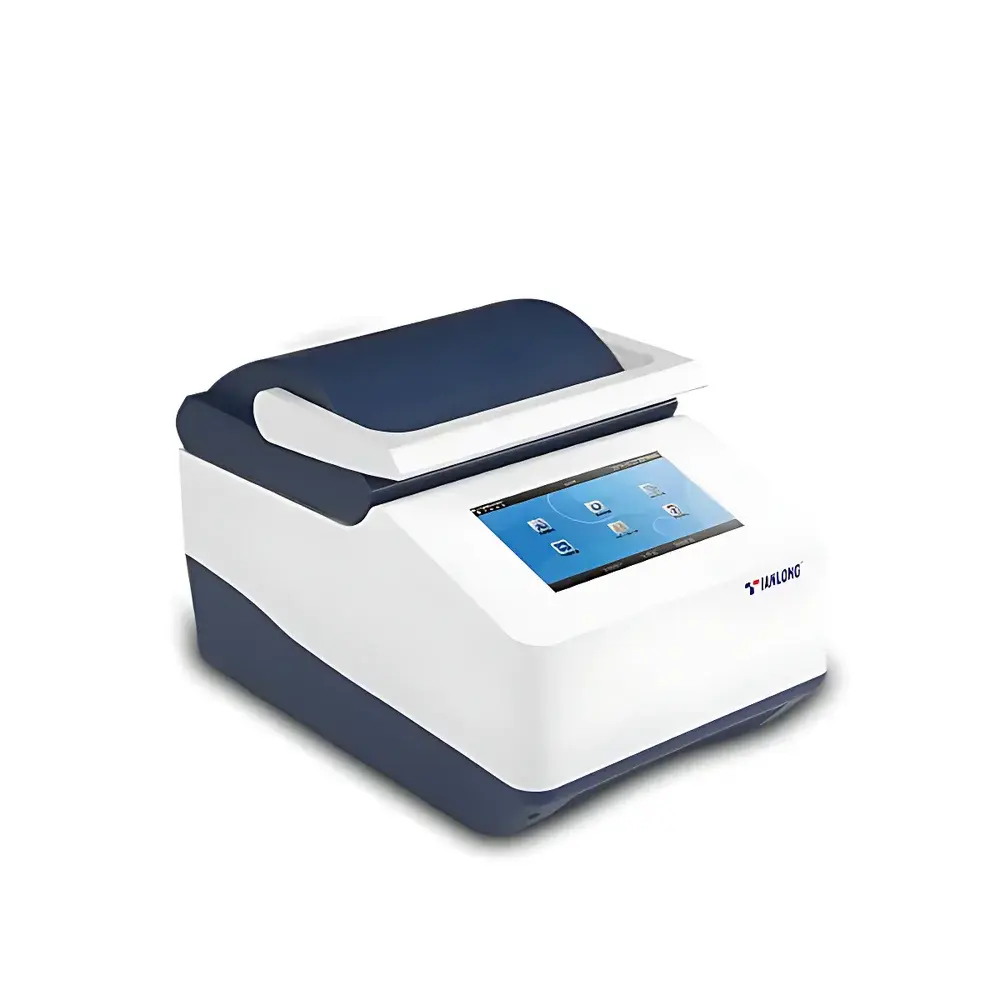

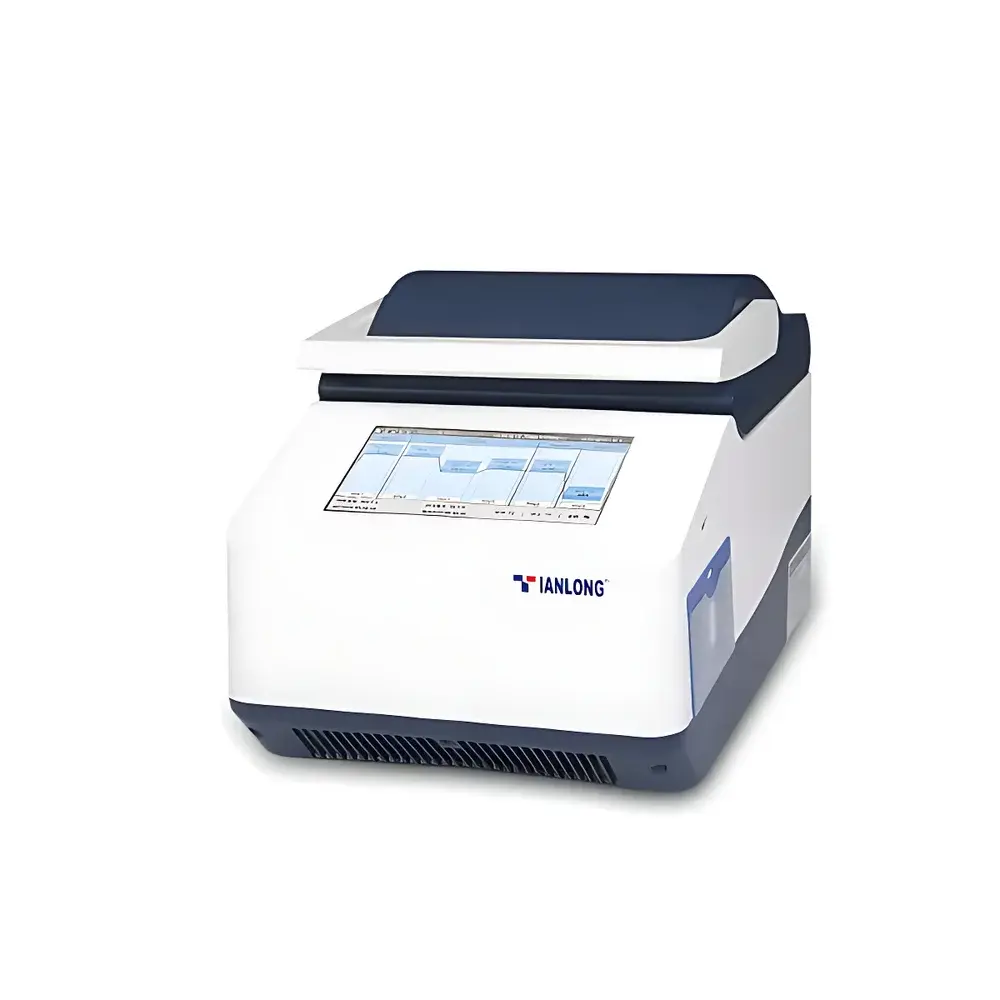

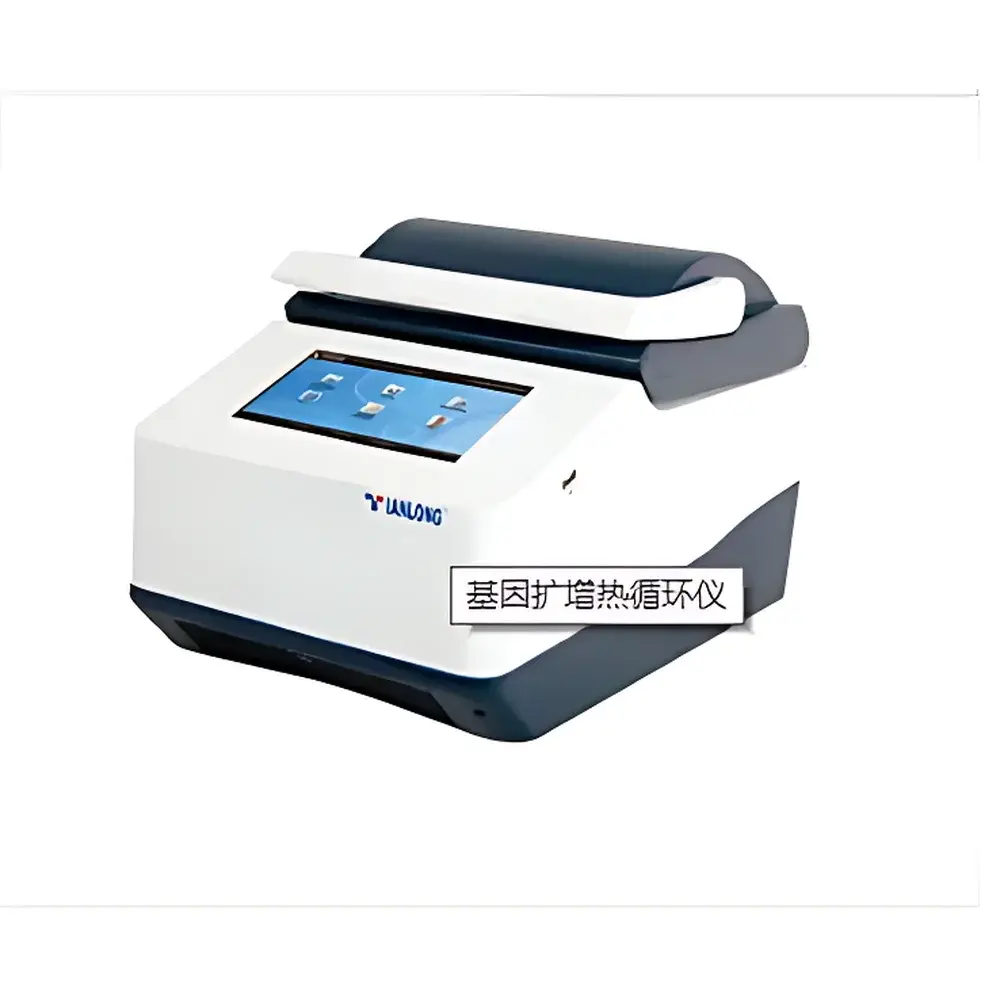

TIANLONG Genesy 96T Real-Time PCR Thermal Cycler

Overview

The TIANLONG Genesy 96T Real-Time PCR Thermal Cycler is a high-precision, Peltier-based thermal cycling instrument engineered for reproducible nucleic acid amplification under stringent laboratory conditions. It implements precise block-level temperature control via solid-state thermoelectric modules, enabling rapid and uniform thermal transitions across all 96 wells of standard 0.2 mL reaction vessels—including single tubes, 8-tube strips, and full-, half-, or non-skirted 96-well plates. Designed for quantitative and qualitative detection workflows, the Genesy 96T supports endpoint PCR, RT-PCR, nested PCR, SNP genotyping, gene expression profiling, and pre-sequencing library amplification. Its dual-mode temperature control—comprising both block- and tube-simulated (Tube Mode) algorithms—compensates for well-to-well thermal lag and ensures accurate thermal modeling of actual sample conditions. The system operates within a validated block temperature range of 4.0 °C to 99.9 °C, with gradient functionality spanning 12 independent columns, facilitating empirical optimization of annealing temperatures without requiring multiple runs.

Key Features

• 12-channel linear thermal gradient with programmable width (1.0–40.0 °C) and range (35.0–100.0 °C), enabling simultaneous evaluation of multiple annealing conditions in a single run
• High-speed thermal actuation: ≥3.5 °C/s heating and ≥2.5 °C/s cooling rates, minimizing cycle time without compromising fidelity or yield
• Dual thermal control modes—Block Mode for direct block temperature regulation and Tube Mode for algorithmically compensated sample temperature estimation—enhancing assay robustness across diverse reaction volumes (0–100 μL)
• Self-adjusting pressure-sensitive thermal lid (40–110 °C range) eliminates manual height calibration and ensures consistent contact across variable-height consumables
• 7-inch TFT color touchscreen (800 × 480 resolution) running a deterministic embedded Linux OS, delivering deterministic response times and long-term firmware stability
• Acoustically optimized mechanical architecture achieving <55 dB(A) operational noise—suitable for open-plan labs and shared instrumentation suites
• Front-intake/rear-exhaust airflow design allows dense benchtop deployment without thermal crosstalk between adjacent units

Sample Compatibility & Compliance

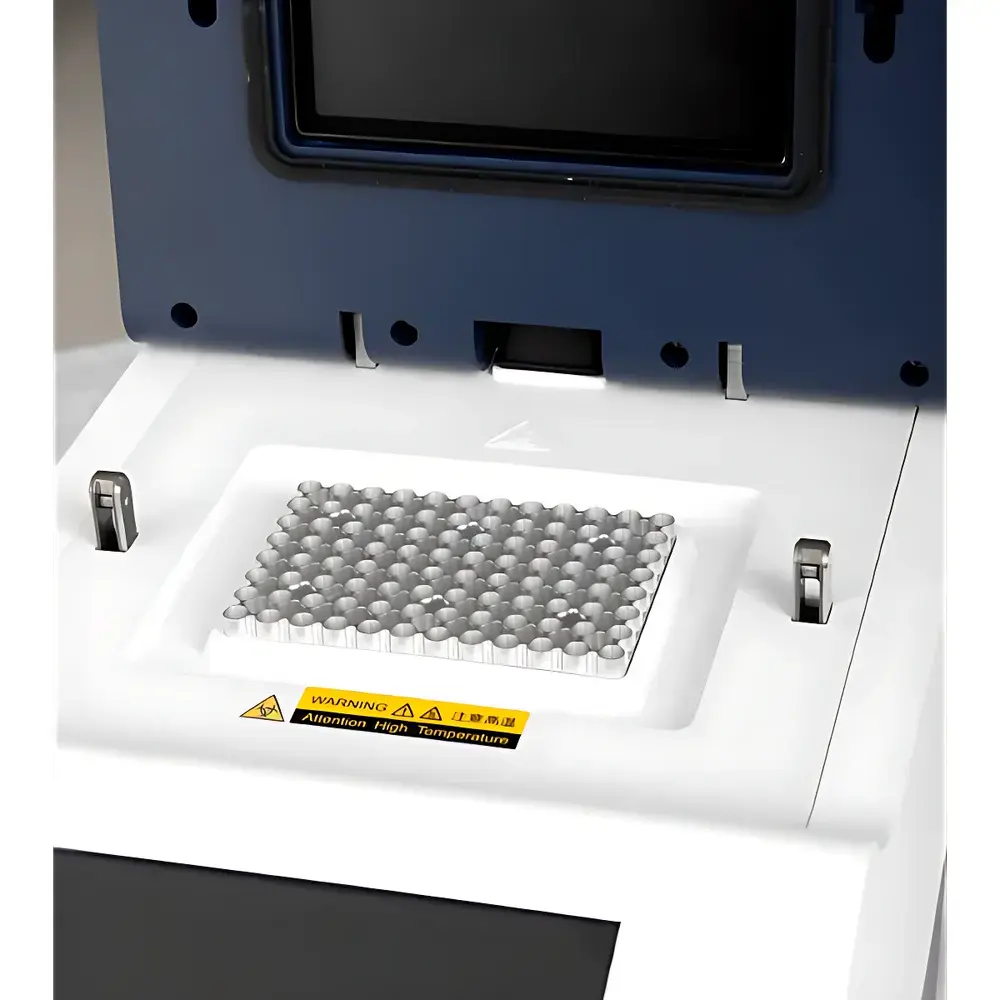

The Genesy 96T accommodates industry-standard 0.2 mL PCR formats, including individual tubes, 8-strip tubes, and 96-well plates with full, half, or no skirts—validated for compatibility with major global consumables manufacturers. All thermal performance specifications (uniformity ±0.2 °C, accuracy ±0.1 °C, resolution 0.1 °C) are verified per ISO/IEC 17025-accredited internal calibration protocols. The instrument’s software architecture complies with regulatory expectations for analytical instrument qualification: user role-based access control (admin/operator/guest), immutable audit trails for method edits and run execution, electronic signatures, and data integrity safeguards aligned with FDA 21 CFR Part 11 and EU Annex 11 principles. It supports GLP/GMP-aligned workflow documentation when integrated with LIMS via Ethernet or USB export.

Software & Data Management

The Genesy 96T’s native software provides a graphical real-time visualization of thermal ramping, plateau durations, and gradient progression. Users may store >1,000 protocols locally, organize them into hierarchical personal folders, and load templates for common assays (e.g., TaqMan® qPCR, SYBR® Green I, multiplex RT-PCR). USB mass storage enables secure offline protocol transfer and raw data backup. Critical safety features include audible alerts for lid status, power interruption recovery (auto-resume post-blackout), and stepwise temperature/time increment/decrement functions for touchdown PCR. All software updates are cryptographically signed and installed via authenticated Ethernet connection or verified USB media—ensuring traceability and version control in regulated environments.

Applications

This thermal cycler serves as a core platform in clinical diagnostics laboratories performing infectious disease testing (e.g., SARS-CoV-2, HPV, HBV), food pathogen screening (Salmonella, Listeria), environmental monitoring (waterborne viruses), forensic STR analysis, agricultural GMO verification, and academic research in functional genomics. Its gradient capability accelerates assay development for novel primer sets, while its precision temperature control ensures reproducibility in low-abundance target detection and allelic discrimination assays. When coupled with compatible fluorescent detection modules (sold separately), it functions as a complete real-time PCR platform compliant with MIQE guidelines.

FAQ

Does the Genesy 96T support remote monitoring or networked operation?
Yes—it includes Ethernet connectivity for integration into lab networks, enabling centralized instrument status tracking, scheduled maintenance alerts, and secure remote protocol deployment.
Is the thermal block calibrated traceable to NIST standards?
Calibration certificates issued by TIANLONG’s ISO/IEC 17025-accredited metrology lab include traceability to national standards; optional third-party calibration services are available upon request.
Can the instrument be qualified for GMP manufacturing environments?
Yes—the embedded software supports 21 CFR Part 11 compliance elements (audit trail, e-signature, role-based permissions), and IQ/OQ documentation packages are provided for validation support.
What is the expected service life and maintenance interval?
Designed for >50,000 cycles under routine use; preventive maintenance is recommended annually, focusing on thermal module integrity, fan performance, and touchscreen calibration.
Are consumables or reagents supplied by TIANLONG?
TIANLONG supplies only instrumentation and dedicated accessories (e.g., calibration blocks, service kits); PCR reagents and plates are sourced from certified third-party vendors per user preference.
