Showing all 25 results
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |

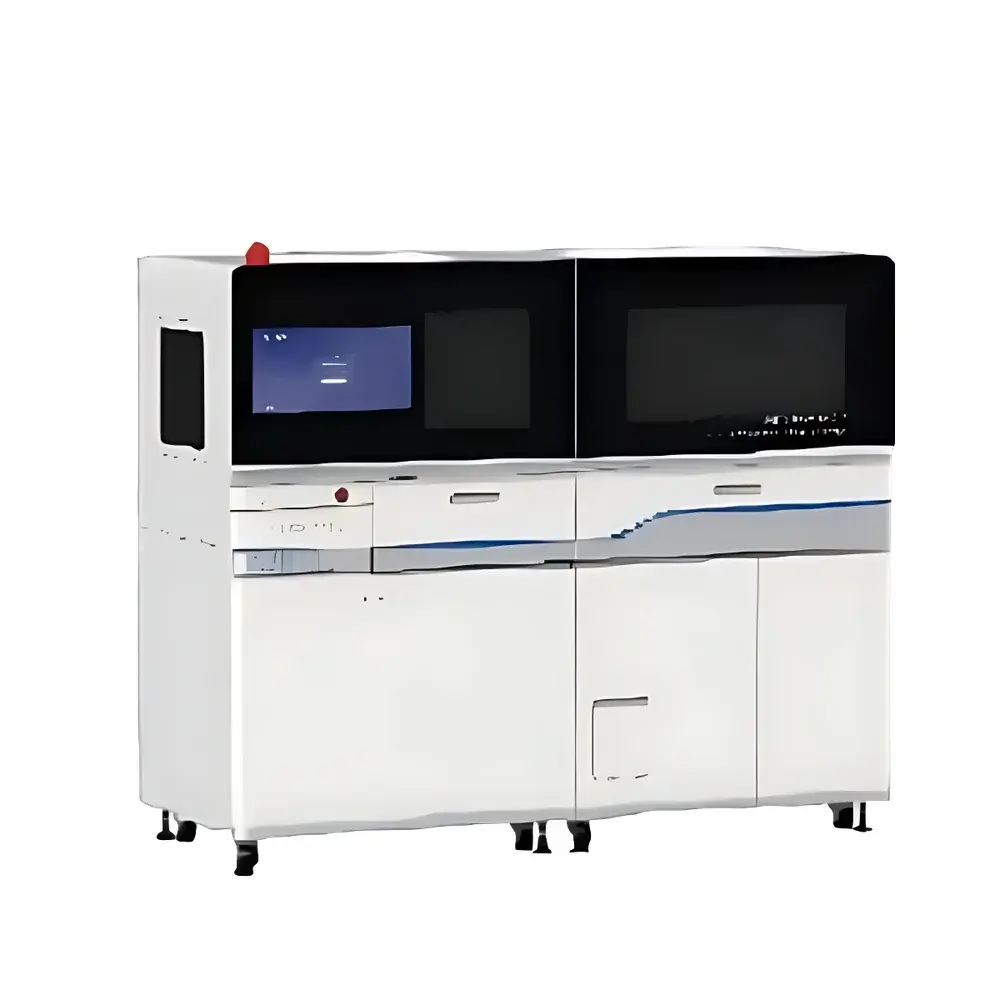

| Model | Aurora PANA X5 |
| Automation Level | Dedicated Fully Automatic |
| Sample Throughput per Run | 96 |
| Lysis Reaction Volume | 1.7 mL |
| Pipetting Range | 5–1000 µL |
| Pipetting Accuracy | ≤2.0% (≤15 µL), ≤1.5% (15–50 µL), ≤1.0% (>50 µL) |
| Pipetting Precision (CV) | ≤3.0% (≤15 µL), ≤1.5% (15–50 µL), ≤1.2% (>50 µL) |
| Centrifuge Max Speed | 4500 RPM |
| Temperature Control Range | Ambient to 120 °C |
| Reagent Storage Compartment | Light-shielded, auto-cooled to 4–8 °C |
| Dimensions (L×W×H) | 2000 × 870 × 1780 mm |
| Touchscreen | 18-inch |
| Power Supply | AC 220 V, 50 Hz |
| Interface | USB 2.0, RJ45 Ethernet |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer | TIANLONG |
| Country of Origin | China |
| Model | Biolum |
| Detection Range | 0–999,999 RLU |
| Limit of Detection | 1.0 CFU/mL |
| Detection Sensitivity | 1×10⁻¹⁶ mol ATP |
| Display | 3.5-inch color LCD |
| Dimensions (W×D×H) | 70 × 35 × 189 mm |
| Weight | ≤300 g (with battery) |
| Detection Time | 10 s per sample |
| Accuracy | ±5% or ±5 RLU |
| Data Storage | 999 records |
| Battery Life | >10 h continuous operation, >500 h standby |
| Operating Environment | 5–40 °C, 20–85% RH |
| Connectivity | USB 2.0, Bluetooth 4.0 |
| Power | Rechargeable Li-ion battery (Mini-USB charging), optional solar/car charger |
| Swab Compatibility | TIANLONG ATP QuickSwab (liquid-stable, single-use) |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Manufacturer |
| Regional Classification | Domestic (China) |
| Model | Biolum Pro |
| Detection Range | 0–999,999 RLU |
| Limit of Detection | 1×10⁻¹⁶ mol ATP (stable detection using ATP standard) |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer | TIANLONG Biotech Co., Ltd. |
| Model | Fascan 48E |
| Instrument Type | Real-Time Fluorescent Quantitative PCR System |
| Sample Throughput | 48 |
| Interchangeable Block | No |
| Temperature Range | 4.0°C – 99.0°C |
| Temperature Accuracy | ≤ ±0.3°C (40.0°C – 99.0°C), ≤ ±1.0°C (4.0°C – 39.9°C) |
| Well-to-Well Temperature Uniformity | CV ≤ 0.5% |
| Detection Channels | 4 |
| Excitation Wavelengths | 470 nm, 523 nm, 571 nm, 630 nm |
| Emission Wavelengths | 525 nm, 564 nm, 612 nm, 670 nm |
| Light Source | High-Brightness Maintenance-Free LED |
| Detector | Photodiode |
| Sensitivity | High (capable of detecting single-copy nucleic acid targets under optimized assay conditions) |
| Data Storage Capacity | ≤ 1000 experiment setup/data files |
| Control Interface | 7-inch full-color touchscreen or PC-based software |
| Dimensions | 400 mm (L) × 260 mm (W) × 260 mm (H) |
| Weight | 11 kg |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | GeneFlex 16 |
| Instrument Type | Magnetic Bead-Based Extraction |
| Automation Level | Dedicated Fully Automatic |
| Throughput per Run | 16 samples |
| Sample Volume Range | 20 µL – 1700 µL |
| Consumables | TIANLONG 96-well Deep-Well Plates, 6-tube Strips, and Compatible Stirring Sleeves |
| Cycle Time | 10–60 minutes per run |
| Third-Party Reagent Compatibility | Yes — supports all magnetic bead-based nucleic acid extraction kits |
| Regulatory Compliance | Compliant with Chinese Medical Device Class II registration requirements (No. 2022-3400087), adheres to ISO 13485:2016 quality management system standards for in vitro diagnostic devices |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | GeneMix Pro |
| Automation Level | Semi-Automated Assistant System |
| Batch Capacity | 96 samples |
| Sample Volume Range | 5–20 mL |
| Processing Time per Batch | ≤20 minutes |
| Pipetting Range | 5–1000 µL |
| Pipetting Accuracy | ≤3.5% (5–50 µL), ≤2.5% (50–200 µL), ≤2.0% (≥200 µL) |
| Pipetting Precision (CV) | ≤2.5% (5–50 µL), ≤1.5% (50–200 µL), ≤1.0% (≥200 µL) |
| UV Disinfection | Dual independent chambers (workstation & waste compartment) |
| HEPA Filtration | ≥99.999% at 0.3 µm |
| Negative Pressure | 5 Pa |
| Dimensions (L×W×H) | 1130 × 780 × 920 mm |
| Net Weight | 200 kg |
| Power Supply | 100–240 VAC, 50/60 Hz, 600 VA |
| Operating Environment | 15–35 °C, 35–70% RH (non-condensing), 56–106 kPa (≤4000 m altitude) |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | GeneRotex |
| Instrument Type | Magnetic Bead-Based Extraction System |
| Automation Level | Dedicated Fully Automatic |
| Throughput Options | 24/48/96 samples per run |
| Cycle Time per Batch | 10–30 minutes |
| Sample Volume Range | 30–15,000 µL (model-dependent) |
| Elution Volume | Adjustable (50–200 µL typical) |
| Heating Temperature Range | Lysis & Elution Modules: Ambient to 120°C |
| Rotary Mixing Speed | ≤3000 rpm |
| Recovery Efficiency | >95% |
| Detection Sensitivity | ≥98% for HBV (10 IU/mL) and HCV (30 IU/mL) |
| Regulatory Status | Filed Medical Device Record (Shaanxi Medical Device Filing No. 20150054) |
| Compliance | Meets ISO 13485 design control requirements |
| Display | 7-inch full-color capacitive touchscreen |
| Interface | USB port, optional barcode scanner integration |
| Environmental Operating Conditions | 10–30°C ambient temperature, ≤80% relative humidity |
| Dimensions (W×D×H) | 490 × 510–540 × 480 mm |
| Weight | 45 kg |
| Power Supply | AC 220 V, 50 Hz |
| Language Support | On-device bilingual UI (Chinese/English) |
| Contamination Control | Integrated negative-pressure HEPA exhaust filtration, programmable UV sterilization, motorized automatic lid actuation |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Genesy 96T |
| Instrument Category | Real-Time PCR System |
| Sample Throughput | 96-well format (0.2 mL) |
| Interchangeable Block | No |
| Max Heating Rate | ≥3.5 °C/s |
| Max Cooling Rate | ≥2.5 °C/s |
| Block Temperature Range | 4.0–99.9 °C |
| Gradient Capability | 12-zone linear gradient (range: 35.0–100.0 °C |
| width | 1.0–40.0 °C) |
| Temperature Uniformity | ±0.2 °C |
| Temperature Accuracy | ±0.1 °C |
| Temperature Resolution | 0.1 °C |
| Thermal Lid Temperature Range | 40–110 °C |
| Power Supply | AC 100–240 V, 50–60 Hz, 600 VA |
| Dimensions (W×D×H) | 260 × 400 × 260 mm |
| Weight | 11 kg |
| Noise Level | <55 dB(A) |
| Operating System | Embedded Linux |
| Interface | USB 2.0, Ethernet |
| Software Compliance | Supports audit trail, user access control, and electronic signature per FDA 21 CFR Part 11 requirements |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | Genrich 24 |
| Pricing | Upon Request |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Manufacturer |
| Model | Gentier 48E / 48R |
| Sample Throughput | 48 wells |
| Interchangeable Modules | No |
| Effective Reaction Volume Range | 0–100 µL |
| Max Heating Rate | ≥8.0 °C/s |
| Max Cooling Rate | ≥6.2 °C/s |
| Temperature Accuracy | ≤±0.1 °C |
| Well-to-Well Temperature Uniformity | ≤±0.1 °C |
| Detection Channels | 4-channel (Gentier 48E) / 2-channel (Gentier 48R) |
| Excitation Source | High-intensity LED |
| Emission Detection | Photodiode-based fluorescence detection |
| Fluorescence Scan Time | ≤2 s for full 48-well scan (4-color or 2-color) |
| Excitation Wavelengths | Ch1: 465 nm, Ch2: 527 nm, Ch3: 580 nm, Ch4: 632 nm (48E) |
| Emission Wavelengths | Ch1: 510 nm, Ch2: 563 nm, Ch3: 616 nm, Ch4: 664 nm (48E) |
| Linearity (R²) | ≥0.990 |
| Ct Value Reproducibility (CV%) | ≤0.5% |
| Ct Linearity (r) | ≥0.999 |
| Thermal Gradient Support | 35–100 °C, span 1–40 °C |
| Thermal Cycling Range | 0.0–100.0 °C |
| Hot Lid Temperature Range | 40–110 °C |
| Power Supply | AC 220 V (±10%), 50 Hz, 600 VA |
| Dimensions (W×L×H) | 260 × 400 × 260 mm |
| Weight | 11 kg |
| Display | 7-inch full-color capacitive touchscreen |
| Data Storage Capacity | ≤1000 experiment files |
| Software Functions | Absolute quantification, relative quantification, melting curve analysis, high-resolution melting (HRM), SNP genotyping, endpoint fluorescence, isothermal amplification fluorescence analysis |
| Compliance Features | Audit trail support, user access levels, electronic signature readiness (aligned with FDA 21 CFR Part 11 principles), GLP/GMP-compatible data handling protocols |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Gentier 96E/96R |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Sample Format | Standard 96-Well Plate |
| Throughput | 96 samples per run |
| Interchangeable Block | No |
| Effective Reaction Volume Range | 0–100 µL |
| Heating Rate | ≥6.1 °C/s |
| Cooling Rate | Average ≥2.8 °C/s |
| Temperature Uniformity | ≤±0.1 °C across block |
| Number of Detection Channels | 4 or 6 (model-dependent) |
| Excitation Source | High-Efficiency LED Array |
| Detection Sensitivity | High (capable of detecting ≤10 copies/µL input DNA with standard assay conditions) |
| Software Compliance | FDA 21 CFR Part 11–ready audit trail, GLP/GMP-aligned data integrity features |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Gentier 96R |
| Instrument Type | Real-Time Fluorescent Quantitative PCR System |
| Sample Format | Standard 96-Well Plate |
| Throughput | 96 samples per run |
| Interchangeable Thermal Block | No |
| Effective Reaction Volume Range | 0–100 µL |
| Maximum Heating Rate | ≥6.1 °C/s |
| Cooling Rate | Average ≥2.8 °C/s |
| Temperature Uniformity | ≤±0.1 °C |
| Temperature Accuracy | ≤±0.1 °C |
| Detection Channels | 4 |
| Light Source | High-Efficiency Long-Life LED |
| Optical Detection Method | Top-Illumination & Top-Scanning with Simultaneous Multi-Channel Per-Well Acquisition |
| Fluorescence Scan Time | ≤7 seconds for full 96-well plate across all 4 channels |
| Dynamic Fluorescence Range | Adjustable per reagent kit |
| Linearity (r) | ≥0.999 |
| Ct Value Reproducibility (CV) | ≤0.5% |
| Supported Assay Types | Absolute Quantification, Relative Quantification, Genotyping (SNP), Melting Curve Analysis, High-Resolution Melting (HRM), Endpoint Fluorescence Detection |
| Software Compliance | FDA 21 CFR Part 11–Ready Audit Trail, User Role-Based Access Control, LIS Integration (CSV/Excel/TXT export, open API), GLP/GMP-aligned data integrity features |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | Gentier Mini / Mini+ |
| Instrument Type | Real-Time Fluorescent Quantitative PCR System |
| Sample Throughput | 16 wells |
| Interchangeable Thermal Block | No |
| Effective Reaction Volume Range | 0–100 µL |
| Max Heating Rate | 5.0 °C/s |
| Max Cooling Rate | 4.0 °C/s |
| Temperature Accuracy | ≤ ±0.1 °C |
| Well-to-Well Temperature Uniformity | ±0.2 °C |
| Detection Channels | 4 |
| Light Source | High-Efficiency LED |
| Sensitivity Mode | High-Sensitivity Detection |
| Software Functions | Absolute Quantification, Relative Quantification, Melting Curve Analysis, High-Resolution Melting (HRM), Genotyping, Endpoint Fluorescence Analysis |
| Connectivity | Ethernet, USB, Wi-Fi |
| Display | 7-inch Full-Color Capacitive LCD Touchscreen |
| Dimensions | 205 × 156 × 153 mm (L×W×H) |
| Weight | 3.2 kg |
| Data Storage | ≥1,000 runs onboard |
| Power Failure Recovery | Yes — resumes interrupted runs upon reboot |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Real-Time Fluorescence Quantitative PCR System |
| Model | Gentier X3 |
| Sample Throughput | 96-well (3 × 32-well independent modules) |
| Effective Reaction Volume Range | 0–100 µL |
| Max Heating Rate | ≥6.2 °C/s |
| Avg Heating Rate | ≥4.5 °C/s |
| Avg Cooling Rate | ≥3.5 °C/s |
| Max Cooling Rate | ≥5.0 °C/s |
| Temperature Accuracy | ≤±0.1 °C |
| Temperature Uniformity | ±0.2 °C |
| Light Source | High-Efficiency LED Array |
| Fluorescence Detection Channels | 6 |
| Fluorescence Scan Time per Module | ≤2 s |
| Optical Linearity | r ≥ 0.990 |
| Inter-Run CV | ≤1% |
| Power Supply | AC 220 V, 50 Hz, 1200 VA |
| Dimensions (W×D×H) | 380 × 410 × 395 mm |
| Weight | 34 kg |
| Onboard Display | 13.3″ Full-Color Touchscreen (Adjustable Tilt) |
| Standalone Operation | Supported |
| Software Compliance | FDA 21 CFR Part 11–ready audit trail, GLP/GMP data integrity features |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | iGenebox 3A |
| Pricing | Upon Request |
| Throughput | 2 independent reaction modules |
| Fluorescence Channels | 4 |
| Max. Targets per Sample | 24 |
| Thermal Ramp Rate (Heating) | ≥11 °C/s |
| Thermal Ramp Rate (Cooling) | ≥8.5 °C/s |
| Temperature Uniformity | ≤0.2 °C |
| Temperature Accuracy | ±0.1 °C |
| Temperature Stability (Fluctuation) | ±0.1 °C |
| Fluorescence Intensity Repeatability | ≤0.5% |
| Fluorescence Linearity (R²) | ≥0.995 |
| Sample/Reagent ID Scanning | Integrated barcode reader |
| Data Storage Capacity | 1,000 assay records |
| Display | 5.0-inch full-color capacitive touchscreen |
| Dimensions (L×W×H) | 245 × 250 × 208 mm |
| Weight | 7 kg |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | iGenecase 1600 |
| Instrument Type | Magnetic Bead-Based Purification |
| Automation Level | Dedicated Fully Automatic |
| Batch Sample Capacity | 24 |
| Sample Volume Range | 200–500 µL |
| Sample Processing Time per Batch | 10 minutes |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | NP968-C |
| Instrument Principle | Magnetic Bead-Based Separation |
| Automation Level | Dedicated Fully Automatic |
| Sample Throughput per Run | 1–32 samples |
| Sample Volume Range | 30 µL – 1000 µL |
| Consumables | 96-Deep Well Plates, 6-Tube Strips |
| Cycle Time | 30–60 minutes per batch |
| Compatible Sample Types | Animal/plant tissues, whole blood, serum/plasma, saliva, buccal swabs, forensic evidence (e.g., bloodstains, hair follicles), and other clinical or environmental specimens for DNA/RNA isolation |
| Third-Party Reagent Compatibility | Yes — compatible with all standard magnetic bead-based nucleic acid extraction kits |
| Compliance | Designed to meet ISO 13485 requirements for in vitro diagnostic (IVD) manufacturing environments |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | NP968-S |
| Instrument Type | Magnetic Bead-Based Extraction System |
| Automation Level | Dedicated Fully Automatic |
| Throughput per Run | 15 / 32 / 48 samples |
| Sample Volume Range | 30–1500 µL |
| Consumable Type | Nucleic Acid Extraction Kits (Magnetic Beads) |
| Coefficient of Variation (CV) | ≤ 3% |
| Processing Time per Batch | 10–40 minutes |
| Compatible Sample Types | Animal/plant tissues, whole blood, serum, plasma, swabs, amniotic fluid, feces, bronchoalveolar lavage, FFPE tissue sections, bacteria, fungi, forensic evidence |
| Downstream Compatibility | Compatible with PCR, qPCR, NGS, sequencing, and other molecular assays |
| Third-Party Reagent Compatibility | Compatible with validated magnetic bead-based kits |
| Regulatory Compliance | Designed to support GLP/GMP-aligned workflows and meets general requirements for in vitro diagnostic (IVD) sample preparation under CNAS and YY/T 1709–2020 standards |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | Npex 192 |
| Price | USD 28,000 (FOB) |
| Throughput | 1–192 samples per run |
| Sample Volume Range | 30–1000 µL |
| Magnetic Bead Carryover | ≤1% |
| Temperature Control Range (Lysis & Elution) | 30–120 °C |
| Oscillation Modes | 8 adjustable settings |
| Supported Chemistry | Magnetic bead-based kits (96-test format per deep-well plate) |
| Display | 7-inch color capacitive touchscreen |
| Onboard Storage | >10,000 protocols |
| Dimensions (L×W×H) | 710 × 535 × 515 mm |
| Weight | 55 kg |
| Power Supply | AC 220 V, 50 Hz |
| Operating Environment | 10–30 °C, ≤80% RH |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | PANA 9600X |
| Price | USD 84,000 (FOB Shanghai, ex-works pricing subject to configuration and regional compliance certification) |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Model | PANA S401 |
| Pipetting Range | 5–1000 µL |
| Accuracy (Er) | ≤2.0% (≤15 µL), ≤1.5% (15–50 µL), ≤1.0% (>50 µL) |
| Precision (CV) | ≤3.0% (≤15 µL), ≤1.5% (15–50 µL), ≤1.2% (>50 µL) |
| Sample Throughput | 1–96 samples per run |
| Dimensions | 860 mm (L) × 733 mm (W) × 746.5 mm (H) |
| Operating System | Windows 10 Pro (bilingual Chinese/English UI) |
| Liquid Level Detection | Pressure-sensing with real-time adaptive aspiration/dispense |
| Contamination Control | HEPA-filtered directional airflow, internal negative pressure, capacitive droplet detection, UV sterilization chamber, disposable waste cartridge, external liquid trap, customizable exhaust interface |
| Compatible Vessels | SBS-standard deep-well plates, 96-well PCR plates, 0.1 mL & 0.2 mL strip tubes |
| Interface | USB, RS232 |
| Power | AC 220 V, 50 Hz |
| Weight | 103 kg |
| Ambient Conditions | 15–35 °C, 35–70% RH |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Instrument Type | Magnetic Bead-Based Purification |
| Automation Level | Dedicated Fully Automatic |
| Throughput | 32 samples per run |
| Compliance | CE-IVD compliant (as per EU IVDR Annex II Class B), GLP/GMP-ready architecture |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | PANA9600S |
| Instrument Type | Magnetic Bead-Based Extraction System |
| Automation Level | Dedicated Fully Automated Platform |
| Throughput | 96 samples per batch |
| Sample Volume Range | 50–1000 µL |
| Processing Time per Batch | ≤15 min for nucleic acid extraction only |
| Sample Types | Whole blood, serum, plasma, swab eluates, urine |
| Principle | Rotational magnetic bead-based nucleic acid isolation with integrated thermal control and pipetting automation |
| Extracted Nucleic Acid Output | Compatible with downstream qPCR, RT-qPCR, and sequencing library preparation |
| Brand | TIANLONG |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | Panall 8000 |
| Instrument Type | Real-Time Quantitative PCR System |
| Sample Throughput | 1–8 samples |
| Modular Exchangeability | Not supported |
| Effective Reaction Volume Range | Max sample volume ≤ 2/3 of tube capacity |
| Heating Rate | Avg ≥ 4.5°C/s |
| Cooling Rate | Avg ≥ 3.5°C/s |
| Temperature Uniformity | ±0.2°C across wells |
| Temperature Accuracy | ≤ ±0.1°C |
| Temperature Control Precision | ≤ ±0.1°C |
| Detection Channels | 4 |
| Light Source | High-Stability LED Array |
| Detection Sensitivity | 99.99% (based on validated assay performance under ISO 13485-controlled manufacturing) |
| Software Compliance | Supports audit trail, user access control, and electronic signature per FDA 21 CFR Part 11 requirements for regulated laboratories |
| Brand | TIANLONG |
|---|---|
| Origin | China |
| Manufacturer Type | Manufacturer |
| Model | RBT320 |
| Sample Type | Serum |
| Throughput | 320 tests/hour |
| Assay Method | Rose Bengal Plate Agglutination (RBPT) |
| Reaction Time | 4 min/test (24 tests in 4 min) |
| Sample Capacity | 320 samples per run |
| Temperature Control | 22 ± 4 °C (chamber), ±1.0 °C accuracy |
| Pipetting Range | 15–50 µL (Er ≤ 1.5%, CV ≤ 1.5%), >50 µL (Er ≤ 1.0%, CV ≤ 1.2%) |
| Compatible Consumables | 8-test PET reaction plates (20 mm well diameter), 200 µL universal tips |
| Dimensions | 1250 × 710 × 940 mm (L×W×H) |
| Power Supply | AC 220 V, 50 Hz |
| Operating Environment | 10–35 °C, RH ≤ 80% |
