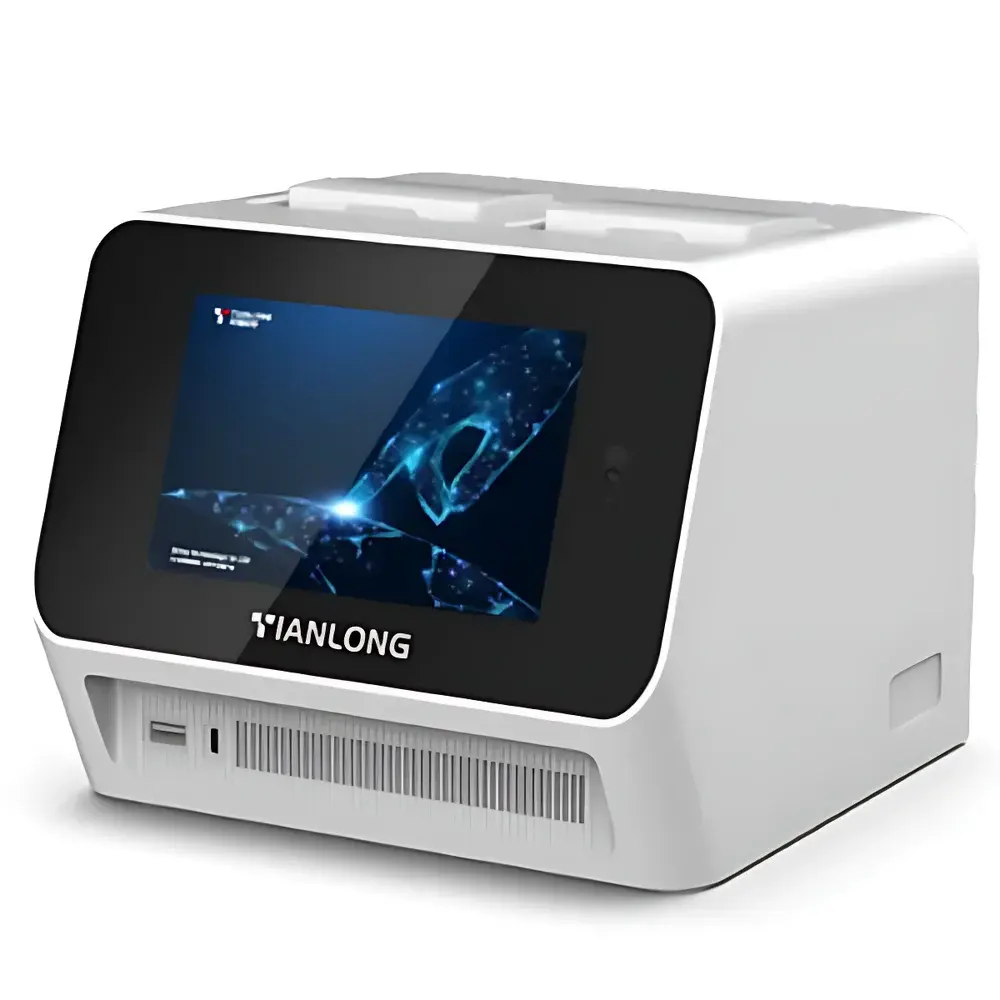

TIANLONG iGenebox 3A Fully Automated Nucleic Acid Analysis System

Overview

The TIANLONG iGenebox 3A Fully Automated Nucleic Acid Analysis System is a point-of-care (POCT) molecular diagnostic instrument engineered for rapid, integrated nucleic acid amplification and real-time fluorescence detection. It operates on the principle of real-time polymerase chain reaction (qPCR), leveraging thermal cycling and sequence-specific fluorescent probe hybridization to enable qualitative detection of DNA or RNA targets directly from clinical or environmental samples. Designed for minimal user intervention, the system implements a “sample-in, result-out” workflow—requiring no external computer, pipetting, or manual reagent handling. Its dual independent reaction modules support parallel processing of two samples, while the four-channel optical detection system permits multiplexed analysis across up to 24 distinct genetic targets per test cartridge. This architecture delivers actionable results in 12–30 minutes, making it suitable for frontline deployment in decentralized laboratories, field clinics, border health stations, and public health emergency response units.

Key Features

• Dual independent thermal reaction modules enable concurrent analysis of two samples without cross-contamination risk or cycle time penalty.
• Four-color fluorescence detection system with high-sensitivity photodiodes and optimized optical path design ensures robust signal discrimination across multiplex assays.
• Integrated barcode scanner automatically reads sample tube and proprietary assay cartridge identifiers, enforcing traceability and preventing protocol mismatches.
• High-fidelity thermal control architecture achieves ramp rates of ≥11 °C/s (heating) and ≥8.5 °C/s (cooling), with temperature uniformity ≤0.2 °C and stability maintained within ±0.1 °C—critical for reproducible qPCR efficiency.
• Onboard 5.0-inch full-color capacitive touchscreen provides intuitive graphical interface for method selection, run initiation, real-time monitoring, and result interpretation—eliminating dependency on external computing devices.
• Embedded data management stores up to 1,000 complete assay records locally, including raw fluorescence curves, Ct values, pass/fail flags, operator ID, date/time stamps, and instrument calibration logs.

Sample Compatibility & Compliance

The iGenebox 3A is validated exclusively for use with TIANLONG’s CE-IVD–marked, single-use, microfluidic assay cartridges. These pre-filled, lyophilized reagent cards contain all necessary components—including primers, probes, enzymes, dNTPs, and internal controls—for specific infectious disease panels (e.g., respiratory virus, enteric pathogen, or antimicrobial resistance gene screening). The system supports human nasopharyngeal swabs, saliva, sputum, and extracted nucleic acid inputs, provided they meet volume and purity specifications defined in cartridge package inserts. From a regulatory standpoint, the platform aligns with ISO 13485:2016 quality management requirements for in vitro diagnostic manufacturers. While not FDA-cleared for U.S. clinical use, its architecture supports audit-ready data integrity features—including immutable timestamps, electronic signatures (via optional password-protected login), and exportable CSV/JSON reports—facilitating alignment with GLP, CLIA, and ISO 15189 laboratory accreditation frameworks.

Software & Data Management

Firmware-based operation eliminates reliance on third-party operating systems or desktop software. All assay protocols—including thermal profiles, fluorescence acquisition timing, threshold setting, and result interpretation algorithms—are embedded within cartridge-specific firmware and loaded automatically upon barcode recognition. Data are stored in a tamper-evident SQLite database with automatic daily backup to internal flash memory. Export options include USB mass storage mode for encrypted CSV report transfer, supporting interoperability with LIS/HIS systems via configurable HL7 v2.x message templates. Audit trail functionality captures every user action (e.g., login, run start, parameter override, result review), with timestamps traceable to the onboard RTC synchronized at boot. No cloud connectivity is enabled by default; remote diagnostics require explicit local authorization and physical USB interface access—ensuring compliance with data sovereignty policies.

Applications

• Rapid syndromic testing for acute respiratory infections (e.g., SARS-CoV-2, influenza A/B, RSV, adenovirus, human metapneumovirus).
• Point-of-care surveillance of multidrug-resistant organisms (MDROs) including Klebsiella pneumoniae carbapenemase (KPC), New Delhi metallo-beta-lactamase (NDM), and OXA-48-like genes.
• Field-deployable outbreak investigation tools for foodborne or waterborne pathogens such as Salmonella, Shigella, Campylobacter, and norovirus genogroups I/II.
• Quality control verification of nucleic acid extraction kits and automated liquid handlers in central reference labs.
• Academic and veterinary research settings requiring low-footprint, high-multiplex qPCR capability without infrastructure dependencies.

FAQ

Is the iGenebox 3A compatible with third-party reagents or open PCR protocols?
No. The system is designed exclusively for use with TIANLONG’s proprietary, pre-configured assay cartridges. Thermal profiles, optical calibration, and interpretation logic are hardware-locked to each cartridge lot, ensuring analytical consistency and regulatory compliance.
What level of biosafety is required to operate this instrument?
Biosafety Level 2 (BSL-2) practices are recommended when processing unextracted clinical specimens. The instrument itself does not generate aerosols during operation, but sample loading must occur in a certified biosafety cabinet if primary specimen handling is performed onsite.
Can assay results be integrated into a hospital LIMS without custom development?
Yes—via USB-exported CSV files or HL7 v2.x messaging (with optional configuration license). Predefined mapping tables for common LOINC codes and SNOMED CT terms are available upon request.
Does the system support quantitative or only qualitative analysis?
The iGenebox 3A performs qualitative (presence/absence) detection only. Quantitative reporting (e.g., viral load) is not supported due to the absence of standardized calibrators and inter-run normalization algorithms in the current firmware architecture.
How frequently does the instrument require calibration or maintenance?
Thermal and optical calibrations are factory-performed and verified at shipment. No user-performed recalibration is required. Annual preventive maintenance (PM) by authorized TIANLONG service engineers is recommended to validate performance against ISO 15197 and CLSI EP15-A3 guidelines.
