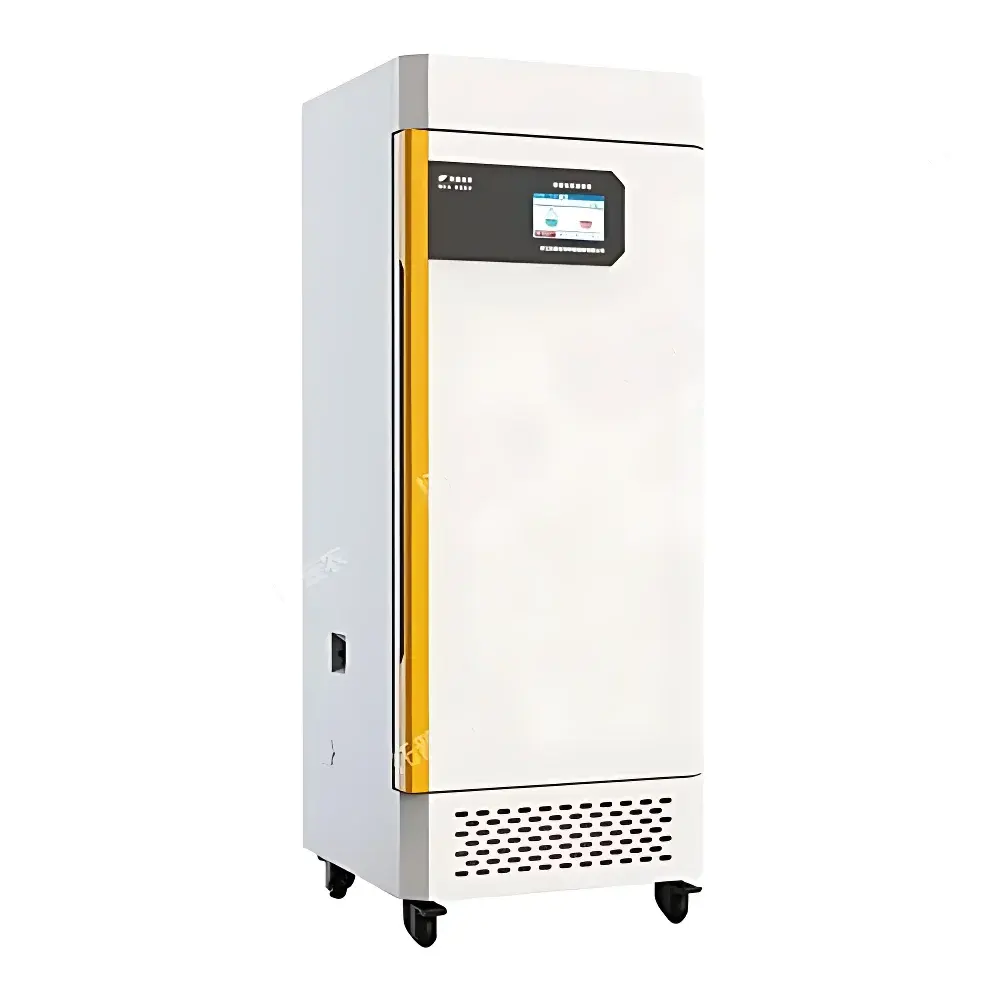

Top Cloud-agri TP-DC Series Seed Low-Temperature & Low-Humidity Storage Cabinet

Overview

The Top Cloud-agri TP-DC Series Seed Low-Temperature & Low-Humidity Storage Cabinet is an engineered environmental chamber specifically designed for long-term, high-integrity seed conservation in agricultural research, germplasm banks, and national seed repositories. It operates on a dual-parameter control principle—precisely regulating both temperature and relative humidity within tightly bounded ranges—to inhibit metabolic activity, suppress fungal proliferation, and minimize oxidative degradation in orthodox seeds. Unlike general-purpose refrigerated incubators, the TP-DC series integrates dedicated low-humidity conditioning systems—including desiccant-assisted dehumidification and sealed vapor barrier construction—to maintain stable RH below 60% even at sub-zero temperatures. Its thermal architecture employs cascade refrigeration circuits for the TP-DC450C (−15 °C minimum) and high-efficiency single-stage compression for the TP-DC1000C (−10 °C minimum), ensuring thermodynamic stability across extended storage cycles exceeding 15 years under optimal conditions.

Key Features

• Intelligent Dual-Parameter PID Control: Independent high-resolution sensors for temperature (PT100 class A) and humidity (capacitive polymer) feed into a real-time adaptive PID algorithm, delivering dynamic compensation for door openings, load changes, and ambient fluctuations.
• 7-Inch Full-Color Touch Interface: Graphical HMI with intuitive icon-based navigation, multilingual support (English, Spanish, French), and contextual help overlays—designed for operation by technicians without specialized programming training.
• Adjustable Air Circulation System: Three-step fan speed modulation (30%, 60%, 100%) per program segment enables optimization of convective heat/mass transfer for heterogeneous seed batches or varying container densities.
• Controlled Fresh Air Exchange: Motorized damper with manual calibration allows precise regulation of external air ingress—critical for CO₂ management during prolonged storage and for mitigating VOC accumulation from packaging materials.
• Hygienic Interior Architecture: Seamless mirror-polished 304 stainless-steel chamber with ≥R25mm internal corner radii eliminates crevices, facilitates validated cleaning protocols (e.g., 70% ethanol wipe-down), and resists corrosion from repeated UV-C exposure.
• Multi-Layer Security Framework: Electromagnetic door lock with configurable access codes, door-open duration alarm (>30 s), and tamper-evident event logging integrated into cloud audit trails.
• UV-C Germicidal Cycle: 254 nm low-pressure mercury lamp with programmable exposure time (1–120 min) and automatic interlock disabling during door opening or active temperature ramping.
• Power Resilience & State Recovery: Non-volatile memory retains all setpoints, active programs, and historical logs during power interruption; automatic restoration to pre-failure operational state upon re-energization.

Sample Compatibility & Compliance

The TP-DC cabinet accommodates standard seed storage formats—including aluminum foil pouches, laminated polyethylene bags, glass vials, and hermetically sealed canisters—without compromising RH integrity. Chamber dimensions support modular shelving configurations compatible with international seed bank standards (e.g., Svalbard Global Seed Vault rack spacing). All models comply with the FAO Genebank Standards for Plant Genetic Resources (2021), align with ISO 17025:2017 requirements for environmental monitoring equipment used in accredited testing laboratories, and meet structural safety criteria per IEC 61010-1. While not certified for medical-grade sterile storage, its UV-C cycle and sealed airflow path satisfy biosafety Level 1 (BSL-1) containment expectations for non-pathogenic plant material handling.

Software & Data Management

Embedded firmware supports local data logging at user-defined intervals (1 min to 24 h) with timestamped entries for temperature, humidity, UV status, door events, alarms, and power cycles. All records synchronize automatically to the Top Cloud-agri SeedVault™ Cloud Platform via Ethernet or Wi-Fi—enabling role-based remote access through web browsers, iOS/Android apps, or WeChat Mini Programs. The platform provides GLP-compliant features including electronic signatures, 21 CFR Part 11–compatible audit trails (user actions, parameter modifications, data exports), and encrypted data-at-rest (AES-256). Export options include CSV, PDF reports with embedded metadata (operator ID, protocol version, QC notes), and direct integration with LIMS via RESTful API. Over-the-Air (OTA) firmware updates ensure continuous alignment with evolving seed conservation best practices and regulatory expectations.

Applications

• Germplasm preservation in national and regional gene banks (e.g., CGIAR centers, USDA GRIN)
• Long-term viability studies for crop breeding programs (maize, rice, wheat, legumes)
• Seed quality assurance testing under controlled aging protocols (ISTA Standard 2023)
• Pre-germination conditioning for dormancy-breaking experiments
• Backup storage for cryopreserved samples requiring intermediate-temperature staging
• Regulatory submission support for variety registration dossiers (UPOV, OECD)

FAQ

What is the recommended operating humidity range for orthodox seed storage?
For maximum longevity, FAO recommends maintaining 30–45 %RH at −18 °C; the TP-DC series achieves stable 30–60 %RH at temperatures down to −15 °C, enabling empirically validated storage protocols for most major cereal and legume species.
Can the cabinet be validated for IQ/OQ/PQ compliance?
Yes—factory-supplied validation documentation includes as-delivered temperature/humidity mapping reports (per ISO 14644-3), sensor calibration certificates traceable to NIM China, and blank URS/IQ/OQ templates aligned with GxP expectations.
Is remote monitoring possible without internet connectivity?
Local Ethernet connection supports LAN-based access to live data and configuration; however, cloud synchronization, mobile alerts, and OTA updates require outbound IPv4/IPv6 connectivity.
How does the system handle condensation during defrost cycles?
A dedicated hot-gas defrost system with timed drainage and chamber reheating prevents moisture reintroduction; post-defrost stabilization time is included in all programmed segments.
Are custom shelving configurations supported for non-standard seed containers?
Yes—Top Cloud-agri offers engineering consultation for bespoke tray inserts, drawer modules, and RFID-tagged rack systems compatible with automated inventory tracking.
