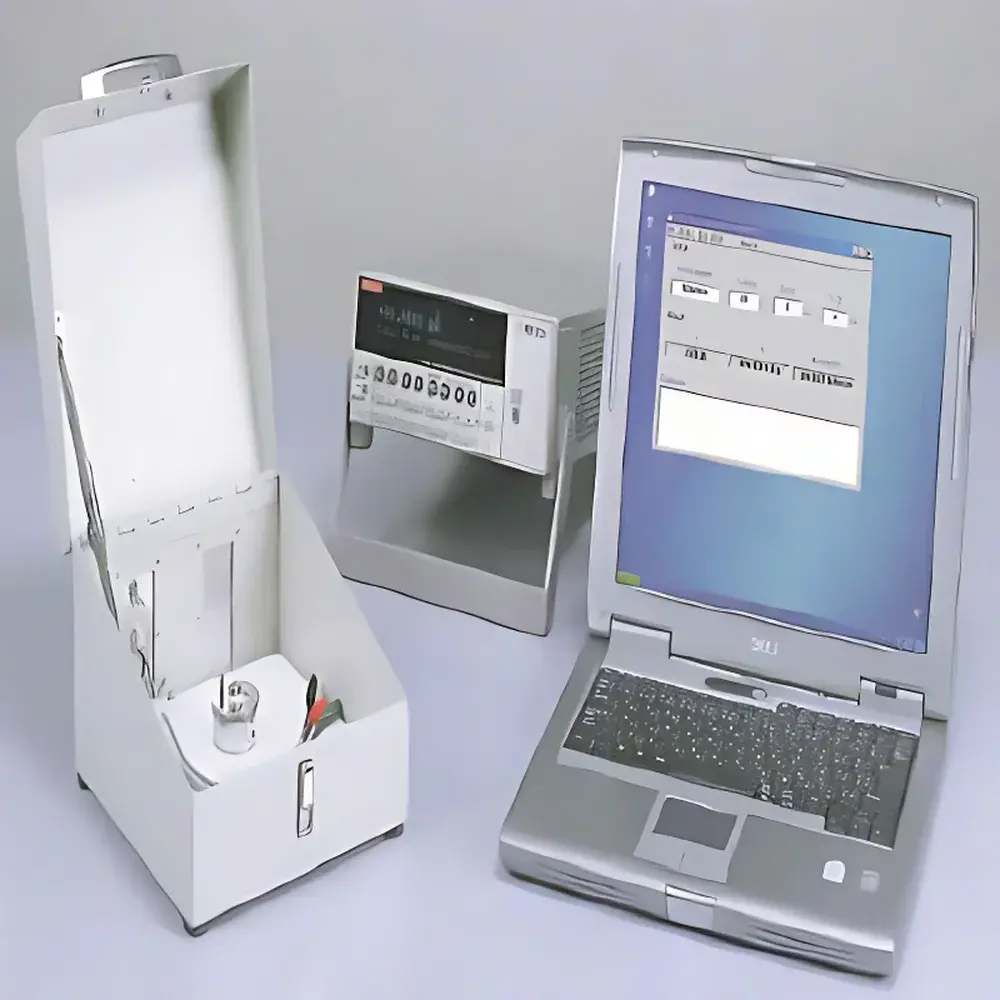

TOYO SR-6517 High-Resistance Resistivity Tester for Liquid Crystals

Overview

The TOYO SR-6517 High-Resistance Resistivity Tester is a precision instrumentation system engineered specifically for the quantitative measurement of volume resistivity (ρ) in nematic liquid crystal materials—particularly fluorinated formulations used in advanced TFT-LCD manufacturing. It operates on the principle of constant-voltage DC current measurement combined with guarded electrode configuration, enabling accurate determination of extremely high resistivity values up to 1 × 10¹⁵ Ω·cm. Unlike conventional multimeters or generic electrometers, the SR-6517 integrates a dedicated high-sensitivity potentiostat/guarded electrometer module, electromagnetic interference (EMI)-shielded test enclosure, and standardized liquid crystal cell fixtures compliant with JEDEC and JIS C 5402 test geometries. This architecture ensures minimal leakage current, stable polarization control, and reproducible contact resistance—critical parameters when evaluating charge carrier lifetime and ionic impurity concentration in display-grade LCs.

Key Features

• Ultra-high sensitivity current measurement down to 1 fA (10⁻¹⁵ A), optimized for low-conductivity nematic phases
• Volume resistivity range: 1 × 10⁹ to 1 × 10¹⁵ Ω·cm, calibrated traceably to NIST-traceable standards
• Integrated EMI-shielded enclosure with conductive gasketing and Faraday cage design (≥80 dB attenuation at 1 MHz)
• Dedicated LC cell holder with parallel-plate stainless-steel electrodes (gap adjustable from 5–25 µm) and gold-plated contacts
• Automated voltage ramping and dwell sequencing (0.1–100 V DC, programmable step resolution)
• Real-time leakage current monitoring with auto-zero compensation and drift correction algorithms
• Rugged benchtop chassis with isolated analog signal path and dual-stage power supply filtering

Sample Compatibility & Compliance

The SR-6517 accommodates standard 10 mm × 10 mm glass-substrate LC cells with ITO-coated electrodes, as well as custom capillary and sandwich-type test cells. It supports both sealed and open-cell configurations under controlled ambient humidity (<30% RH) and temperature (23 ± 1 °C). The system conforms to key industry-relevant standards including JIS C 5402 (Method for Measuring Volume Resistivity of Insulating Materials), ASTM D257 (Standard Test Methods for DC Resistance or Conductance of Insulating Materials), and ISO 3915 (Electrical Resistivity of Solid Electrical Insulating Materials). Data acquisition protocols are structured to support GLP-compliant documentation, with audit trails enabled for instrument configuration, operator ID, environmental logs, and calibration history.

Software & Data Management

The proprietary SR Control Software (v3.2+, Windows 10/11 compatible) provides full instrument orchestration via USB 2.0 interface. It enables automated multi-point resistivity profiling—including time-dependent decay analysis (τ = ρε, where ε is permittivity), voltage sweep linearity verification, and temperature-compensated reporting. All raw current-vs.-time datasets are stored in HDF5 format with embedded metadata (electrode geometry, applied field, ambient T/RH, calibration certificate ID). Export options include CSV, PDF reports with statistical summaries (mean, SD, CV%), and direct integration with LIMS platforms via OPC UA or RESTful API. Software validation documentation is available upon request for FDA 21 CFR Part 11 compliance readiness.

Applications

• Quality assurance of fluorinated nematic LC mixtures for active-matrix LCD panels
• Development screening of ionic contamination levels during LC synthesis and purification
• Stability assessment of LC cells under thermal stress (e.g., 60–85 °C aging studies)
• Correlation of resistivity degradation with TFT backplane leakage current in panel-level failure analysis
• Validation of alignment layer treatment efficacy (e.g., polyimide baking, UV exposure) on bulk conductivity
• Supporting JEDEC JESD22-A112 (Electrostatic Discharge Sensitivity Testing) pre-screening for LC-based optoelectronic modules

FAQ

What is the minimum measurable resistivity value supported by the SR-6517?
The system achieves reliable measurement down to 1 × 10⁹ Ω·cm, validated using certified reference materials (CRM-112, NIST-traceable).

Does the SR-6517 require periodic recalibration, and what is the recommended interval?
Yes; annual calibration against primary standards is recommended, with intermediate verification using internal shunt resistors and guard ring diagnostics every 90 days.

Can the SR-6517 be integrated into an automated production-line testing station?
Yes—via digital I/O triggers and SCPI command set over USB, supporting synchronization with robotic handlers and MES data logging systems.

Is the software compatible with Windows Server environments for centralized lab deployment?
Yes; SR Control Software supports Windows Server 2016/2019/2022 in domain-joined configurations with Group Policy-managed security policies.

How does the shielding enclosure mitigate triboelectric and piezoelectric noise during ultra-low-current measurement?
The enclosure uses mu-metal inner lining combined with copper-clad aluminum housing and vibration-damped mounting feet, reducing mechanical coupling noise by >40 dB below 1 kHz.
