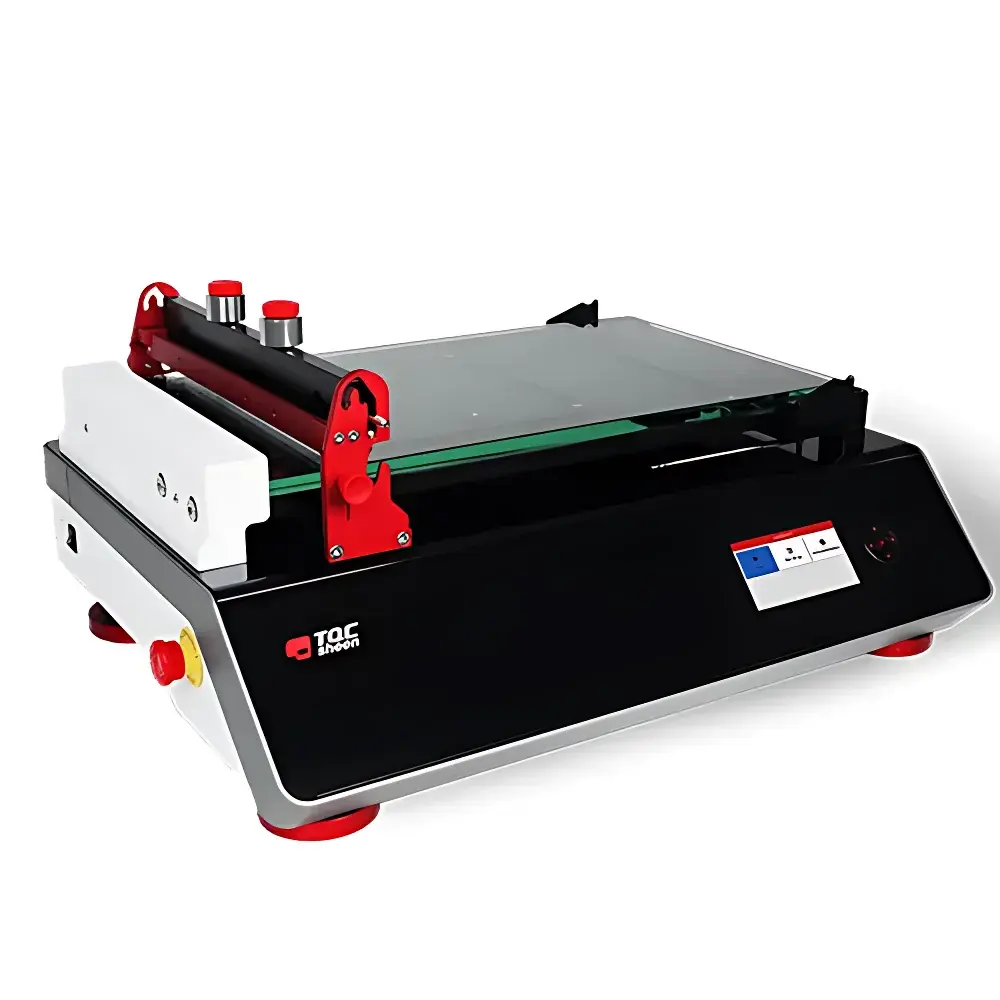

TQC Sheen AB4000 Series Automatic Film Applicator

Overview

The TQC Sheen AB4000 Series Automatic Film Applicator is an engineered precision instrument designed for standardized, reproducible thin-film deposition on rigid planar substrates—including test cards, metal panels, glass slides, and foils—within controlled laboratory environments. It operates on the principle of motorized, programmable linear translation combined with adjustable mechanical pressure and calibrated gap control between applicator bars and substrate surfaces. This ensures consistent shear application during film formation, minimizing operator-induced variability inherent in manual drawdown techniques. The system supports both ambient and thermally regulated coating processes via its integrated heated vacuum test table, enabling studies of temperature-dependent rheological behavior, solvent evaporation kinetics, and thermal curing effects. Its architecture complies with core principles outlined in ISO 2808 (paints and varnishes — determination of film thickness), ASTM D823 (standard practice for producing films of uniform thickness), and ISO 15184 (determination of pencil hardness), forming a foundational tool for QC/QA laboratories engaged in coatings formulation, raw material evaluation, and regulatory-compliant method development.

Key Features

• Triple I® Intelligent Illumination Interface: A proprietary guided navigation system that highlights active control buttons in red LED illumination, synchronized with real-time on-screen prompts to eliminate operational ambiguity and reduce training time.
• Programmable Coating Parameters: Adjustable drawdown speed (0.1–500 mm/s, ±1% accuracy), stroke length (50–430 mm, ±2 mm tolerance), and vertical gap height (10–80 mm) to accommodate diverse viscosity ranges and target film thicknesses.
• Heated Vacuum Test Table: Equipped with embedded heating elements capable of maintaining uniform surface temperatures up to +100°C above ambient; temperature setpoint and ramp profiles are fully controllable via Triple I interface.
• Modular Applicator Compatibility: Supports standard block-type applicators (e.g., Bird, Baker bars) and precision wound wire rods (diameter up to 10 mm, minimum length 345 mm), enabling method transfer across industry-standard protocols.
• DIN-Compliant Substrate Handling: Accommodates substrates up to DIN A3 size (515 × 300 mm), with maximum sample thickness of 35 mm (including wet film), and vacuum suction area configurable for DIN A5, A4, A3, or custom wash zones.
• Regulatory-Ready Control System: TFT display (480 × 272 pixels) with multilingual menu support (English, Spanish, Chinese, Polish, Japanese, Russian); optional mouse/keyboard integration for audit trail–capable data entry in GLP/GMP-aligned workflows.

Sample Compatibility & Compliance

The AB4000 accommodates rigid, flat substrates including coated/uncoated paper cards (max. 9 mm thick), aluminum or steel panels, glass plates, and polymer foils. Its vacuum-based clamping ensures dimensional stability during high-shear drawdown, critical for minimizing edge effects and achieving ≤±3% thickness variation across the full 300 mm coating width. All mechanical and thermal parameters adhere to calibration traceability requirements under ISO/IEC 17025. When used in conjunction with certified reference standards (e.g., NIST-traceable thickness gauges or gravimetric film mass standards), the system supports method validation per ICH Q2(R2) and FDA 21 CFR Part 11–compliant electronic record generation when paired with validated LIMS or ELN software.

Software & Data Management

While the AB4000 operates as a standalone benchtop instrument with embedded firmware, its parameter settings—including speed, stroke, temperature profile, and dwell time—are stored in non-volatile memory with timestamped logging. Optional RS-232 or USB-C connectivity enables integration into centralized lab automation platforms for remote configuration, batch protocol deployment, and export of operational metadata (e.g., date/time, operator ID, program name, environmental conditions). Firmware updates maintain alignment with evolving international standards, and audit logs include user authentication events and parameter modification history—supporting compliance with GLP documentation requirements and internal quality audits.

Applications

• Preparation of uniform films for drying time assessment (ISO 9116, ASTM D1640)
• Rheological screening via controlled-shear film formation prior to viscoelastic testing
• Opacity, gloss, and color consistency evaluation using spectrophotometric or gonio-colorimetric methods
• Scratch resistance and mar resistance testing (ISO 15184, ASTM D3363)
• Film integrity analysis following accelerated weathering or thermal cycling
• Formulation development for architectural, automotive, and industrial coatings where batch-to-batch reproducibility is mandated

FAQ

What substrate dimensions and thicknesses can the AB4000 handle?
It accepts substrates up to 515 × 300 mm (DIN A3) and 35 mm total thickness—including dry substrate and wet film height.
Is the heated vacuum table compatible with all AB4000 configurations?
Yes—the heated vacuum test table is standard across all AB4000 models, with temperature control fully integrated into the Triple I navigation interface.
Can the AB4000 be validated for GMP-regulated environments?
Yes—when operated with documented SOPs, calibrated traceable standards, and connected to compliant data management systems, it meets foundational requirements for equipment qualification (IQ/OQ) in pharmaceutical and medical device coating R&D.
Which applicator types are supported out-of-the-box?
All AB4000 units accept standard block applicators (Bird, Baker) and wire-wound rods; rod specifications require minimum length of 345 mm and maximum diameter of 10 mm at fixed mounting points.
Does the system support automated data export for LIMS integration?
Via optional serial or USB-C interface, operational parameters and timestamps can be exported in CSV or XML format for ingestion into validated laboratory information management systems.
