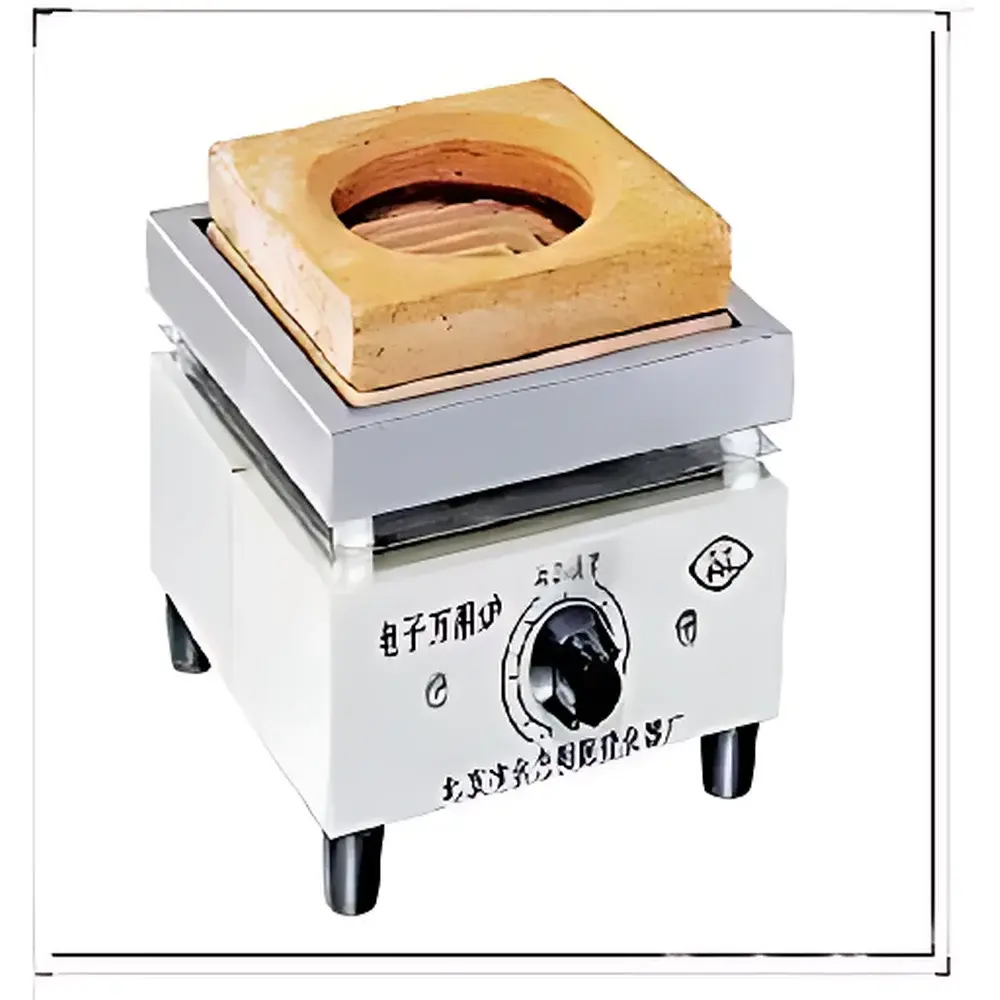

Truelab DL-1 Silicon Controlled Rectifier (SCR) Adjustable Temperature Electric Heating Plate

Overview

The Truelab DL-1 Silicon Controlled Rectifier (SCR) Adjustable Temperature Electric Heating Plate is a robust, analog-controlled thermal platform engineered for routine laboratory heating, sample preparation, digestion support, and controlled evaporation tasks. Unlike digitally regulated hotplates or magnetic stirrer-heaters, the DL-1 employs phase-angle SCR power modulation to deliver continuous, stepless adjustment of heating energy across its resistive coil element—enabling stable thermal output without discrete temperature setpoints. This analog architecture ensures electromagnetic compatibility in sensitive environments and eliminates firmware-related failure modes common in microprocessor-based units. Designed for integration into fume hoods, prep stations, and multi-step workflows, the DL-1 operates reliably under continuous load at up to 300 °C, supporting applications ranging from acid digestion pre-heating to solvent removal and reagent warming. Its enclosed heating zone prevents open-flame hazards and reduces ambient heat dispersion, aligning with standard laboratory safety protocols for non-sparking thermal sources.

Key Features

• Phase-angle SCR-based power regulation enables smooth, infinite adjustment of thermal output—ideal for processes requiring gradual ramping or fine-tuned thermal stability.
• Enclosed resistive heating element eliminates exposed coils or open flames, meeting IEC 61010-1 requirements for protection against fire and electric shock in laboratory environments.
• Durable cold-rolled steel housing finished with electrostatic powder coating provides resistance to chemical splashes, abrasion, and long-term corrosion—suitable for shared core facilities and teaching labs.
• Analog dial gauge display offers immediate visual feedback of relative power level; no battery, software, or calibration drift concerns associated with digital interfaces.
• Modular station configurations—including single (1 kW), dual (2 × 1 kW), quad (4 × 1 kW), and hex (6 × 1 kW) variants—allow scalable deployment across benchtops without requiring additional power circuits.
• Uniform heating zone (Ø100 mm) centered on a 200 mm × 200 mm ceramic-coated steel plate ensures consistent thermal distribution within defined sample areas, minimizing edge cooling effects.

Sample Compatibility & Compliance

The DL-1 accommodates standard laboratory glassware (e.g., beakers, Erlenmeyer flasks, digestion vessels) up to 1000 mL capacity. Its flat, non-magnetic surface supports both borosilicate glass and PTFE-coated containers. While not rated for explosive or highly volatile solvents under unventilated conditions, the unit complies with general-purpose lab equipment safety standards including IEC 61010-1 (Edition 3.1) for electrical safety and EN 60529 (IP20) for ingress protection. It is suitable for use in GLP-compliant sample prep workflows where traceability of thermal exposure is maintained via external loggers—not embedded software—ensuring audit readiness without reliance on proprietary firmware.

Software & Data Management

The DL-1 is a standalone analog instrument with no integrated software, data logging, or connectivity features. This design philosophy prioritizes operational simplicity, service longevity, and regulatory transparency: all thermal output is directly controllable and observable via the front-panel dial, eliminating questions of software validation, cybersecurity vulnerabilities, or firmware version control. For laboratories operating under FDA 21 CFR Part 11 or ISO/IEC 17025 requirements, external calibrated temperature recorders (e.g., thermocouple-based data loggers) may be deployed alongside the unit to document time–temperature profiles during digestion or drying protocols—fully satisfying ALCOA+ data integrity principles.

Applications

• Pre-heating of acid mixtures (HNO₃/HF/HClO₄) prior to microwave-assisted or block-digestion procedures.
• Controlled solvent evaporation in environmental and food testing labs (e.g., EPA Method 3010A, AOAC 999.10).
• Warming of viscosity standards, calibration oils, or reference materials prior to rheological or density measurement.
• Stabilization of reaction vessels during slow-addition syntheses where precise but non-automated thermal input is required.
• Support heating for distillation setups, Kjeldahl digestion manifolds, and Soxhlet extraction systems.
• Teaching laboratory demonstrations of thermal kinetics, phase transitions, and heat transfer fundamentals.

FAQ

Does the DL-1 support temperature setpoint control or PID regulation?
No—the DL-1 provides analog power-level adjustment only. It does not include temperature sensing, feedback loops, or digital controllers. Users must monitor surface temperature externally using a calibrated contact thermometer or infrared pyrometer.
Can multiple stations operate independently?
Yes—dual, quad, and hex configurations feature electrically isolated heating zones, each with its own SCR regulator and dial control, enabling independent power delivery per station.
Is the unit compatible with 110 V AC power supplies?
No—it is designed exclusively for 220 V AC, 50 Hz operation. A step-down transformer is required for use in North American or Japanese facilities.
What maintenance is required?
None beyond periodic cleaning of the plate surface with mild detergent and inspection of the power cord for insulation integrity. The SCR module has no consumable parts and requires no recalibration.
Does Truelab provide calibration certificates or traceable documentation?
As an analog heater without embedded sensors, the DL-1 is not supplied with factory calibration. Users are advised to validate surface temperature uniformity and maximum output using NIST-traceable thermometry prior to critical applications.
