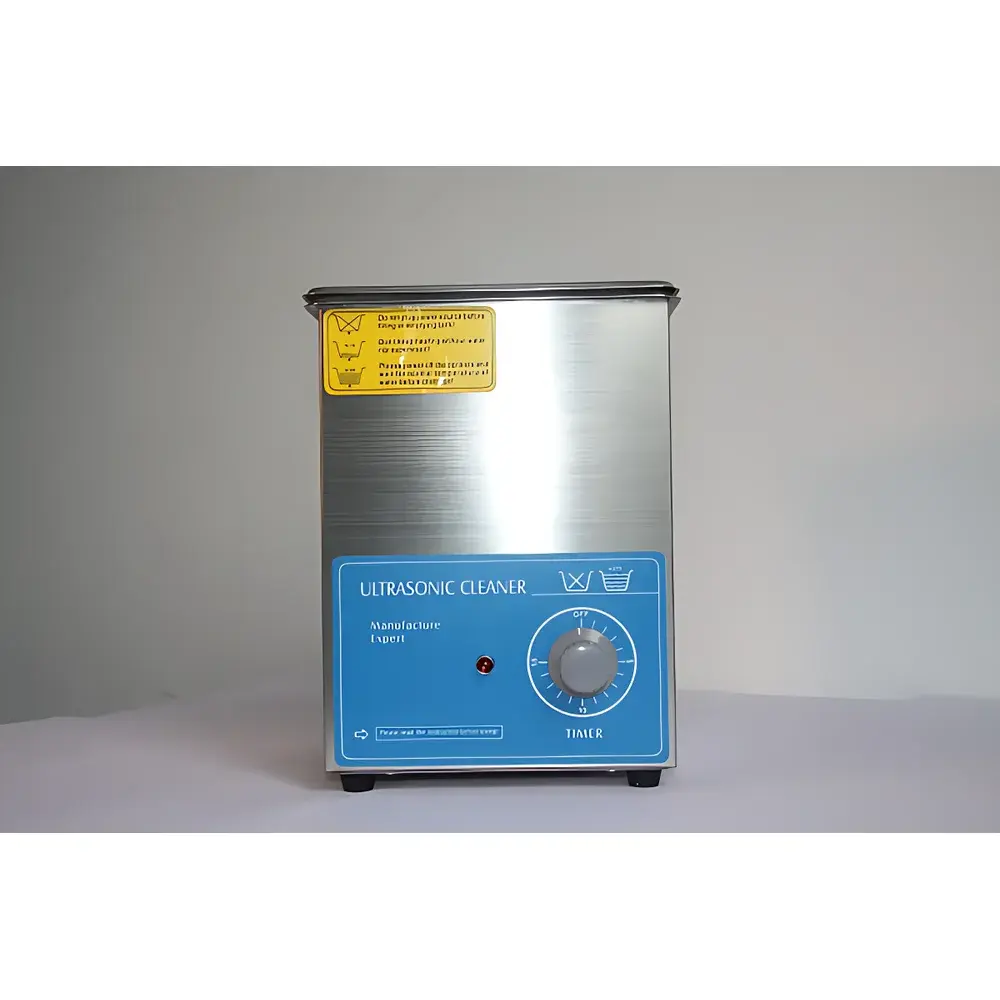

Truelab UC-T2 Benchtop Ultrasonic Cleaner

Overview

The Truelab UC-T2 is a compact, general-purpose benchtop ultrasonic cleaner engineered for precision cleaning of delicate laboratory components, analytical hardware, optical elements, and small-scale industrial parts. It operates on the principle of acoustic cavitation: a 40 kHz high-frequency signal generated by an integrated ultrasonic generator is electromechanically converted via piezoelectric transducers bonded to the tank bottom. This induces controlled microbubble formation and implosion within the cleaning fluid—generating localized pressures exceeding 1000 atm and transient temperatures above 5000 K at bubble collapse sites. The resulting micro-jetting and shockwave effects efficiently dislodge particulate contaminants, organic residues, oxides, and biofilms from surfaces and complex geometries—including blind holes, crevices, and microfluidic channels—without mechanical abrasion or thermal degradation.

Key Features

• Fully welded SUS304 stainless steel tank with seamless one-piece deep-drawn construction—eliminates weld-line corrosion pathways and ensures long-term chemical resistance against aqueous detergents, ethanol, acetone, and mild alkaline solutions.
• High-efficiency piezoelectric transducers mounted directly to the tank base deliver consistent 50 W nominal acoustic power output with minimal energy loss and stable amplitude distribution across the entire tank volume.
• Integrated sound-dampening lid reduces airborne noise to <55 dB(A) at 1 m distance—compliant with ISO 7779 and EU Directive 2000/14/EC for laboratory acoustic emissions.
• Digital timer with 1-minute incremental adjustment (1–15 min); auto-shutoff prevents solvent evaporation and overheating during unattended operation.
• Robust powder-coated steel chassis and ergonomic front-panel layout support stable placement on standard lab benches; footprint occupies less than 0.033 m².
• No built-in heating element—designed explicitly for ambient-temperature applications where thermal sensitivity of samples (e.g., enzymes, nucleic acids, polymer coatings) precludes elevated bath temperatures.

Sample Compatibility & Compliance

The UC-T2 is validated for cleaning glassware (vials, cuvettes, pipette tips), metal components (syringe needles, chromatography fittings, watch parts), ceramic substrates, and silicon wafers. It is compatible with common laboratory solvents including deionized water, isopropanol, ultrapure water (UPW), and low-concentration detergent formulations (e.g., Alconox® or Liquinox®). Not intended for use with flammable solvents above flash point thresholds without external ventilation. Conforms to IEC 61000-6-3 (EMC Emission Standard) and IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use). CE-marked and RoHS-compliant.

Software & Data Management

The UC-T2 is a stand-alone analog-controlled device with no embedded firmware, network interface, or data logging capability. All operational parameters are set manually via tactile push-button timer control. As such, it requires no software installation, driver configuration, or cybersecurity validation—making it suitable for GLP-regulated environments where instrument qualification must exclude unvalidated digital subsystems. Audit trails for cleaning cycles are maintained externally via lab notebook entries or LIMS-integrated workflow logs referencing batch ID, solvent lot number, and operator initials.

Applications

• Pre-analytical sample preparation: removal of residual buffers, salts, or protein aggregates from HPLC vials, autosampler needles, and electrophoresis combs.
• Maintenance of metrology tools: cleaning of micrometer anvils, gauge blocks, and optical alignment fixtures to sub-micron surface cleanliness standards.
• Life sciences: gentle desorption of adherent cells from culture inserts, decontamination of microcentrifuge tubes prior to RNA extraction, and degassing of PCR master mixes.
• Electronics manufacturing: flux residue removal from SMT stencils, PCB test fixtures, and MEMS sensor housings prior to hermetic sealing.
• Materials science: particle dispersion in colloidal suspensions, surface activation of catalyst supports, and post-sintering oxide layer reduction on sintered metal powders.

FAQ

Does the UC-T2 include a heater or temperature control function?
No. The unit operates exclusively at ambient temperature and contains no heating element or thermostat.
Can I use flammable solvents such as acetone or hexane in this cleaner?
Only under strictly controlled conditions: external fume hood ventilation, grounding of tank and lid, and adherence to NFPA 30 and OSHA 1910.106 requirements. Truelab does not validate or warranty performance with Class I flammable liquids.
Is the stainless steel mesh basket included with the UC-T2?
Yes—a SUS304 welded mesh rack is supplied as standard equipment to elevate samples above sediment and ensure uniform acoustic exposure.
What maintenance is required for long-term reliability?
Routine cleaning of the tank interior with mild detergent and soft cloth; periodic inspection of transducer bonding integrity (no user-serviceable parts); replacement of the sound-dampening lid gasket every 24 months in high-use environments.
Does the UC-T2 comply with FDA 21 CFR Part 11 requirements?
Not applicable—the device has no electronic records, digital signatures, or audit trail functionality. It meets baseline safety and EMC requirements for laboratory use but is not designed for regulated electronic data capture.
