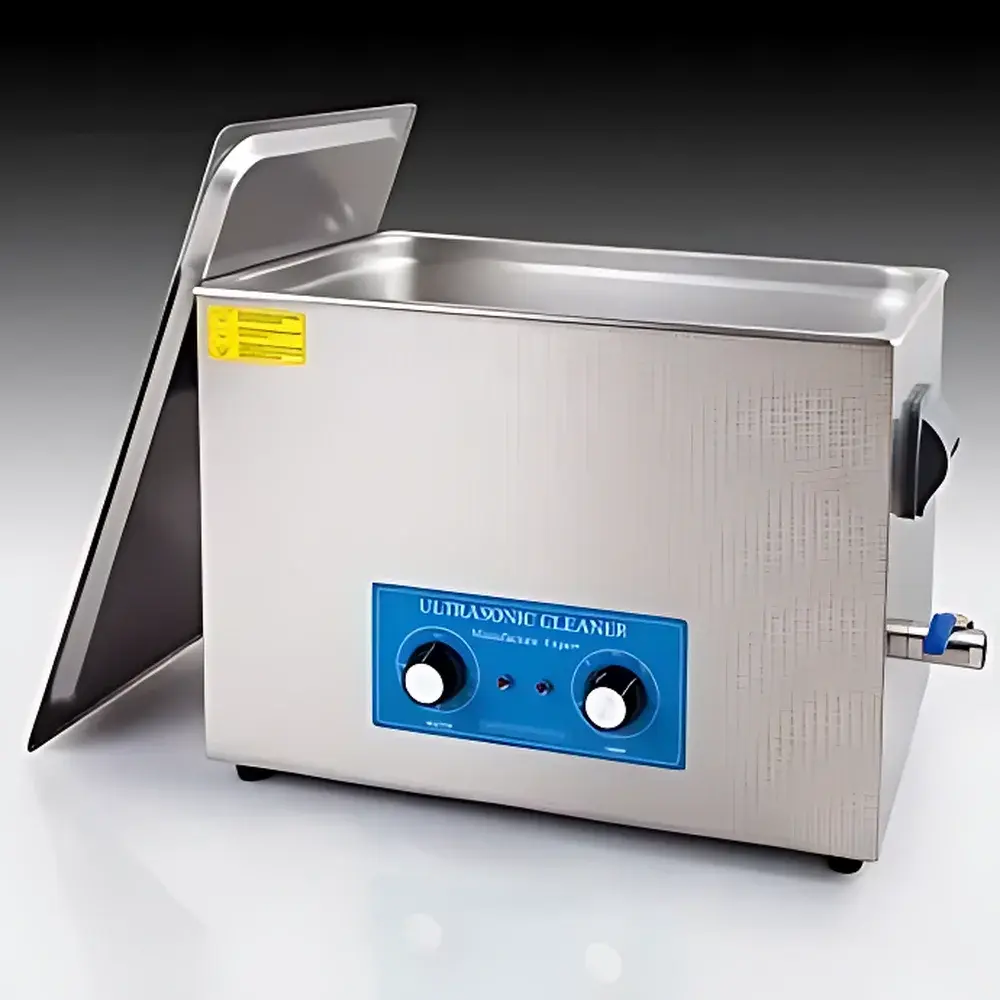

Truelab UC-T34 Benchtop Ultrasonic Cleaner

Overview

The Truelab UC-T34 is a precision-engineered benchtop ultrasonic cleaner designed for routine and demanding cleaning tasks in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of acoustic cavitation: a 40 kHz high-frequency signal generated by an integrated ultrasonic generator is converted into mechanical vibrations via piezoelectric transducers bonded to the bottom and/or sides of the stainless-steel tank. These vibrations propagate through the cleaning solution—typically aqueous or solvent-based—inducing transient microcavities that collapse violently near surfaces, generating localized shockwaves and microstreaming. This physical mechanism effectively dislodges particulate contaminants, organic residues, oxides, and biofilms from complex geometries—including blind holes, crevices, and microstructured surfaces—without mechanical abrasion or chemical aggression beyond the selected cleaning medium.

Key Features

• Robust SUS304 stainless-steel construction: seamless one-piece tank formed by deep-drawing (no welds), minimizing corrosion risk and ensuring long-term liquid integrity.
• Dual-function transducer array: optimized for uniform energy distribution across the 34.4 L tank volume, supporting consistent cleaning performance regardless of load configuration.
• Integrated heating system with PID-controlled temperature regulation: precise setpoint adjustment between 20 °C and 80 °C, enabling temperature-sensitive applications such as enzyme deactivation or low-volatility solvent activation.
• Programmable digital timer: 1–20 minute ultrasonic cycle duration with automatic shutdown, facilitating unattended operation while preventing overexposure or solution degradation.
• Sound-dampening hinged lid: reduces airborne noise to ≤55 dB(A) at 1 m distance and minimizes solvent evaporation during heated operation.
• Ergonomic design: side-mounted handles and compact footprint (550 × 330 × 358 mm) allow safe repositioning on standard lab benches or mobile carts.
• Functional utility ports: rear-mounted drain valve with quick-connect fitting and integrated overflow protection; optional recirculation pump interface available upon request.

Sample Compatibility & Compliance

The UC-T34 accommodates a broad range of sample types and fixtures, including glassware (vials, cuvettes, chromatography columns), metal components (precision machined parts, surgical instruments), electronic assemblies (PCBs, connectors), and biological substrates (tissue culture plates, filtration membranes). Its non-contact cleaning modality preserves dimensional stability and surface finish of delicate specimens. The unit complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity requirements) for laboratory equipment. While not certified for sterile processing per ISO 13485 or FDA 21 CFR Part 820, it supports GLP-aligned workflows when paired with validated cleaning protocols and documented parameter logs (time, temperature, bath composition). Routine maintenance—such as degassing cycles and transducer impedance verification—is recommended per ASTM D2603 for sustained cavitation efficiency.

Software & Data Management

The UC-T34 operates via a dedicated front-panel interface with LED display and tactile push-button controls—no external software or drivers required. All operational parameters (temperature setpoint, timer value, power activation status) are retained in non-volatile memory across power cycles. For traceability in regulated environments, users may integrate external data loggers via analog output (0–5 V DC proportional to tank temperature) or employ time-stamped manual entry into electronic lab notebooks (ELNs). Though the device lacks built-in audit trail or user-access control features, its deterministic behavior and stable thermal/ultrasonic output support reproducible validation studies compliant with USP Analytical Instrument Qualification guidelines.

Applications

• Pre-analytical sample preparation: removal of residual solvents from HPLC vials, desorption of adsorbed proteins from quartz cuvettes, and degassing of mobile phase reservoirs.
• Electronics manufacturing: flux residue removal from SMT assemblies prior to AOI inspection or conformal coating.
• Mechanical engineering labs: deburring of micromachined components and cleaning of hydraulic valve spools before dimensional metrology.
• Biotechnology: sanitization of reusable bioreactor sensors and dissolution testing apparatus per USP .
• Materials science: dispersion of nanoparticle suspensions and surface activation of polymer substrates prior to plasma treatment.

FAQ

What cleaning solutions are compatible with the UC-T34?
Aqueous alkaline, neutral, or mildly acidic detergents; ethanol, isopropanol, and acetone (with proper ventilation and explosion-proof precautions). Avoid halogenated solvents unless using optional vapor recovery accessories.
Can the UC-T34 be used for sterilization?
No. It provides effective cleaning and microbial load reduction but does not achieve sterility assurance levels (SAL ≤10⁻⁶) required for sterilization. Complementary autoclaving or dry-heat treatment is necessary for terminal sterilization.
Is the heating function independent of ultrasonic activation?
Yes. Temperature can be set and maintained without initiating ultrasonic output, allowing pre-heating of baths or gentle warming of temperature-sensitive samples.
How often should the transducers be inspected?
Visual inspection for physical damage and periodic measurement of electrical impedance (using LCR meter) are recommended every 6 months or after 1,000 operating hours to verify optimal energy coupling.
Does the UC-T34 support continuous operation?
It is rated for intermittent duty cycles (max. 20 min ON / 10 min OFF). Extended continuous use may accelerate transducer fatigue and reduce service life; consult the technical manual for thermal derating curves.
