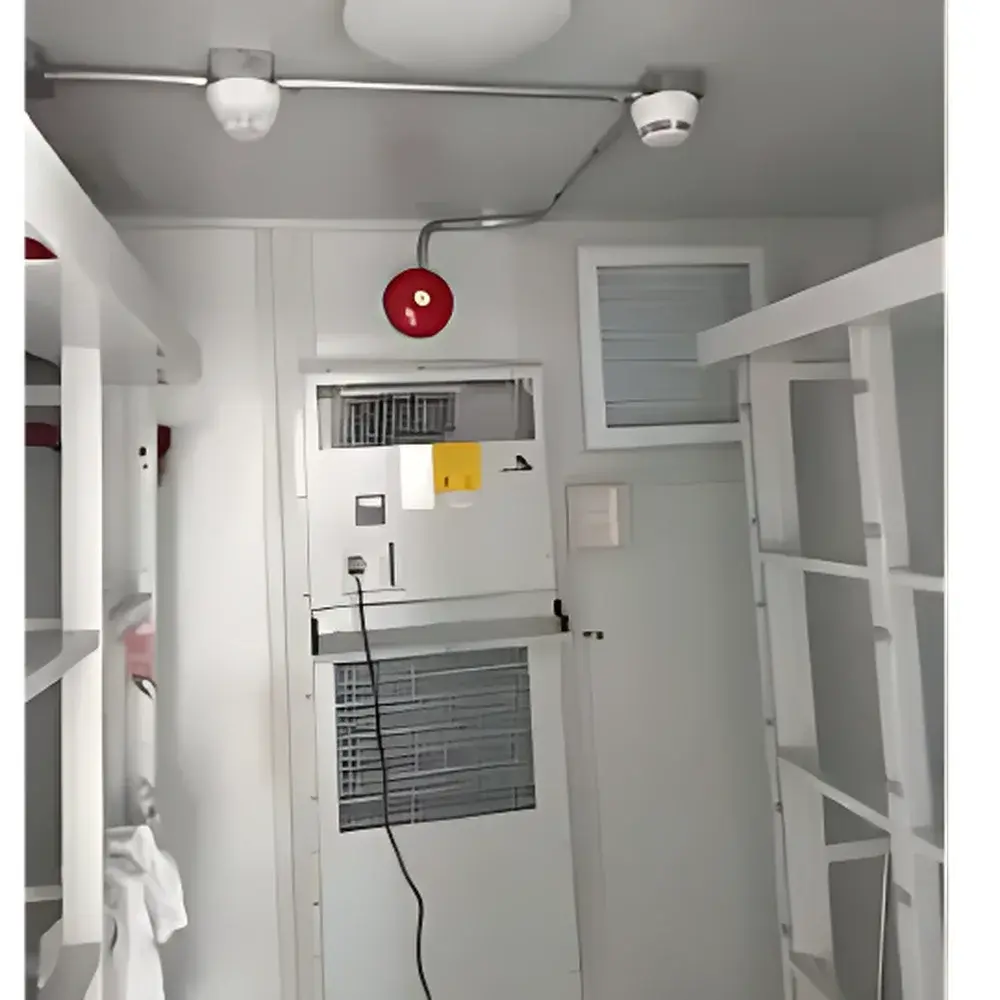

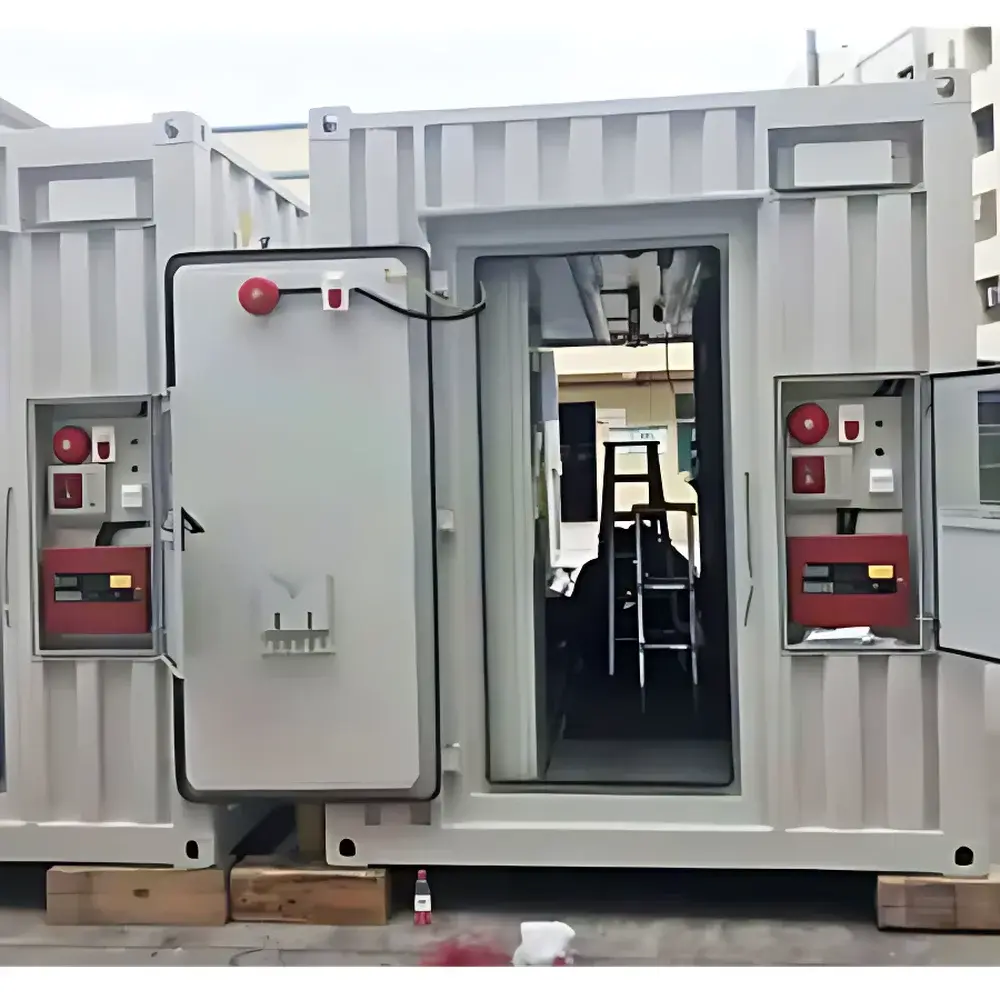

TTech-JZX-01 Containerized Fire Suppression Simulation Test Chamber

Overview

The TTech-JZX-01 Containerized Fire Suppression Simulation Test Chamber is an engineered test platform designed specifically for evaluating fire suppression efficacy within lithium-ion battery energy storage system (ESS) containers. It operates on the principle of controlled thermal runaway propagation simulation under representative operational and environmental conditions—enabling quantitative assessment of extinguishing agent performance, suppression latency, re-ignition resistance, and structural integrity retention during and after fire events. Unlike generic fire test enclosures, this system integrates multiple industry-standard suppression technologies into a single, standardized 20-ft equivalent modular chamber, allowing side-by-side comparative validation in accordance with UL 9540A, IEC 62619, and GB/T 36276 test philosophies. The chamber’s reinforced fire-resistive construction ensures structural survivability even under full-suppression failure scenarios—supporting repeatable, high-fidelity testing across multiple cycles without degradation of test boundary conditions.

Key Features

• Modular 20-foot-equivalent steel enclosure with certified 120-minute fire-resistance rating (per ASTM E119 and GB/T 9978.1), enabling safe containment of thermal runaway events up to 800 °C core temperatures.
• Triple-integrated suppression subsystems: clean-agent (C6 fluoroketone), gaseous (HFC-227ea), and fine water mist—each independently actuated and instrumented for pressure, flow rate, and discharge timing synchronization.
• Multi-spectral monitoring suite: synchronized visible-light HD video (1080p@30fps), uncooled microbolometer infrared imaging (640×480 resolution, ±2 °C accuracy), and distributed thermocouple array (Type K, 0.5 s response time, 128-channel capability).
• Real-time fire detection architecture comprising optical smoke sensors, CO/CO₂ dual-gas analyzers, and flame UV/IR dual-band detectors—all calibrated per EN 54-7, EN 54-10, and UL 268 standards.
• Integrated electrical control cabinet with industrial-grade PLC (Siemens S7-1500), isolated I/O modules, surge-protected power distribution, and redundant emergency shutdown circuits compliant with IEC 61508 SIL2 requirements.
• Pre-wired conduit pathways and standardized mounting interfaces for rapid integration of external battery racks, HVAC conditioning units, or gas sampling manifolds per user-defined test configurations.

Sample Compatibility & Compliance

The TTech-JZX-01 accommodates standard 19-inch rack-mounted battery modules (up to 48 V / 200 Ah), prismatic and pouch cells mounted on custom test trays, and full-scale 5–20 kWh ESS cabinets. Its internal volume (≈33 m³), ceiling height (2.6 m), and door aperture (2.3 m × 2.2 m) conform to NFPA 855 Annex D spatial recommendations for containerized ESS fire testing. All suppression discharge nozzles are positioned per NFPA 2001 Chapter 7 hydraulic design criteria. The system supports GLP-compliant test execution, with audit-ready data logs traceable to NIST-traceable calibration certificates for all embedded sensors. Fire resistance certification documentation is provided per GB/T 9978.1–2019 and third-party verified by CNAS-accredited laboratories.

Software & Data Management

Data acquisition and orchestration are managed via TTech ControlSuite™ v3.2—a Windows-based SCADA application developed for deterministic real-time logging at 100 Hz sampling across all sensor channels. The software enforces role-based access control (RBAC), automatic metadata tagging (test ID, operator, ambient conditions), and encrypted binary logging (.tdms format) compatible with MATLAB, Python (PyTDM), and LabVIEW. All suppression actuation events, alarm triggers, and video timestamps are cross-referenced in a single timeline view. Audit trails comply with FDA 21 CFR Part 11 requirements, including electronic signatures, immutable log archiving, and change history tracking. Export options include CSV, PDF test reports (with embedded IR thermograms), and XML datasets for submission to regulatory bodies.

Applications

• Comparative evaluation of suppression agent effectiveness against LiNiMnCoO₂ (NMC) and LiFePO₄ (LFP) cell thermal runaway propagation.
• Validation of suppression system response time, heat flux attenuation, and post-suppression gas-phase toxicity (HF, COF₂) under realistic container ventilation profiles.
• Development and verification of fire detection algorithms trained on multi-modal sensor fusion (smoke + IR + gas + acoustic).
• Fire safety certification support for ESS OEMs seeking UL 9540A Module-Level and System-Level Reports.
• Research into secondary hazard mitigation—including electrolyte vapor condensation, soot deposition kinetics, and residual conductivity of extinguishing residues on busbars and BMS components.
• Training of fire response teams using live-fire simulations with adjustable ignition location, cell SoC, and ambient humidity parameters.

FAQ

What fire suppression agents are pre-installed and field-configurable?
The chamber ships with fully commissioned C6 fluoroketone (FK-5-1-12), HFC-227ea (FM-200®), and fine water mist systems. All three can be operated individually or in hybrid sequences via programmable logic; no hardware modification is required.
Does the system support third-party data acquisition hardware?
Yes—standard analog (4–20 mA, 0–10 V) and digital (Modbus TCP, CANopen) interfaces are provided for seamless integration with external DAQ systems such as National Instruments cDAQ or Dewesoft X.
Is the chamber suitable for outdoor deployment or only indoor lab use?
It is rated for indoor laboratory use only (IP20 enclosure). Outdoor operation requires climate-controlled sheltering and grounding per IEEE 1100 due to sensitivity of IR cameras and gas sensors to ambient moisture and solar loading.
Can the chamber be upgraded to accommodate larger ESS configurations beyond 20-ft scale?
Yes—TTech offers scalable variants (TTech-JZX-02: 40-ft equivalent; TTech-JZX-03: dual-chamber parallel configuration) with shared control architecture and synchronized trigger logic.
What documentation is delivered with the system?
Final delivery includes Factory Acceptance Test (FAT) report, sensor calibration certificates (NIST-traceable), fire-resistance certification dossier, electrical safety compliance (GB 4793.1), and complete IEC 61511-compliant Safety Instrumented Function (SIF) description.
