Varian Cary 1E UV-Vis Spectrophotometer (Refurbished)

Overview

The Varian Cary 1E UV-Vis Spectrophotometer is a robust, single-beam optical instrument engineered for routine quantitative and qualitative analysis in academic, pharmaceutical, and industrial quality control laboratories. Based on fixed-slit grating monochromator architecture and calibrated silicon photodiode detection, the Cary 1E delivers high photometric reproducibility and long-term baseline stability across its full spectral range of 190–1100 nm. Designed during Varian’s legacy era in spectroscopic instrumentation, the system emphasizes mechanical simplicity, thermal stability, and ease of validation—attributes critical for GLP-compliant environments where method transfer and instrument qualification are routinely required. Unlike modern array-based spectrophotometers, the Cary 1E employs sequential wavelength scanning, which ensures inherently low stray light (<0.05% at 220 nm per NaI test) and excellent linearity over absorbance ranges from 0.001 to 3.0 A. Its analog signal processing chain and dedicated optical path minimize electronic noise and support trace-level concentration determinations when paired with matched quartz cuvettes and NIST-traceable calibration standards.

Key Features

• Fixed-slit Czerny-Turner monochromator with precision-ground holographic grating for consistent resolution and peak shape fidelity

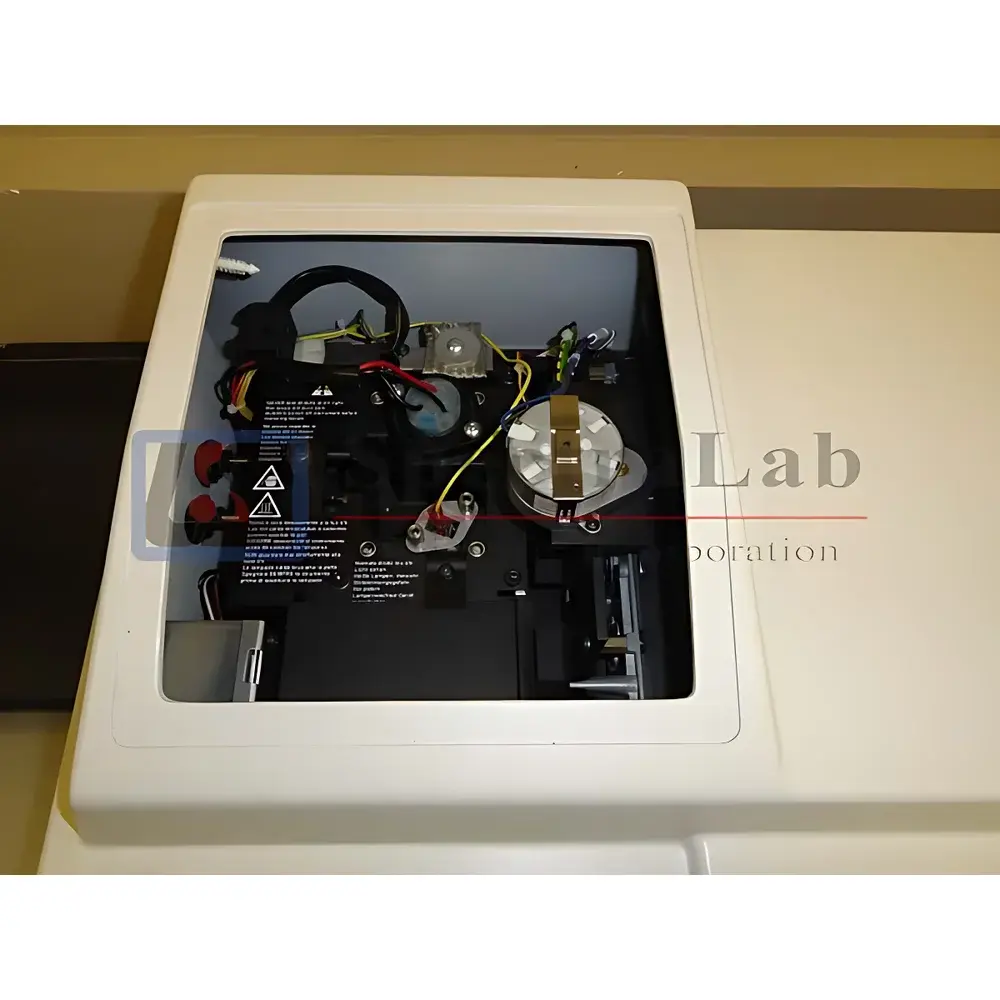

• High-stability tungsten-halogen and deuterium dual-lamp source with automatic lamp switching and intensity balancing
• Real-time analog-to-digital conversion with 12-bit resolution and hardware-based zero-tracking for drift compensation
• Front-panel keypad interface with LCD display supporting direct A/T/%T measurement, kinetics, and multi-wavelength quantitation
• RS-232 serial port for bidirectional communication with external PCs or LIMS; compatible with legacy Varian CaryWin software (Windows XP/Vista)

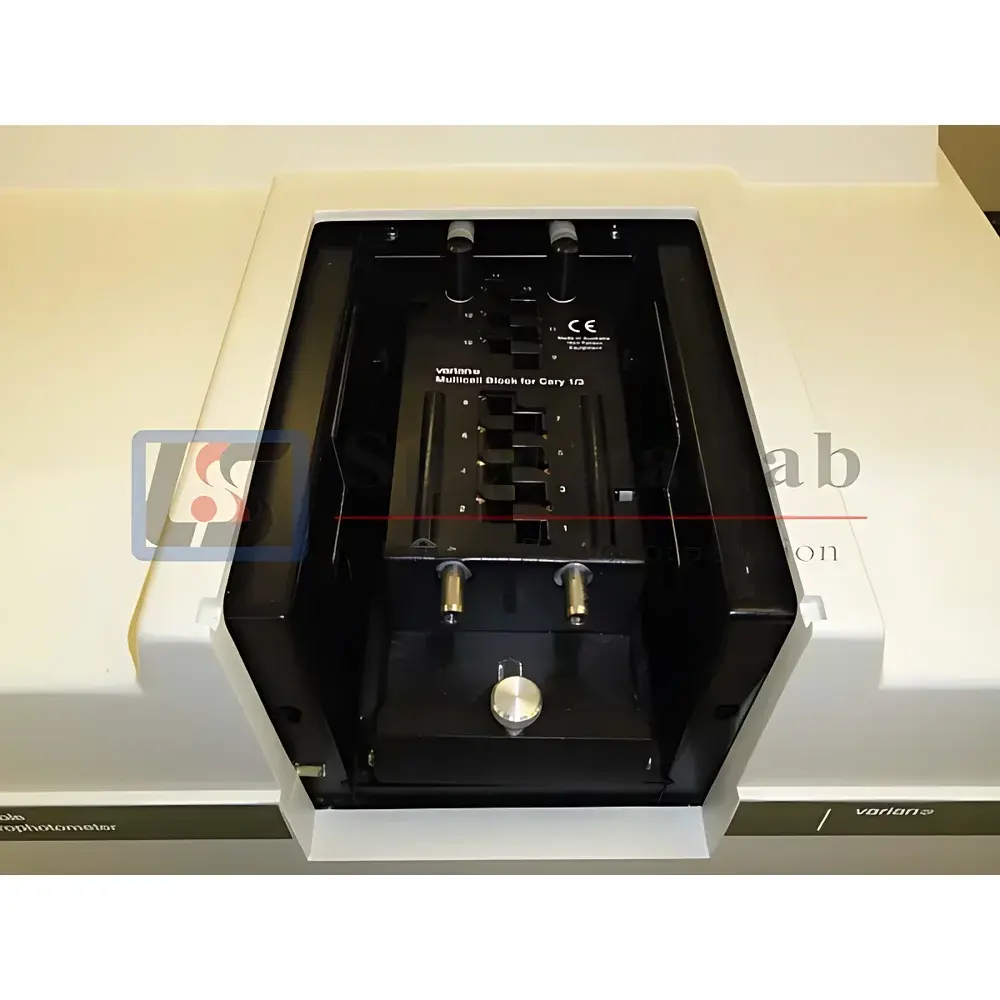

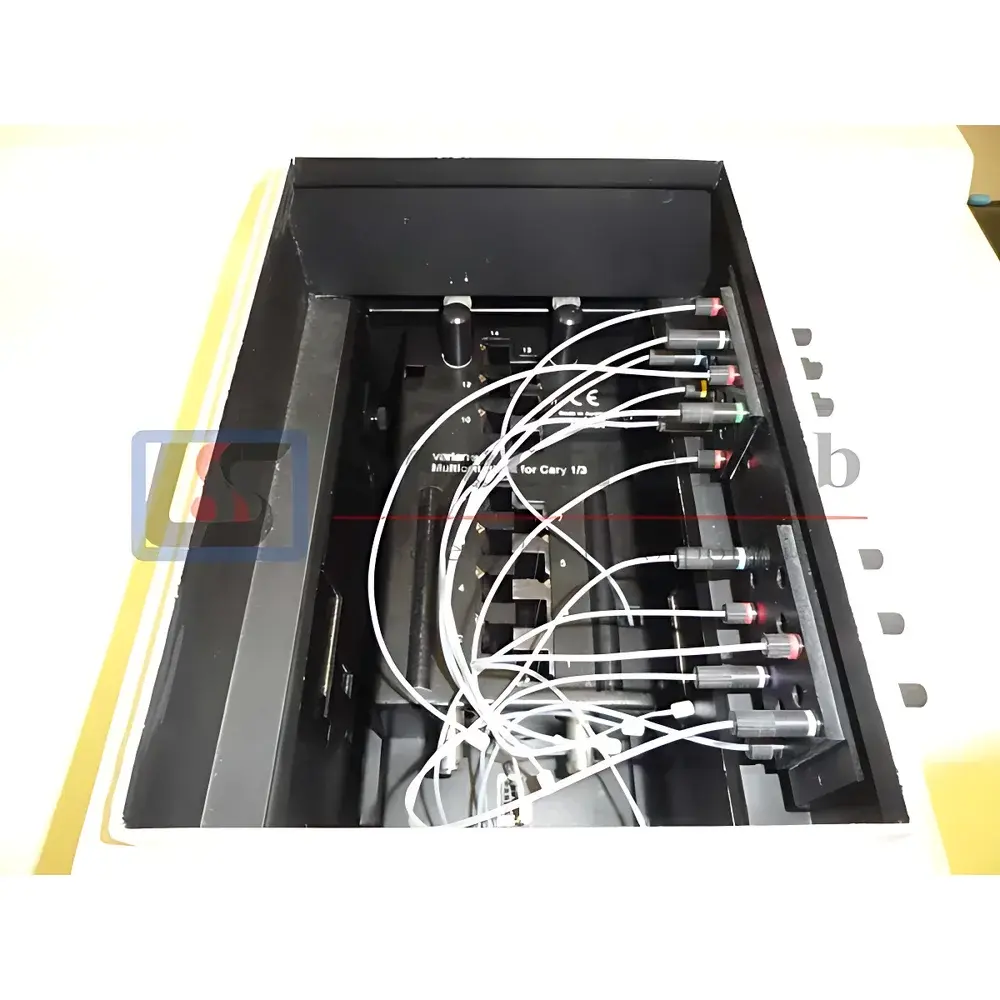

• Modular sample compartment accommodating 10-mm rectangular cuvettes, microvolume adapters, and optional 8-position autosampler (not included)
• Factory-aligned optical train requiring no user recalibration; alignment verified via spectral line verification (e.g., holmium oxide filter at 241.1, 279.4, 360.9 nm)

Sample Compatibility & Compliance

The Cary 1E accommodates standard 10-mm pathlength quartz or UV-grade fused silica cuvettes (1.0 mL minimum volume), as well as semi-micro and flow-cell configurations with appropriate accessories. It supports solvent compatibility across common UV-Vis media including water, methanol, acetonitrile, hexane, and dilute acid/base solutions—provided refractive index matching and absorption cutoffs are observed. The instrument conforms to ISO 9001 manufacturing practices (as applied by Varian at time of original production) and meets core performance criteria outlined in ASTM E275 (Standard Practice for Description of Ultraviolet, Visible, and Near Infrared Spectrophotometers) and USP (Spectrophotometry and Light-Scattering). While not natively compliant with FDA 21 CFR Part 11, its audit-ready operation—including manual logbook documentation, hard-copy printouts via optional thermal printer, and deterministic scan repeatability—supports retrofitted compliance in regulated QC workflows under GMP/GLP oversight.

Software & Data Management

Data acquisition and basic analysis are performed via Varian’s proprietary CaryWin software (v3.x), which runs on Windows platforms up to Windows 7 (32-bit). The software enables spectral scanning, kinetic time-course acquisition, multi-component quantitation using built-in Beer-Lambert solvers, and report generation with embedded metadata (date/time, operator ID, lamp hours, wavelength calibration status). All spectral files are saved in native .CARY binary format, convertible to ASCII CSV for import into Excel, MATLAB, or third-party chemometrics packages. Instrument configuration parameters—including slit width (fixed at 2 nm), scan speed, and smoothing algorithms—are stored in non-volatile memory and persist across power cycles. For laboratories operating under data integrity requirements, raw scan data and method files can be archived with timestamped folder structures, satisfying ALCOA+ principles when coupled with controlled access protocols.

Applications

• Pharmaceutical assay validation per USP monographs (e.g., paracetamol, aspirin, riboflavin)
• Enzyme kinetics monitoring (NADH/NADPH at 340 nm, cytochrome c at 550 nm)
• Protein quantification via Bradford, Lowry, or direct A280 measurement
• Water quality analysis (nitrate at 220 nm, phosphate via molybdenum blue at 880 nm)
• Polymer degradation studies using carbonyl index (1710 cm⁻¹ equivalent in UV-Vis via derivatization)
• Educational laboratory instruction in analytical chemistry and instrumental methods

FAQ

Is this unit fully refurbished and tested prior to shipment?
Yes. Each Cary 1E undergoes full optical alignment verification, wavelength accuracy calibration using holmium oxide and didymium filters, photometric linearity assessment with neutral density filters, and lamp intensity profiling. Final test reports—including baseline noise (RMS <0.0005 A), %T repeatability (<0.2%), and warm-up stabilization time (<15 min)—are provided with shipment.
Does the 6-month warranty cover both parts and labor?
Yes. The warranty includes onsite or depot-based repair for defects in materials or workmanship, excluding consumables (lamps, fuses, cuvettes) and damage resulting from improper handling, voltage surges, or unauthorized modification.
Can the Cary 1E be integrated into a modern LIMS environment?
While it lacks native Ethernet or USB connectivity, RS-232 output can be bridged to TCP/IP via industrial protocol converters. Custom Python or LabVIEW drivers are available for automated data ingestion into LIMS platforms supporting ASCII-based instrument interfaces.
Are original manuals and software installation media included?
Yes. A complete set—including printed operator and service manuals, original CD-ROMs for CaryWin v3.2 and instrument firmware, and a USB-to-serial adapter—is supplied with each unit.
