VICI SWH4/HKS/VSH/FRK1 Series Service & Extraction Tools Kit

Overview

The VICI SWH4/HKS/VSH/FRK1 Series Service & Extraction Tools Kit is a purpose-engineered set of precision hand tools designed exclusively for maintenance, calibration, and field service of VICI fluidic components—including multi-position valves, solenoid drivers, sample loops, and high-pressure PEEK or stainless-steel fittings. These tools address common mechanical challenges encountered during routine laboratory instrument upkeep: restricted access to fasteners, torque-sensitive valve calibration, and non-destructive removal of polymer compression ferrules (e.g., PEEK, PTFE, or polyimide rings) from threaded ferrule nuts or union bodies. Unlike generic hardware-store equivalents, each tool in this kit conforms to VICI’s dimensional tolerances and material interface specifications—ensuring compatibility with 1/16″, 1/8″, and 10-32 UNF threaded interfaces commonly found across VICI Valco® and VICI Precision® product lines. The kit operates on fundamental mechanical principles: leveraged torque transmission (SWH4), hexagonal symmetry engagement (HKS), calibrated rotational resistance control (VSH), and controlled radial expansion force application (FRK1).

Key Features

• VICI SWH4 Slim-Profile Wrench: 1.5 mm-thick tapered blade geometry enables insertion into ≤0.040″ (1.0 mm) clearance gaps adjacent to 1/16″ tubing manifolds—ideal for tightening or loosening hex nuts where standard open-end wrenches cannot articulate.

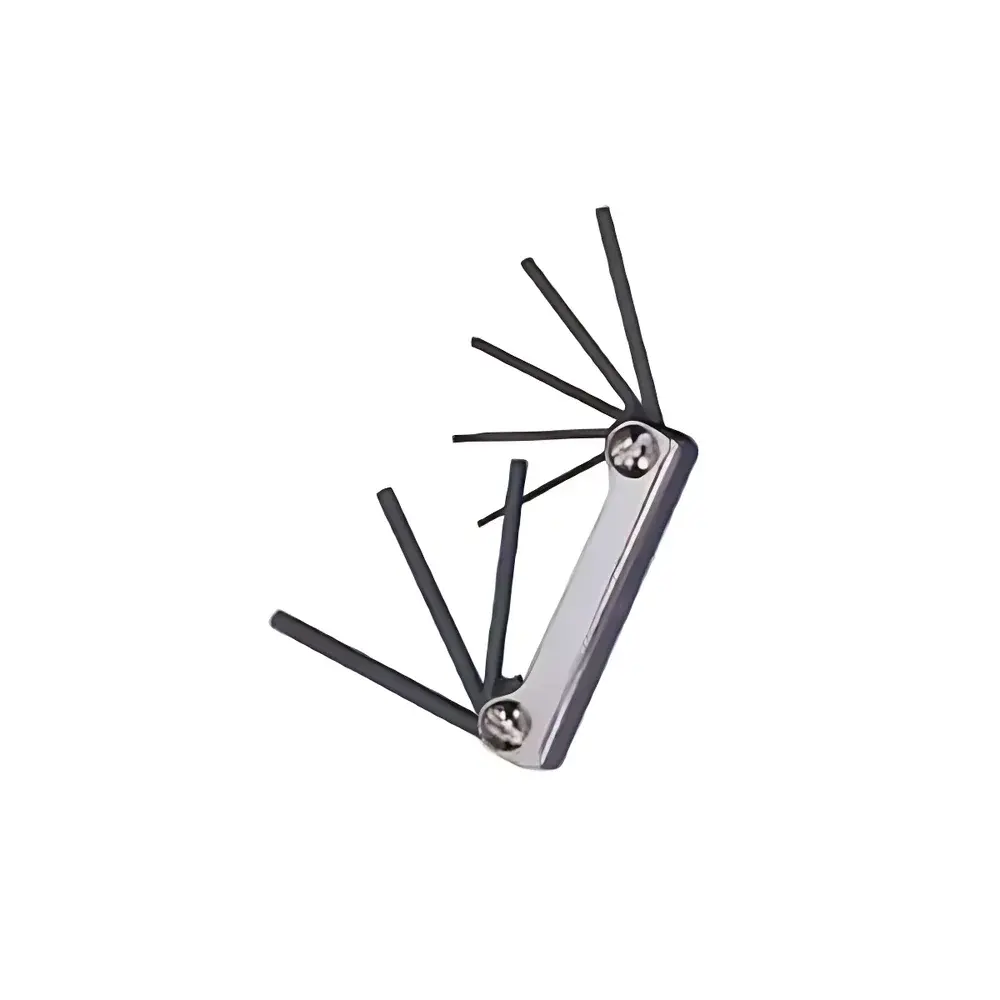

• VICI HKS Hex Key Set: Includes ANSI/ISO-compliant metric and fractional Allen keys (0.050″, 0.0625″, 0.093″, 0.125″, and 2.0 mm) hardened to ≥60 HRC; each key features chamfered tips and knurled handles for secure grip under glove use in cleanroom or fume hood environments.

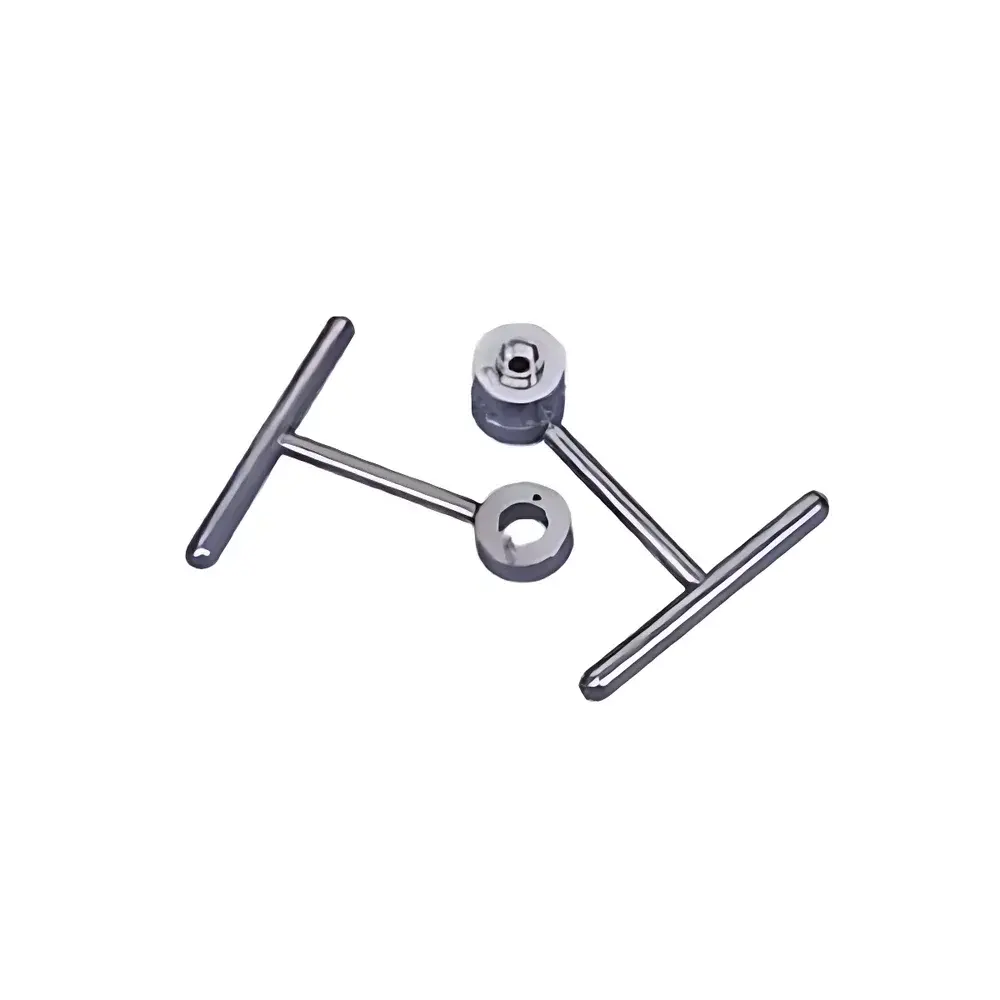

• VICI VSH Calibration Wrench: Designed specifically for Valco-type multi-port valves (e.g., 6-, 10-, and 12-port models); incorporates a fixed-torque-limiting design that prevents over-tightening of the valve rotor seal during recalibration—critical for maintaining leak integrity at pressures up to 10,000 psi.

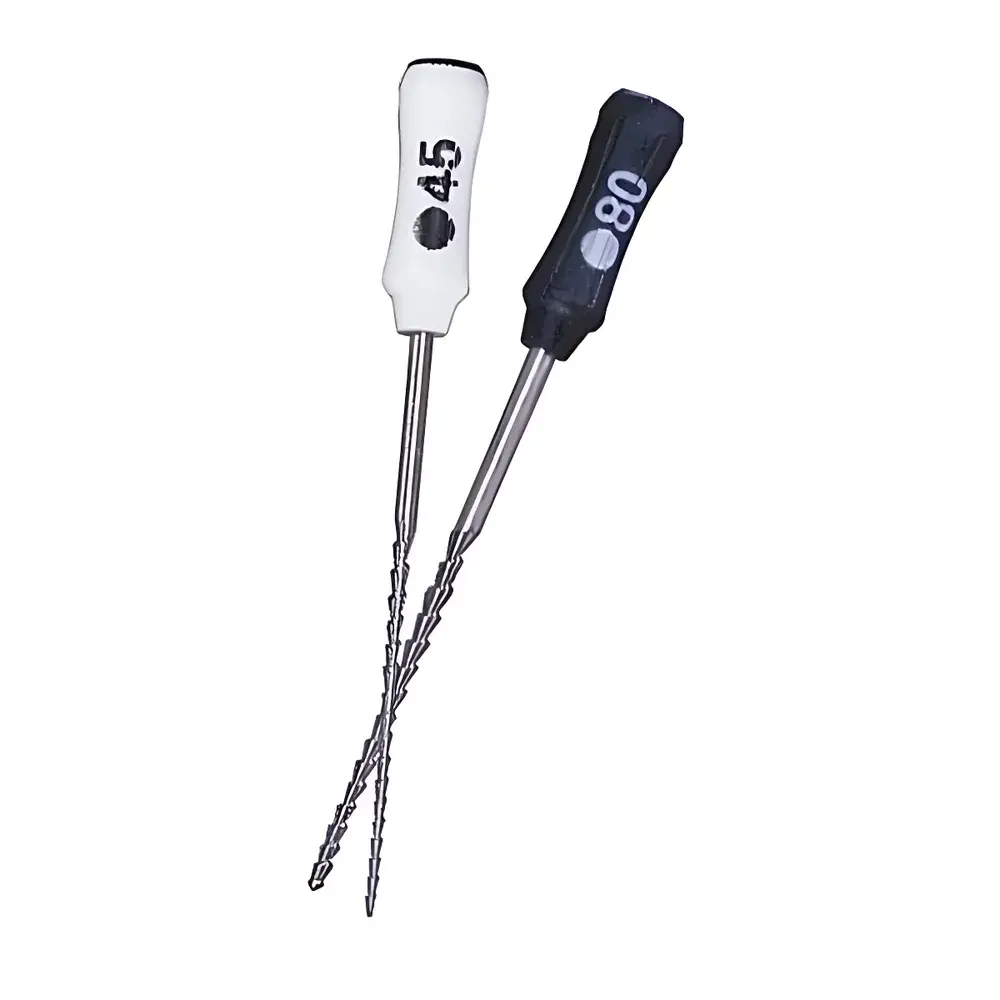

• VICI FRK1 Ferrule Ring Extractor: Dual-cone design (3.2 mm and 4.8 mm tip diameters) applies uniform outward radial force to deform polymer compression rings without scoring or gouging the underlying fitting body; compatible with Swagelok®, Parker A-LOK®, and VICI proprietary ferrule systems.
• All tools are manufactured from corrosion-resistant 420 stainless steel and passivated per ASTM A967; laser-etched part numbers ensure traceability in GLP/GMP-regulated laboratories.

Sample Compatibility & Compliance

This tool kit supports servicing of all VICI-manufactured fluid path components used in HPLC, GC, SFC, and automated sample introduction systems—including but not limited to: Valco™ electrically actuated valves, VICI Precision™ high-pressure switching modules, and VICI’s line of zero-dead-volume (ZDV) unions. It complies with mechanical interface standards referenced in ASTM F2516 (for compression fitting assembly), ISO 8535-1 (for gas chromatography column connections), and USP guidelines for analytical instrument qualification—specifically addressing “maintenance tool verification” requirements under Preventive Maintenance (PM) protocols. No electrical or software-based compliance claims are made; physical tool dimensions and material certifications are documented in VICI’s Certificate of Conformance (CoC), available upon request.

Software & Data Management

This is a purely mechanical tool set with no embedded electronics, firmware, or data logging capability. Accordingly, it requires no software installation, driver configuration, or cybersecurity validation. Tool usage records (e.g., date of use, valve serial number serviced, operator ID) may be manually logged in laboratory notebooks or integrated into electronic lab notebook (ELN) platforms such as LabArchives or Benchling using standardized SOP templates. For audit readiness, VICI provides a downloadable PDF tool inventory checklist aligned with FDA 21 CFR Part 11 Annex 11 expectations for traceable maintenance artifacts.

Applications

• Re-torquing 10-32 UNF hex nuts on VICI valve manifolds after thermal cycling-induced loosening in GC oven compartments.
• Performing scheduled calibration of Valco multi-position valves per manufacturer-recommended intervals (typically every 6 months or 10,000 cycles).
• Removing degraded PEEK ferrules from stainless-steel union bodies during HPLC system decontamination procedures.
• Installing new zero-dead-volume (ZDV) fittings onto capillary columns without introducing micro-fractures or angular misalignment.
• Field troubleshooting of flow path leaks in remote or mobile analytical platforms (e.g., portable GC-MS units, environmental monitoring trailers).

FAQ

Are these tools compatible with non-VICI valves or fittings?
These tools are dimensionally optimized for VICI-specific geometries (e.g., Valco rotor bore depth, nut flank angles, and ferrule taper ratios). While some HKS hex keys may fit third-party M2.5 or #4-40 screws, VICI does not guarantee performance or warranty coverage when used outside its certified component ecosystem.
Does the FRK1 tool work with metal ferrules?
No. The FRK1 is engineered solely for thermoplastic compression rings (PEEK, PTFE, polyimide). Applying it to metal ferrules (e.g., copper, aluminum, or stainless steel) risks permanent deformation of the tool tips and potential damage to the fitting threads.
Is calibration documentation provided with the VSH wrench?
The VSH wrench does not require periodic recalibration; however, VICI supplies a factory-verified torque deviation report (±3% at 2.5 in·lb) with each shipment, traceable to NIST-certified standards.
Can the SWH4 wrench be used on 1/8″ tubing assemblies?
It is rated only for 1/16″ OD tubing interfaces. Attempting use on 1/8″ systems exceeds its structural yield limit and may cause blade fracture.
