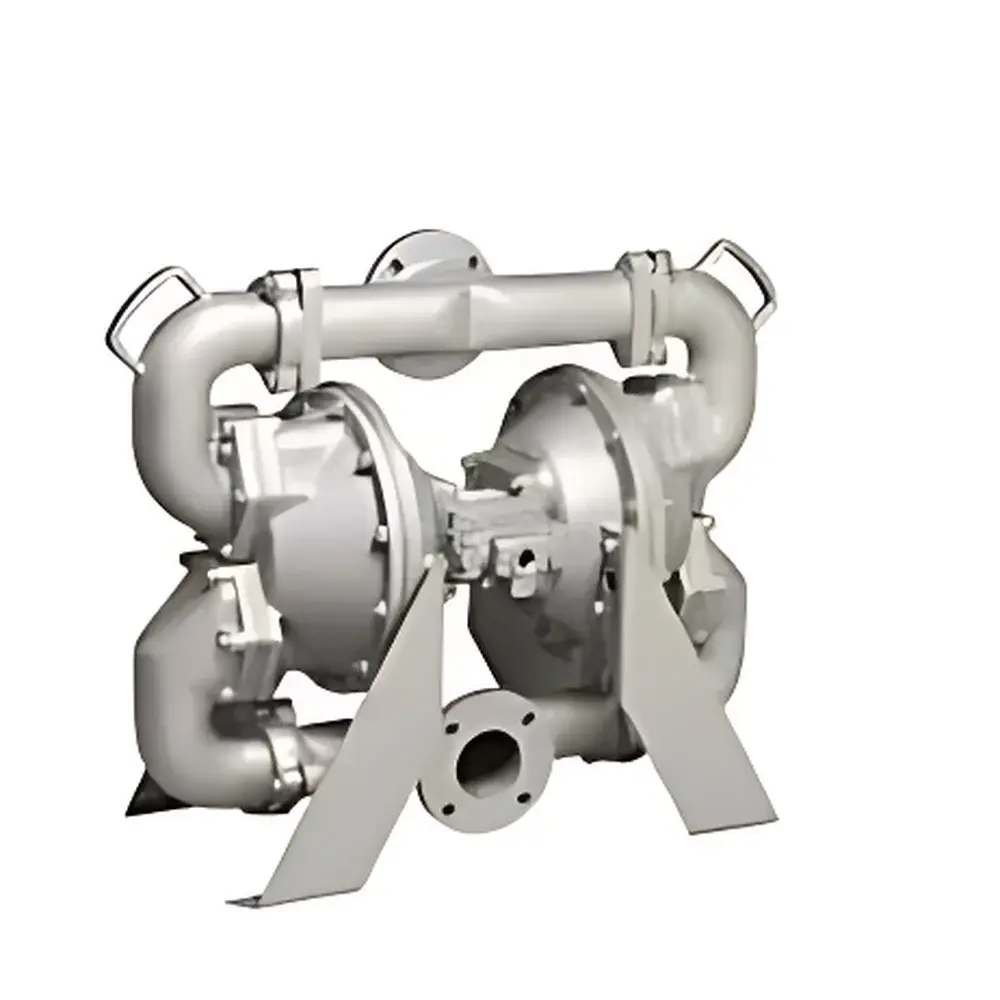

Warren Rupp SANDPIPER Heavy-Duty Flap-Valve Air-Operated Double-Diaphragm Pump

Overview

The Warren Rupp SANDPIPER Heavy-Duty Flap-Valve Air-Operated Double-Diaphragm (AODD) Pump is an industrial-grade fluid transfer solution engineered for reliability, safety, and versatility in demanding life science, pharmaceutical, bioprocessing, and laboratory support environments. Unlike centrifugal or peristaltic pumps, AODD technology operates on positive displacement via compressed air actuation of two flexible diaphragms—creating suction during the intake stroke and positive pressure during the discharge stroke. This principle enables true self-priming (up to 24 ft / 7.3 m vertical lift), dry-run capability without damage, and consistent flow control across variable backpressure conditions. Designed for integration into closed-loop cooling systems, reagent dosing lines, waste collection circuits, and cryogenic fluid recirculation paths, this pump complies with fundamental requirements for low-temperature system auxiliary pumping where seal integrity, explosion safety, and particulate tolerance are critical. Its robust architecture eliminates dynamic seals and rotating shafts—mitigating leakage risk and simplifying maintenance in GxP-aligned facilities.

Key Features

• Full bolted construction with reinforced flange interfaces for high-cycle durability and vibration resistance
• Flap-valve design optimized for handling abrasive slurries, suspended solids up to 1/2 inch (12.7 mm), and non-settling particulates without valve clogging
• Bottom-discharge port configuration standard across all HDF(SA) models—enabling complete drainage and minimizing residual hold-up volume
• Wetted materials configurable in sand-cast aluminum, ductile iron, 316 stainless steel, or Hastelloy® C-276 for corrosion and cryogen compatibility
• Diaphragm and check valve options include EPDM, Viton®, Santoprene™ TPE, and PTFE-faced composites—selected per chemical exposure and temperature range (-40°C to +85°C continuous)
• ATEX II 2 GD, CSA C/US Class I Div 1, UL 508, CE Machinery Directive, USDA Dairy Equipment, and FDA 21 CFR Part 177-compliant wetted components

Sample Compatibility & Compliance

This AODD pump accommodates a broad spectrum of process fluids encountered in life science infrastructure: glycol-water mixtures, liquid nitrogen carrier loops, ethanol-based cryogens, buffer solutions, cell culture media, and viscous cleaning-in-place (CIP) formulations. Its ability to meter abrasives—such as silica-based polishing slurries or protein-aggregate suspensions—without performance degradation supports both upstream bioreactor feed lines and downstream purification skids. All wetted-path configurations meet ISO 8573-1:2010 Class 2 compressed air purity requirements when paired with appropriate filtration. The pump’s mechanical design conforms to ASME B30.20 and ANSI MH29.1 standards for lifting and mounting integrity. Documentation packages include EU Declaration of Conformity, material traceability certificates (MTRs), and RoHS/REACH declarations—supporting audit readiness under GLP, GMP, and ISO 13485 frameworks.

Software & Data Management

While inherently analog in operation, the pump integrates seamlessly into supervisory control architectures via optional air supply instrumentation: digital air pressure regulators, pulse-width modulated (PWM) solenoid controllers, and flow-totalizing air meters enable remote speed modulation and volumetric throughput logging. When deployed alongside PLC-based cryogenic circulator systems (e.g., Julabo, Huber, or Thermo Fisher Polyscience platforms), its operational status—cycle count, runtime hours, and air consumption—is accessible via Modbus RTU or 4–20 mA analog signals. Audit trails for maintenance intervals, diaphragm replacement logs, and calibration records of upstream air treatment units can be synchronized with LIMS or CMMS platforms compliant with FDA 21 CFR Part 11 electronic record requirements.

Applications

• Cryogenic constant temperature circulator auxiliary pumping for thermal stabilization of NMR probes, X-ray detectors, and superconducting magnet cooling jackets
• Transfer of heat-transfer fluids in -80°C ultra-low temperature freezer cascade systems
• Recirculation of chilled ethanol in chromatography column jacketing loops
• Safe conveyance of abrasive cleaning solutions in automated lab washers and biosafety cabinet decontamination cycles
• Dosing of high-viscosity stabilizers (e.g., methylcellulose, alginate gels) in controlled-environment incubators and bioreactor seed trains

FAQ

Is this pump suitable for continuous duty in sub-zero ambient environments?
Yes—when equipped with low-temperature-rated elastomers (e.g., Nordel™ IP 4720 EPDM or Kalrez® 6375) and installed with insulated air supply lines, it maintains rated performance down to -40°C ambient.

Can it handle shear-sensitive biological samples?
No—AODD pumps induce pulsatile flow and moderate shear; they are not intended for direct cell suspension transfer but excel in ancillary fluid handling where shear sensitivity is not a constraint.

What maintenance intervals are recommended for GMP-compliant operations?
Diaphragm and flap-valve inspection every 500 operating hours; full rebuild kit replacement every 2,000 hours or per batch record review—documented per SOP-QC-017.

Does the pump require lubrication?
No—air motor components are oil-free; only periodic desiccant replacement in the compressed air dryer is required to prevent moisture-induced diaphragm swelling.

How is explosion protection verified for use in classified laboratory zones?
Each unit ships with third-party certification labels (ATEX, CSA) and test reports from SGS or UL verifying compliance with Zone 1/Div 1 hazardous area classification per IEC 60079-0 and NFPA 496.
