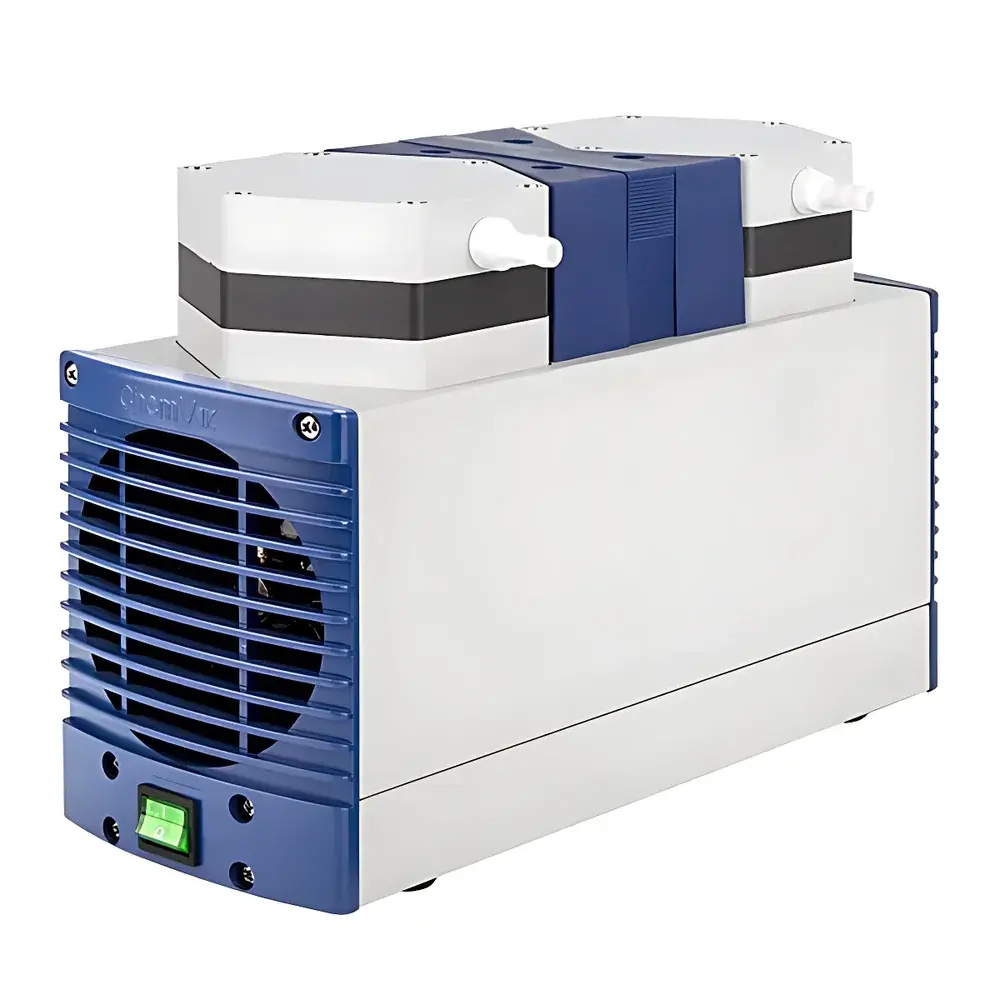

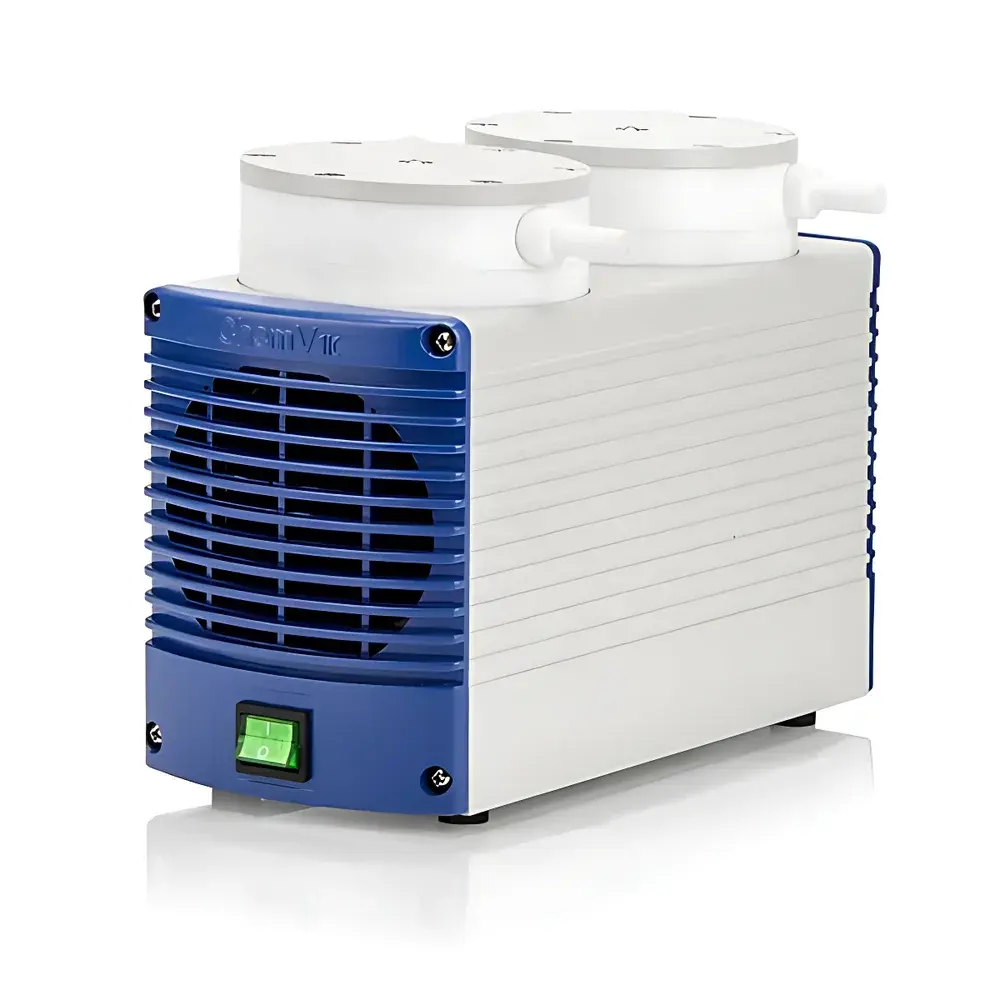

WIGGENS C520 Corrosion-Resistant Diaphragm Vacuum Pump

Overview

The WIGGENS C520 Corrosion-Resistant Diaphragm Vacuum Pump is an engineered solution for laboratories and industrial R&D facilities requiring reliable, oil-free vacuum generation in chemically aggressive environments. Operating on positive displacement principles via a reciprocating PTFE-coated diaphragm, the C520 delivers stable vacuum performance without lubricating oils—eliminating risk of sample contamination, oil backstreaming, or hazardous waste disposal. Its sealed dual-chamber architecture physically isolates the drive mechanism from the gas path, ensuring long-term mechanical integrity even under continuous exposure to corrosive vapors, acidic condensates, and halogenated solvents. Designed for integration with common lab platforms—including rotary evaporators, vacuum ovens, gel dryers, solid-phase extraction (SPE) manifolds, and pressure-controlled filtration systems—the C520 meets stringent operational demands across pharmaceutical process development, fine chemical synthesis, and environmental sample preparation workflows.

Key Features

• Chemically inert fluid path: All gas-contact surfaces—including diaphragm, valves, and internal chambers—constructed from high-purity PTFE, providing broad resistance to strong acids (e.g., HCl, HNO₃), bases (e.g., NaOH), organic solvents (e.g., acetone, THF, chloroform), and reactive halogen compounds.
• Oil-free operation: Eliminates oil mist emissions, prevents cross-contamination in sensitive analytical applications, and removes requirements for oil replacement, filtration, or disposal—reducing total cost of ownership and supporting ISO 14001-compliant lab practices.
• Thermal and electrical safety: Integrated thermal cut-off switch and dedicated circuit breaker prevent motor damage during prolonged duty cycles or inlet blockage events; complies with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards.
• Compact footprint & ergonomic design: Dimensions of 380 × 156 × 226 mm and weight of 14.5 kg enable benchtop deployment without sacrificing structural rigidity or vibration damping.
• Adjustable vacuum control: Optional manual vacuum regulator allows precise tuning of ultimate vacuum (down to 8 mbar) and flow rate (up to 50 L/min), enabling optimization for variable load conditions such as solvent boiling point shifts during rotary evaporation.
• Low-noise operation: Acoustic output limited to ≤55 dB(A) at 1 m distance, suitable for shared laboratory spaces and GLP-compliant environments where ambient noise must remain below occupational thresholds.

Sample Compatibility & Compliance

The C520 is validated for continuous use with corrosive gases and condensable vapors typical in API synthesis, catalyst recovery, and wastewater extract cleanup. Its PTFE wetted path conforms to USP material classification for Class VI plastics and meets ASTM D5229 for chemical resistance testing protocols. While not intrinsically rated for ATEX/IECEx Zone 1, it may be deployed in non-hazardous classified areas per NEC Article 500 when paired with appropriate exhaust scrubbing or venting. The pump supports GxP-aligned workflows through compatibility with audit-trail-capable vacuum controllers and optional pressure transducers traceable to NIST standards.

Software & Data Management

As a standalone analog device, the C520 does not include embedded firmware or digital interfaces. However, it is fully compatible with third-party vacuum monitoring systems (e.g., Vacuubrand VACUU·SELECT, KNF LabControl) via standard 6–10 mm hose barb connections and optional analog pressure signal outputs (0–10 V or 4–20 mA) when equipped with external transducers. Integration into LIMS or ELN ecosystems is achievable through programmable logic controllers (PLCs) or USB-to-analog DAQ modules, supporting 21 CFR Part 11-compliant electronic records when paired with validated software layers.

Applications

• Vacuum-assisted filtration of aggressive filtrates (e.g., sulfuric acid digests, alkaline hydrolysis mixtures)
• Rotary evaporation of chlorinated or fluorinated solvents under controlled vacuum profiles
• Lyophilization pre-freeze and primary drying stages requiring stable sub-10 mbar vacuum
• Solid-phase extraction (SPE) with acidic/basic elution solvents across multi-well plates
• Reduced-pressure distillation of thermally labile intermediates in medicinal chemistry
• Gel electrophoresis drying and membrane blotting under inert, oil-free vacuum
• Replacement of water aspirators in resource-constrained or environmentally regulated facilities

FAQ

Is the C520 certified for use in explosion-proof environments?
No—the C520 is not ATEX or IECEx certified. It must be installed in non-hazardous locations unless integrated with certified explosion-proof enclosures or purged ventilation systems.
Can the pump handle saturated solvent vapors without performance degradation?
Yes—its PTFE diaphragm and valve assembly resist swelling and embrittlement when exposed to condensed vapors of common organic solvents, provided condensate is periodically drained via the integrated purge port.
What maintenance intervals are recommended for routine operation?
Under normal lab use (≤8 hrs/day), inspect diaphragm integrity and valve seating every 6 months; replace diaphragm and valves every 12–18 months depending on chemical exposure intensity and duty cycle.
Does the C520 comply with FDA 21 CFR Part 11 for electronic record keeping?
The base unit has no digital interface or audit trail capability. Compliance requires integration with validated external controllers and documented system qualification (IQ/OQ/PQ) per ALCOA+ principles.
Is the motor compatible with variable frequency drives (VFDs)?
No—the induction motor is designed for fixed-speed operation at 1450 rpm. Speed modulation is not supported and may void warranty or cause premature failure.
