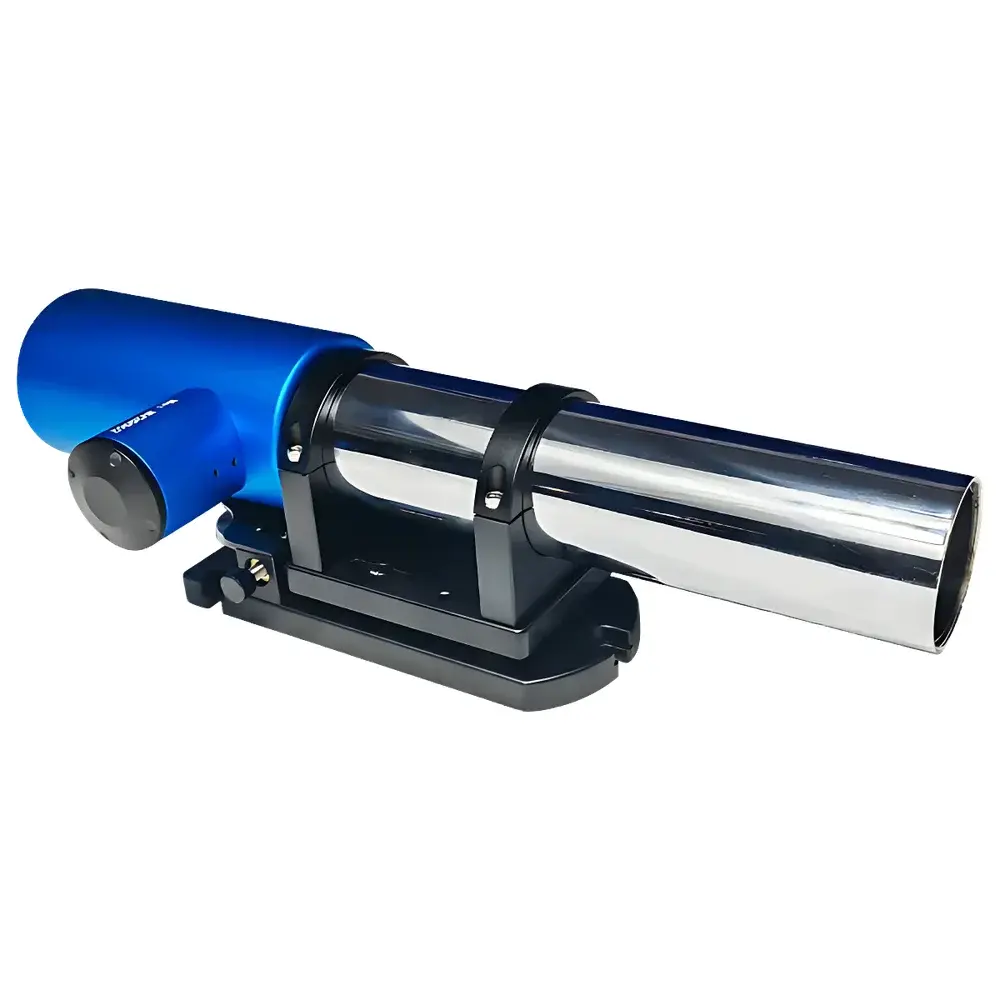

YANRUN MC030-ZJUH3000/0.2 Dual-Axis Electronic Autocollimator

Overview

The YANRUN MC030-ZJUH3000/0.2 is a dual-axis electronic autocollimator engineered for high-precision angular metrology in research laboratories, precision manufacturing facilities, and optical alignment workflows. It operates on the fundamental principle of autocollimation—where a collimated beam is reflected back from a retroreflective or flat mirror surface, and angular deviations are quantified by measuring the displacement of the returned image on a high-resolution CMOS sensor array. Unlike traditional visual autocollimators, this instrument digitizes the entire measurement process: real-time centroid detection, sub-pixel interpolation algorithms, and temperature-compensated calibration routines ensure traceable angular measurements with an angular resolution of 0.2 arcseconds and a full-scale range of ±1500 arcseconds across both X and Y axes simultaneously. Its optical architecture conforms to ISO 10110-5 standards for surface flatness and wavefront error evaluation, making it suitable for verifying angular stability of optical mounts, tilt stages, and interferometer reference arms.

Key Features

• Dual-axis synchronous acquisition: Simultaneous real-time measurement of pitch and yaw angles without mechanical reorientation or time-multiplexing delays.
• High-stability optical bench: Monolithic aluminum base with low thermal expansion coefficient (<23 µm/m·K) minimizes drift during extended measurements.
• Sub-arcsecond repeatability: Achieves ≤0.1 arcsecond (2σ) repeatability under ISO 25178-6 environmental control conditions (temperature stability ±0.5 °C/h, vibration isolation class VC-B).
• Integrated digital processing unit: Onboard FPGA-based image processing enables real-time centroid calculation at up to 60 Hz frame rate, reducing dependency on host PC performance.
• Modular optical path design: Compatible with optional accessories including beam splitters, retroreflector arrays, and motorized mirror mounts for automated alignment sequences.
• Calibration traceability: Factory calibration performed against NIM-traceable angle standards; certificate includes uncertainty budget per GUM (JCGM 100:2008).

Sample Compatibility & Compliance

The MC030-ZJUH3000/0.2 is designed for use with optically flat mirrors (surface quality λ/20 @ 632.8 nm), corner cubes, and kinematic mirror mounts meeting ISO 10110-7 specifications. It supports measurement of angular drift in multi-axis positioning systems, parallelism verification of granite surface plates (per GB/T 2477–2022), and tilt characterization of laser cavities. The instrument complies with GB/T 22576–2017 for optical testing instrumentation and meets electromagnetic compatibility requirements per GB/T 18268.1–2010 (IEC 61326-1). For regulated environments, audit trails and user-access controls can be configured to support GLP/GMP documentation workflows.

Software & Data Management

YANRUN Autocollimator Control Suite (v4.2+) provides native support for Windows 10/11 (64-bit) and Linux (Ubuntu LTS). The software features time-synchronized dual-channel data logging, statistical process control (SPC) charting (X̄-R, Cpk), and export to CSV, HDF5, or MATLAB .mat formats. All measurement sessions include embedded metadata: timestamp (UTC), operator ID, environmental sensor readings (optional external temperature/humidity probe), and calibration file hash. Optional FDA 21 CFR Part 11 compliance package adds electronic signature enforcement, role-based permissions, and immutable audit logs with SHA-256 hashing.

Applications

• Precision alignment of synchrotron beamline components and X-ray optics.
• Verification of angular repeatability in ultra-precision machine tool rotary tables (per ISO 230-4).
• In-process monitoring of mirror tilt during adaptive optics system assembly.
• Calibration of high-end inclinometers and MEMS gyroscopes using reversal techniques.
• Thermal drift analysis of optical benches and vacuum chamber feedthroughs.
• Validation of angular stability in gravitational wave detector suspension systems.

FAQ

What is the minimum measurable angle step size?
The instrument achieves a resolution of 0.2 arcseconds; however, statistical averaging over ≥100 frames enables reliable detection of changes down to 0.05 arcseconds in stable thermal environments.
Does the system support remote operation via Ethernet or GPIB?
Standard configuration includes USB 3.0 and RS-232 interfaces; optional Ethernet module (YANRUN-EtherLink v2.1) provides TCP/IP SCPI command support and HTTP-based status polling.
Can it measure dynamic angular motion, such as vibration-induced tilt?
Yes—when operated at maximum frame rate (60 Hz), the system captures transient angular displacements with phase coherence suitable for FFT-based frequency-domain analysis up to 25 Hz.
Is factory recalibration required annually?
Annual recalibration is recommended for ISO/IEC 17025 accredited labs; in-house verification using certified right-angle prisms and zero-reference flats may extend intervals per internal SOPs.
Are custom firmware modifications available for OEM integration?
YANRUN offers white-label firmware development under NDA, including tailored command sets, boot-up sequences, and hardware abstraction layers for embedded controller integration.
