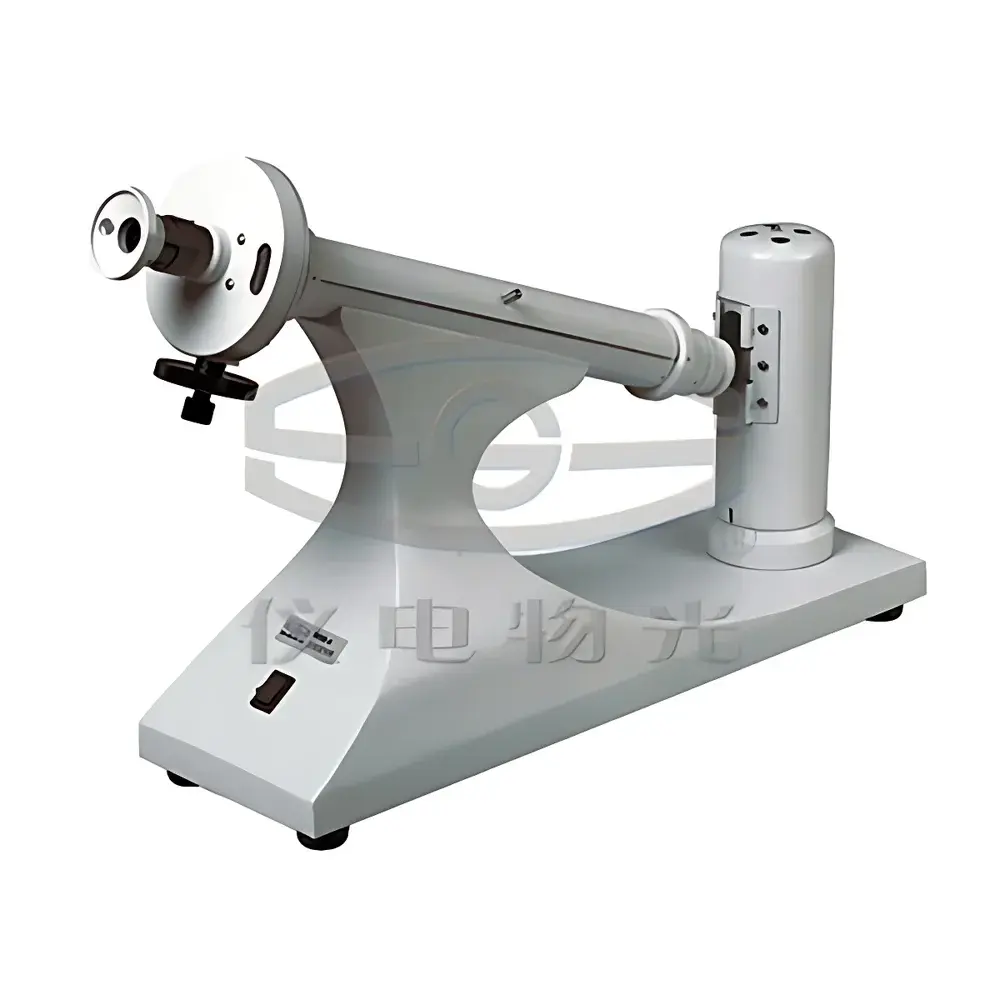

YDWG WXG-4 Visual Polarimeter with Sodium Lamp

Overview

The YDWG WXG-4 Visual Polarimeter is a manually operated, circular-scale optical instrument engineered for the precise measurement of optical rotation in optically active substances. Based on the fundamental principle of polarimetry—namely, the rotation of plane-polarized light as it traverses chiral media—the WXG-4 employs a fixed-wavelength sodium lamp (589 nm) to generate monochromatic illumination conforming to the D-line standard widely adopted in pharmaceutical, food, and chemical quality control. Unlike automated digital polarimeters, the WXG-4 relies on human visual alignment via a calibrated circular scale and vernier reading system, delivering traceable angular measurements without electronic interpolation. Its mechanical architecture prioritizes long-term stability, minimal drift, and operational transparency—making it particularly suitable for educational laboratories, routine QC testing where regulatory audit trails emphasize manual verification, and environments requiring zero electromagnetic interference.

Key Features

• High-precision circular scale with 1° main divisions and vernier-assisted readout enabling resolution of 0.05°—fully compliant with classical polarimetric calibration protocols.
• Dedicated sodium vapor lamp (589 nm) ensures spectral consistency aligned with ISO 8577 and USP reference conditions for specific rotation determination.
• Optical path accommodates interchangeable sample tubes of 100 mm and 200 mm path lengths, supporting standardized concentration–rotation correlation per IUPAC recommendations.
• Ergonomic viewing system featuring a 4× magnifying eyepiece with anti-glare baffling to reduce observer fatigue during extended measurement sessions.
• Robust aluminum alloy chassis and precision-ground optical mounts ensure mechanical repeatability across decades of use under ambient laboratory conditions (15–30 °C, non-condensing).
• No internal electronics or firmware—eliminates software validation requirements and simplifies compliance with GLP and GMP Annex 11 documentation for legacy instrument qualification.

Sample Compatibility & Compliance

The WXG-4 is compatible with standard 10 mm and 20 mm internal diameter glass sample tubes sealed with quartz or borosilicate end caps. It supports aqueous, alcoholic, and organic solvent-based solutions of sugars (e.g., sucrose, glucose), amino acids, antibiotics (e.g., penicillin derivatives), and essential oils—provided samples are optically clear and free of particulates or birefringent contaminants. The instrument meets mechanical and optical specifications referenced in ASTM E1254 (Standard Guide for Use of Polarimeters) and aligns with the physical measurement framework outlined in ISO/IEC 17025:2017 for accredited testing laboratories performing manual polarimetric assays. As a Class I optical instrument under IEC 61010-1, it requires no additional electrical safety certification beyond standard lab grounding.

Software & Data Management

The WXG-4 operates independently of software or data interfaces. All measurements are recorded manually in laboratory notebooks or LIMS-compatible paper logs. This analog workflow inherently satisfies FDA 21 CFR Part 11 requirements for “non-electronic records” when paired with controlled document procedures—including dated, signed entries and dual-operator verification for critical assays. Calibration verification is performed using certified quartz rotatory standards (e.g., NIST SRM 8501 series), with documented deviation checks conducted prior to each analytical batch. No firmware updates, cybersecurity patches, or vendor-dependent license management are required.

Applications

• Pharmaceutical QC: Determination of enantiomeric purity and specific rotation of active pharmaceutical ingredients (APIs) per USP monographs.
• Sugar industry: Brix-corrected polarization assays for sucrose content in syrups and beet/cane juice per ICUMSA Method GS4/8-10.
• Food & beverage: Verification of honey authenticity and adulteration screening via optical rotation deviation analysis.
• Academic instruction: Hands-on training in chiral optics, Malus’ law, and error propagation in manual angular measurement systems.
• Essential oil characterization: Quantitative assessment of d-limonene, camphor, or menthol content in volatile fractions.

FAQ

Is temperature control available on the WXG-4?
No. The instrument is designed for ambient-temperature operation only; users must stabilize sample temperature externally using water-jacketed tubes or thermostatic baths if thermal correction is required.
Can the sodium lamp be replaced with an LED source?
While some field modifications exist, substitution invalidates metrological traceability to 589 nm. The original sodium lamp is required to maintain conformance with pharmacopoeial methods referencing the D-line.
What calibration standards are recommended?
NIST-traceable quartz control plates (e.g., ±5°, ±30°, ±90°) or sucrose solutions prepared gravimetrically per USP are advised for daily system suitability checks.
Does the WXG-4 comply with Good Manufacturing Practice (GMP)?
Yes—when operated within documented SOPs, with maintained maintenance logs, and with periodic third-party mechanical verification, it fulfills GMP Annex 15 expectations for qualified manual analytical instruments.
Is technical support available outside China?
Distributor-level service networks exist in Southeast Asia, the Middle East, and Latin America; full schematic documentation and replacement parts (lamps, prisms, scale rings) are supplied under YDWG’s international spare parts program.
