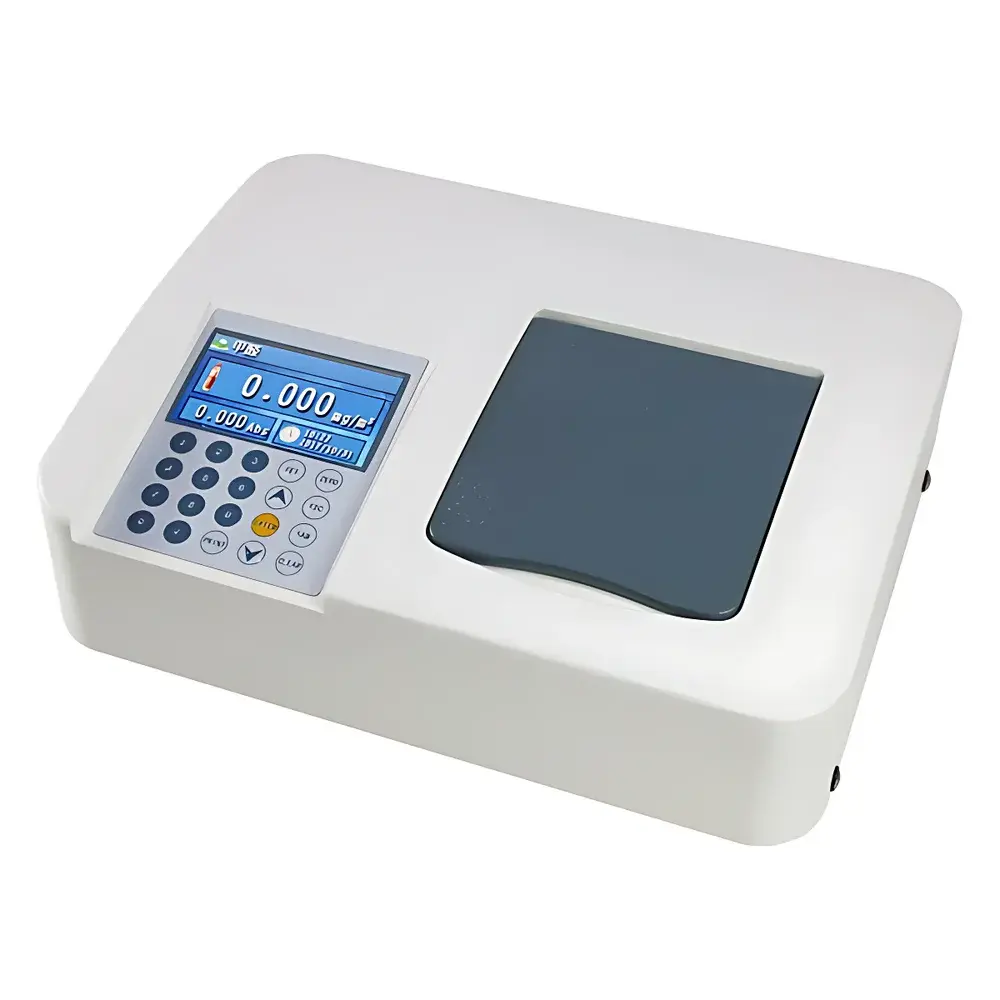

Yoke YKM-KJ High-Precision Air Formaldehyde Analyzer
| Brand | Yoke |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Model | YKM-KJ |
| Measurement Principle | Colorimetric Method (Acetylacetone Spectrophotometry) |
| Measurement Range | 0.01–2.00 mg/m³ |
| Resolution & Accuracy | ±5% |
| Repeatability | ±5% |
| Sampling Method | Integrated or External Atmospheric Sampler |
| Operating Temperature | Ambient (10–30 °C) |
| Optical Wavelength | 630 nm |
| Optical Stability | ≤0.001 A/10 min |
| Light Source | Cold LED with Narrow-Band Interference Filter (Lifespan ≥100,000 h) |
| Data Storage Capacity | ≥5,000 measurement records |
| Calibration Curves | 200 programmable curves (5 factory-default + 195 user-expandable), including segmented calibration support |
| Display | 4.3-inch TFT color touchscreen |
| Interface Options | USB Device/Host, RS-232C (for printer), Bluetooth (optional) |
| Language Support | English & Chinese UI |
| Sample Throughput | Up to 20 samples per batch |
Overview
The Yoke YKM-KJ High-Precision Air Formaldehyde Analyzer is a dedicated benchtop photometric instrument engineered for quantitative determination of gaseous formaldehyde in ambient air, indoor environments, and occupational settings. It operates on the internationally recognized acetylacetone spectrophotometric method (ISO 16000-23, GB/T 18204.2–2014), where formaldehyde reacts with acetylacetone under acidic conditions to form a stable yellow chromophore (3,5-diacetyl-1,4-dihydrolutidine), quantified at 630 nm. Unlike electrochemical or semiconductor-based sensors, this optical approach delivers high specificity, minimal cross-sensitivity to VOCs (e.g., methanol, acetaldehyde), and long-term baseline stability—critical for compliance monitoring and longitudinal indoor air quality (IAQ) studies. The system integrates an optimized optical path, narrow-band interference filtering, and temperature-compensated LED illumination to ensure metrological integrity across varying laboratory and field-deployed conditions.
Key Features
- 4.3-inch high-resolution TFT color touchscreen with intuitive icon-driven navigation and dual-language (English/Chinese) UI support
- Dual-mode photometric detection: compatible with standard 10-mm quartz or glass cuvettes and disposable 10-mm square cuvette tubes for flexible workflow integration
- ARM9-based embedded architecture enabling real-time data processing, smooth GUI responsiveness, and on-board storage capacity up to 500 MB
- 200 programmable calibration curves—including 5 preloaded ISO/GB-compliant reference curves and 195 expandable slots—supporting both linear and multi-segmented (concentration-dependent K-factor) calibration models
- Cold LED light source with narrow-band interference filter (FWHM < 5 nm), delivering spectral purity at 630 nm and operational lifetime exceeding 100,000 hours with negligible drift (optical stability ≤0.001 A/10 min)
- Comprehensive data management: internal storage for ≥5,000 measurement records (timestamp, sampling ID, concentration, curve ID, operator tag); export via USB flash drive or direct USB connection to PC
- Optional wireless connectivity: Bluetooth 4.2 module (factory-installable) enables secure pairing with mobile logging apps or centralized LIMS endpoints
- RS-232C serial interface supports direct thermal or dot-matrix printer output for GLP-compliant hard-copy reporting
Sample Compatibility & Compliance
The YKM-KJ is validated for use with formaldehyde sampling media compliant with ISO 16000-23 and Chinese national standard GB/T 18204.2–2014, including coated silica gel tubes, DNPH-coated cartridges, and impinger solutions (e.g., 2% acetylacetone in 2 M acetic acid–ammonium acetate buffer). It accommodates sample volumes corresponding to typical active air sampling rates (0.1–1.0 L/min) over durations of 15–60 minutes, yielding detectable absorbance signals within the linear dynamic range (0.01–2.00 mg/m³). All optical and electronic subsystems meet IEC 61010-1 safety requirements for laboratory equipment. While not certified to UL/CE for standalone field deployment, the analyzer satisfies essential performance criteria referenced in EPA TO-11A and EN 13725 for formaldehyde quantification in environmental laboratories operating under ISO/IEC 17025 quality systems.
Software & Data Management
Instrument firmware supports full audit-trail functionality: every calibration event, curve modification, or data export action is time-stamped and logged with user ID (if enabled). USB-host mode permits direct import of CSV-formatted calibration tables or export of raw absorbance/concentration datasets for post-processing in Excel or statistical software (e.g., JMP, R). The built-in curve editor allows users to define segmented calibration functions—assigning distinct slope (K) and intercept (b) values per concentration sub-range—to minimize nonlinearity errors across the full 0.01–2.00 mg/m³ span. Data files include metadata fields compliant with ASTM E2500-22 for traceability. Optional PC software (Yoke DataLink v3.x) provides automated report generation aligned with ISO 17025 documentation templates, including uncertainty estimation per GUM (JCGM 100:2008).
Applications
- Indoor air quality (IAQ) assessment in residential, commercial, and educational buildings per WHO guidelines and national exposure limits
- Occupational hygiene monitoring in furniture manufacturing, plywood lamination, and textile finishing facilities
- Validation of formaldehyde abatement technologies (e.g., photocatalytic oxidation, activated carbon filtration)
- Research-grade emission testing of building materials (e.g., particleboard, MDF, adhesives) in climate-controlled test chambers
- Environmental health surveillance programs conducted by municipal CDCs and provincial EPBs
- Teaching laboratories requiring robust, low-maintenance instrumentation for analytical chemistry and environmental science curricula
FAQ
What formaldehyde sampling method is required prior to analysis?
The YKM-KJ requires liquid-phase derivatization: air must be drawn through an impinger containing acetylacetone reagent or collected on a coated sorbent tube followed by elution. Direct gas-phase injection is not supported.
Can calibration curves be transferred between instruments?
Yes—calibration parameters (including segmented K-factors and polynomial coefficients) are stored as encrypted .CUR files and can be copied via USB drive to identical YKM-KJ units.
Is the instrument compliant with FDA 21 CFR Part 11?
The base firmware does not include electronic signature or role-based access control; however, optional Yoke DataLink software (v3.2+) offers Part 11–compliant audit trails, user authentication, and e-signature modules for regulated QC labs.
What maintenance is required to sustain optical accuracy?
Annual verification of wavelength accuracy (using holmium oxide or didymium filters) and photometric linearity (neutral density filters) is recommended. Cuvette pathlength verification should occur quarterly if used with multiple cuvette types.
Does the analyzer support external sampling pumps?
Yes—the device includes a dry-contact trigger interface to synchronize measurement start/stop with commercially available constant-flow air samplers (e.g., SKC AirChek, Gilian GilAir).
