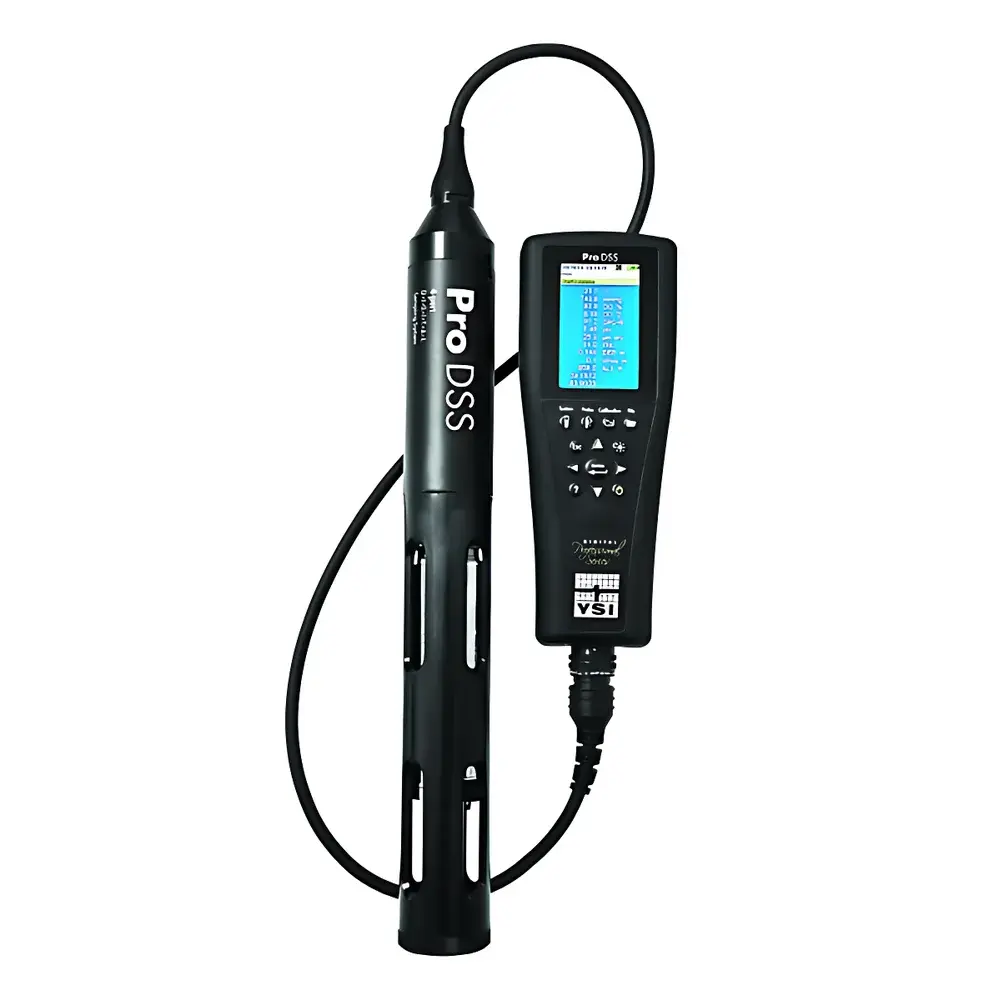

YSI ProDSS Handheld Multiparameter Water Quality Analyzer

Overview

The YSI ProDSS Handheld Multiparameter Water Quality Analyzer is an engineered field instrument designed for high-fidelity in situ water quality assessment across freshwater, estuarine, and coastal marine environments. Built upon the sensor architecture of the YSI EXO platform, the ProDSS implements a Couette-flow optical dissolved oxygen sensor, multi-wavelength nephelometric turbidity detection, solid-state pH and ORP electrodes, and four-electrode conductivity measurement with automatic temperature compensation and salinity correction. Its modular smart-sensor interface enables plug-and-play recognition of calibrated probes—including optical DO, turbidity, pH, ORP, conductivity, TDS, resistivity, seawater density, nitrate, ammonium, chloride, total suspended solids (TSS), depth, and temperature—without manual configuration. The system operates on a robust embedded firmware platform optimized for low-power operation, real-time sensor diagnostics, and environmental stability under variable thermal and mechanical stress.

Key Features

• Four independent smart-sensor ports supporting simultaneous measurement of up to 15 parameters—including optical dissolved oxygen (DO), turbidity (NTU), pH, ORP, specific conductance, total dissolved solids (TDS), resistivity, seawater density, nitrate (NO₃⁻), ammonium (NH₄⁺), chloride (Cl⁻), total suspended solids (TSS), depth, and temperature—with no cross-sensor interference.
• Titanium-housed sensors compliant with ASTM D3370 for durability in abrasive or biofouling-prone environments; each sensor contains onboard memory storing calibration history, serial number, and sensor-specific coefficients.
• IP67-rated handheld console with military-grade quick-disconnect connectors (MIL-DTL-38999 compliant), enabling rapid probe swaps in wet or muddy field conditions without tools or recalibration.
• High-resolution color LCD display with adjustable backlight, intuitive icon-based navigation, and real-time graphical trend overlays for immediate parameter correlation.
• Optional integrated GPS module providing georeferenced metadata (WGS84 coordinates, UTC timestamps, HDOP) traceable to NIST time standards—essential for regulatory reporting and spatial interpolation modeling.
• Rechargeable lithium-ion battery pack rated for ≥16 hours of continuous operation at 25°C; supports hot-swappable operation via external power bank compatibility.

Sample Compatibility & Compliance

The ProDSS is validated for use in natural surface waters, groundwater wells, wastewater effluents, aquaculture systems, and tidal monitoring stations. Sensor response characteristics conform to ISO 5814 (optical DO), ISO 7888 (conductivity), and EPA Method 180.1 (turbidity). All factory calibrations are traceable to NIST-certified reference materials. Data integrity meets GLP and GMP requirements through audit-trail-enabled firmware: every calibration event, sensor swap, and measurement record includes immutable timestamps, operator ID (if configured), and digital signatures. The system supports 21 CFR Part 11–compliant data export workflows when paired with YSI’s EcoWatch software suite.

Software & Data Management

Field-collected data are stored internally (≥100,000 records) with automatic timestamping and metadata tagging. Raw sensor outputs are logged at user-selectable intervals (1 sec to 1 hr) and exported via USB-C or Bluetooth 5.0 to Windows/macOS platforms. EcoWatch Desktop v4.2+ provides automated QA/QC flagging (e.g., out-of-range conductivity vs. temperature anomalies), batch calibration management, and export to CSV, Excel, or GIS-ready shapefiles. Cloud synchronization is available through YSI Connect—a secure, encrypted portal supporting role-based access control and versioned dataset archiving aligned with ISO/IEC 27001 information security protocols.

Applications

• Routine ambient water quality monitoring per national programs (e.g., USGS NWIS, EU WFD Article 8 reporting)
• Wastewater treatment plant influent/effluent compliance verification (BOD/COD surrogate estimation via DO and conductivity trends)
• Hydrological profiling in stratified reservoirs and estuaries using depth-synchronized multi-parameter logging
• Regulatory sediment porewater characterization (redox potential mapping with ORP + pH + conductivity correlation)
• Climate resilience studies tracking nitrate leaching dynamics in agricultural catchments
• Educational field labs requiring rugged, student-safe instrumentation with minimal setup overhead

FAQ

Can ProDSS sensors be interchanged between multiple ProDSS consoles without recalibration?
Yes—each smart sensor stores full calibration coefficients and history in non-volatile memory; swapping between units preserves accuracy and eliminates revalidation delays.
Does the system support real-time dissolved oxygen measurement in highly turbid or colored water?
Yes—the optical DO sensor uses dual-wavelength luminescence quenching and built-in turbidity compensation algorithms per ISO 5814 Annex B.
Is depth measurement required for conductivity or salinity calculations?
No—depth is optional; conductivity and derived parameters (TDS, density, resistivity) are calculated from temperature-compensated raw conductance values independent of pressure input.
How is firmware updated in remote field locations?
Firmware updates are delivered as signed .bin files via USB-C; the console validates cryptographic signatures before installation to ensure integrity and prevent unauthorized modification.
What documentation accompanies each unit for regulatory audits?
Each shipment includes a Certificate of Conformance, NIST-traceable calibration reports for installed sensors, and a complete electronic copy of the User Manual, Safety Instructions, and FDA 21 CFR Part 11 Implementation Guide.
