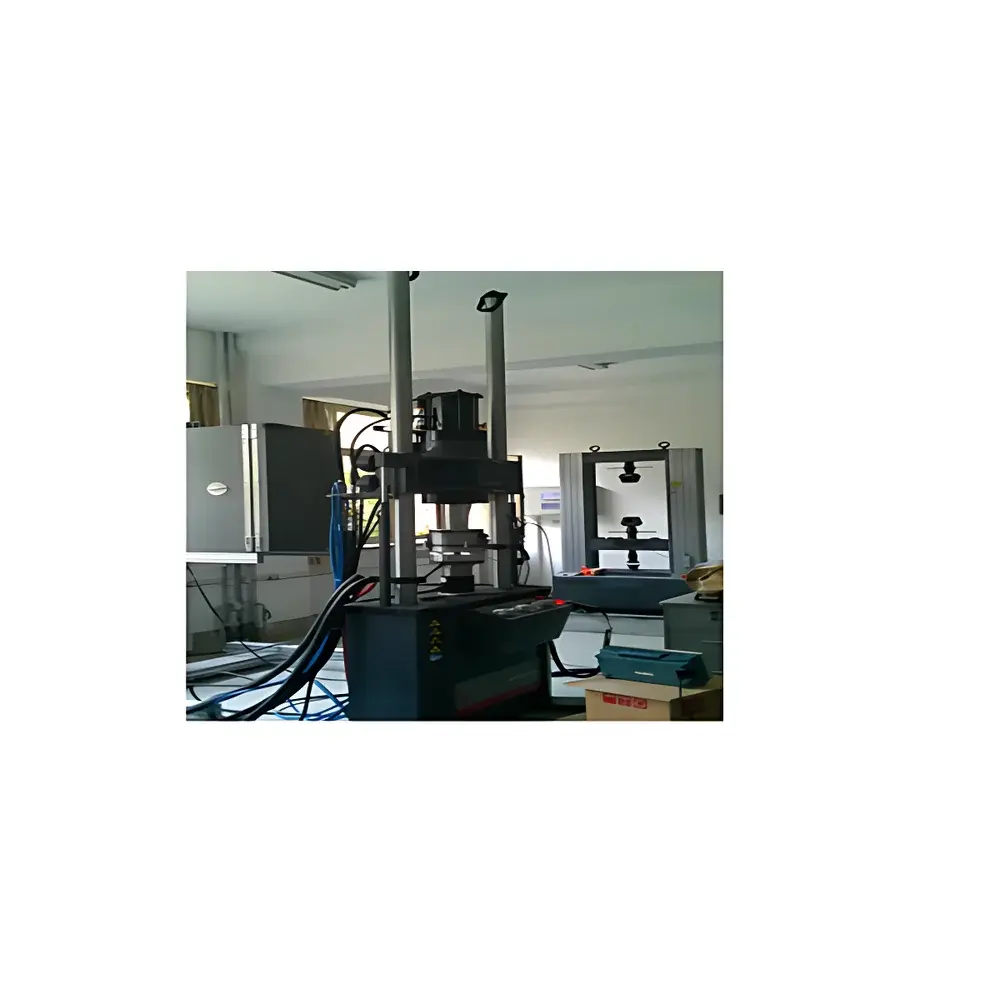

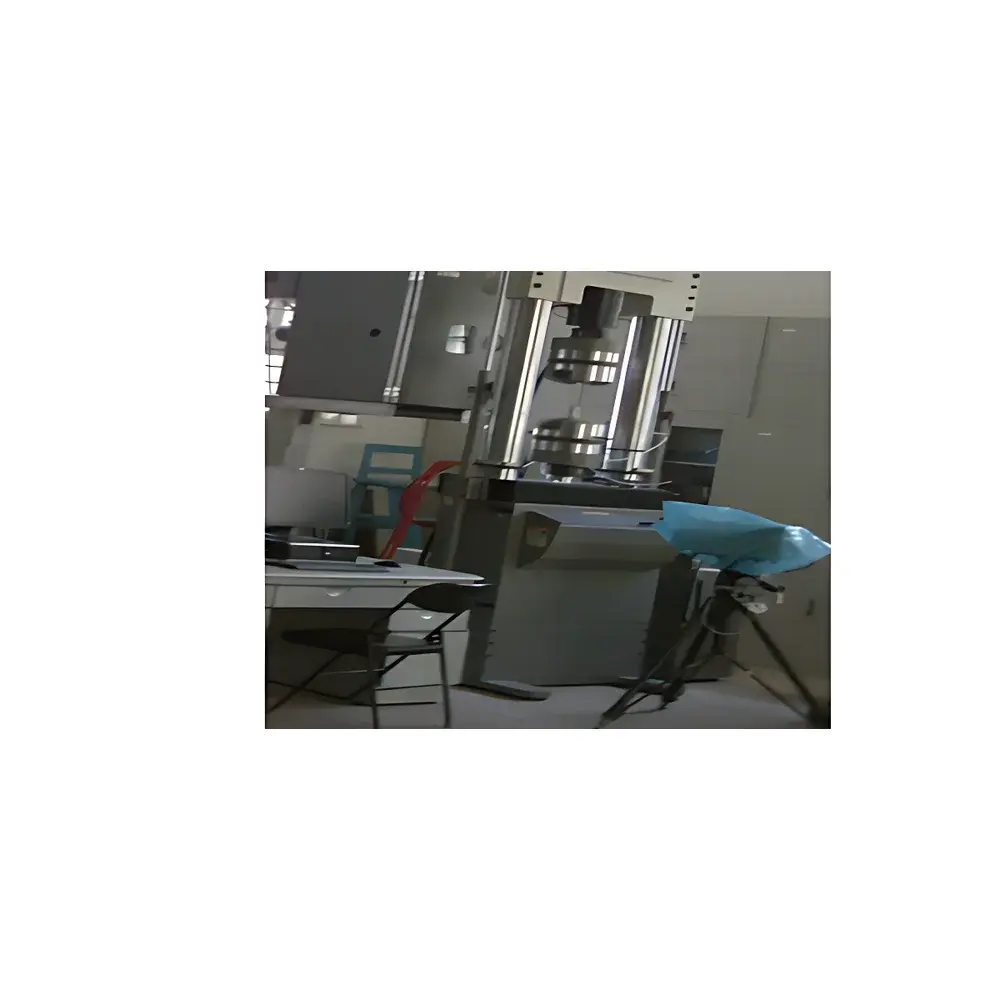

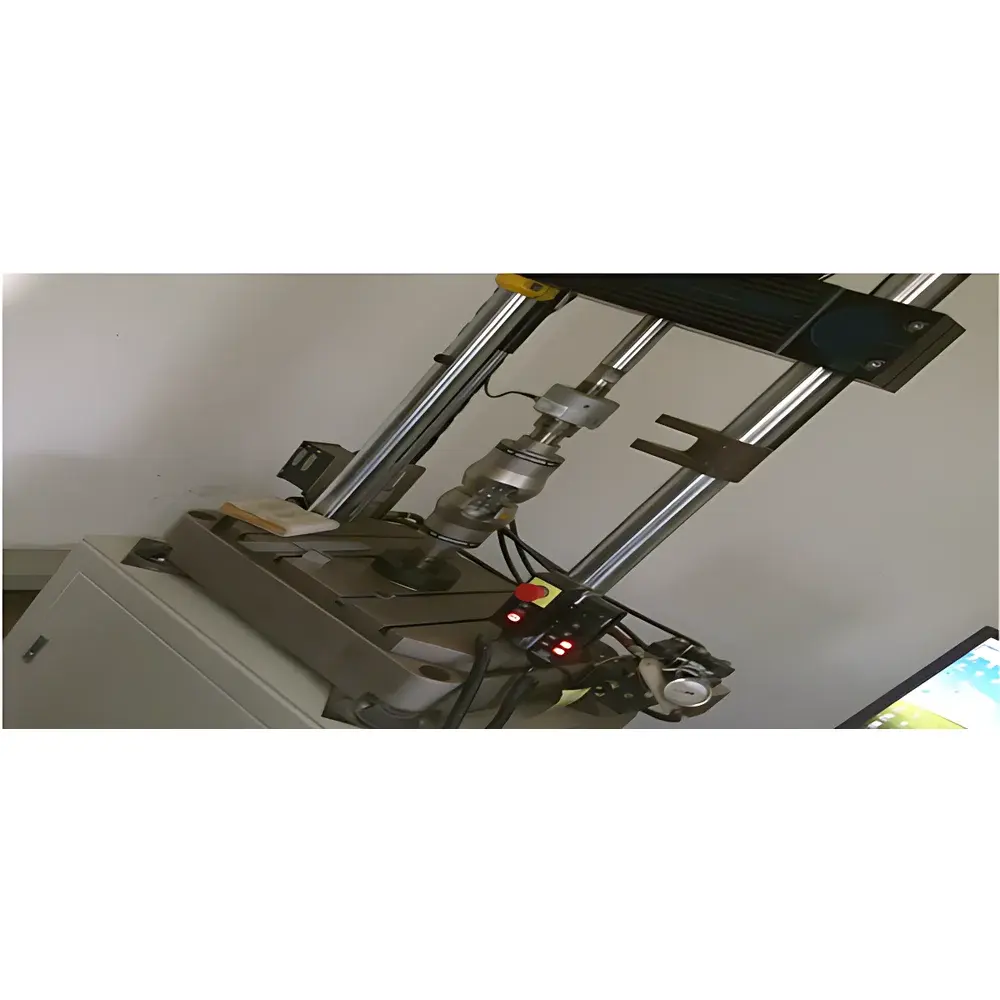

ZHYC Materials Fatigue DV-1000 Electro-Hydraulic Servo Dynamic Fatigue Testing Machine
| Brand | ZHYC Materials |
|---|---|
| Origin | Japan |
| Model | Fatigue DV-1000 |
| Instrument Type | Electro-Hydraulic Servo Fatigue Testing Machine |
| Maximum Test Load | 1000 kN |
| Frequency Range | 0–100 Hz |
| Host Weight | 1000 kg |
Overview
The ZHYC Materials Fatigue DV-1000 is a high-precision, electro-hydraulic servo-controlled dynamic fatigue testing machine engineered for rigorous mechanical characterization of structural materials under cyclic loading conditions. Designed and manufactured in Japan, this system implements closed-loop hydraulic actuation with real-time digital control to deliver stable, repeatable waveforms—including sinusoidal, triangular, trapezoidal, and user-defined profiles—across a broad frequency spectrum (0–100 Hz). Its core architecture adheres to the fundamental principles of linear elastic fracture mechanics (LEFM) and strain-controlled low-cycle fatigue (LCF) / stress-controlled high-cycle fatigue (HCF) testing, enabling standardized evaluation per ASTM E466, ASTM E606, ISO 1099, and ASTM E399 for fracture toughness (KIc) determination. The machine supports both axial tension-compression and combined loading configurations, making it suitable for R&D laboratories, aerospace material certification centers, and automotive component validation facilities requiring traceable, GLP-compliant fatigue data.
Key Features
- Electro-hydraulic servo actuation with high-bandwidth, low-latency digital controller ensuring waveform fidelity and phase accuracy even at upper-frequency limits (up to 100 Hz)
- Robust twin-column load frame constructed from high-strength alloy steel, rated for 1000 kN static and dynamic capacity with integrated overload protection and emergency stop circuitry
- Modular test space accommodating specimen lengths up to 2000 mm and diameters up to 300 mm, compatible with standard and custom-designed fixtures
- Integrated hydraulic power unit (HPU) with temperature-regulated oil circulation, pressure monitoring, and filtration compliant with ISO 4406 Class 18/15/12 cleanliness standards
- Pre-calibrated, traceable load cell certified to ISO 376 Class 0.5 accuracy, with built-in thermal compensation and dual-range capability (10%–100% FS)
- Optional high-resolution extensometers (e.g., clip-on, video, or non-contact DIC systems), COD gauges, and crack-mouth opening displacement transducers for localized strain measurement
Sample Compatibility & Compliance

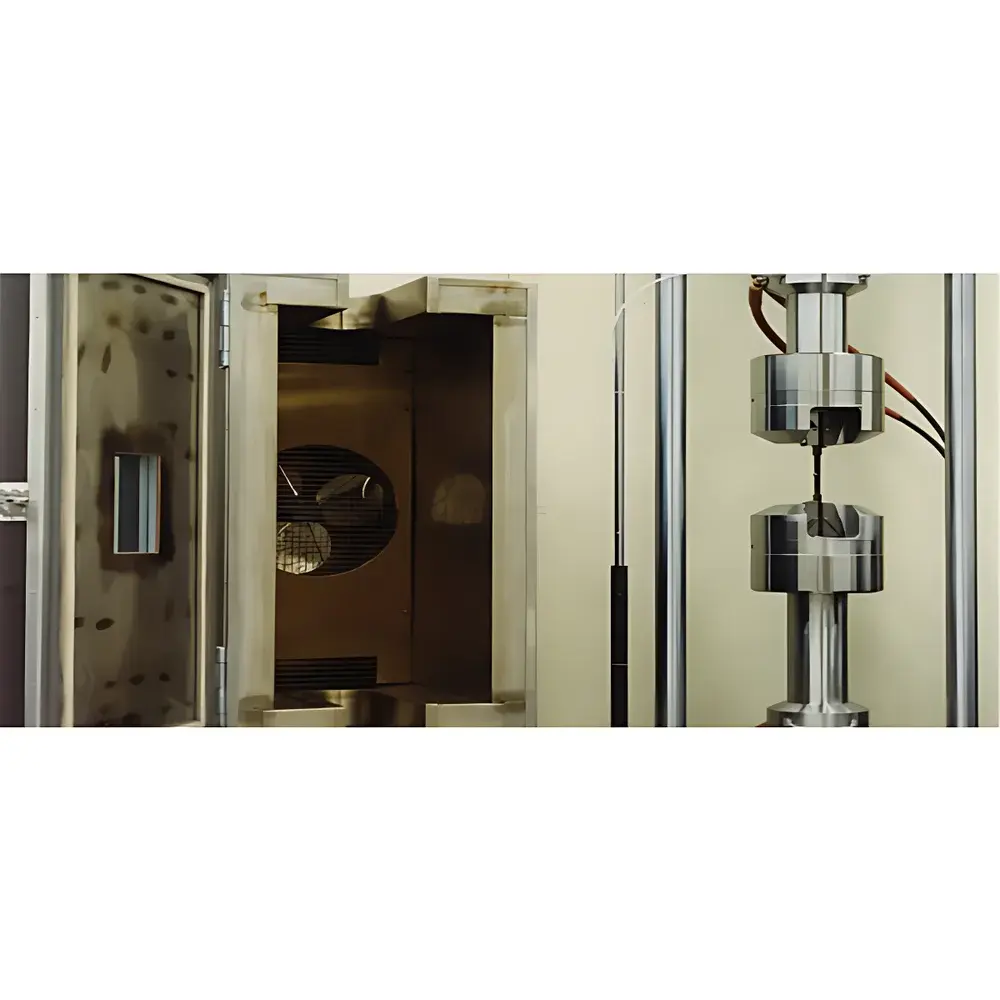

The Fatigue DV-1000 accommodates metallic alloys (Ti-6Al-4V, Inconel 718, Al 2024-T3), composites (CFRP, GFRP), weldments, castings, and additively manufactured specimens per ASTM E8/E8M (tensile), ASTM E466 (constant-amplitude fatigue), and ASTM E647 (fatigue crack growth). Environmental integration includes high-temperature furnaces (up to 1400 °C), cryogenic chambers (down to –129 °C), and corrosion-resistant enclosures for salt-spray or humidity-controlled testing. All hardware and firmware comply with CE Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, and are designed to support FDA 21 CFR Part 11–compliant software validation when paired with approved data acquisition platforms.
Software & Data Management
Control and analysis are performed via ZHYC TestSuite™ v5.x—a Windows-based, multi-threaded application supporting real-time waveform generation, closed-loop PID tuning, event-triggered data capture, and automated test sequencing. Raw data streams (load, displacement, strain, temperature) are recorded at ≥10 kHz sampling rate with IEEE 1588 precision time stamping. The software provides built-in modules for S–N curve generation, ΔK vs. da/dN plotting (per ASTM E647), hysteresis loop analysis, and cycle counting (Rainflow algorithm). Audit trails, electronic signatures, and user role-based access control meet GLP and GMP documentation requirements. Export formats include ASCII, CSV, HDF5, and direct MATLAB/Python API integration for post-processing.
Applications
- Aerospace: Turbine disk, blade, and landing gear component life prediction under variable amplitude spectra (e.g., Mini-FALSTAFF, Power Spectral Density inputs)
- Automotive: Suspension arm, axle, and battery enclosure fatigue validation under road-load simulation (RLS) profiles
- Energy: Wind turbine blade root joint testing, nuclear reactor piping material assessment under thermal-mechanical cycling
- Biomedical: Orthopedic implant (e.g., hip stem, spinal cage) fatigue performance per ISO 14801 and ASTM F2193
- Academic research: Mechanistic studies of microstructural evolution during LCF/HCF, dislocation dynamics, and environmental-assisted cracking
FAQ
What standards does the Fatigue DV-1000 support for fracture mechanics testing?
It fully supports ASTM E399 (plane-strain KIc), ASTM E1820 (J-integral), and ASTM E647 (da/dN) with appropriate fixtures and instrumentation.
Can the system be upgraded for thermomechanical fatigue (TMF) testing?
Yes—via optional synchronized furnace/chamber controllers, thermocouple input modules, and strain-compensated extensometry calibrated for thermal drift.
Is remote operation and monitoring supported?
Standard Ethernet (TCP/IP) and optional OPC UA server enable secure remote supervision, alarm notification, and diagnostic telemetry without compromising local safety interlocks.
What is the typical lead time for factory acceptance testing (FAT)?
FAT is conducted over five working days following mechanical and hydraulic commissioning; full documentation includes calibration certificates, traceability reports, and IQ/OQ protocols.
Does ZHYC provide application engineering support for custom test method development?
Yes—dedicated application engineers assist in developing ASTM/ISO-compliant test procedures, fixture design, and uncertainty budgeting per GUM (JCGM 100:2008).
