| Brand | PULUODY |
|---|---|
| Origin | Shaanxi, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | PMT-2 |
| Price | USD 72,800 (FOB) |
| Detection Principle | Dual-Laser Narrow-Beam Light Scattering |
| Sensor Generation | 8th-Generation Dual-Laser Optical Sensor |
| Flow Control | Precision Plunger Pump + Electromagnetic Flow Regulation |
| Calibration Standards | ISO 21501-4, USP <788>, EP 2.9.19, ChP 2020 Vol. IV, GB 8368 |
| Measurement Range | 0.1–1.0 µm (standard), customizable 1–100 µm or 4–70 µm(c), down to 0.1 µm(c) |
| Sampling Accuracy | <±1% |
| Counting Accuracy | ±3% typical |
| Coincidence Limit | 1000 particles/mL (2.5% coincidence error) |
| Output Interface | 4–20 mA analog output,超标 alarm relay (customizable) |
| Data Output | iPad-compatible wireless acquisition, touchscreen GUI + optional PC software (V8.3 Integrated Edition) |
| Power Supply | 100–265 VAC, 50–60 Hz |
| Compliance Architecture | Separated analytical testing & metrological calibration modules |
| Regulatory Alignment | Supports FDA 21 CFR Part 11 audit trail configuration (via optional software license), GLP/GMP-compliant reporting templates |
| Brand | PULUODY |
|---|---|
| Model | PMT-2 |
| Sensor Technology | 8th-Generation Dual-Laser Narrow-Beam Detection |
| Detection Range | 0.03–3000 µm (configurable sub-ranges: 1–100 µm, 4–70 µm(c), or 0.1 µm(c)) |
| Accuracy | ±3% typical |
| Sampling Precision | <±1% |
| Coincidence Limit | ≤2.5% at 1000 particles/mL |
| Calibration Standards | JJG 1061, ISO 21501-2, NIST-traceable latex spheres |
| Output | 4–20 mA analog interface with customizable alarm thresholds |
| Data Reporting | Particles per mL & ISO 4406 / NAS 1638 contamination codes |
| Power Input | 100–265 VAC, 50–60 Hz |
| Software | PULUODY V8.3 Analysis & Calibration Suite (PC + integrated touchscreen UI) |
| Compliance | Designed for GLP/GMP-aligned environments |

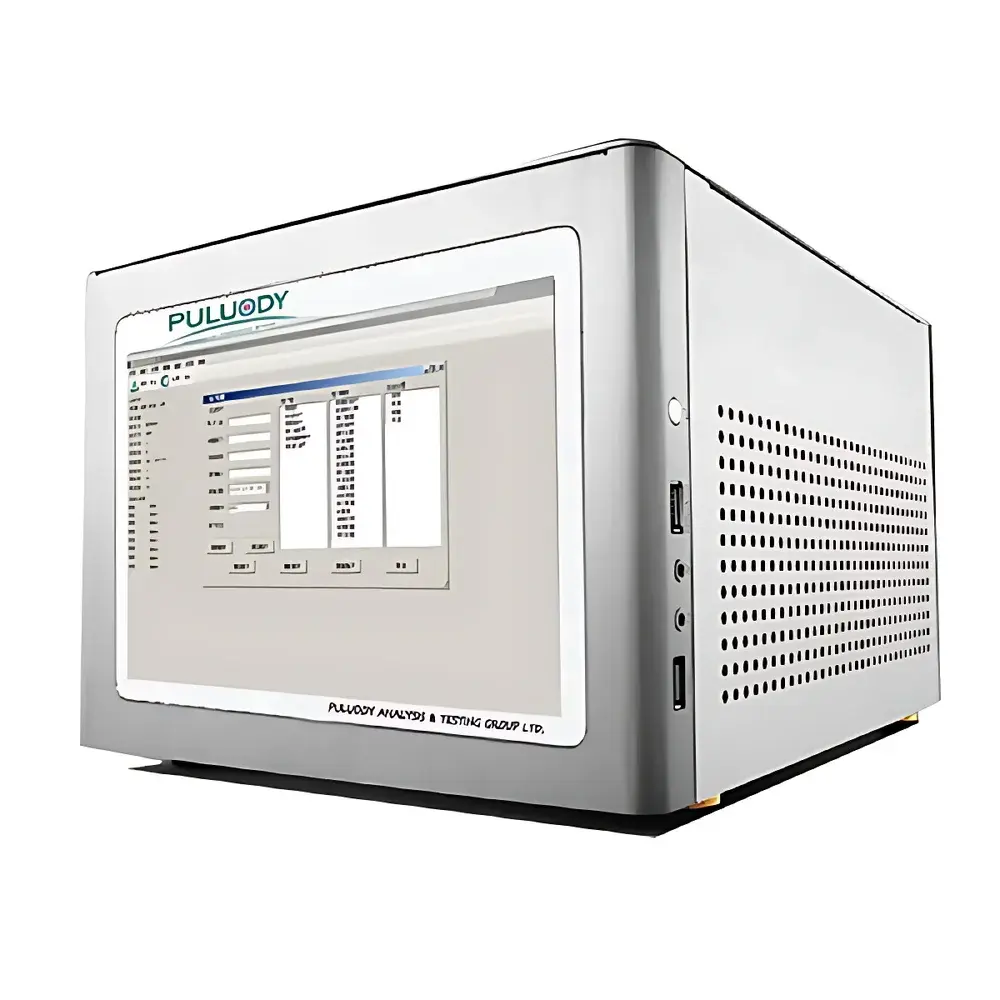

| Brand | PULUODY |
|---|---|
| Model | PMT-2CCS |
| Detection Threshold | 100 nm |
| Sensor Technology | 8th-Generation Dual-Laser Narrow-Beam Optical Sensor |
| Measurement Range | 0.1–0.5 µm (with customizable ranges: 1–100 µm or 4–70 µm(c), down to 0.1 µm(c)) |
| Sampling Accuracy | < ±1% |
| Counting Accuracy | < ±3% (typical) |
| Coincidence Limit | 1000 particles/mL (2.5% coincidence error) |
| Flow Control | Precision Piston Pump + Electromagnetic Flow Regulation |
| Calibration Standards | JJG 1061, ISO 21501, Polystyrene Latex (PSL) Spheres |
| Output Interface | 4–20 mA Analog Signal |
| Alarm Function | Configurable Particle Exceedance Alert |
| Power Input | 100–265 VAC, 50–60 Hz |
| Compliance | Designed for ISO 14644-1/2, SEMI F57, ASTM D6978, USP <788> & <789>, and GLP/GMP-aligned data integrity workflows |
