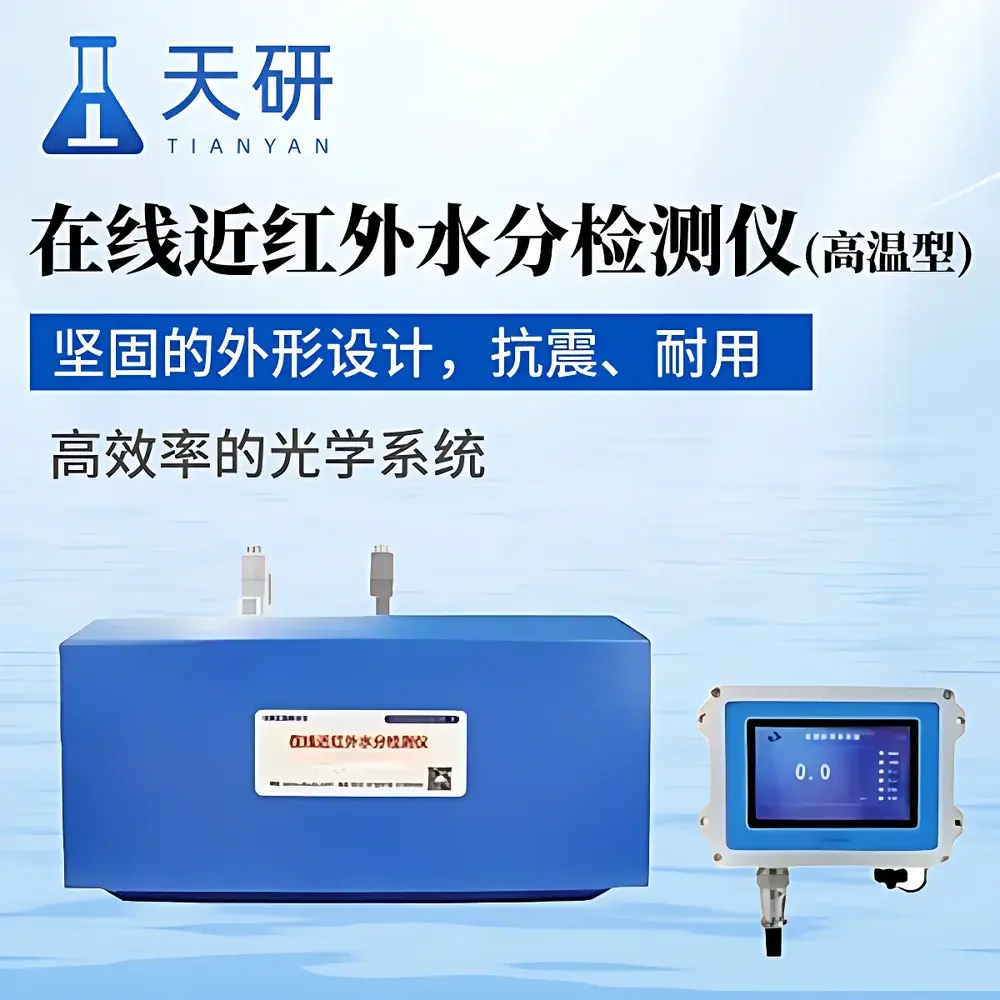

| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Model | TY-NIR-HT |
| Measurement Principle | Near-Infrared Reflectance Spectroscopy (NIRS) |
| Moisture Range | 0–100% w/w |
| Moisture Accuracy | ±0.2% (dependent on material composition stability) |
| Temperature Monitoring | Integrated infrared port, range 0–500 °C, accuracy ±1% FS or ±1.5 °C |
| Optical Spot Diameter | 60–75 mm |
| Installation Height Range | 350 mm ± 100 mm |
| Sampling Channels | 50 |
| Light Source | Imported high-efficiency NIR source |
| Filter Cycle | 1–60 s adjustable |
| Optical Window | High-borosilicate quartz glass |
| Power Supply | 220 VAC, 50 Hz |
| Power Consumption | 60 W |
| Enclosure Rating | IP65 |
| Calibration Support | Auto-calibration with ≥10 user-defined moisture calibration points |
| Operating Environment | High-temperature industrial settings |
| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Model | TY-ZO-S |
| Installation Type | Panel-mount (DIN rail or cutout mounting) |
| Display | LED numeric display (standard) |
| Power Supply | 220 V AC ±10%, 50 Hz |
| Power Consumption | ≤150 W |
| Oxygen Range | 0–25% O₂ (programmable, adjustable between 5–25% O₂) |
| Output Signal | 4–20 mA (load ≤500 Ω) |
| Temperature Control Accuracy | ±1°C |
| Measurement Accuracy | ±1% of reading (O₂) |
| Response Time | ≤5 s to 90% of final value upon standard gas introduction |
| Operating Ambient Temperature | −20°C to +70°C |
| Enclosure Dimensions (Analyzer Unit) | 160×80×160 mm (horizontal), 80×160×160 mm (vertical), 144×144×160 mm / 160×160×160 mm (square variants) |
| Housing Material | Aluminum die-cast enclosure (IP65-rated) |
| Probe Material | 304 stainless steel (316L optional) |
| Probe Insertion Lengths | 500, 800, 1000, 1200 mm (custom lengths available) |
| Flue Gas Temperature Limit | ≤700°C |
| Flue Gas Pressure Range | −10 kPa to +10 kPa |
| Flue Gas Velocity | 0–50 m/s |
| Weight | ~2 kg |

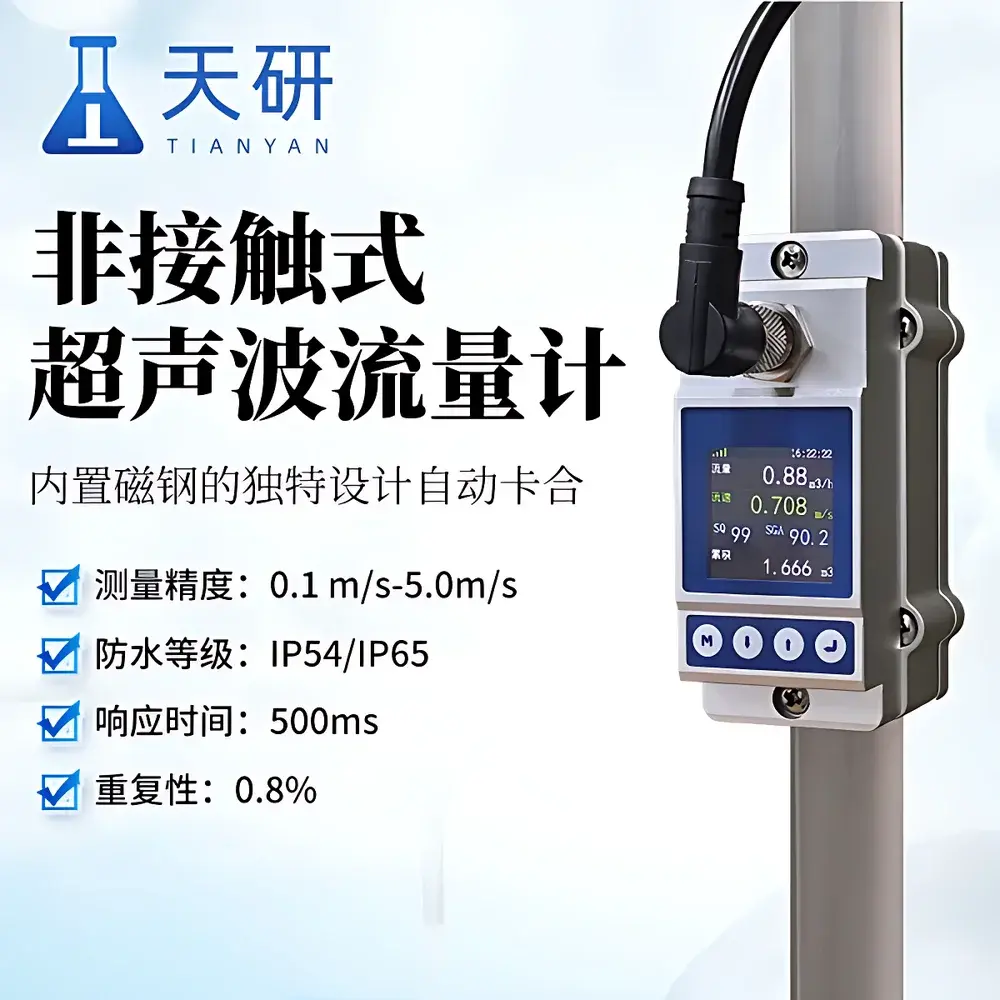

| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | TY-X3M |
| Price | USD 495 (FOB Shandong) |
| Measurement Principle | Transit-time Ultrasonic Flow Measurement |
| Pipe Material Compatibility | Metallic (e.g., carbon steel, stainless steel, copper) and Non-metallic (e.g., PVC, PP, PE, PTFE-lined) Pipes |
| Nominal Pipe Size Range | DN6–DN200 (OD 9.53–220 mm) |
| Fluid Temperature Range | –10°C to +50°C |
| Ambient Temperature Range | –10°C to +50°C |
| Relative Humidity | 0–95% RH (non-condensing) |
| Accuracy | ±2.0% of reading (flow velocity 0.3–5.0 m/s) |
| Repeatability | ±0.8% |
| Response Time | 500 ms |
| Display | 1.54″ 240×240 IPS LCD, 4-directional rotation |
| Power Supply | 24 VDC @ 3 W |
| Output Signals | 4–20 mA (max. load 600 Ω), RS485 Modbus RTU, Pulse/OCT (optional) |
| Enclosure Rating | IP54 / IP65 (optional housing) |
| Wetted Materials | Non-contact (no wetted parts) |
| Viscosity Limit | <300 cSt |
| Data Storage | 10-year cumulative data retention (64 months × 64 days) |
| Language Options | Simplified Chinese, Traditional Chinese, English |
| Unit Selection | m³/h, L/min, mL/min, gal/min (GPM), L/h |
| Battery Backup | CR1220 for real-time clock |
