| Brand | Tianyan |
|---|---|
| Origin | Shandong, China |

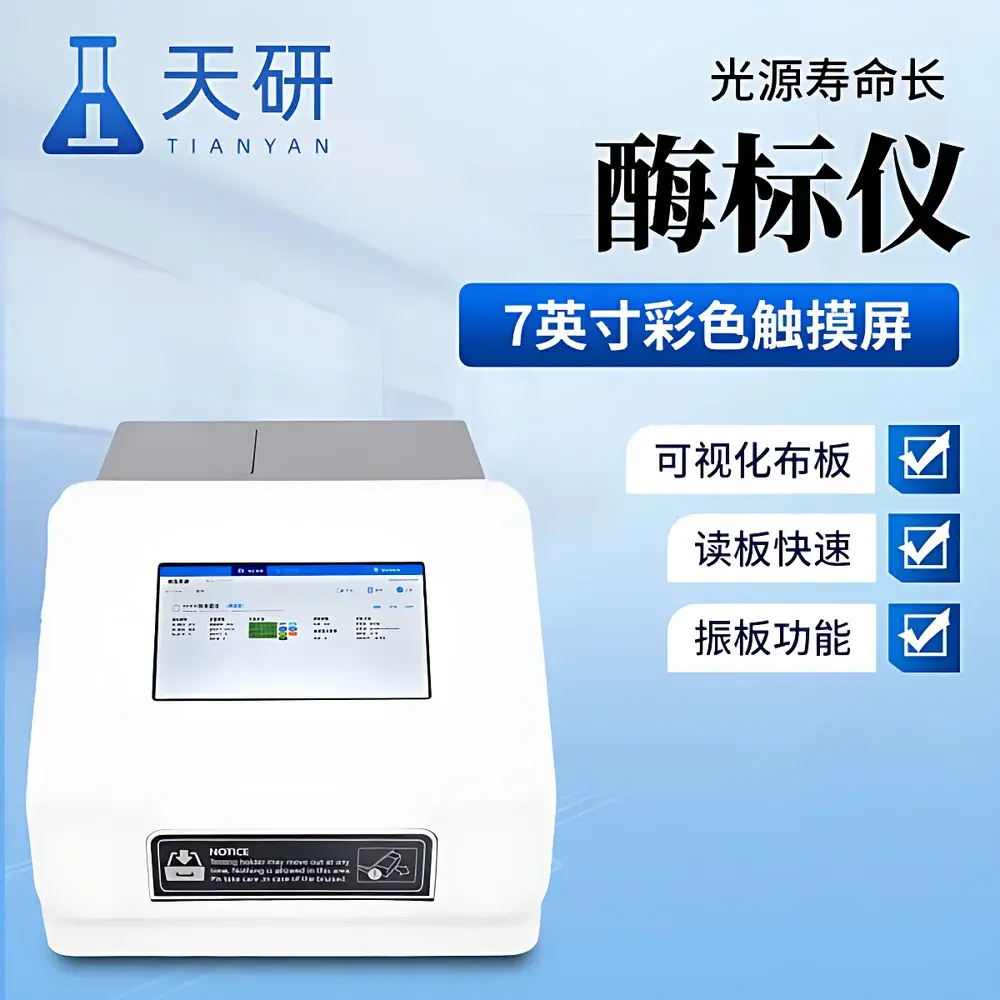

| Model | TY-MB96L |
| Detection Method | Absorbance (Photometric) |
| Function Type | Multifunctional |
| Automation Level | Fully Automated |
| Detector Type | Photodiode-based Absorbance Detector |
| Wavelength Range | 340–750 nm |
| Precision | CV ≤ 0.2% (0–3 Abs), CV ≤ 1.0% (3–4 Abs) — Standard Measurement Mode (@405 nm) |
| Filter Wheel | 8-position, 4 standard filters included (405/450/492/630 nm), optional filters available across 340–750 nm |
| Read Range | 0–4.000 Abs |
| Resolution | 0.001 Abs |
| Linearity | ±1% (0–3.0 Abs), ±2% (3.0–4.0 Abs) @405 nm |
| Accuracy | ±1% (0–3 Abs), ±2% (3–4 Abs) @405 nm |
| Reading Speed | <6 s (96-well plate, rapid mode) |
| Memory Capacity | 200 protocols + 100,000 96-well results |
| Display | 7″ color TFT-LCD touchscreen (1280×800 px) |
| OS | Embedded Android-based firmware |
| Light Source | 6 V / 10 W halogen lamp (rated lifetime: 2000 h) |
| Interfaces | 3 × USB (for PC, printer, USB storage) |
| Dimensions (W×D×H) | 440 × 295 × 225 mm |
| Weight | 10 kg |
| Power Supply | AC 100–240 V, 50–60 Hz, 2 A |
