| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | FA |
| Load Capacity Options | 50 kN to 3000 kN |
| Compliance | ASTM C39, ASTM C469, ASTM C78, AASHTO T22, EN 12390-3, BS 1881-116 |
| Control System | Microprocessor-based with dual-speed hydraulic pump |
| Data Storage | Up to 2000 test records |
| Display | 4-line alphanumeric LCD with real-time load rate, peak load, and pressure readout |
| Interfaces | RS232 and parallel port |
| Calibration Range | 1–100% of full scale (±1% accuracy across range) |
| Strain Measurement Option | LVDT-compatible (0.001 mm resolution) |
| Flexural Testing Capability | Optional with dedicated fixtures |
| Safety | Interlocked front/rear access doors, debris chute, automatic load release, emergency stop |

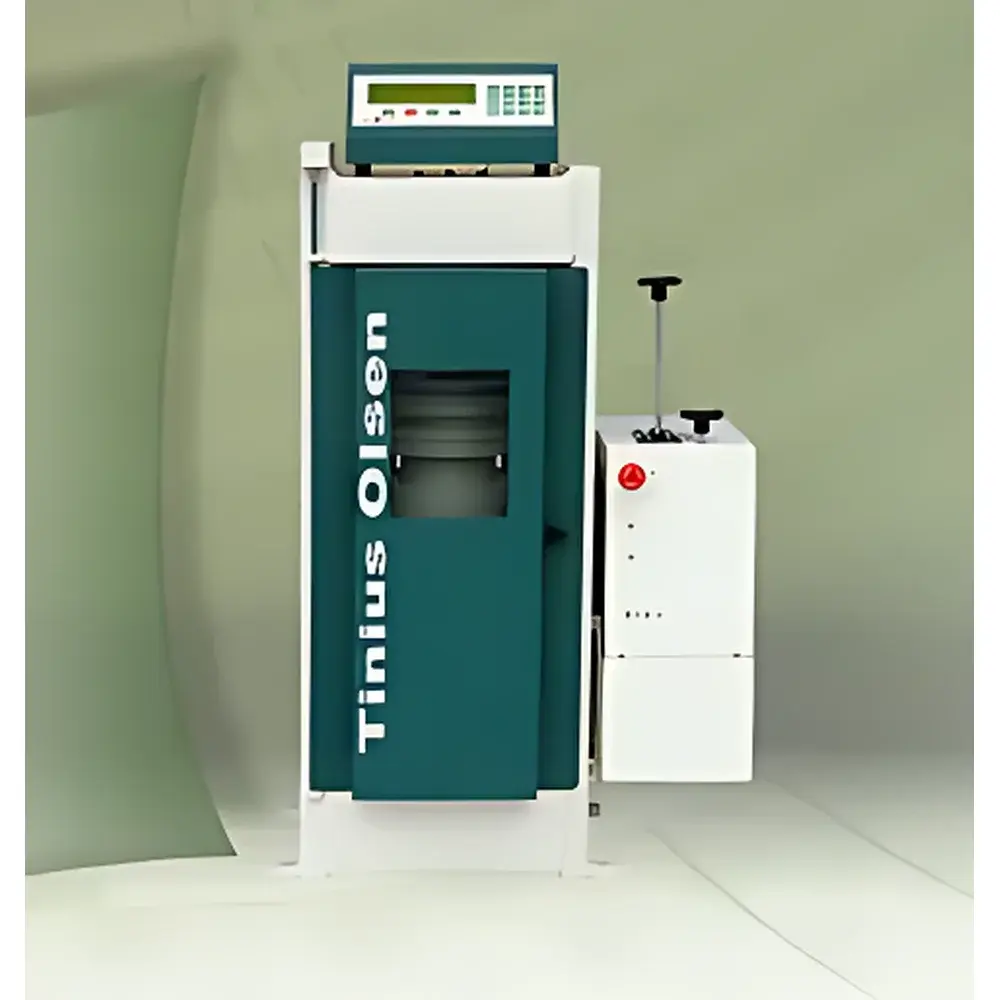

| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | DG |
| Load Capacity Options | 50 kN, 100 kN, 250 kN, 500 kN, 1000 kN, 1500 kN, 2000 kN, 3000 kN |
| Power Supply Options | 110 VAC / 220 VAC, 50 Hz or 60 Hz, 1-phase |
| Compliance | ASTM C39, AASHTO T22, EN 12390-3, -4, -5, BS 1881-116 |
| Safety Features | Interlocked safety door, overload & overtravel protection, automatic platen alignment |
| Control System | Integrated digital controller with dual-unit display (kN/lbf, MPa/psi), real-time load rate bar graph, 2000-test memory, parallel port for direct printing |
| Calibration Range | 1–100% of full-scale capacity |
| Standard Accessories | RS-232 9-pin cable, spherical seating base with upper platen, lower platen, spacers |

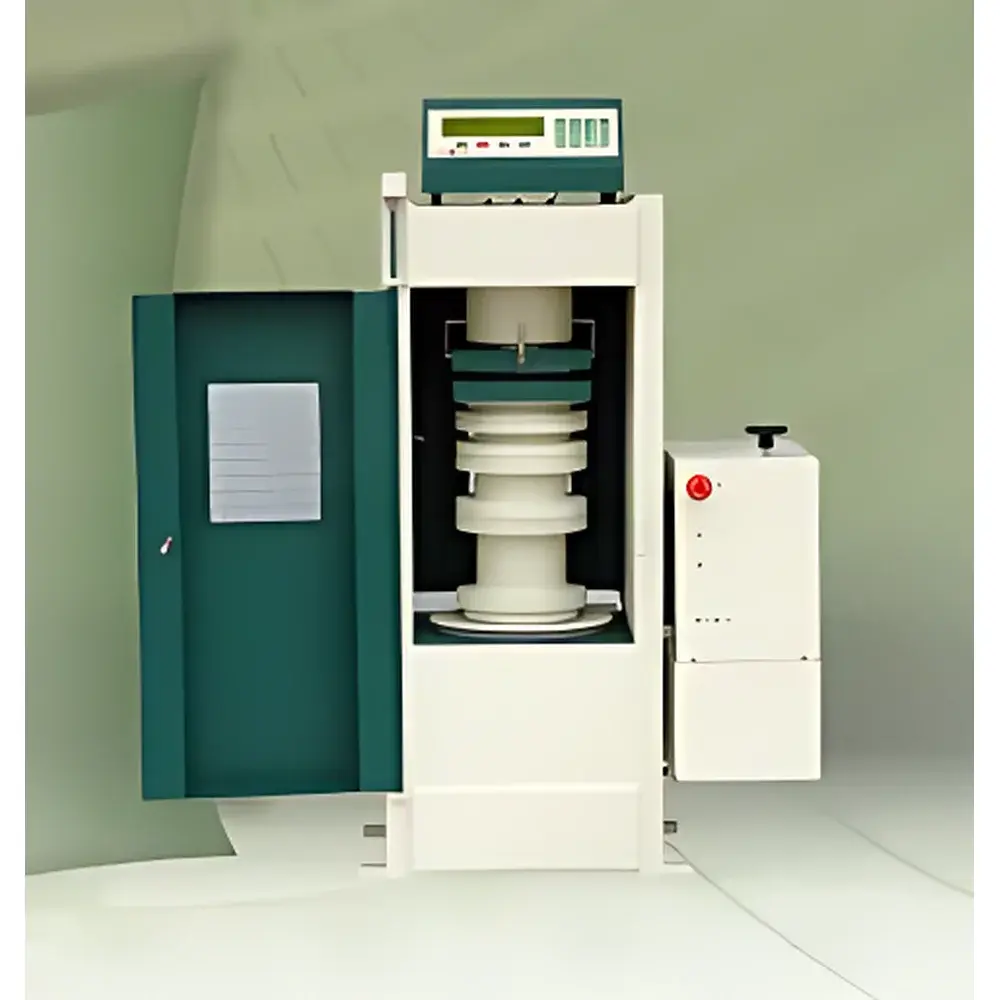

| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | MU |
| Load Capacity Options | 50 kN, 100 kN, 250 kN, 500 kN, 1000 kN, 1500 kN, 2000 kN, 3000 kN |
| Compliance | ASTM C39, ASTM C469, ASTM C78, AASHTO T22, EN 12390-3, BS 1881-116, ISO 7500-1 Class 1 |
| Control System | Microprocessor-based with dual-speed hydraulic pump, programmable loading rate, peak load hold, auto-shutdown, emergency stop |
| Data Handling | Onboard memory (2000 test records), real-time clock, RS232 & parallel port outputs, unit conversion (lbf, kN, MPa, psi) |
| Structural Design | Fully welded frame with precision-ground hydraulic piston, hardened & polished platens, self-aligning upper platen, spherical seating base, interlocked front/rear safety doors |
| Calibration Range | 1–100% of full scale |
