| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | GW |
| Power Consumption | 100 W |
| Airflow Velocity Range | 0–10 m/s (adjustable, calibrated at 3.0 ± 0.3 m/s) |
| Dimensions (Main Unit) | 1000 × 300 × 360 mm (L × W × H) |
| Dimensions (Controller) | 240 × 210 × 110 mm (L × W × H) |
| Net Weight | 27 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | JFA-II |
| Pricing | Available Upon Request |
| Coating Base Dimensions | 470 mm × 200 mm |
| Maximum Coating Length | 230 mm |
| Coating Speed Range | 0–8 cm/s (infinitely variable) |
| Total Power Consumption | 100 W |
| Electrical Supply | 220 V AC, 50 Hz |
| Overall Dimensions (L×W×H) | 470 × 370 × 240 mm |
| Net Weight | 34 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Distributor |
| Product Origin | Domestic |
| Model | JTX-II |
| Pricing | Upon Request |
| Brush Dimensions | 38 × 90 mm base with 60 evenly spaced Ø3 mm holes for hog bristles, bristle length 19 mm |
| Brush Mass (incl. holder) | 450 ± 2 g |
| Liquid Drip Rate | ~0.04 g/s |
| Stroke Length | 300 mm |
| Brushing Frequency | 37 ± 1 cycles/min |
| Counter Display | 5-digit LED |
| Maximum Count | 99,999 cycles |
| Test Panel Size | 430 × 150 × 3 mm |
| Motor Power | 25 W |
| Power Supply | 220 V, 50 Hz |
| Overall Dimensions | 570 × 420 × 300 mm |
| Net Weight | 32 kg |
| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | FA |
| Load Capacity Options | 50 kN to 3000 kN |
| Compliance | ASTM C39, ASTM C469, ASTM C78, AASHTO T22, EN 12390-3, BS 1881-116 |
| Control System | Microprocessor-based with dual-speed hydraulic pump |
| Data Storage | Up to 2000 test records |
| Display | 4-line alphanumeric LCD with real-time load rate, peak load, and pressure readout |
| Interfaces | RS232 and parallel port |
| Calibration Range | 1–100% of full scale (±1% accuracy across range) |
| Strain Measurement Option | LVDT-compatible (0.001 mm resolution) |
| Flexural Testing Capability | Optional with dedicated fixtures |
| Safety | Interlocked front/rear access doors, debris chute, automatic load release, emergency stop |
| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | DG |
| Load Capacity Options | 50 kN, 100 kN, 250 kN, 500 kN, 1000 kN, 1500 kN, 2000 kN, 3000 kN |
| Power Supply Options | 110 VAC / 220 VAC, 50 Hz or 60 Hz, 1-phase |
| Compliance | ASTM C39, AASHTO T22, EN 12390-3, -4, -5, BS 1881-116 |
| Safety Features | Interlocked safety door, overload & overtravel protection, automatic platen alignment |
| Control System | Integrated digital controller with dual-unit display (kN/lbf, MPa/psi), real-time load rate bar graph, 2000-test memory, parallel port for direct printing |
| Calibration Range | 1–100% of full-scale capacity |
| Standard Accessories | RS-232 9-pin cable, spherical seating base with upper platen, lower platen, spacers |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | DM-III |
| Pricing | Available Upon Request |
| Stroke Frequency | 0–135 cycles/min (single-pass) |
| Counter Range | 0–9999 (dual-pass |
| Abrading Head Mass | 570 ± 20 g |
| Optional Weights | 50 g, 100 g, 200 g |
| Power Supply | 220 V, 50 Hz |
| Rated Power | 60 W |
| Dimensions (L×W×H) | 300 × 280 × 380 mm |
| Net Weight | ~25 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | PM240-D |
| Motor Power | 0.75 kW |
| Supply Voltage | 380 V, 50 Hz (220 V optional) |
| Platen Speed | 75 ± 5 rpm |
| Load Options | 43 kg, 64 kg, 100 kg |
| Digital Counter Range | 0–9999 cycles |
| Dimensions (L×W×H) | 580 × 360 × 480 mm |
| Net Weight | 80 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | JM-IV |
| Pricing | Available Upon Request |
| Main Motor | 40 W, 220 V, 50 Hz |
| Turntable Speed Range | 0–70 rpm (infinitely variable) |
| Specimen Holder Diameter | φ100 mm × φ6.2 mm (center hole) × 3 mm |
| Abrasive Wheel Dimensions | φ50 mm × φ16 mm (center hole) × 13 mm |
| Standard Load Masses | 500 g, 750 g, 1000 g |
| Net Weight | 15 kg |
| Overall Dimensions (L×W×H) | 340 × 240 × 200 mm |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | JM-4 |
| Pricing | Upon Request |
| Motor | 40 W, 220 V, 50 Hz |
| Rotational Speed Range | 0–90 rpm |
| Sample Holder Diameter | Φ100 mm × 3 mm thick with Φ6.2 mm center hole |
| Abrasive Wheel Dimensions | Φ50 mm × 13 mm thick with Φ16 mm center hole |
| Standard Weights | 500 g, 750 g, 1000 g |
| Overall Dimensions (L×W×H) | 220 × 280 × 300 mm |
| Net Weight | 16 kg |
| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | MU |
| Load Capacity Options | 50 kN, 100 kN, 250 kN, 500 kN, 1000 kN, 1500 kN, 2000 kN, 3000 kN |
| Compliance | ASTM C39, ASTM C469, ASTM C78, AASHTO T22, EN 12390-3, BS 1881-116, ISO 7500-1 Class 1 |
| Control System | Microprocessor-based with dual-speed hydraulic pump, programmable loading rate, peak load hold, auto-shutdown, emergency stop |
| Data Handling | Onboard memory (2000 test records), real-time clock, RS232 & parallel port outputs, unit conversion (lbf, kN, MPa, psi) |
| Structural Design | Fully welded frame with precision-ground hydraulic piston, hardened & polished platens, self-aligning upper platen, spherical seating base, interlocked front/rear safety doors |
| Calibration Range | 1–100% of full scale |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | HNMC |
| Pricing | Upon Request |
| Reciprocating Speed | 30 cycles/min |
| Load | 200 ±10 g (6 abrasive heads), 300 ±5 g (6 additional weights), 500 ±5 g (2 additional weights) |
| Counter Range | 0–9999 |
| Stroke Length | 120 mm |
| Arc Radius of Test Bed | R200 mm |
| Motor Power | 25 W |
| Dimensions (L×W×H) | 350 × 470 × 310 mm |
| Weight | 34 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

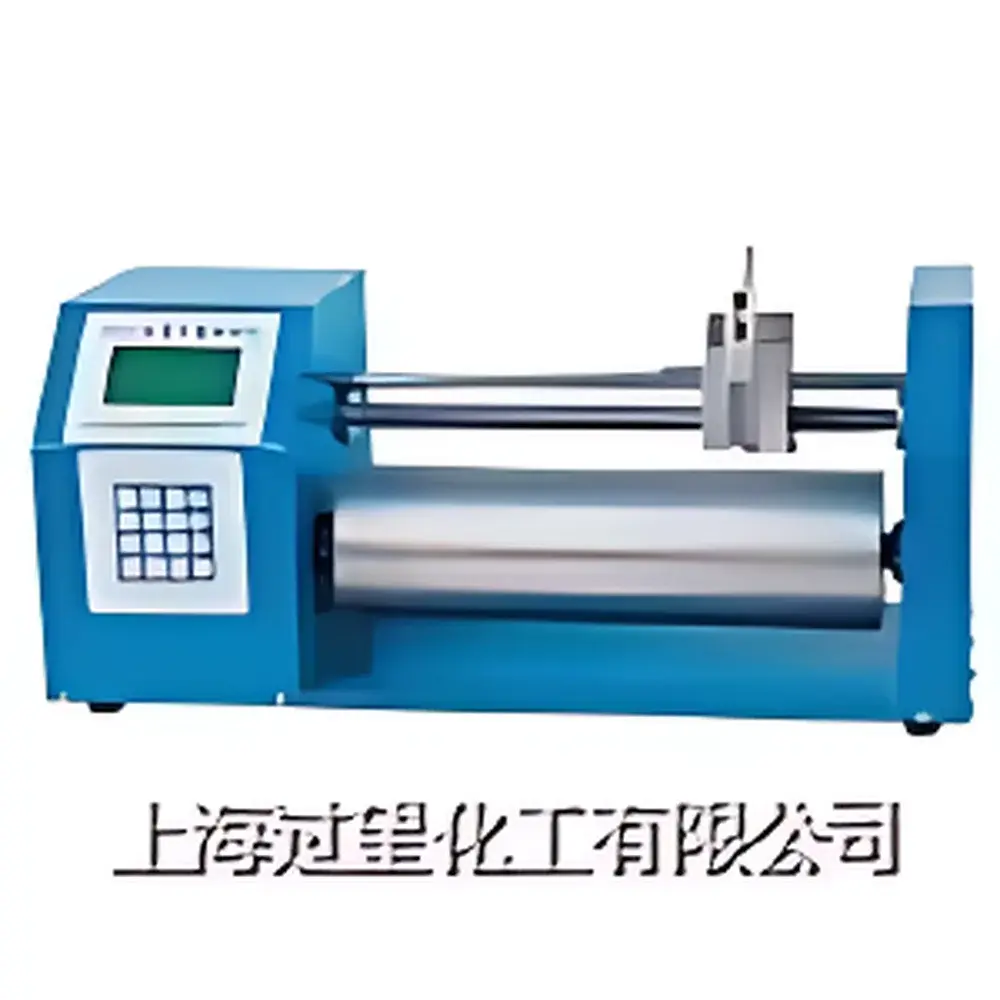

| Model | ZGY |
| Pricing | Available Upon Request |
| Power Supply | 220 V ± 22 V, 50 Hz |
| Pressure Roller Linear Speed | 2 mm/rev |
| Total Test Duration Range | 0.5–20 h |
| Time Accuracy | ±3 s over 20 h |
| Dimensions (L×W×H) | 500 × 200 × 220 mm |
| Pressure Roller Mass | 100 g |
| Net Weight | 17 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | JTX |
| Pricing | Available Upon Request |
| Brush Dimensions | 38 × 90 mm |
| Brush Mass (incl. holder) | 450 ± 2 g |
| Stroke Length | 300 mm |
| Reciprocating Frequency | 37 ± 1 cycles/min |
| Counter | 4-digit digital display |
| Test Panel Size | 430 × 150 × 5 mm |
| Motor Power | 90 W |
| Power Supply | 380 V, 50 Hz (220 V optional) |
| Overall Dimensions (L×W×H) | 600 × 430 × 450 mm |
| Net Weight | 44 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | AFA-II |
| Price | Upon Request |
| Total Power | 350 W |
| Voltage/Frequency | 220 V, 50 Hz |
| Vacuum Platen Coating Area | 300 mm × 200 mm |
| Coating Length | 300 mm |
| Coating Speed | 0–10 cm/s (Infinitely Variable) |
| Dimensions (L×W×H) | 705 × 505 × 270 mm |
| Weight | Approx. 65 kg |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | YZQ-II |
| Pricing | Available Upon Request |
| Dimensions | 200 × 100 × 130 mm |
| Mandrel Diameters | 2, 3, 4, 5, 6, 8, 10, 12, 16, 18, 20, 25, 32 mm |
| Substrate Thickness Limit | ≤ 1.0 mm (polished steel or tinplate) |
| Origin | Shanghai, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | NMC-II |
| Pricing | Available Upon Request |
| Motor | 60 W, 220 V, 50 Hz |
| Rotational Speed Range | 0–54 rpm |
| Abrading Head Load | 1000 g (standard) |
| Optional Weights | 250 g, 500 g |
| Dimensions (L×W×H) | 260 × 240 × 340 mm |
| Net Weight | 20 kg |
