| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 76652-03 |
| Pricing | Available Upon Request |
| Compliance | ASTM D5682 |
| Measurement Parameters | Volume Resistivity (1–1999 kΩ, 0–199.9 MΩ, 0–19.99 GΩ), Short-Circuit Current (0–250 µA, with optional gun output terminal), Static Voltage (0–199.9 kV, with optional HV test terminal) |
| Display | Direct digital readout |
| Electrode | Stainless steel tubular 4-ring probe |
| Probe Dimensions | Φ42 mm × 250 mm |
| Brand | Ransburg |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | 76652-01 / 76652-02 / 76652-03 / 76652-04 |
| Power Supply | 9V Alkaline Battery |
| High Voltage Range | ±0–199.9 kV |
| Short-Circuit Current Range | ±0–1999.9 µA |
| Conductance Range | 0.01–199.9 mS/cm (with 7922-00 Paint Probe) |
| Resistivity Range | 10⁰–10⁹ Ω·cm (typical for solvent-based and waterborne coatings) |
| Electrode Material | Corrosion-Resistant Stainless Steel |
| Compliance | Designed for industrial electrostatic spray process control per ITW Ransburg engineering specifications |

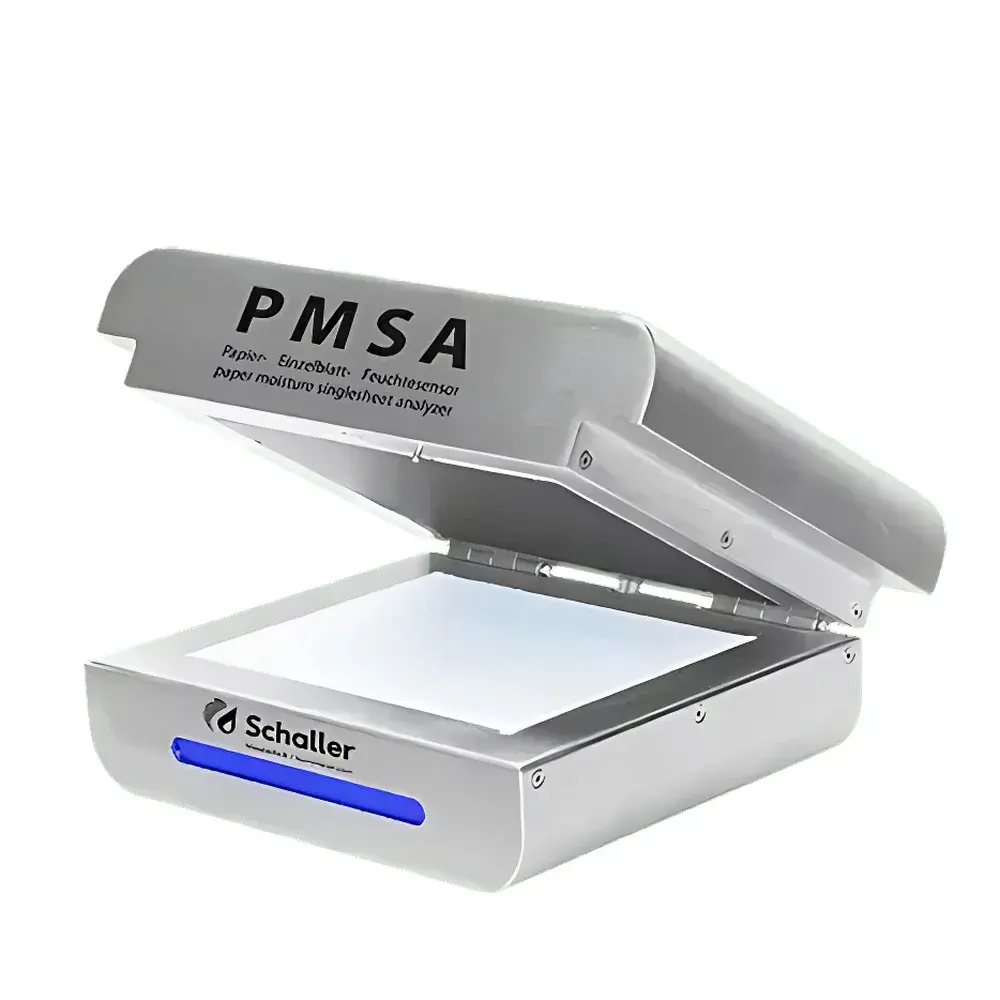

| Brand | Schaller |
|---|---|
| Origin | Austria |
| Model | PMSA |
| Measurement Principle | Capacitive Dielectric Sensing with Integrated IR Temperature Compensation |
| Measurement Range | 1–20% w/w (moisture content, dry basis) |
| Basis Weight Range | 30–800 g/m² |
| Maximum Paper Thickness | 0.8 mm (custom options available) |
| Minimum Sample Size | 180 × 180 mm |
| Operating Temperature | 10–40 °C |
| Dimensions | 274 × 202 × 128 mm |
| Weight | 4.7 kg |
| Power Supply | 5 V DC via USB |
| Interface | USB Mini-B |
| Calibration | Automatic Pre-Measurement Sensor Self-Calibration |
| Software | Windows-based PC application for data visualization, multi-grade calibration, statistical reporting, and audit-ready export |
