| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | BS EN ISO 3310-1 / ASTM E11 Compliant Woven Wire Test Sieves |
| Diameter Options | 38, 100, 150, 200, 250, 300, 315, 350, 400, 450 mm & 3", 8", 12", 18" |
| Aperture Range | 20 µm to 125 mm |
| Material Options | Stainless Steel, Brass, Electroplated Steel |
| Compliance | BS 410:2000, ISO 3310-1:2016 & ISO 3310-2:2016, ASTM E11-22, UK Kitemark Certified |
| Traceability | Individual serial number per sieve with accredited calibration certificate |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | SONIC SIFTER |
| Principle | Air-Jet Assisted Vibratory Sieving (Ultrasonically Enhanced) |
| Dimensions (H×D×W) | 508 × 254 × 254 mm |
| Door Opening Height | 623 mm |
| Net Weight | 16.8 kg |
| Gross Weight (incl. packaging) | 28 kg |
| Power Supply | 230 V, 50 Hz, 70 VA / 115 V, 60 Hz, 90 VA |
| Vibration Frequency | 3000 rpm |
| Tap Modes | None / Vertical-only (30 taps/min) / Alternating Vertical & Horizontal (60 taps/min) |
| Sieving Time Range | 0–119 min (0.1-min increments) |
| Sieve Capacity | Up to six full-height standard test sieves OR one precision sieve + four standard sieves (spacer kits required for non-standard stack configurations) |
| Particle Size Range | Down to 5 µm (dry powders) |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | MINOR |
| Drive Type | Electromagnetic |
| Max Sample Capacity | 4 kg |
| Sieve Diameter Compatibility | 100 mm, 200 mm, 8 inch |
| Max Number of Sieves | 8 (full-height) or 16 (half-height) |
| Vibration Amplitude | 1.6 mm (fixed) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0–60 min (mechanical dial) or continuous mode ("I") |
| Operating Mode | Dry sieving only |
| Enclosure Rating | IP54 |
| Power Supply | 230 V, 50 Hz / 115 V, 60 Hz, 300 VA |
| Dimensions (W×H×D) | 315 × 126 × 287 mm |
| Net Weight | 17 kg |
| Compliance | CE-marked |
| Sieve Fixation | Polymeric tension belt system |
| Footing | Vibration-damping rubber feet |
| Height Clearance Requirement | ≤200 mm |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | Octagon 200 |
| Drive Type | Electromagnetic |
| Sieve Diameter | 200 mm (8 in) |
| Max. Stack Height | 450 mm |
| Max. Sample Mass | 3 kg |
| Sieve Capacity | 8 full-height or 18 half-height sieves |
| Amplitude Range | 0–3 mm (10-step digital control) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0:10–99:59 min (digital display) |
| Operating Modes | Continuous or Interval Vibration |
| Wet & Dry Screening | Yes |
| Enclosure Rating | IP54 |
| Power Supply | 230 V, 50 Hz / 115 V, 60 Hz, 300 VA |
| Dimensions (W×H×D) | 418 × 435 × 232 mm |
| Net Weight | 43 kg |
| Compliance | BS 410, ISO 3310-1 & -2, ASTM E11, UK Kitemark certified |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

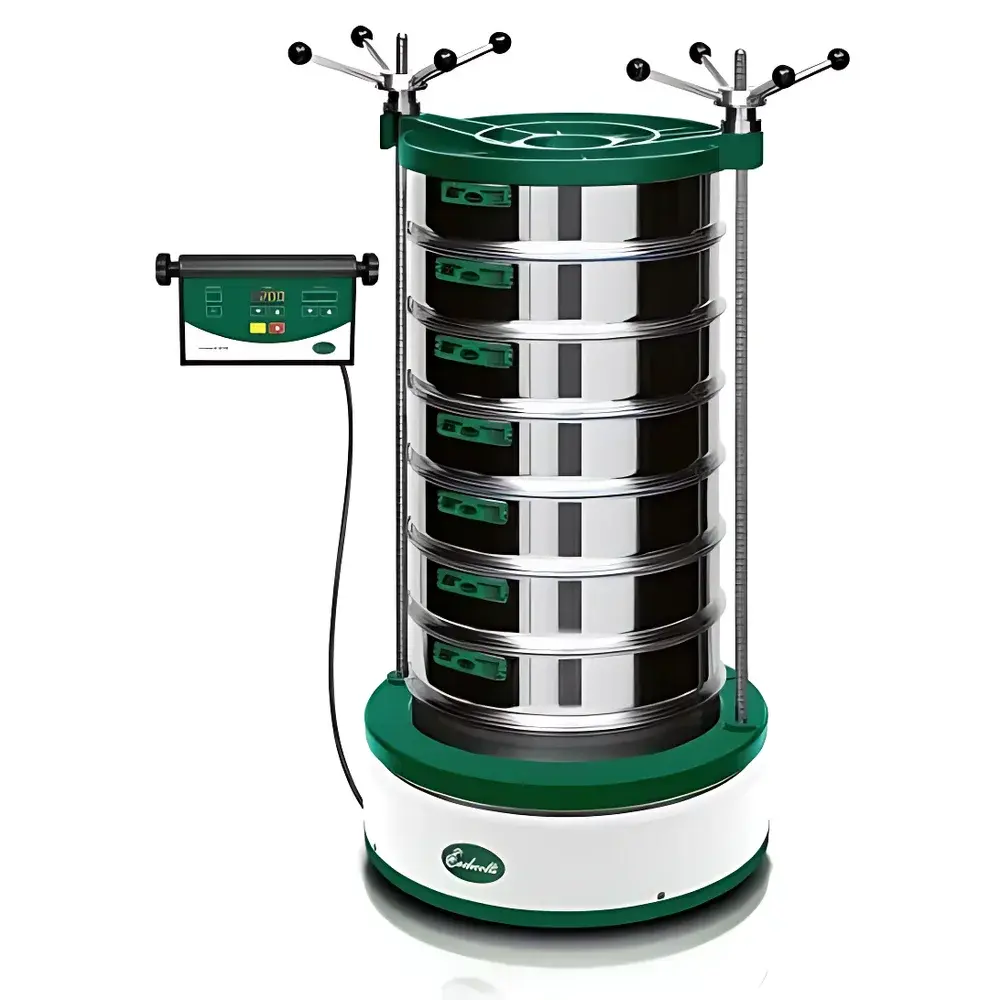

| Model | TITAN450 |
| Sieve Diameter Capacity | 450 mm (max) |
| Max Sieve Stacks | 7 |
| Amplitude Range | 0–2 mm (10-step digital control) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Particle Size Range | 20 µm – 125 mm |
| Max Sample Load | 20 kg |
| Operating Modes | Dry & Wet Sieving |
| Enclosure Rating | IP54 |
| Power Supply | Single-phase, voltage-configurable |
| Dimensions (D×H) | 606 × 230 mm |
| Net Weight | 140 kg |
| Compliance | CE |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | 200 mm / 300 mm |
| Compliance | ISO 3310-1, ISO 3310-2, BS 410-1, BS 410-2, ASTM E11 |
| Certification | UKAS-accredited BSI Kitemark™ |

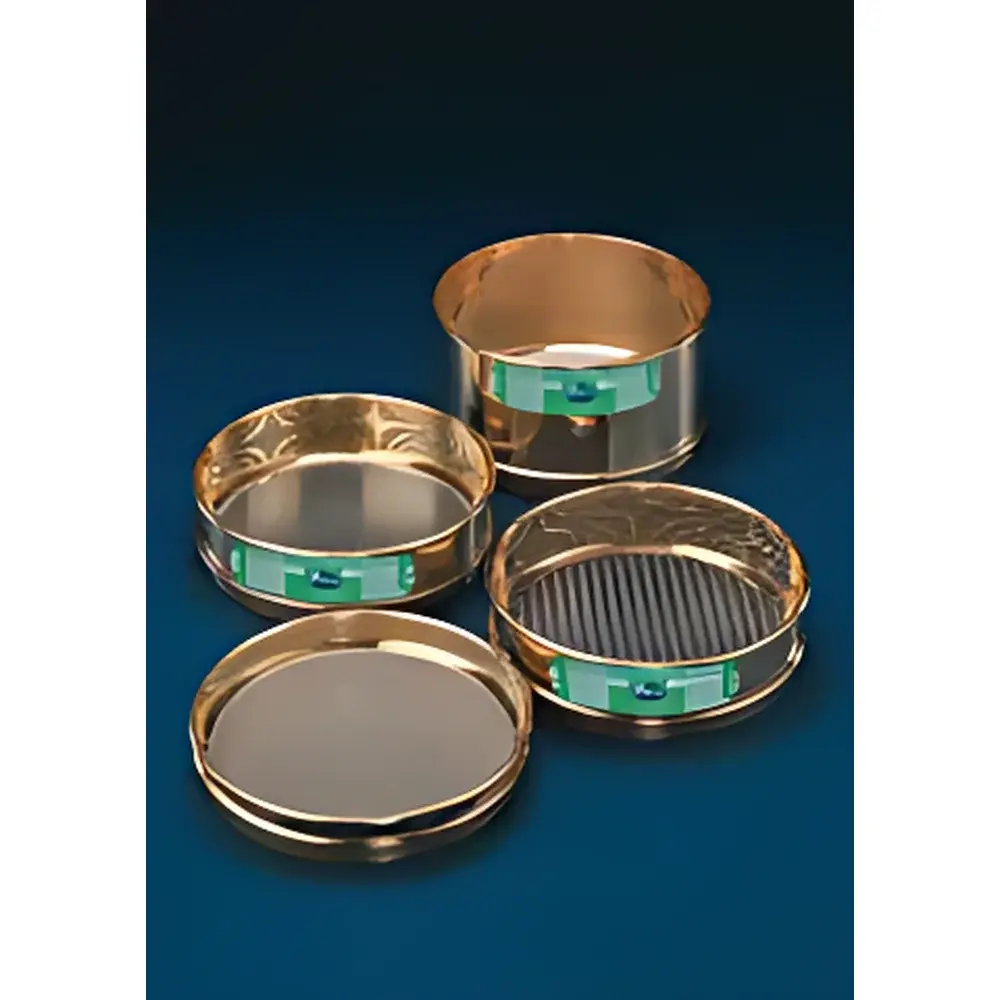

| Construction | Woven wire mesh (ISO 3310-1) and perforated plate (ISO 3310-2) |
| Frame Material | Brass or stainless steel |
| Available Aperture Ranges | 125 mm – 1 µm (woven), 125 mm – 1 mm (perforated), including full metric, imperial, and Tyler mesh equivalents |
| Traceability | Individual serial number per sieve, accompanied by manufacturer’s certificate of conformity |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

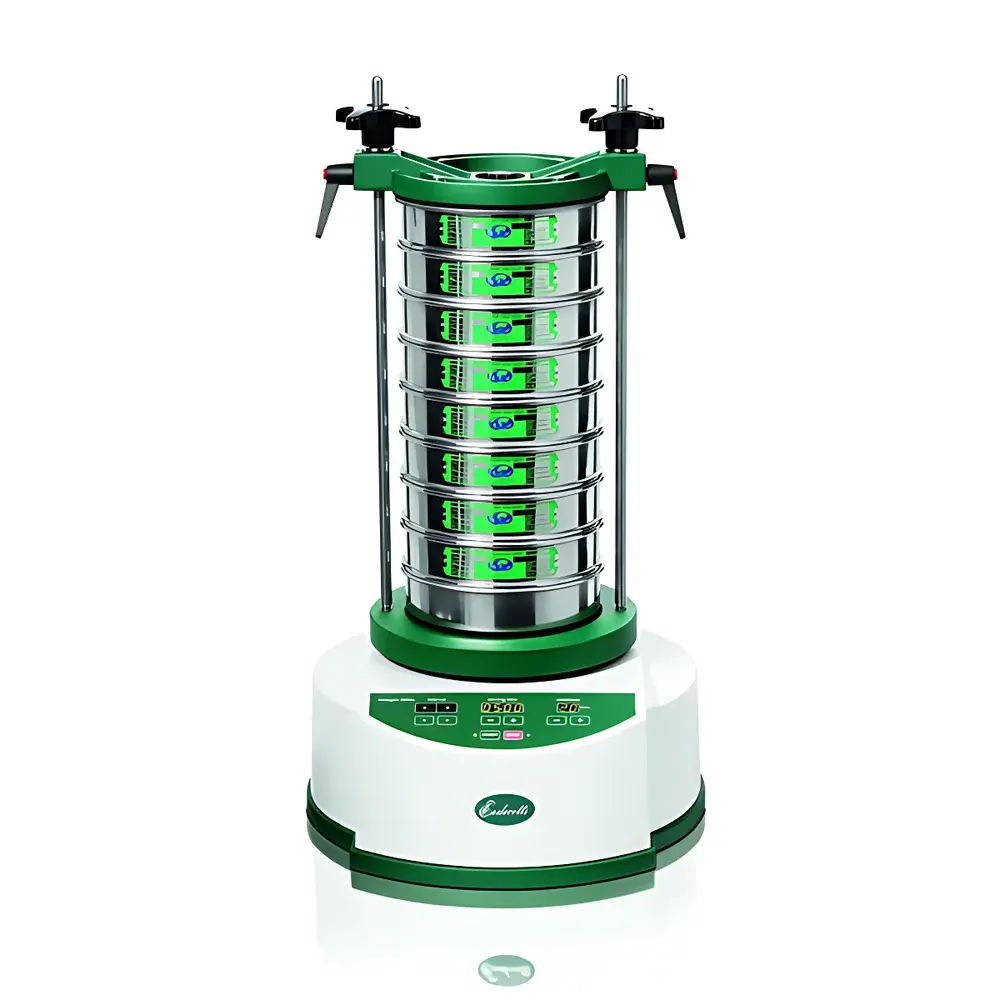

| Model | Octagon 200CL |
| Drive Type | Electromagnetic |
| Sieving Motion | 3D (elliptical, horizontal, vertical components) |
| Max. Sample Mass | 3 kg |
| Sieve Capacity | 8 full-height 200 mm sieves or 18 half-height 200 mm sieves |
| Amplitude Range | 0–3 mm (digitally adjustable in 0.1 mm increments, closed-loop controlled) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0:10–99:59 min (digital display) |
| Intermittent Sieving Modes | 2 preset intervals |
| Dry & Wet Sieving | Supported |
| Sieve Diameter Options | 100 mm, 200 mm (8 inch) |
| Max. Stack Height | 450 mm |
| Clamping System | Quick-action precision clamp |
| Enclosure Rating | IP54 |
| Power Supply | 230 V / 50 Hz or 115 V / 60 Hz, 300 VA |
| Dimensions (W×H×D) | 418 × 232 × 435 mm |
| Net Weight | 43 kg |
| Compliance | CE, BS 410, ISO 3310-1 & -2, ASTM E11, UK Kitemark certified |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

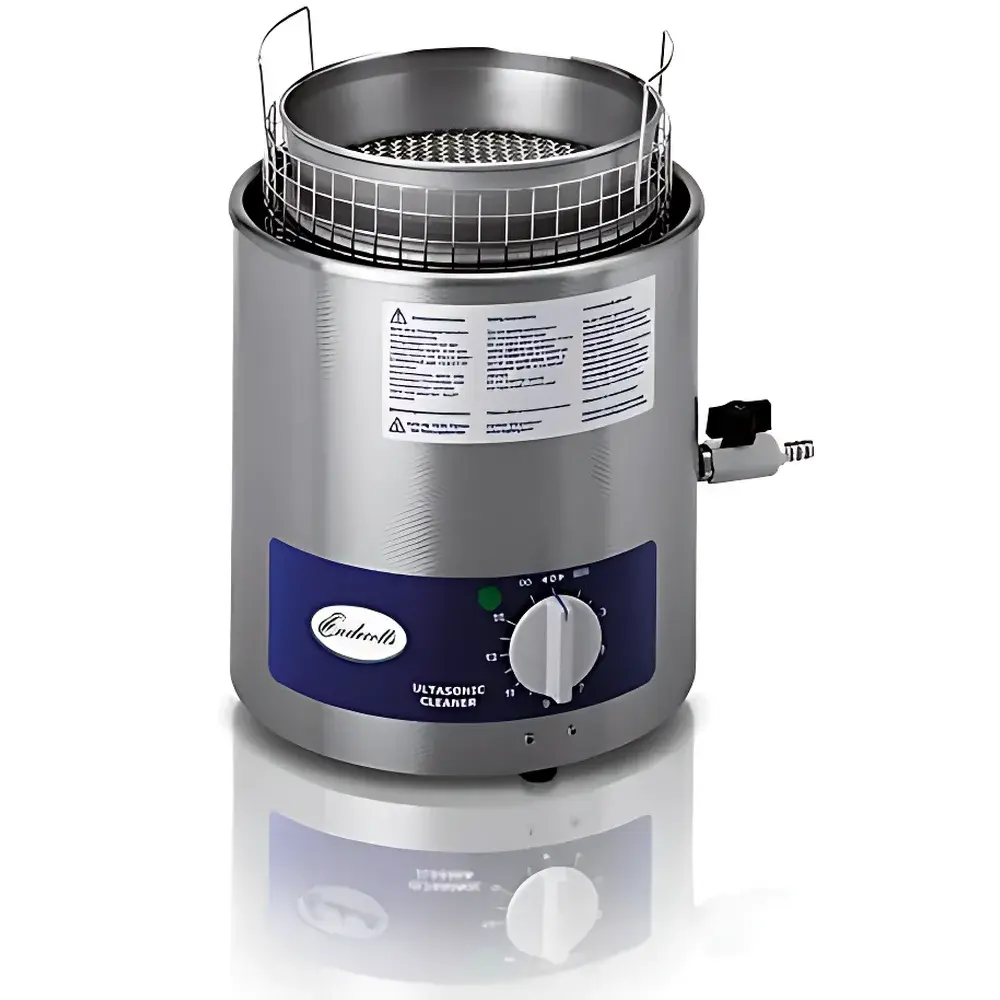

| Model | Ultrasonic Cleaner |
| Frequency | 35 kHz |
| Power Output | 2 × 240 W (dual transducer) |
| Tank Capacity | 5.7 L |
| Tank Dimensions | Ø245 mm × 130 mm (H) |
| Maximum Sieve Size Supported | Ø200 mm × 50 mm depth (8" × 2") |
| Timer Range | 0–15 min (digital, adjustable in 1-min increments) |
| Unit Dimensions | Ø260 mm × 260 mm (H) |
| Net Weight | ~5 kg |
| Compliance | CE-marked, RoHS-compliant, designed per ISO 565:2022 and ASTM E11-22 requirements for test sieve maintenance |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | Endecotts Series |
| Compliance | ISO 3310-1:2016, BS 410:2000, ASTM E11-22 |
| Nominal Aperture Range | 20 µm – 125 mm |
| Available Diameters | 75 mm (3″), 200 mm (8″), 300 mm (12″), 450 mm (18″) |
| Frame Materials | Stainless Steel, Brass, Electroplated Steel |
| Weave Type | Plain Weave, Twill Weave (per specification) |
| Certification | Individual Certificate of Compliance & Calibration Certificate (per ISO 3310-2:2016 Annex B) |
| Traceability | Unique Serial Number per Sieve |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

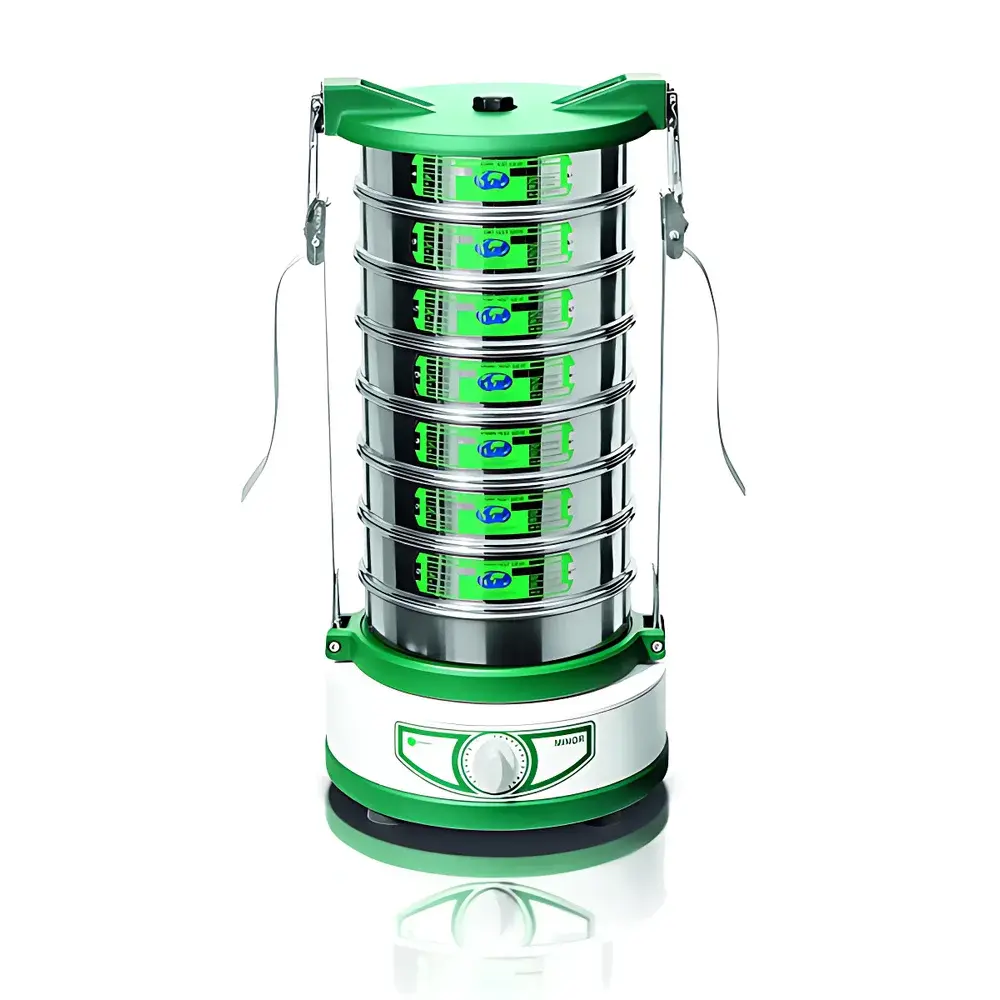

| Model | Minor 200 |
| Drive Type | Electromagnetic |
| Max Sample Capacity | 4 kg |
| Sieve Diameter Compatibility | 100 mm, 200 mm, 8 inch |
| Max Sieves per Stack | 8 (full-height) or 16 (half-height) |
| Vibration Amplitude | 1.6 mm (fixed) |
| Vibration Frequency | 3000 cycles/min @ 50 Hz |
| Timer Range | 0–60 min (mechanical dial) or continuous mode ("I") |
| Power Supply | 230 V, 50 Hz / 115 V, 60 Hz, 300 VA |
| Dimensions (W×H×D) | 315 × 126 × 287 mm |
| Net Weight | 17 kg |
| Ingress Protection | IP54 |
| Compliance | CE |
| Enclosure Type | Benchtop |
| Fixation Method | Polymeric tension belt |
| Base Stability | Anti-vibration rubber feet |
| Particle Size Range | 38 µm – 125 mm |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

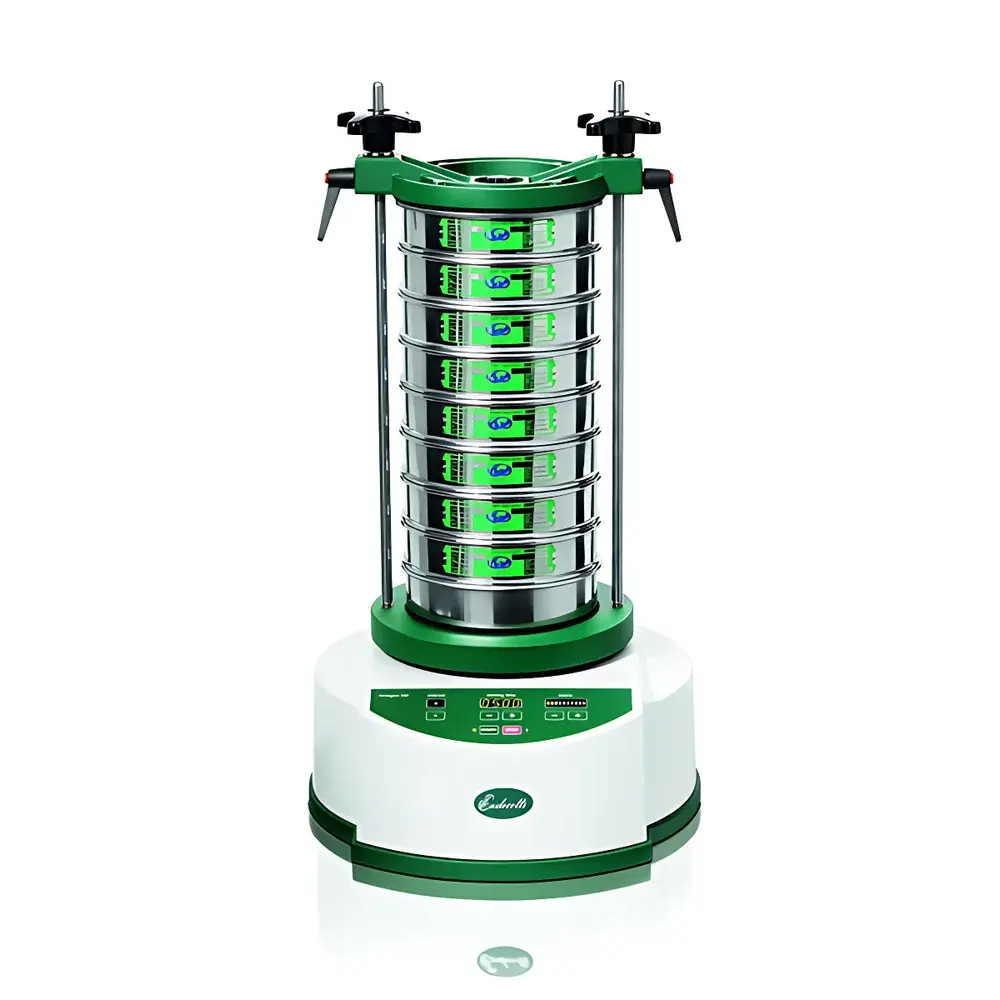

| Model | OCTAGON 200 |
| Drive Type | Electromagnetic |
| Sieving Motion | 3D Oscillation |
| Max Sample Capacity | 3 kg |
| Sieve Capacity | 8 full-height (200 mm) or 18 half-height sieves |
| Amplitude Range | 0–3 mm (10-step digital adjustment) |
| Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0:10–99:59 min (digital display) |
| Intermittent Mode | Yes |
| Dry & Wet Sieving | Yes |
| Sieve Diameter Options | 100 mm, 200 mm (8 in) |
| Max Stack Height | 450 mm |
| Clamping System | Quick-action universal clamp |
| Vibration Isolation | Non-metallic springs + damping mounts |
| Enclosure Rating | IP54 |
| Power Supply | 230 V / 50 Hz or 115 V / 60 Hz, 300 VA |
| Dimensions (W×H×D) | 418 × 232 × 435 mm |
| Net Weight | 43 kg |
| Compliance | CE, EN 61000-6-2/6-4, EN 61000-3-2/3-3 |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

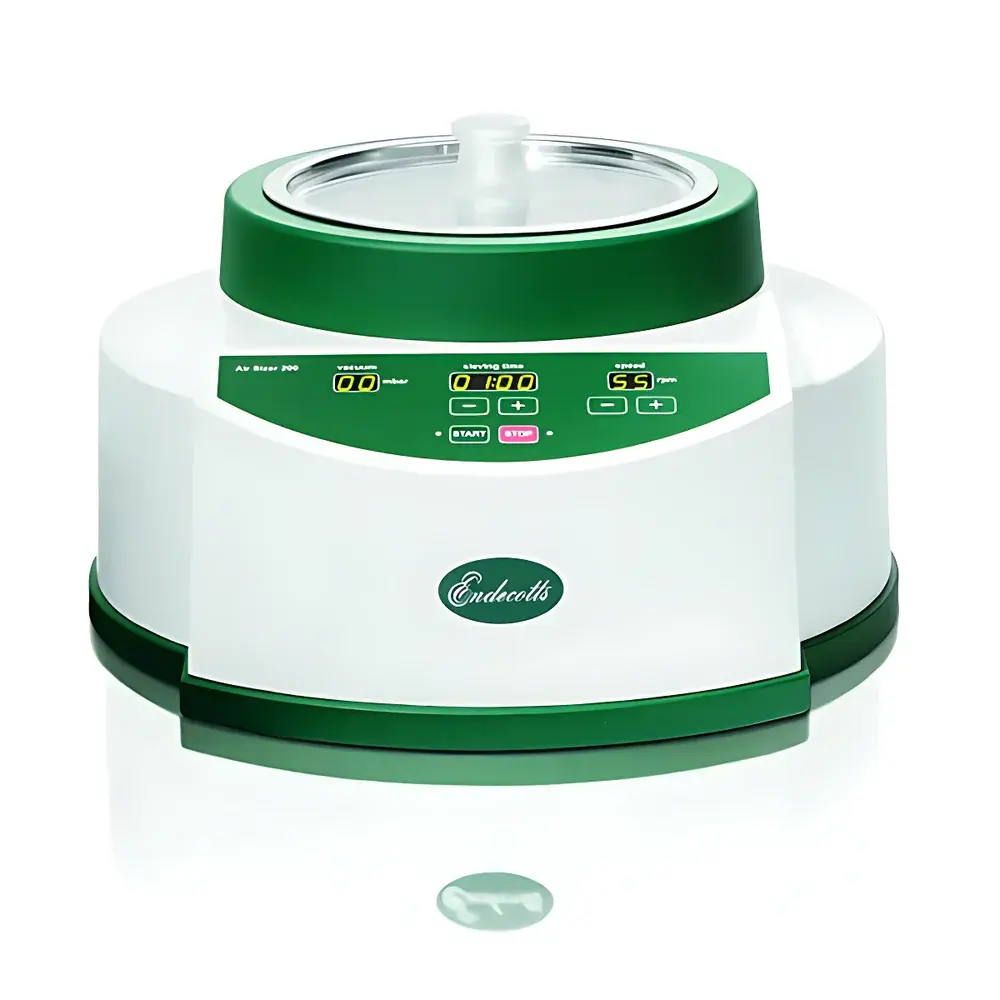

| Model | Air Sizer 200 |
| Sieve Diameter | 203 mm (8 in) |
| Sieving Range | 20 µm – 4 mm |
| Drive Mode | Air Jet Impingement |
| No. of Sieves | 1 |
| Rotational Speed (Nozzle) | 5–55 rpm |
| Sieving Time Display | Digital, 0:10–99:50 min:ss |
| Vacuum Pressure Range | 20–99 mbar |
| Power Supply | 100–240 V, 50–60 Hz, Single-Phase |
| Dimensions (W×H×D) | 450 × 235 × 435 mm |
| Net Weight | 16 kg |
| Ingress Protection | IP40 |
| Compliance | CE |
| Accessories Available | Pre-filter, Industrial Vacuum Unit |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

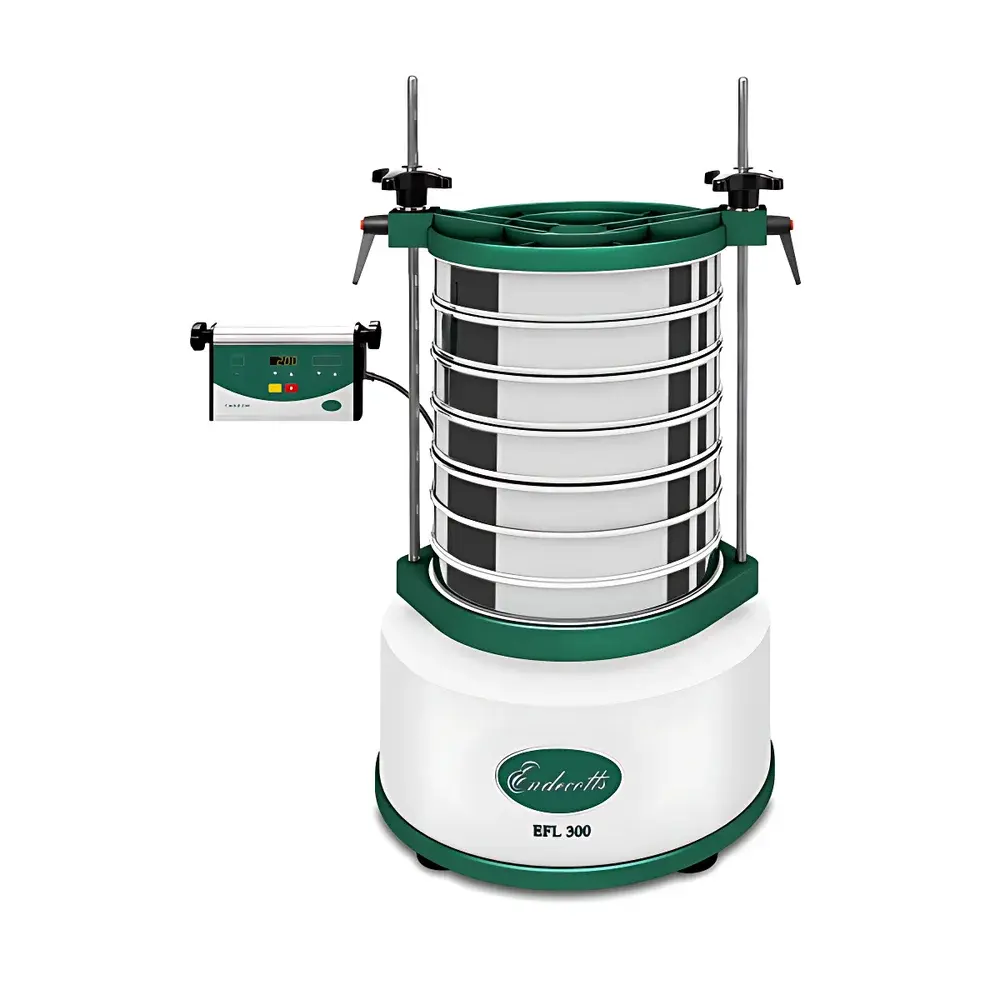

| Model | EFL300 |
| Drive Type | Electromagnetic |
| Sieving Motion | 3D Horizontal Circular |
| Max Sample Capacity | 6 kg |
| Sieve Diameter Options | 100 / 150 / 200 / 250 / 300 / 315 mm (8" / 12") |
| Max Stack Height | 450 mm |
| Sieve Holders | 6 full-height or 12 half-height sieves |
| Amplitude Range | 0–2 mm (10-step digital adjustment) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0:10–99:55 min (digital display) |
| Wet & Dry Sieving | Yes |
| Enclosure Rating | IP54 |
| Power Supply | Single-phase, region-specific voltage |
| Dimensions (W×D×H, excl. clamps) | 427 × 240 × — mm |
| Net Weight | 45 kg |
| Compliance | CE-marked |
| Mounting Options | Benchtop or Floor-standing |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |
| Model | OCTAGON 200 |
| Principle | Electromagnetic 3D Vibration Sieving |
| Sieve Diameter | 200 mm (8 in) |
| Max. Sample Capacity | 3 kg |
| Sieve Stacks | up to 8 full-height or 18 half-height sieves |
| Amplitude Range | 0–3 mm (10-step digital control) |
| Vibration Frequency | 3000 rpm @ 50 Hz |
| Timer Range | 0:10–99:59 min (digital display) |
| Operating Modes | Continuous or Interval Vibration |
| Dry & Wet Sieving | Yes |
| IP Rating | IP54 |
| Power Supply | 230 V / 50 Hz or 115 V / 60 Hz, 300 VA |
| Dimensions (W×H×D) | 418 × 435 × 232 mm |
| Net Weight | 43 kg |
| Compliance | CE |
| Brand | Endecotts |
|---|---|
| Origin | United Kingdom |

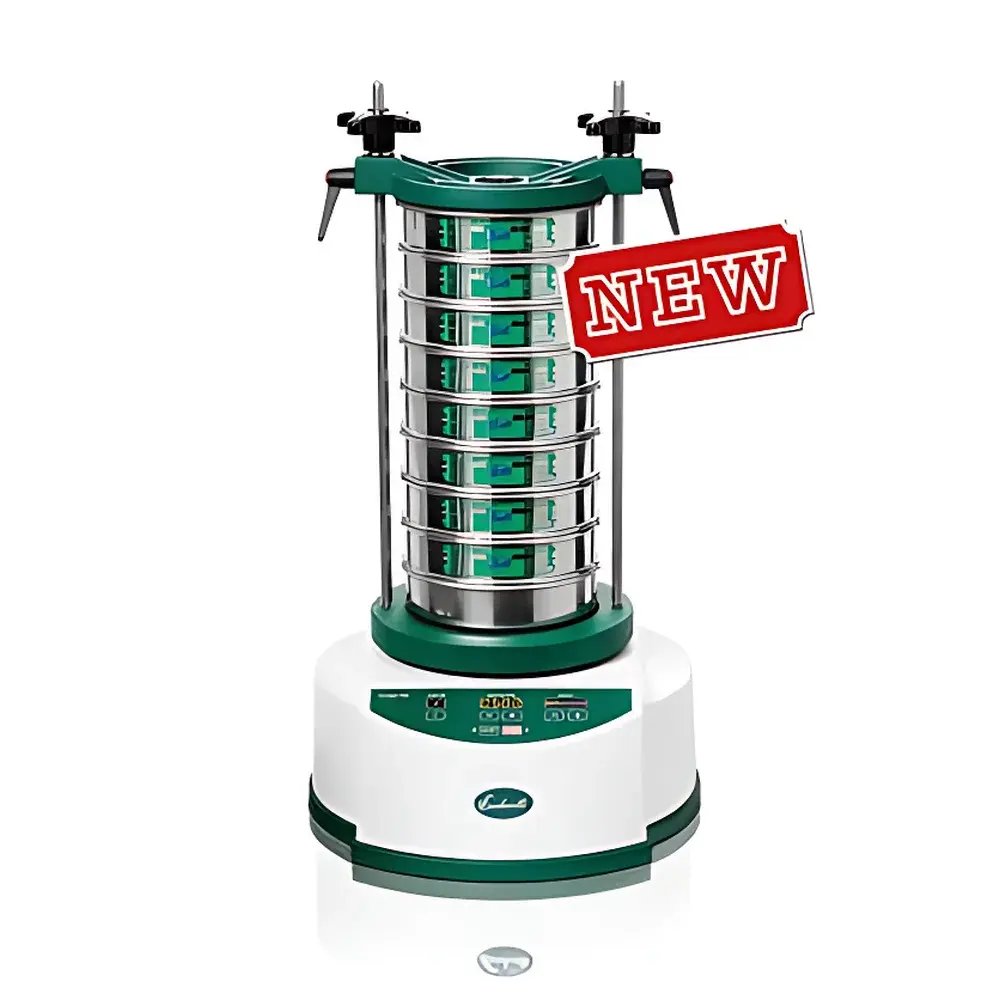

| Model | Octagon D200 |
| Principle | Electromagnetic 3D vibratory sieving |
| Power Supply | 230 V / 50 Hz / 300 VA or 115 V / 60 Hz / 300 VA |
| Sieve Diameter | 200 mm (8") |
| Max Stack Capacity | 8 full-height or 18 half-height sieves |
| Vibration Frequency | 3000 min⁻¹ (50 Hz) / 3600 min⁻¹ (60 Hz) |
| Max Amplitude | 3.4 mm (50 Hz) / 2.5 mm (60 Hz) |
| Net Weight | 43 kg |
| Dimensions (H × Ø) | 210 mm × 410 mm (excl. support rod) |
| Operating Temperature | 5–35 °C |
| Relative Humidity | 35–90% RH |
| Compliance | BS 410:2000, ISO 3310-1 & -2:2016, ASTM E11-22 |
