| Brand | GLASER |
|---|---|
| Origin | Jiangsu, China |

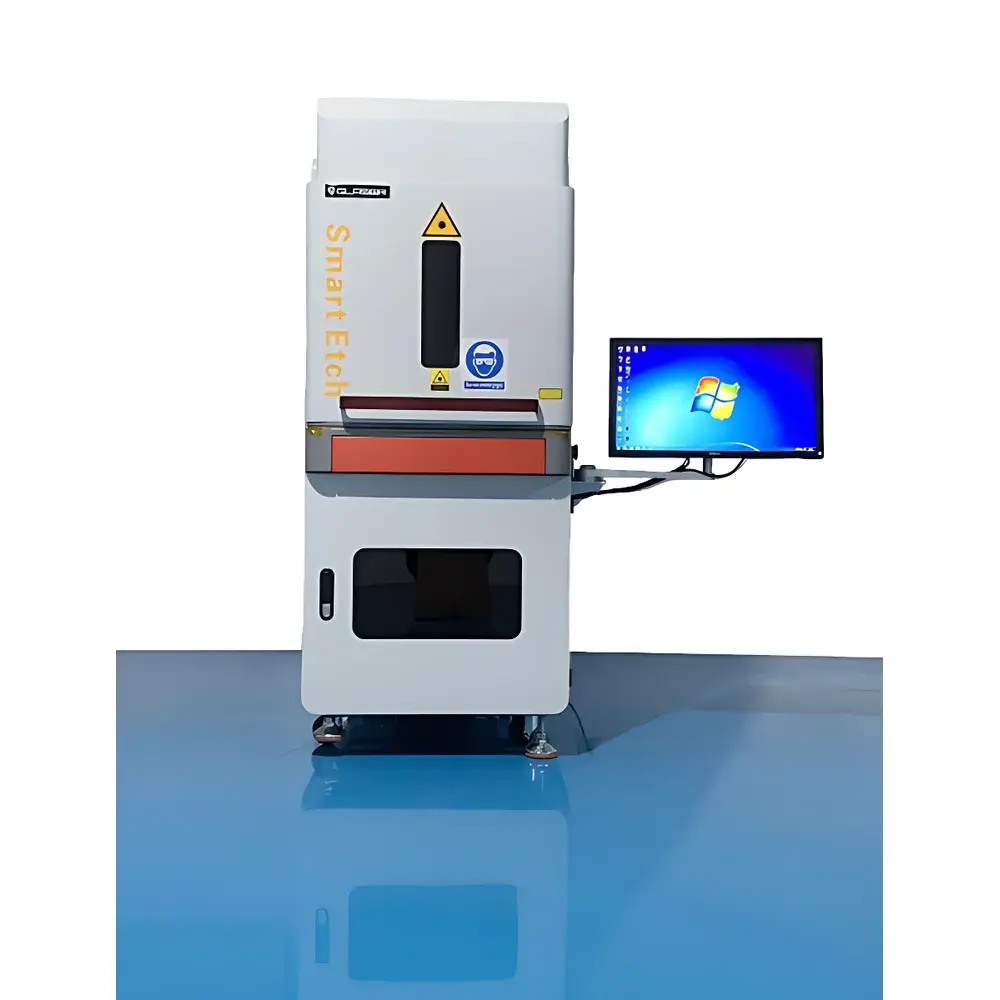

| Model | SMART ETCH UV |
| Laser Wavelength | 355 nm |
| Pulse Width | 10 ± 5 ns @ 40 kHz, 20 ± 5 ns @ 100 kHz |
| Average Power | 7 W @ 60 kHz |
| Pulse Energy | 125 µJ |
| Output Power Range | 1–100% |
| Max Scanning Area | 110 mm × 110 mm |
| Beam Quality (M²) | ≤ 1.2 |
| Scan Speed | 13,000 mm/s |
| Delidding Speed | ≥ 3,000 mm/s |
| Single-Pass Depth Control | 0.01–1.0 mm |
| Sample Height Range | 0.5–70 mm |
| Camera Resolution | 20 MP color CCD |
| Filtration Efficiency | >98% for particles ≥ 0.3 µm |
| Operating Gas | Compressed air or N₂, 0.3 MPa |
| Safety Class | Class I (interlocked) |
| Dimensions (W×D×H) | 730 × 1100 × 1600 mm |
| Weight | 280 kg |
