| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Magnutom-5000 |
| Instrument Type | Metallographic Cutting Machine |
| Cutting Chamber Width | 1000 mm |
| Axes | 4-axis (X, Y, Z + Rotary Table) |
| Automation Level | Fully Automated with Simulated Path Validation |
| Software Interface | Icon-Based Programming Environment with Real-Time Joystick-Driven Trajectory Recording |
| Safety Features | Collision-Avoidance Motion Logic, Wheel-Damage Prevention During Non-Cutting Movement |
| Wheel Wear Compensation | Adaptive Speed Optimization via Integrated Wear Sensors |
| Compliance | Designed for ISO 14827, ASTM E3, and EN ISO 643-compliant sample preparation workflows |
| Power Drive | Dual-Motor Configuration Supporting Simultaneous Twin-Wheel Operation |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | Denmark |

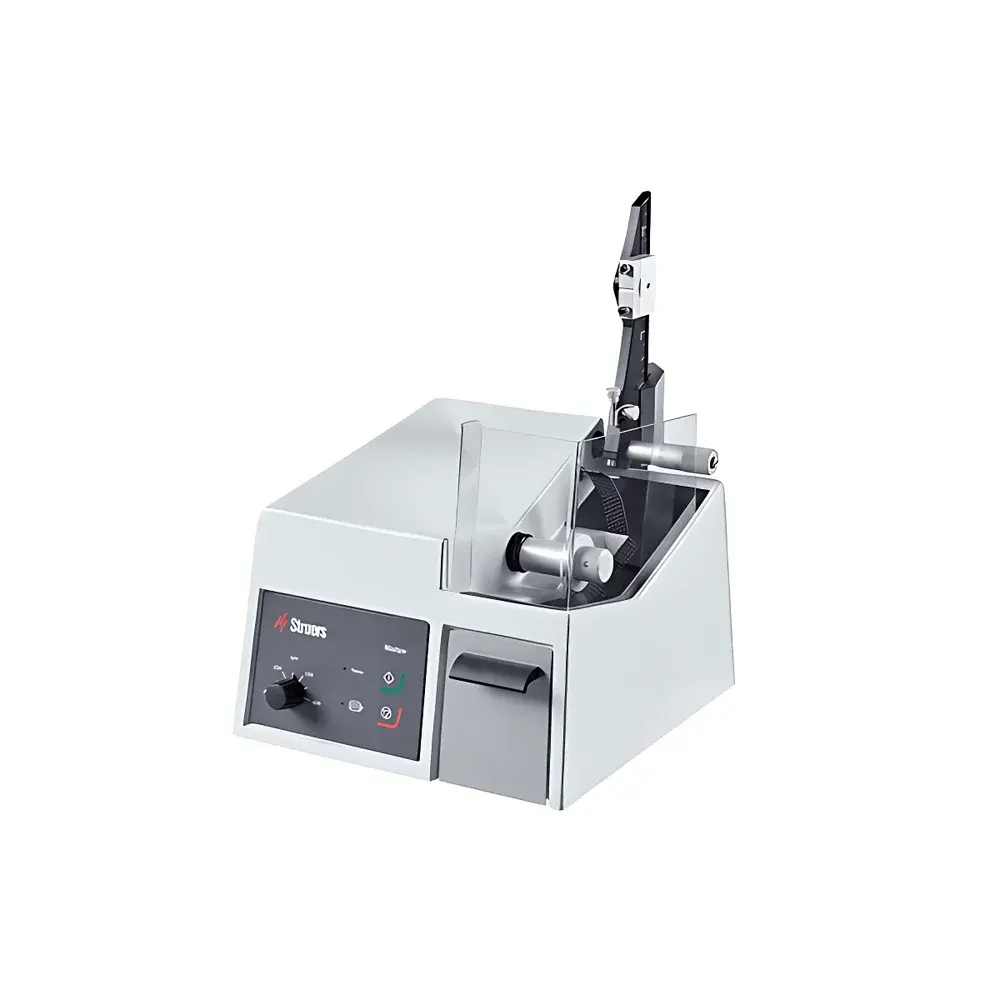

| Model | Minitom |
| Instrument Type | Metallographic Cutting Machine |
| Maximum Sample Diameter | 30 mm |
| Dimensions (W × D) | 280 mm × 400 mm |
| Drive System | Brushless DC Motor with Load-Compensated Speed Control |
| Speed Range | Continuously Variable, 0–150 rpm |
| Sample Mounting | Manual Clamp with Micrometer-Indexed Height Adjustment |
| Wheel Compatibility | Standard 200 mm Diameter Cutting Wheels (ISO 6194-1 Compliant) |
| Safety Compliance | EN ISO 13857, EN 60204-1, CE Marked |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Axitom |
| Instrument Type | Metallographic Cutting Machine |
| Maximum Wheel Diameter | 350 mm |
| Motor Power (S1) | 5.5–6.5 kW |
| Motor Power (S3) | 7.9–9.2 kW |
| Peak Power | 11–13 kW |
| Rotational Speed (rated load) | 1950 rpm |
| Max Workpiece Dimensions (H×W×D) | 200 × 650 × 440 mm |
| Extended Chamber Clearance (H×D) | 120 × 170 mm |
| Positioning Range | 0–300 mm |
| Max Sample Height Under Wheel | 200 mm |
| Positioning Speed | 50 mm/s |
| Feed Rate Range | 0.05–5 mm/s |
| Cutting Force Range | 50–700 N |
| Table Size (W×D) | 591 × 492 mm |
| T-Slot Width | 12 mm |
| Overall Dimensions (H×W×D) | 1745 × 1155 × 1305 mm |
| Weight | 758 kg |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Secotom |
| Cutting Capacity | 50 × 165 mm |
| Wheel Diameter Range | 75–203 mm (3–8 in) |
| X-Axis Travel | 40 mm |
| T-Slot Width | 8 mm |
| Laser Positioning System | Integrated |
| User Interface | Color TFT Display with Multifunction Rotary Knob and Joystick |
| Compliance | Designed for ISO 14971 risk management and aligned with EN 61000-6-2/6-4 EMC standards |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Labotom-20 |
| Cutting Wheel Diameter | 250 mm or 350 mm |
| Maximum Sample Dimensions | 62 mm × 250 mm (2.5″ × 9.8″) |
| Compliance | CE, ISO 12100, EN 60204-1 |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Accutom-100 |
| Instrument Type | Metallographic Cutting Machine |
| Cutting Mode | Sawing & Grinding |
| Positioning Resolution | 5 µm (X-axis), 100 µm (Y-axis) |
| Compliance | CE, ISO 12100, EN 61000-6-2/6-4 |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Labotom-5 |
| Cutting Wheel Diameter | 250 mm (10") |
| Spindle Bore | 32 mm (1.26") |
| No-Load Speed | 2845 rpm (50 Hz) / 3450 rpm (60 Hz) |
| Max Cutting Capacity | Ø90 mm or 42 × 120 mm |
| Cutting Table Dimensions | 225 × 316 mm (W × L) |
| T-Slot Width | 10 mm |
| Motor Rating | 2.2 kW (S3 60 %) / 3.2 kW (S3 15 %) |
| Weight | 75 kg |
| Noise Level | ~60 dBA at 1 m |
| Operating Temperature | 5–40 °C |
| Relative Humidity | 0–95 % RH (non-condensing) |
| Brand | Struers |
|---|---|
| Country of Origin | Denmark |
| Model | Discotom-10 |
| Instrument Type | Metallographic Cutting Machine |
| Cutting Table Dimensions | 620 × 270 mm |
| T-Slot Width | 10 mm |
| Control Interface | Icon-Based Touchscreen UI |
| Feed System | OptiFeed Automatic Feed Control |
| Manual Mode | ExciCut |
| Optional Functionality | MultiCut (4 preset X-axis travel profiles) |
| Integrated Features | AxioWash Automatic Cleaning Cycle, Electric Brake |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Discotom-100 |
| Instrument Type | Metallographic Cutting Machine |
| Cutting Table Dimensions | 620 × 270 mm |
| T-Slot Width | 10 mm |
| Control Interface | Icon-Based Touchscreen GUI |
| Feed System | OptiFeed Automatic Feed Control |
| Cutting Modes | Auto MultiCut (4 preset X-axis programs), Manual ExciCut, and Semi-Automatic Operation |
| Integrated Features | AxioWash Automatic Blade Cleaning, Electric Brake System |
| Compliance | Designed for ISO 14971 risk management and aligned with ASTM E3, ISO 3887, and EN 61000-6-2 EMC standards |
