| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Xmatic |
| Maximum Speed | 600 rpm |
| Platen Diameter | 300 mm |
| Number of Platens | 8 |
| Dimensions (L×W×D) | 2420 × 750 × 1200 mm |
| Automation Level | Fully Automated End-to-End Sample Preparation System |
| Compliance | Designed for ISO/IEC 17025, ASTM E3, ASTM E407, ISO 14487, and GLP/GMP-aligned documentation workflows |
| Software | STRUERS LaboPlan® Integration Ready |
| Cleaning | Integrated High-Pressure Rinse, Ultrasonic Cleaning Module, Auto-Cleaning Dosing Lines |
| Force Control | Load-adaptive, sample-count-synchronized force modulation |
| Dosing | Viscosity-independent precision dosing pump with pre-wetting function |
| Documentation | Full audit trail, timestamped process logs, method versioning, user access control |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Hexamatic |
| Dimensions (L×W×D) | 1911 × 2981 × 879 mm |
| Number of Grinding/Polishing Discs | 8 |
| Disc Diameter | 250 mm |
| Rotational Speed Range | 50–300 rpm |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | Tegramin |
| Grinding Plate Count | 1 |
| Plate Diameter Options | 200 mm / 250 mm / 300 mm |
| Platen Speed Range | 40–600 rpm |
| Specimen Holder Rotation Speed | 50–150 rpm |
| Dimensions (L×W×H) | 480 × 600 × 650 mm |
| Sample Capacity (Tegramin-30) | up to six 50-mm-diameter specimens or one 160/200-mm-diameter multi-specimen holder |
| Sample Capacity (Tegramin-25) | up to six 40-mm-diameter specimens or three 50-mm-diameter specimens plus one 140/160-mm-diameter holder |
| Sample Capacity (Tegramin-20) | up to four 40-mm-diameter specimens |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | LectroPol-5 |
| Application | Automated Electrolytic Polishing & Etching of Metallographic Specimens |
| Control Architecture | Dual-unit (Separable Control Unit + Polishing Unit) |
| Scanning Functionality | Real-time Voltage Sweep with Graphical Display |
| Method Library | Preloaded 10 Material-Specific Protocols + User-Definable Storage for 20 Custom Methods |
| Compliance Framework | Designed for GLP/GMP-aligned metallographic labs |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Flexible Holder |
| Pricing | Upon Request |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | TegraSystem |
| Grinding/Polishing Disc Count | 1 |
| Disc Diameter | 200 mm (8") |
| Rotational Speed Range | 40–600 rpm |
| Construction Material | Stainless Steel and Anodized Aluminum Cabinet |
| Remote Operation Interface | Touch Panel with Integrated Control Logic |
| Modular Consumable Tray | Removable and Decontaminable |
| Maintenance Access | Full Frontal & Top Serviceability for Motor, Drive Belt, and Fluid Lines |
| Brand | Struers |
|---|---|
| Model | TenuPol-5 |
| Origin | Denmark (Imported) |
| Dimensions (L×W×D) | 276 × 270 × 180 mm |
| Unit Configuration | Dual-module system (Control Unit + Thinning/Polishing Unit) |
| Sample Diameter | 2.3 mm or 3.0 mm |
| Automatic Perforation Detection | Infrared sensor-based endpoint detection |
| Method Storage Capacity | Up to 200 user-defined methods + 18 preloaded Struers methods |
| Voltage Scanning Function | Automated voltage sweep for current density curve acquisition |
| Compliance | Designed for GLP-compliant TEM sample preparation workflows |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | AbraPlan-30 |
| Dimensions (L×W×D) | 1560 × 840 × 980 mm |
| Grinding Plate Count | 1 |
| Grinding Plate Diameter | 356 mm |
| Rotational Speed | 1450 rpm |
| Brand | Struers |
|---|---|
| Origin | Denmark |
| Model | LaboSystem |
| Dimensions (L×W×D) | 250 × 510 × 765 mm |
| Number of Grinding/Polishing Plates | 1–2 |
| Plate Diameter | 200–300 mm |
| Rotational Speed Range | 50–500 rpm |
| Brand | Struers |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | TargetSystem |
| Dimensions (L×W×D) | 595 × 820 × 860 mm |
| Number of Grinding/Polishing Plates | 1 |
| Plate Diameter | 200 mm (8") |
| Rotational Speed Range | 10–300 rpm |
| Brand | Struers |
|---|---|
| Origin | Denmark |

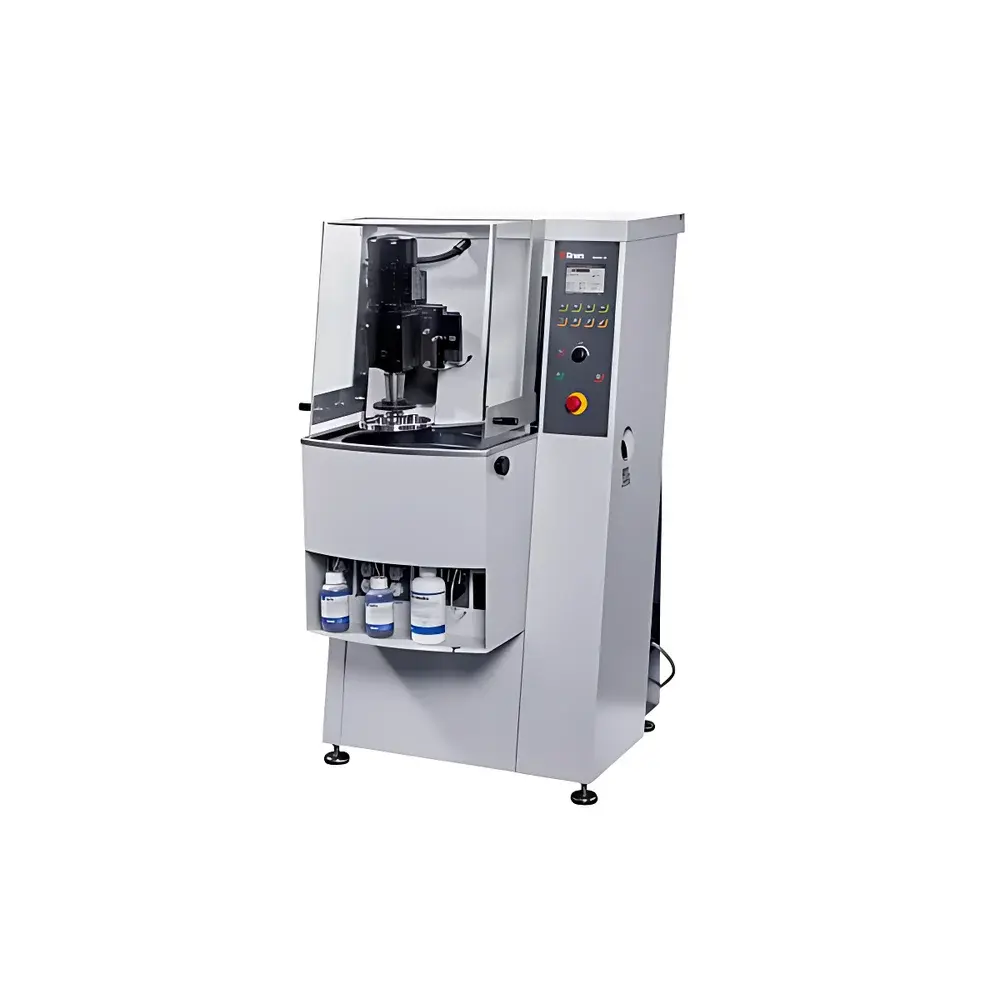

| Model | AbraPol-30 |
| Dimensions (L×W×D) | 1560 × 840 × 980 mm |
| Grinding Plate Count | 1 |
| Grinding Plate Diameter | 350 mm |
| Rotational Speed Range | 40–600 rpm |
